ScaFix plans Kwikstage scaffolding with the system's own bay lengths (0.76–3.05 m) and depths (1.27 m and 0.76 m), draws the scaffold in 3D and works out the parts list. Below is our example house with Kwikstage.
Try one week – €9.90See the demo house in 3DSee ScaFix
€9.90 for 7 days. Does not renew.
How many parts does Kwikstage need for a house?
ScaFix plans Kwikstage with the bay lengths 0.76–3.05 m and the scaffold depth 0.76 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, Kwikstage needs 533 parts; HAKI Universal needs 610 on the same house.
The system in ScaFix
- System type
- Modular scaffold with wedge connections
- Variants in the system picker
- Kwikstage
- Bay lengths
- 3.05 m, 2.44 m, 1.83 m, 1.27 m, 0.81 m, 0.76 m
- Depths
- 1.27 m, 0.76 m
- Wall-tie rule in ScaFix
- General rule: ScaFix does not have the manufacturer's document for this system yet. Check the ties against the manufacturer's instructions.

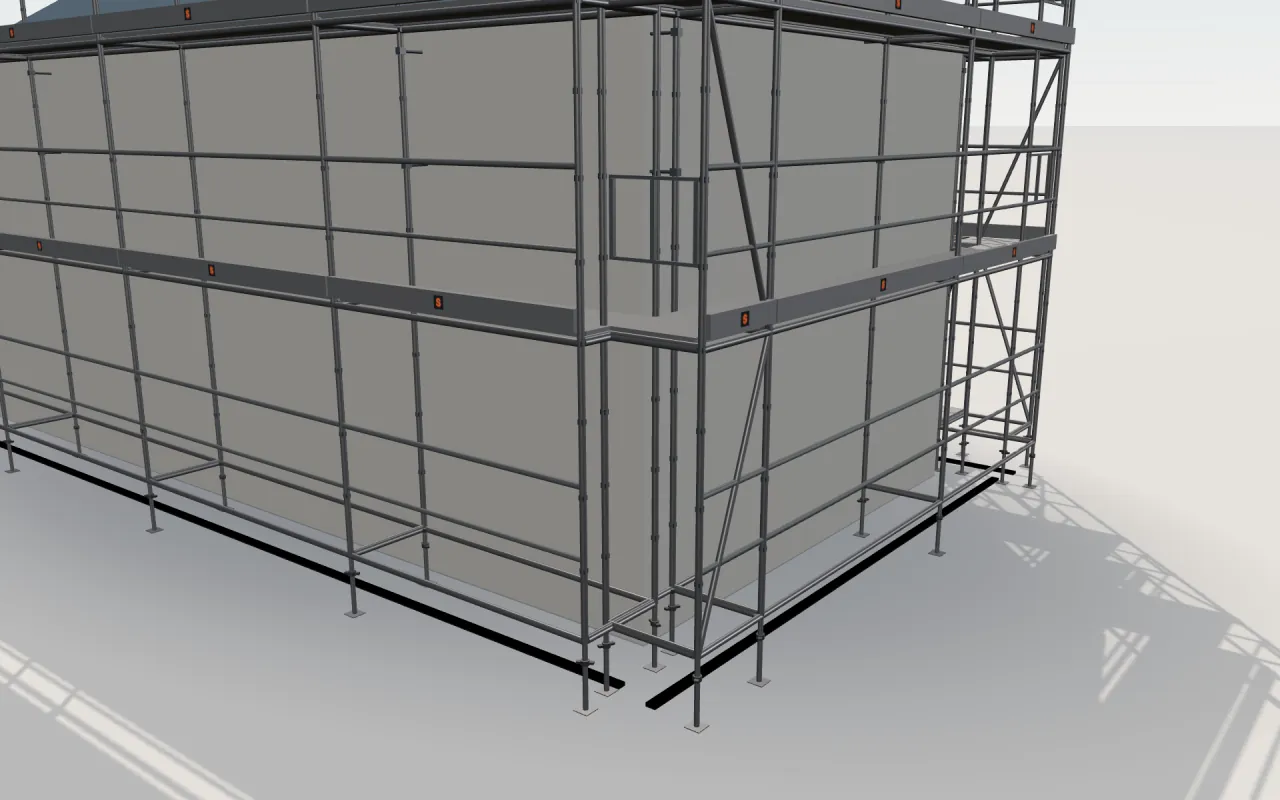

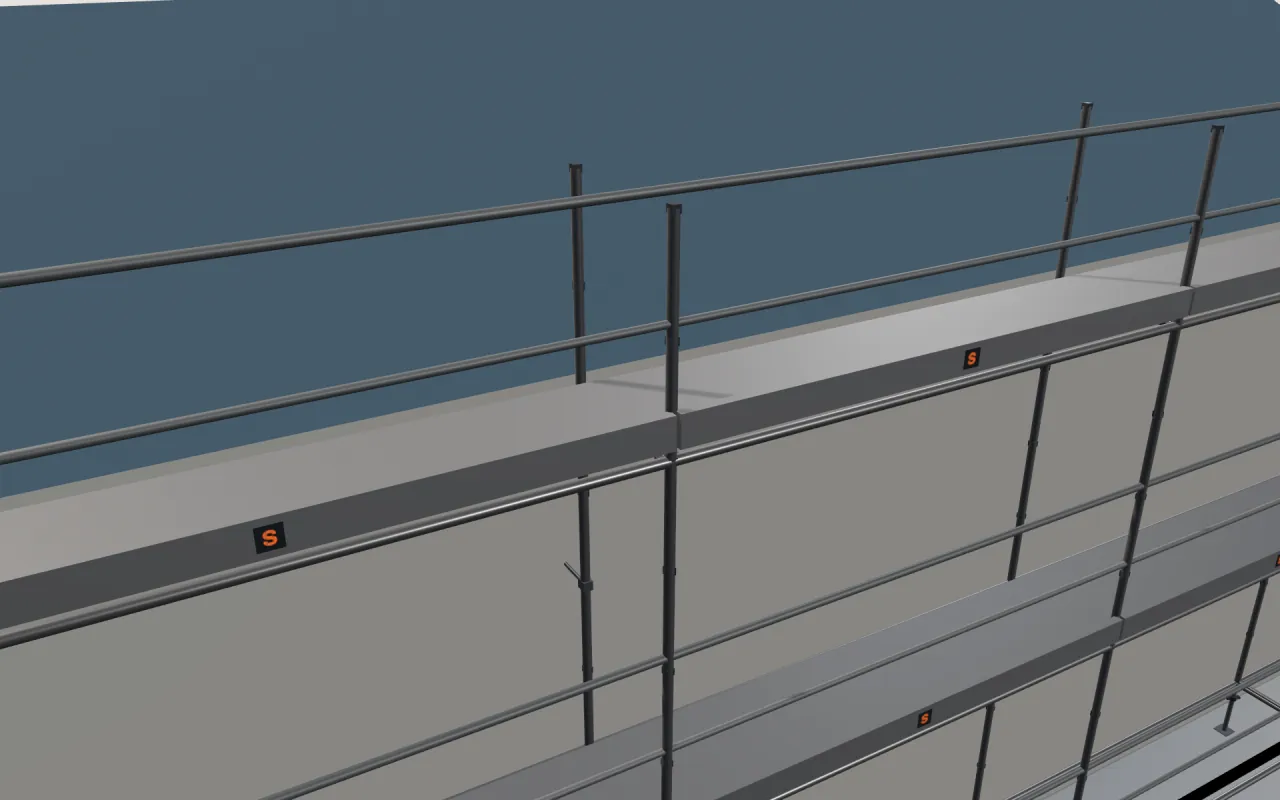

Close-ups from the 3D model
The example house with Kwikstage

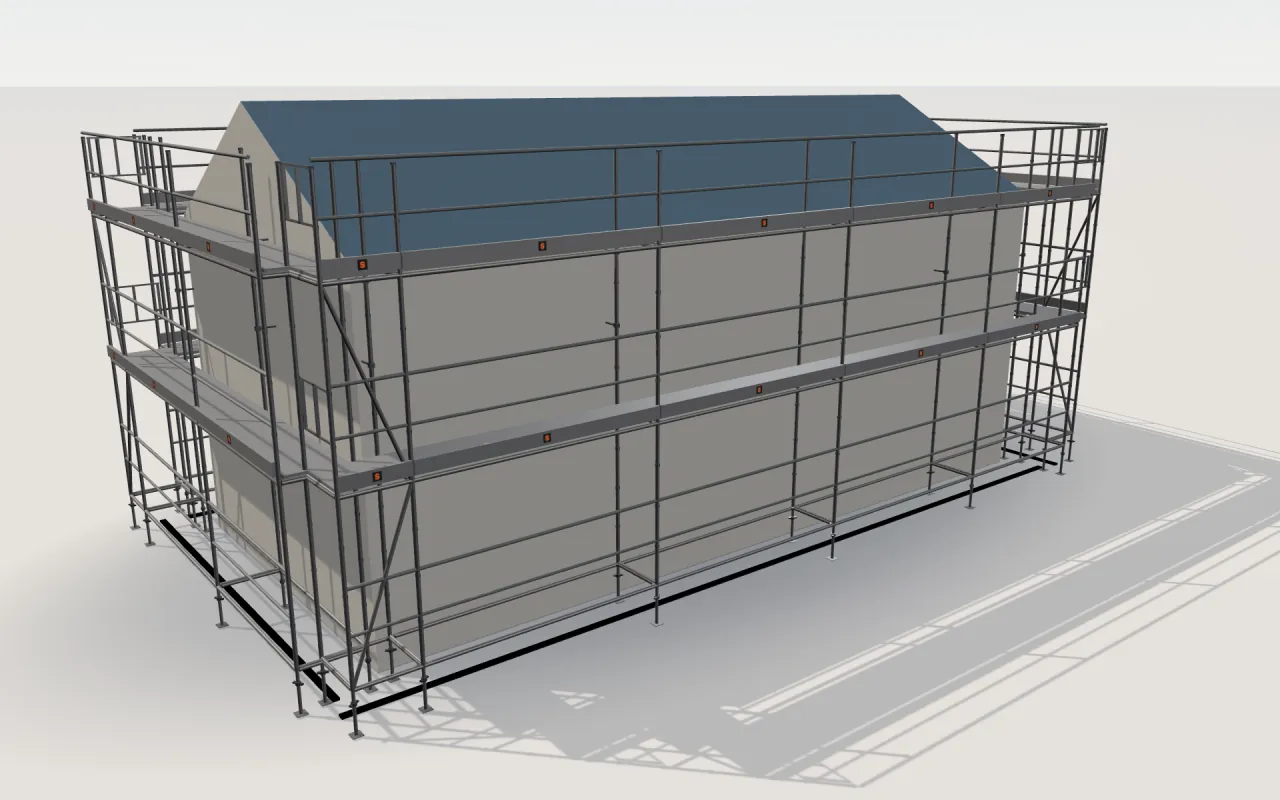

ScaFix's own example: the 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.
- System
- Kwikstage
- Scaffold depth
- 0.76 m
- Decks at
- 2.5 m, 4.5 m
- Top deck
- 4.5 m
- Access
- Decks with ladders
- Parts in all
- 533
The walls and the bays
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 | 11.4 m | 4.5 m | 1 × 0.76 m + 3 × 3.05 m + 1 × 2.44 m |
| Wall 2 (gable) | 5.3 m | 6 m | 1 × 0.76 m + 1 × 3.05 m + 1 × 2.44 m |
| Wall 3 | 11.4 m | 4.5 m | 1 × 0.76 m + 3 × 3.05 m + 1 × 2.44 m |
| Wall 4 (gable) | 5.3 m | 6 m | 1 × 0.76 m + 1 × 3.05 m + 1 × 2.44 m |
The parts list for the example house with Kwikstage
The whole parts list for ScaFix's own example, grouped the way the app shows it.
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Standards | 2 m | 80 |
| Standards | 1 m | 40 |
| Ledgers and beams | ||
| Ledgers | 3.05 m | 48 |
| Ledgers | 2.44 m | 24 |
| Ledgers | 0.76 m | 24 |
| Transoms | 60 | |
| Decks | ||
| Decks without ladder | 3.05 m | 15 |
| Decks without ladder | 2.44 m | 8 |
| Decks without ladder | 0.76 m | 8 |
| Decks with ladder | 3.05 m | 2 |
| Guardrails | ||
| Front guardrails | 3.05 m | 48 |
| Front guardrails | 2.44 m | 24 |
| Front guardrails | 0.76 m | 24 |
| Toeboards | ||
| Toeboards | 3.05 m | 16 |
| Toeboards | 2.44 m | 8 |
| Toeboards | 0.76 m | 8 |
| Diagonals | ||
| Diagonals | 0.76 m | 8 |
| Ends | ||
| End guardrails | 8 | |
| Wall ties and fittings | ||
| Wall ties | 20 | |
| Wall-anchor fittings | 20 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
This is our example. The parts list for your own walls follows your measurements and settings.
Kwikstage compared with similar systems on the same house
The same example house, computed by the same engine with each system's bay length and default depth. The difference in piece count comes from the bay length, the depth and how the system is built.
| System | Bays on the long wall | Depth | Parts in all |
|---|---|---|---|
| Kwikstage | 1 × 0.76 m + 3 × 3.05 m + 1 × 2.44 m | 0.76 m | 533 |
| HAKI Universal | 5 × 2.5 m | 1.01 m | 610 |
| Tubesca-Comabi M368 | 1 × 0.8 m + 3 × 3 m + 1 × 2.5 m | 0.8 m | 537 |
| Layher Allround | 4 × 3.07 m | 0.73 m | 481 |
How to compare the setup
- These are fixed ScaFix examples, not customer jobs. Use the wall dimensions and roof shape stated with each example.
- Compare the same system variant, bay lengths, scaffold depth, deck heights and access. Matching house dimensions alone do not give matching parts lists.
- The displayed quantities are calculated by ScaFix's engine. Check the setup against the manufacturer's assembly instructions and the actual job; a parts list is not a structural calculation.
Limits
- The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
- Round corners, silos and hanging scaffolds are in Pro. A round scaffold is not a standard configuration and needs a calculation or the supplier's documentation. A hanging scaffold (Layher Allround and HAKI Universal) always needs a structural calculation from the supplier or an engineer.
Questions and answers
Which bay lengths does Kwikstage have in ScaFix?
ScaFix uses the bay lengths 3.05 m, 2.44 m, 1.83 m, 1.27 m, 0.81 m and 0.76 m and the depths 1.27 m and 0.76 m for Kwikstage.
How many parts does the example house need with Kwikstage?
With Kwikstage, the 11.4 m × 5.3 m example house needs 533 parts in all, split into the groups in the table. Your own building gets its own parts list.
Is the Kwikstage plan from ScaFix approved for erection?
ScaFix is a planning tool, not a structural calculation or approval. Always check the scaffold against the manufacturer's assembly instructions and the rules that apply before you erect it.
