Scaffold system

MJ COMBI in ScaFix

ScaFix plans MJ COMBI scaffolding with the system's own bay lengths (0.73–3.07 m) and depths (1.4 m, 1.09 m and 0.73 m), draws the scaffold in 3D and works out the parts list. Below is our example house with MJ COMBI.

Last updated 22 October 2026

Try one week – €9.90 See the demo house in 3D See ScaFix

€9.90 for 7 days. Does not renew.

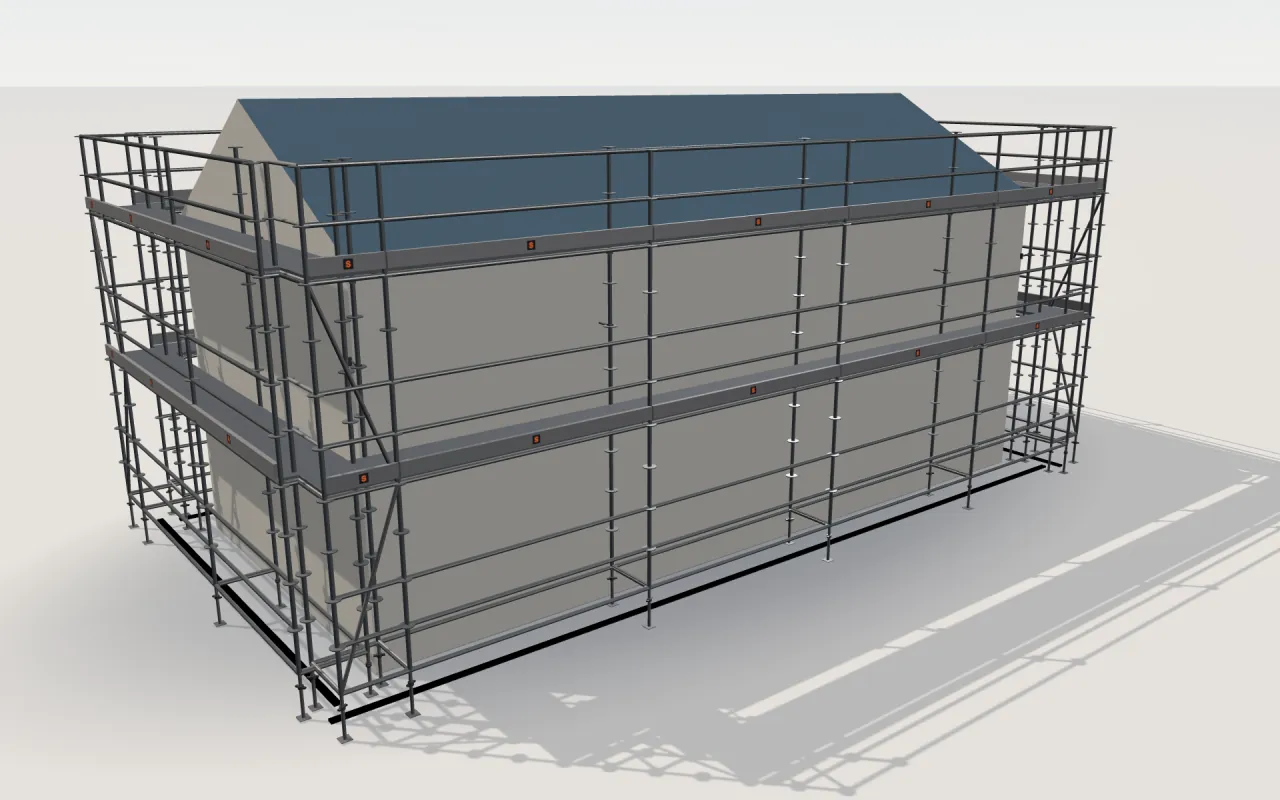

MJ COMBI around the example house, as ScaFix draws it in 3D.

How many parts does MJ COMBI need for a house?

ScaFix plans MJ COMBI with the bay lengths 0.73–3.07 m and the scaffold depth 0.73 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, MJ COMBI needs 533 parts; Layher Allround needs 481 on the same house.

The system in ScaFix

Manufacturer: MJ-Gerüst
System type: Modular scaffold with rosettes
Variants in the system picker: MJ COMBI
Bay lengths: 3.07 m, 2.57 m, 2.07 m, 1.57 m, 1.4 m, 1.09 m, 1.04 m, 0.73 m
Depths: 1.4 m, 1.09 m, 0.73 m
Wall-tie rule in ScaFix: General rule: ScaFix does not have the manufacturer's document for this system yet. Check the ties against the manufacturer's instructions.

Close-ups from the 3D model

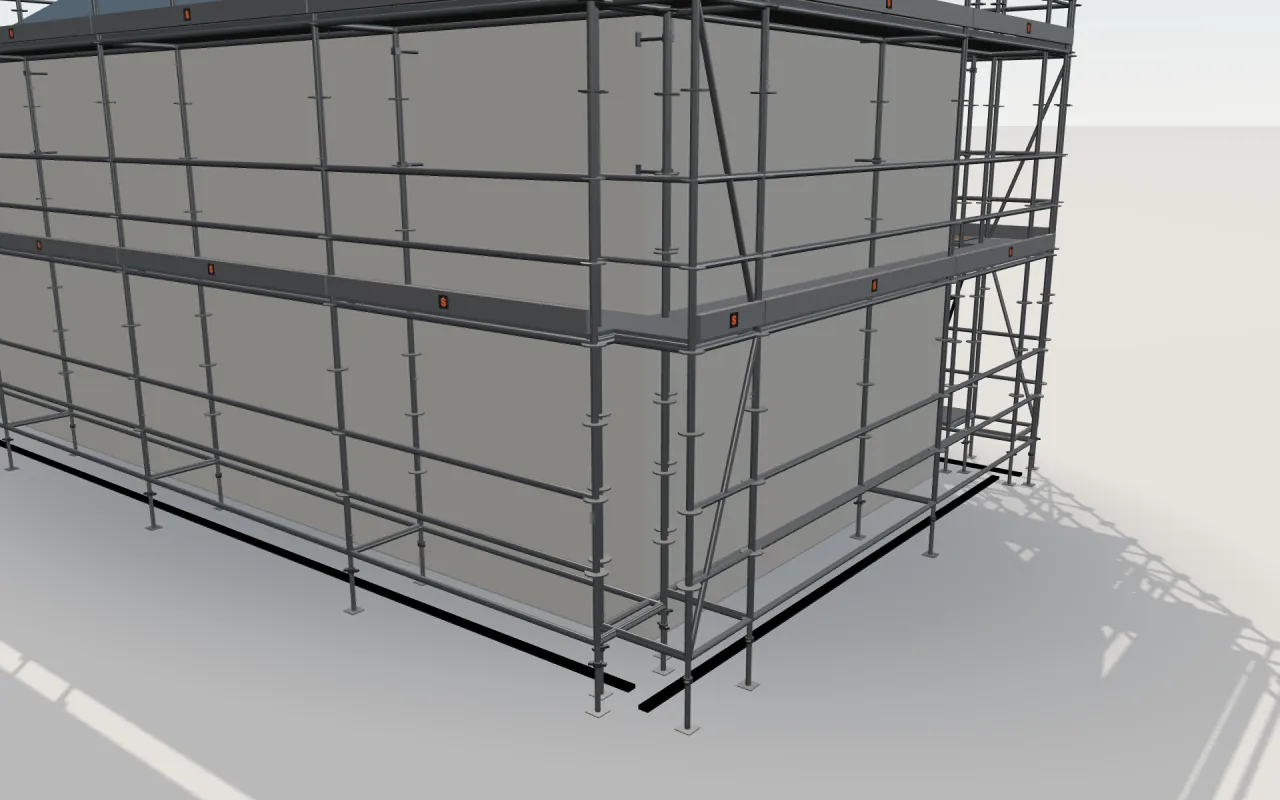

Close-up of the corner where the long wall and the gable wall meet, with MJ COMBI standards, decks, guardrails and toe boards in the ScaFix 3D model — The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

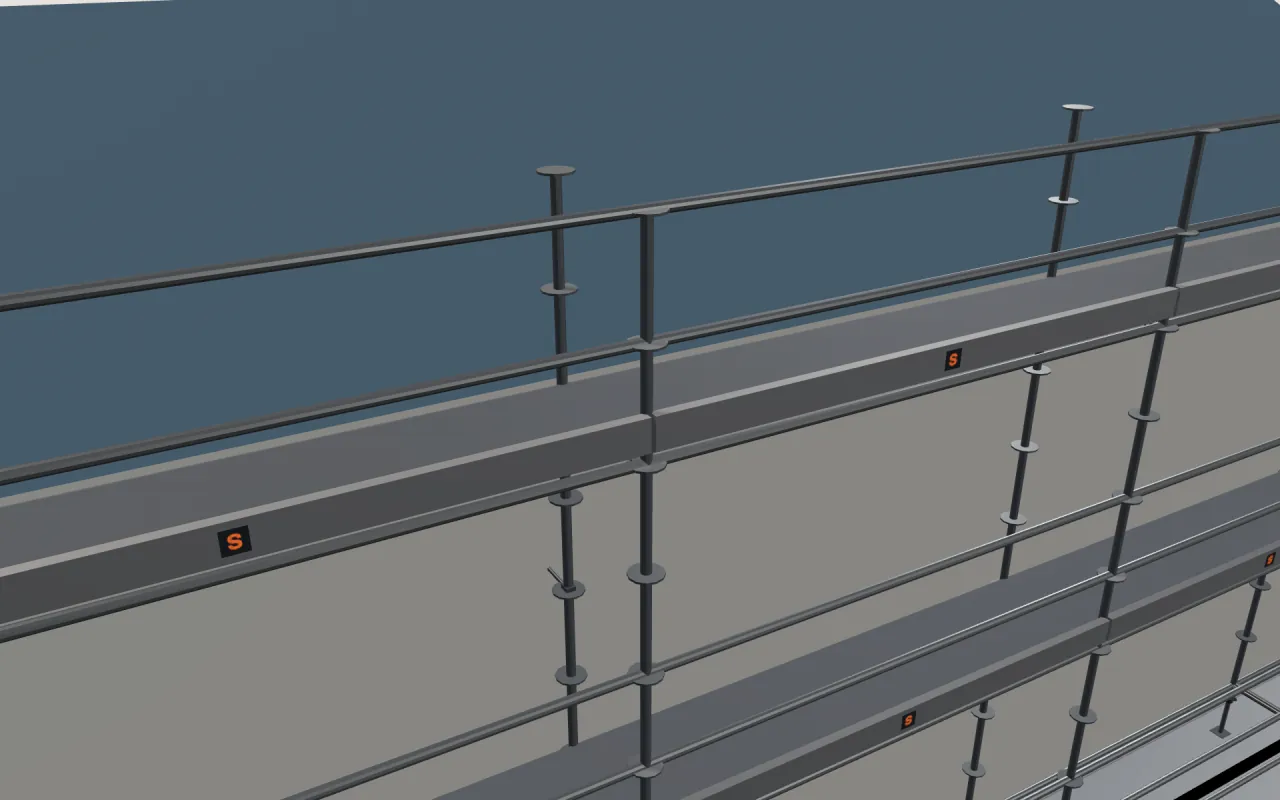

Close-up of the top MJ COMBI lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model — The top lift below the eaves, with guardrails and toe boards.

The example house with MJ COMBI

ScaFix's own example: the 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.

System: MJ COMBI
Scaffold depth: 0.73 m
Decks at: 2.5 m, 4.5 m
Top deck: 4.5 m
Access: Decks with ladders
Parts in all: 533

The walls and the bays

The walls of the example house with MJ COMBI
Wall	Length	Height	Bays
Wall 1	11.4 m	4.5 m	1 × 0.73 m + 3 × 3.07 m + 1 × 2.57 m
Wall 2 (gable)	5.3 m	6 m	1 × 0.73 m + 1 × 3.07 m + 1 × 2.57 m
Wall 3	11.4 m	4.5 m	1 × 0.73 m + 3 × 3.07 m + 1 × 2.57 m
Wall 4 (gable)	5.3 m	6 m	1 × 0.73 m + 1 × 3.07 m + 1 × 2.57 m

The parts list for the example house with MJ COMBI

The whole parts list for ScaFix's own example, grouped the way the app shows it.

The parts list for the example house with MJ COMBI
Part	Length	Count
Frames and standards
Standards	2 m	80
Standards	1 m	40
Ledgers and beams
Ledgers	3.07 m	48
Ledgers	2.57 m	24
Ledgers	0.73 m	24
Transoms		60
Decks
Decks without ladder	3.07 m	15
Decks without ladder	2.57 m	8
Decks without ladder	0.73 m	8
Decks with ladder	3.07 m	2
Guardrails
Front guardrails	3.07 m	48
Front guardrails	2.57 m	24
Front guardrails	0.73 m	24
Toeboards
Toeboards	3.07 m	16
Toeboards	2.57 m	8
Toeboards	0.73 m	8
Diagonals
Diagonals	0.73 m	8
Ends
End guardrails		8
Wall ties and fittings
Wall ties		20
Wall-anchor fittings		20
Base jacks and legs
Base jacks / legs		40

This is our example. The parts list for your own walls follows your measurements and settings.

MJ COMBI compared with similar systems on the same house

The same example house, computed by the same engine with each system's bay length and default depth. The difference in piece count comes from the bay length, the depth and how the system is built.

The example house with MJ COMBI and similar systems
System	Bays on the long wall	Depth	Parts in all
MJ COMBI	1 × 0.73 m + 3 × 3.07 m + 1 × 2.57 m	0.73 m	533
Layher Allround	4 × 3.07 m	0.73 m	481
PERI UP	1 × 0.75 m + 3 × 3 m + 1 × 2.5 m	0.75 m	567
Plettac Contur	1 × 0.75 m + 3 × 3 m + 1 × 2.5 m	0.74 m	561

How to compare the setup

These are fixed ScaFix examples, not customer jobs. Use the wall dimensions and roof shape stated with each example.
Compare the same system variant, bay lengths, scaffold depth, deck heights and access. Matching house dimensions alone do not give matching parts lists.
The displayed quantities are calculated by ScaFix's engine. Check the setup against the manufacturer's assembly instructions and the actual job; a parts list is not a structural calculation.

Limits

The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
Round corners, silos and hanging scaffolds are in Pro. A round scaffold is not a standard configuration and needs a calculation or the supplier's documentation. A hanging scaffold (Layher Allround and HAKI Universal) always needs a structural calculation from the supplier or an engineer.

Questions and answers

Which bay lengths does MJ COMBI have in ScaFix?

ScaFix uses the bay lengths 3.07 m, 2.57 m, 2.07 m, 1.57 m, 1.4 m, 1.09 m, 1.04 m and 0.73 m and the depths 1.4 m, 1.09 m and 0.73 m for MJ COMBI.

How many parts does the example house need with MJ COMBI?

With MJ COMBI, the 11.4 m × 5.3 m example house needs 533 parts in all, split into the groups in the table. Your own building gets its own parts list.

Is the MJ COMBI plan from ScaFix approved for erection?

ScaFix is a planning tool, not a structural calculation or approval. Always check the scaffold against the manufacturer's assembly instructions and the rules that apply before you erect it.
