ScaFix plans StepUp Frame & Brace scaffolding with the system's own bay lengths (4'–10') and depths (5' (1.52 m), 3'-6" (1.07 m) and 3' (0.91 m)), draws the scaffold in 3D and works out the parts list. Below is our example house with StepUp Frame & Brace.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
Try one week – €9.90See the demo house in 3DSee ScaFix
€9.90 for 7 days. Does not renew.
How many parts does StepUp Frame & Brace need for a house?
ScaFix plans StepUp Frame & Brace with the bay lengths 4'–10' and the scaffold depth 3' (0.91 m). On ScaFix’s 37'-5" (11.4 m) × 17'-4 1/2" (5.3 m) example house, scaffolded all round, StepUp Frame & Brace needs 332 parts; Waco Frame needs 352 on the same house.
The system in ScaFix
- Manufacturer
- StepUp Scaffold
- System type
- Frame and brace scaffold
- Variants in the system picker
- StepUp Frame & Brace
- Bay lengths
- 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m
- Depths
- 1.52 m, 1.07 m, 0.91 m
- Source of the tie rule
- 29 CFR § 1926.451(c)(1)(ii): first tie at the 4:1 height, then ≤ 20 ft (≤ 3 ft wide) / ≤ 26 ft (7.9 m) vertically, at each end and ≤ 30 ft (9.1 m) along
- Bay lengths in feet and inches
- 10', 8', 7', 6', 5', 4'

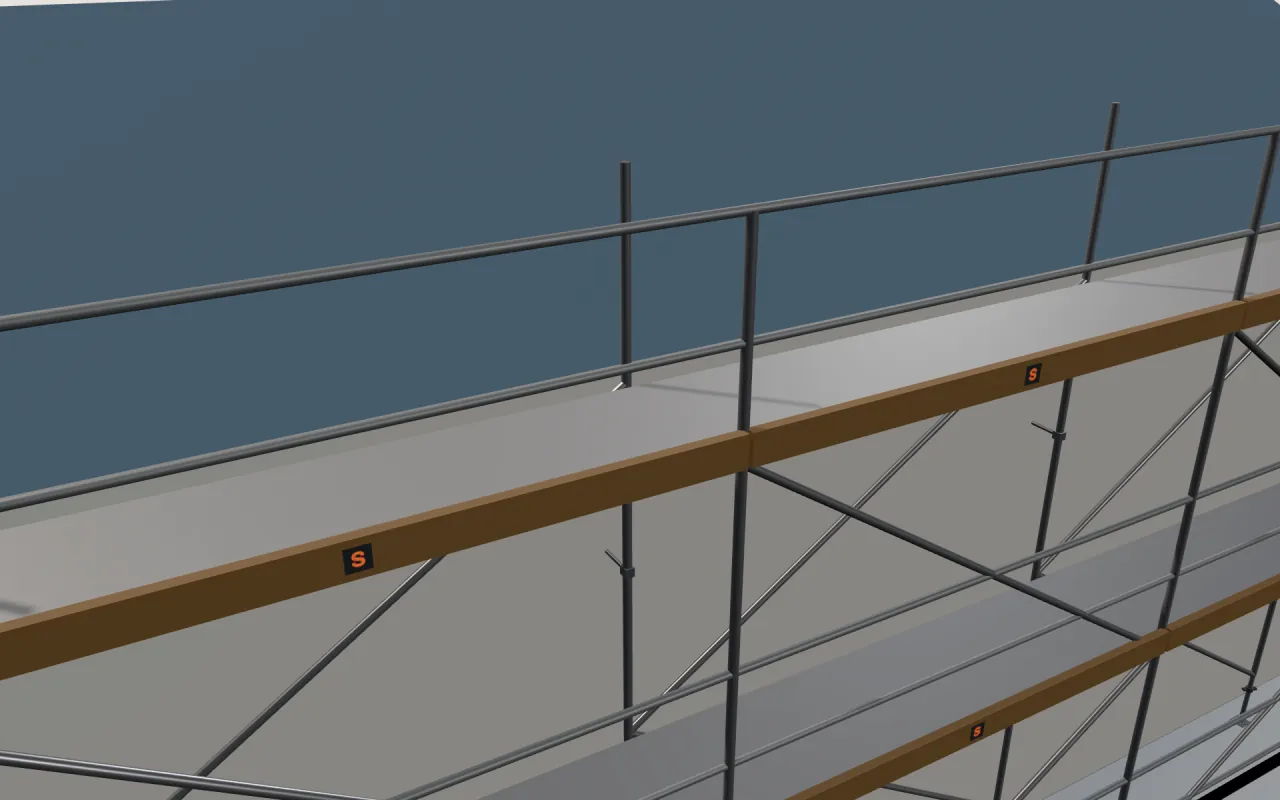

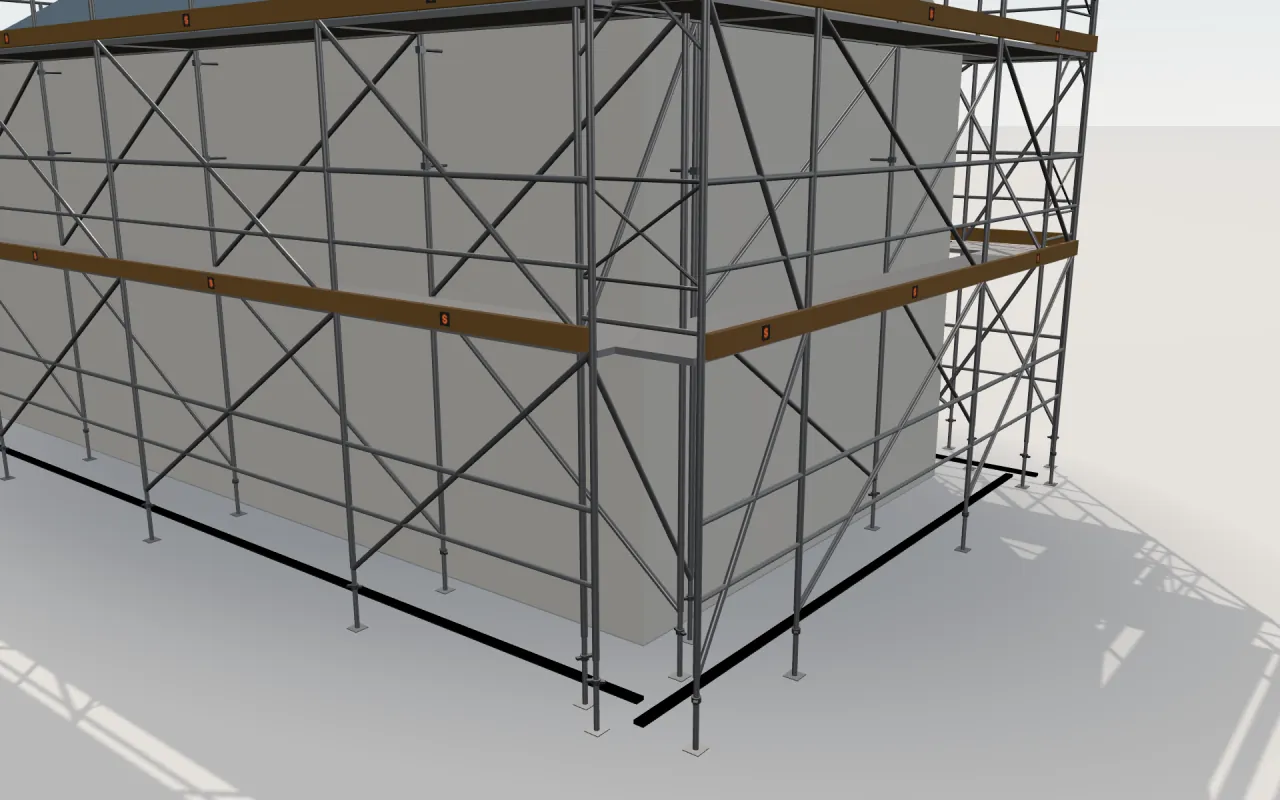

Close-ups from the 3D model
The example house with StepUp Frame & Brace

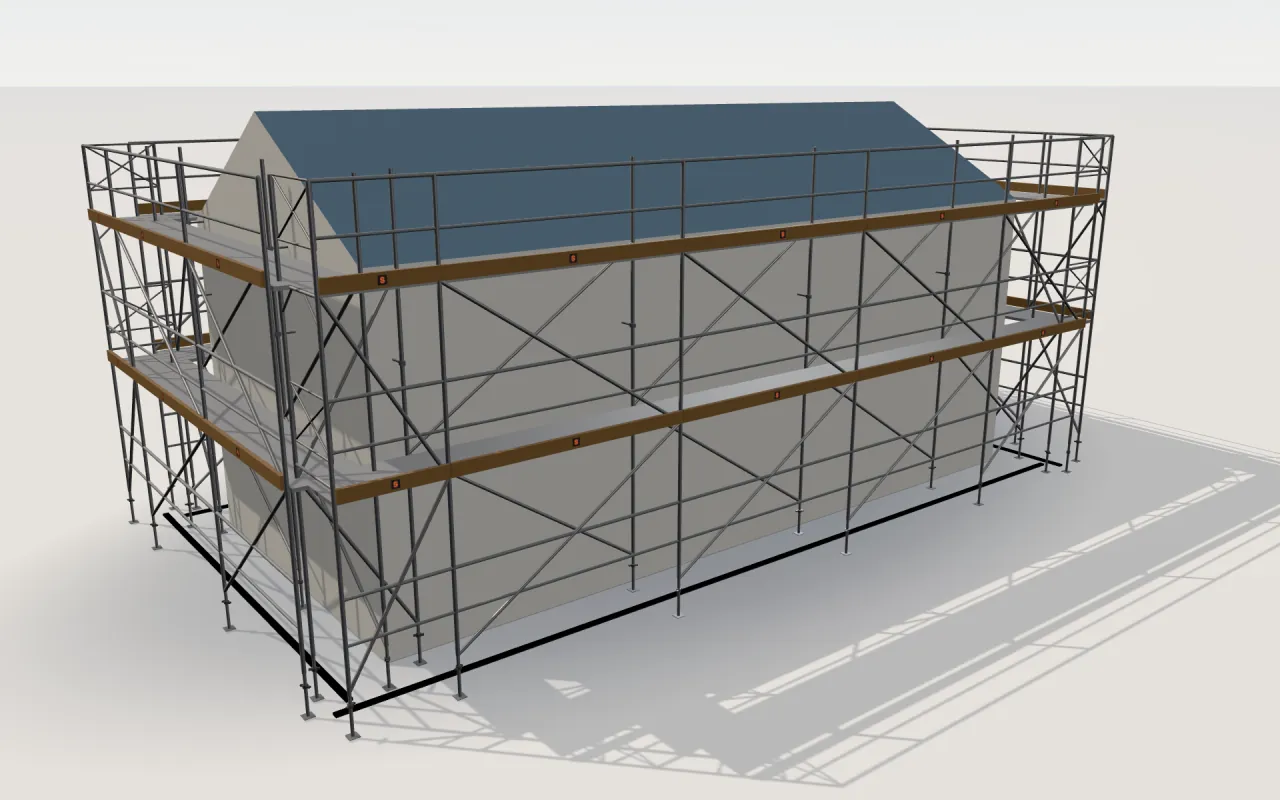

ScaFix's own example: the 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.
- System
- StepUp Frame & Brace
- Scaffold depth
- 0.91 m
- Decks at
- 2.5 m, 4.5 m
- Top deck
- 4.5 m
- Access
- Decks with ladders
- Parts in all
- 332
The walls and the bays
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 | 37'-5" (11.4 m) | 14'-9" (4.5 m) | 1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m) |
| Wall 2 (gable) | 17'-4 1/2" (5.3 m) | 19'-8" (6 m) | 1 × 4' (1.22 m) + 1 × 10' (3.05 m) + 1 × 8' (2.44 m) |
| Wall 3 | 37'-5" (11.4 m) | 14'-9" (4.5 m) | 1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m) |
| Wall 4 (gable) | 17'-4 1/2" (5.3 m) | 19'-8" (6 m) | 1 × 4' (1.22 m) + 1 × 10' (3.05 m) + 1 × 8' (2.44 m) |
The parts list for the example house with StepUp Frame & Brace
The whole parts list for ScaFix's own example, grouped the way the app shows it.
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Frames | 6'-6 1/2" (2 m) | 40 |
| Frames | 3'-3 1/2" (1 m) | 4 |
| Top-lift guardrail posts | 16 | |
| Decks | ||
| Decks without ladder | 10' (3.05 m) | 14 |
| Decks without ladder | 8' (2.44 m) | 8 |
| Decks without ladder | 4' (1.22 m) | 8 |
| Decks with ladder | 10' (3.05 m) | 2 |
| Guardrails | ||
| Front guardrails | 10' (3.05 m) | 24 |
| Front guardrails | 8' (2.44 m) | 12 |
| Front guardrails | 4' (1.22 m) | 12 |
| Toeboards | ||
| Toeboards | 10' (3.05 m) | 16 |
| Toeboards | 8' (2.44 m) | 8 |
| Toeboards | 4' (1.22 m) | 8 |
| Diagonals | ||
| Diagonals | 10' (3.05 m) | 32 |
| Diagonals | 8' (2.44 m) | 16 |
| Diagonals | 4' (1.22 m) | 16 |
| Ends | ||
| End guardrails | 8 | |
| Wall ties and fittings | ||
| Wall ties | 24 | |
| Wall-anchor fittings | 24 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
This is our example. The parts list for your own walls follows your measurements and settings.
StepUp Frame & Brace compared with similar systems on the same house
The same example house, computed by the same engine with each system's bay length and default depth. The difference in piece count comes from the bay length, the depth and how the system is built.
| System | Bays on the long wall | Depth | Parts in all |
|---|---|---|---|
| StepUp Frame & Brace | 1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m) | 3' (0.91 m) | 332 |
| Waco Frame | 1 × 10' (3.05 m) + 4 × 7' (2.13 m) + 1 × 5' (1.52 m) | 5' (1.52 m) | 352 |
| Bil-Jax Ring Lock | 1 × 3' (0.91 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m) | 2'-4 1/2" (0.73 m) | 565 |
| BrandSafway SafLock | 1 × 3'-9 1/2" (1.15 m) + 2 × 10' (3.05 m) + 1 × 7' (2.13 m) + 2 × 5'-2" (1.57 m) | 3'-9 1/2" (1.15 m) | 693 |
StepUp Frame & Brace: parts by wall size
Scaffold depth 0.91 m, access: decks with ladders. Each wall is a whole number of 3.05 m bays, so the scaffold covers it exactly. One straight wall, no corners.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 20' (6.1 m) × 13'-1 1/2" (4 m) | 2 × 10' (3.05 m) | 1 | 6 | 2 | 6 | 6 | 32 |
| 40' (12.19 m) × 19'-8" (6 m) | 4 × 10' (3.05 m) | 2 | 15 | 8 | 10 | 20 | 93 |
| 60' (18.29 m) × 26'-3" (8 m) | 6 × 10' (3.05 m) | 3 | 28 | 18 | 14 | 28 | 172 |
| 80' (24.38 m) × 32'-9 1/2" (10 m) | 8 × 10' (3.05 m) | 4 | 45 | 32 | 18 | 54 | 293 |
| 100' (30.48 m) × 39'-4 1/2" (12 m) | 10 × 10' (3.05 m) | 5 | 66 | 50 | 22 | 66 | 424 |
US rules for supported scaffolds (OSHA 29 CFR 1926.451)
- Height-to-base: a supported scaffold taller than 4 times its narrowest base dimension must be restrained by guying, tying, bracing or an equivalent means — §1926.451(c)(1).
- Ties: the first at the horizontal member closest to the 4:1 height, then vertically every 20 ft (6.1 m) or less on scaffolds 3 ft (0.91 m) wide or less and every 26 ft (7.9 m) or less on wider ones, and horizontally every 30 ft (9.1 m) or less from one end — §1926.451(c)(1)(ii)–(iii).
- Guardrails: the top rail 38 to 45 in (0.97–1.14 m) above the platform on scaffolds made or placed in service after 1 January 2000, with a midrail about halfway — §1926.451(g)(4).
- Toeboards, where they are needed against falling objects: at least 3½ in (89 mm) high — §1926.451(h)(4).
- ANSI/ASSP A10.8 is the US consensus standard for scaffolding safety; the manufacturer's instructions apply on top of both.
- ScaFix is a planning tool, not a structural calculation or approval. A competent person must check the scaffold before use.
Source
OSHA, Safety and Health Regulations for Construction, 29 CFR 1926.451 (General requirements for scaffolds).
How to compare the setup
- These are fixed ScaFix examples, not customer jobs. Use the wall dimensions and roof shape stated with each example.
- Compare the same system variant, bay lengths, scaffold depth, deck heights and access. Matching house dimensions alone do not give matching parts lists.
- The displayed quantities are calculated by ScaFix's engine. Check the setup against the manufacturer's assembly instructions and the actual job; a parts list is not a structural calculation.
Limits
- The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
- Round corners, silos and hanging scaffolds are in Pro. A round scaffold is not a standard configuration and needs a calculation or the supplier's documentation. A hanging scaffold (Layher Allround and HAKI Universal) always needs a structural calculation from the supplier or an engineer.
Questions and answers
Which bay lengths does StepUp Frame & Brace have in ScaFix?
ScaFix uses the bay lengths 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m and 1.22 m and the depths 1.52 m, 1.07 m and 0.91 m for StepUp Frame & Brace.
How many parts does the example house need with StepUp Frame & Brace?
With StepUp Frame & Brace, the 11.4 m × 5.3 m example house needs 332 parts in all, split into the groups in the table. Your own building gets its own parts list.
How many parts does StepUp Frame & Brace need for a 12.19 m × 6 m wall?
A 12.19 m long, 6 m high wall with StepUp Frame & Brace (4 × 3.05 m) needs 93 parts in all according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 20 wall ties and fittings, with decks on 2 lifts. A 30.48 m wall 12 m high needs 424.
Is the StepUp Frame & Brace plan from ScaFix approved for erection?
ScaFix is a planning tool, not a structural calculation or approval. Always check the scaffold against the manufacturer's assembly instructions and the rules that apply before you erect it.
Does ScaFix work in feet and inches?
Yes. ScaFix can show lengths in feet and inches (Imperial) as well as meters, and the parts list switches between the two. In the catalog, StepUp Frame & Brace has bays of 10', 8', 7', 6', 5' and 4'.
