Japanese frame scaffold scaffold: bay lengths, depths and parts list
Japanese frame scaffold has bay lengths of 0.91–1.83 m and depths of 0.61–1.22 m in ScaFix. Enter your walls, and ScaFix draws the Japanese frame scaffold scaffold in 3D and works out its parts list. Below is our example house with Japanese frame scaffold. Any other size: Scaffold calculator.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does Japanese frame scaffold need for a house?
ScaFix plans Japanese frame scaffold with the bay lengths 1.83 m, 1.52 m, 1.22 m and 0.91 m and scaffold depth 0.61–1.22 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, Japanese frame scaffold needs 438 parts; Jamax needs 268 on the same house.
Japanese frame scaffold in ScaFix
- System type
- Frame scaffold (facade scaffold)
- Variants in the system picker
- Japanese frame scaffold (枠組足場)
- Bay lengths · Depths
- 1.83 m, 1.52 m, 1.22 m, 0.91 m · 1.22 m, 0.91 m, 0.61 m
- Source of bay lengths and depths
- ScaFix's general set for this system type, not one maker's tables. Check the bay lengths against your maker's documents.
- Source of the tie rule
- 労働安全衛生規則 §570 第1項第5号 (枠組足場: 垂直方向 9 m、水平方向 8 m 以下)
- How ScaFix plans Japanese frame scaffold
- 1.7 m lifts; ties every 9 m vertically, every 7.32 m (4 × 1.83 m) / 7.62 m (5 × 1.52 m) / 7.31 m (6 × 1.22 m) along the wall; diagonals at least one per 1 bays in every lift
Wall-tie spacing along the wall for Japanese frame scaffold
ScaFix ties Japanese frame scaffold every 9 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: 労働安全衛生規則 §570 第1項第5号 (枠組足場: 垂直方向 9 m、水平方向 8 m 以下). ScaFix is a planning tool, not a structural approval.
| Bay length | Bays between ties | Tie spacing along the wall |
|---|---|---|
| 1.83 m | 4 | 7.32 m |
| 1.52 m | 5 | 7.62 m |
| 1.22 m | 6 | 7.31 m |
| 0.91 m | 8 | 7.31 m |
Good to know
Japanese frame scaffold (枠組足場, wakugumi ashiba). No maker named: ties every 9 m × 8 m and cross braces on every lift per 労働安全衛生規則 §570/§563, with 1 700 mm 建枠 frame dimensions from a rental catalogue. ScaFix has no Japanese pages yet.
Sources for Japanese frame scaffold
Tie rule for Japanese frame scaffold: 労働安全衛生規則 §570 第1項第5号 (枠組足場: 垂直方向 9 m、水平方向 8 m 以下). ScaFix is a planning tool, not a structural approval.

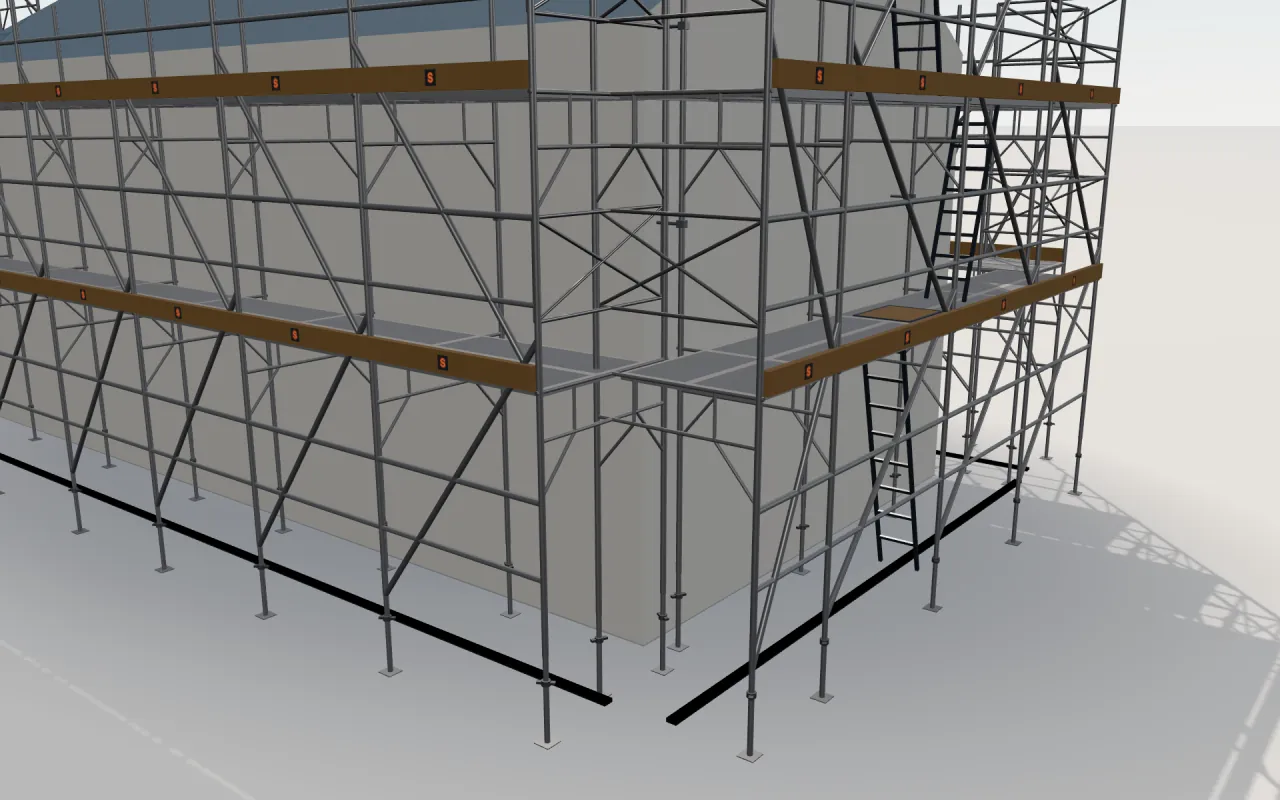

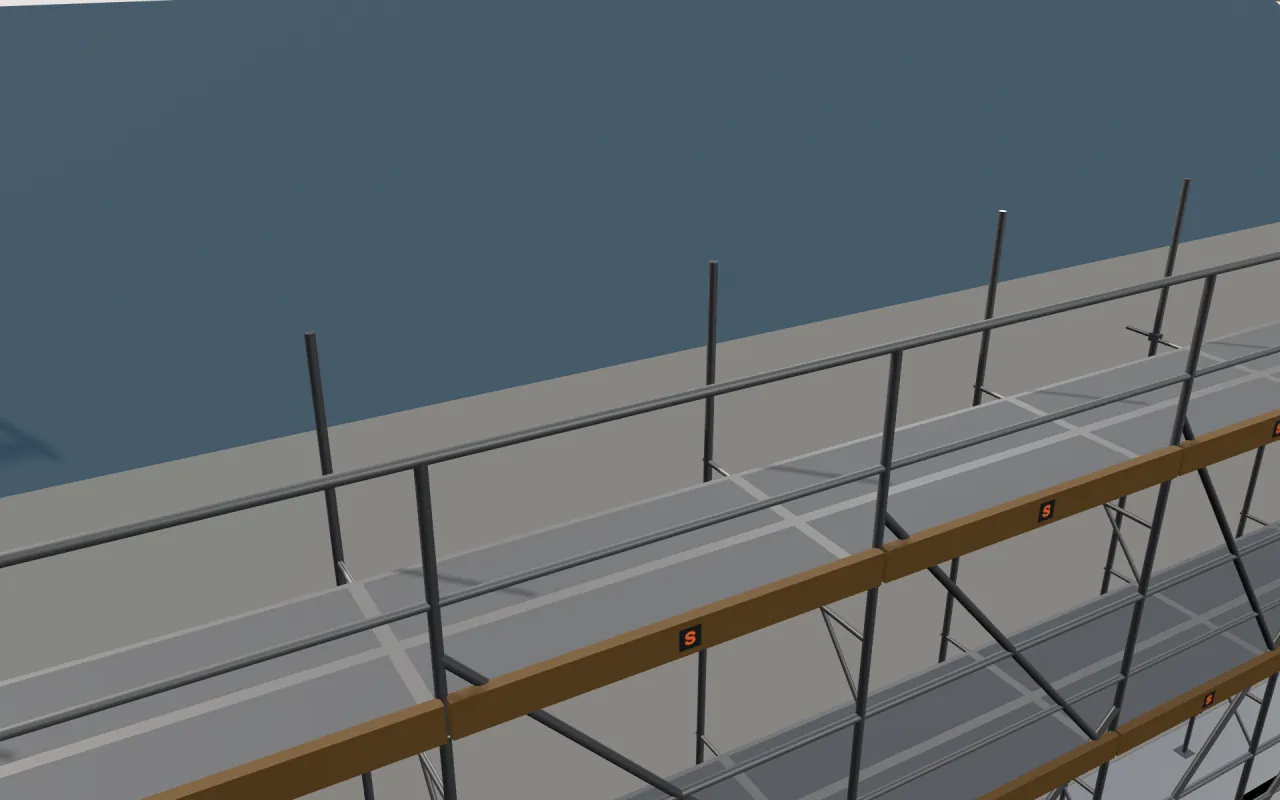

Close-ups from the 3D model

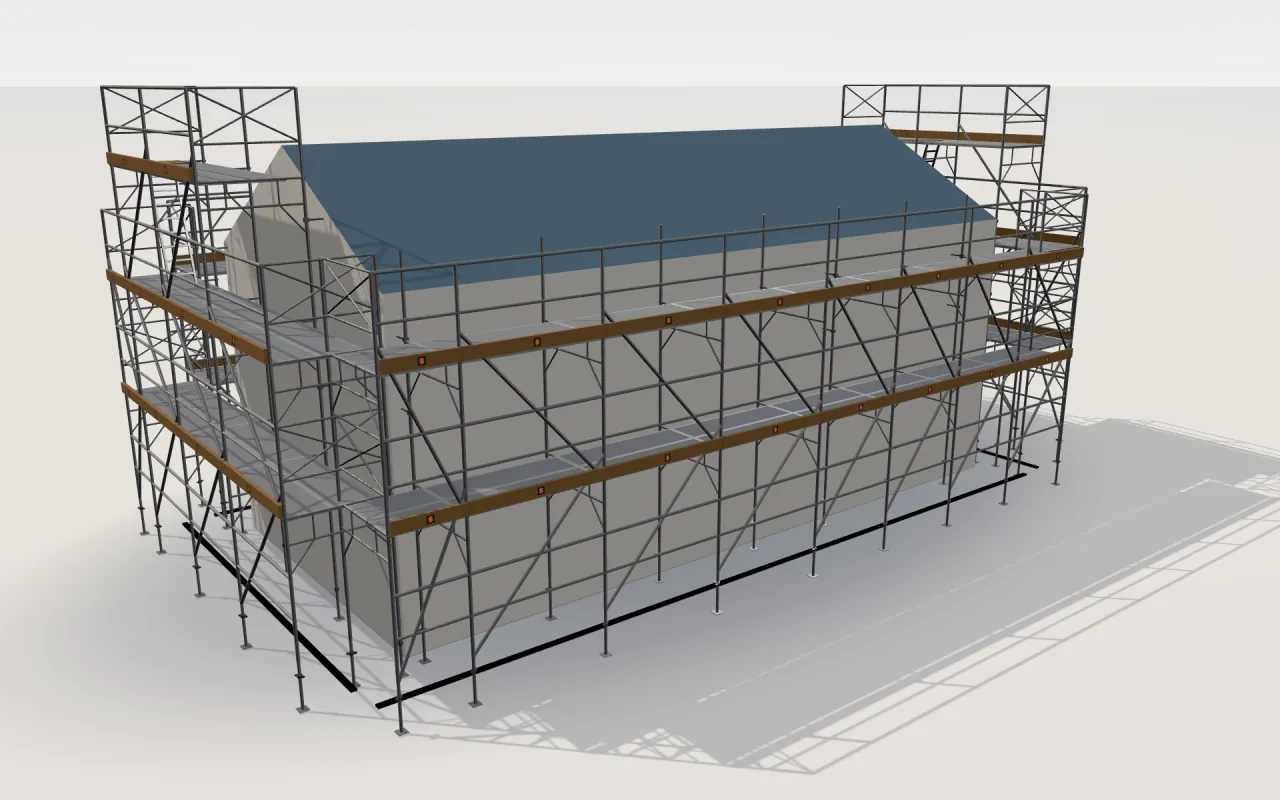

The example house with Japanese frame scaffold
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 + 3 | 11.4 m | 4.5 m | 1 × 0.91 m + 3 × 1.83 m + 4 × 1.52 m |
| Wall 2 + 4 (gable) | 5.3 m | 6 m | 1 × 0.91 m + 3 × 1.83 m |
The parts list for the example house with Japanese frame scaffold
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Frames | 1.7 m | 62 |
| Frames | 1 m | 12 |
| Top-lift guardrail posts | 16 | |
| Decks | ||
| Decks without ladder | 1.83 m | 24 |
| Decks without ladder | 1.52 m | 16 |
| Decks without ladder | 0.91 m | 8 |
| Decks with ladder | 1.83 m | 4 |
| Guardrails | ||
| Front guardrails | 1.83 m | 40 |
| Front guardrails | 1.52 m | 24 |
| Front guardrails | 0.91 m | 12 |
| Toeboards | ||
| Toeboards | 1.83 m | 28 |
| Toeboards | 1.52 m | 16 |
| Toeboards | 0.91 m | 8 |
| Diagonals | ||
| Diagonals | 1.83 m | 28 |
| Diagonals | 1.52 m | 16 |
| Diagonals | 0.91 m | 8 |
| Ends | ||
| End guardrails | 20 | |
| Wall ties and fittings | ||
| Wall ties | 20 | |
| Wall-anchor fittings | 20 | |
| Base jacks and legs | ||
| Base jacks / legs | 56 | |
Japanese frame scaffold (枠組足場) · Scaffold depth: 1.22 m · Decks at: 2.3 m, 4 m, 5.7 m · Decks with ladders · Parts in all: 438
Japanese frame scaffold compared with similar systems on the same house
| System | Bays on the long wall | Depth | Parts in all | Against Japanese frame scaffold |
|---|---|---|---|---|
| Japanese frame scaffold | 1 × 0.91 m + 3 × 1.83 m + 4 × 1.52 m | 1.22 m | 438 | this page |
| Jamax | 4 × 3 m | 0.68 m | 268 | -170 (-39%) |
| Layher Blitz | 4 × 3.07 m | 0.73 m | 308 | -130 (-30%) |
| Plettac SL 70/100 | 1 × 1.5 m + 3 × 3 m + 1 × 2.5 m | 0.73 m | 316 | -122 (-28%) |
Japanese frame scaffold: parts by wall size
Scaffold depth 1.22 m, access: decks with ladders. Each wall is a whole number of 1.83 m bays, so the scaffold covers it exactly.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 3.66 × 4 m | 2 × 1.83 m | 2 | 9 | 4 | 6 | 8 | 45 |
| 7.32 × 6 m | 4 × 1.83 m | 3 | 20 | 12 | 10 | 8 | 96 |
| 10.97 × 8 m | 6 × 1.83 m | 4 | 35 | 24 | 14 | 12 | 171 |
| 14.63 × 10 m | 8 × 1.83 m | 5 | 54 | 40 | 18 | 12 | 262 |
| 18.29 × 12 m | 10 × 1.83 m | 6 | 77 | 60 | 22 | 16 | 377 |
Pick Japanese frame scaffold if…
- you need a wide working deck: ScaFix plans Japanese frame scaffold up to 1.22 m deep, a width only 8 of the 60 other systems of its type also reach.
- space along the wall is tight: Japanese frame scaffold comes as narrow as 0.61 m.
- you build in lifts of 1.7 m: that is this system’s lift height in ScaFix, against 2 m for most systems.
Questions about Japanese frame scaffold
How many parts does Japanese frame scaffold need for a 7.32 m × 6 m wall?
A 7.32 m long, 6 m high wall with Japanese frame scaffold (4 × 1.83 m) needs 96 parts according to ScaFix: 20 frames and standards, 12 decks, 10 base jacks and legs and 8 wall ties and fittings, with decks on 3 lifts. A 18.29 m wall 12 m high needs 377.
