ScaFixScaffold system
Rusztowanie warszawskie (HIGHER) scaffold: bay lengths, depths and parts list
Rusztowanie warszawskie (HIGHER) has bay lengths of 1.58 m and a depth of 1.58 m in ScaFix. Enter your walls, and ScaFix draws the Rusztowanie warszawskie (HIGHER) scaffold in 3D and works out its parts list. Below is our example house with Rusztowanie warszawskie (HIGHER). Any other size: Scaffold calculator.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does Rusztowanie warszawskie (HIGHER) need for a house?
ScaFix plans Rusztowanie warszawskie (HIGHER) with the bay lengths 1.58 m and scaffold depth 1.58 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, Rusztowanie warszawskie (HIGHER) needs 534 parts; Jamax needs 268 on the same house.
Bracing (diagonals)
Not yet sourced: ScaFix does not have the manufacturer's bracing rule for this system. Check the bracing against the manufacturer's instructions before you order or build.
Rusztowanie warszawskie (HIGHER) in ScaFix
- Manufacturer · System type
- HIGHER · Frame scaffold (facade scaffold)
- Variants in the system picker
- Rusztowanie warszawskie
- Bay lengths · Depths
- 1.58 m · 1.58 m
- Source of bay lengths and depths
- HIGHER (Żarów) Warsaw ladder frame 1580 × 815 mm (read 23 October 2026)
- Source of the tie rule
- Rozp. MI 6.02.2003 §115 via Warbud BHP 2.2 p. 4 (co drugie pole, co drugą kondygnację = every 2nd 0.867 m level)
- How ScaFix plans Rusztowanie warszawskie (HIGHER)
- 1.73 m lifts; ties every 1.73 m vertically, every 3.16 m (2 × 1.58 m) along the wall; diagonals at least one per 5 bays in every lift
Wall-tie spacing along the wall for Rusztowanie warszawskie (HIGHER)
ScaFix ties Rusztowanie warszawskie (HIGHER) every 1.73 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: Rozp. MI 6.02.2003 §115 via Warbud BHP 2.2 p. 4 (co drugie pole, co drugą kondygnację = every 2nd 0.867 m level). ScaFix is a planning tool, not a structural approval.
| Bay length | Bays between ties | Tie spacing along the wall |
|---|---|---|
| 1.58 m | 2 | 3.16 m |
Good to know
Modelled from HIGHER's product data: 1 580 × 815 mm frames, 12 frames = 5.20 m, two 0.867 m frame levels per platform lift; ties per § 115 of the Polish 2003 regulation; bracing by ScaFix's general rule — check the manufacturer's instructions.
Sources for Rusztowanie warszawskie (HIGHER)
Tie rule for Rusztowanie warszawskie (HIGHER): Rozp. MI 6.02.2003 §115 via Warbud BHP 2.2 p. 4 (co drugie pole, co drugą kondygnację = every 2nd 0.867 m level). ScaFix is a planning tool, not a structural approval.

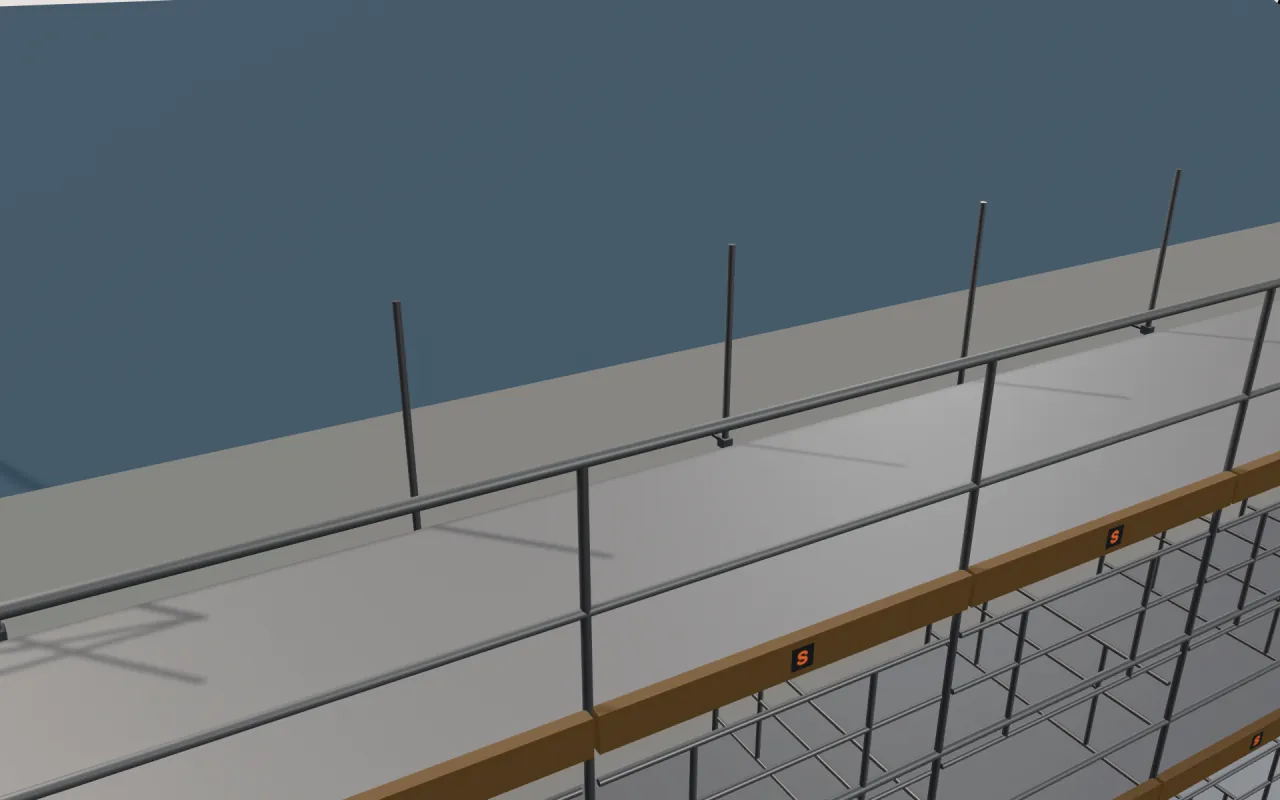

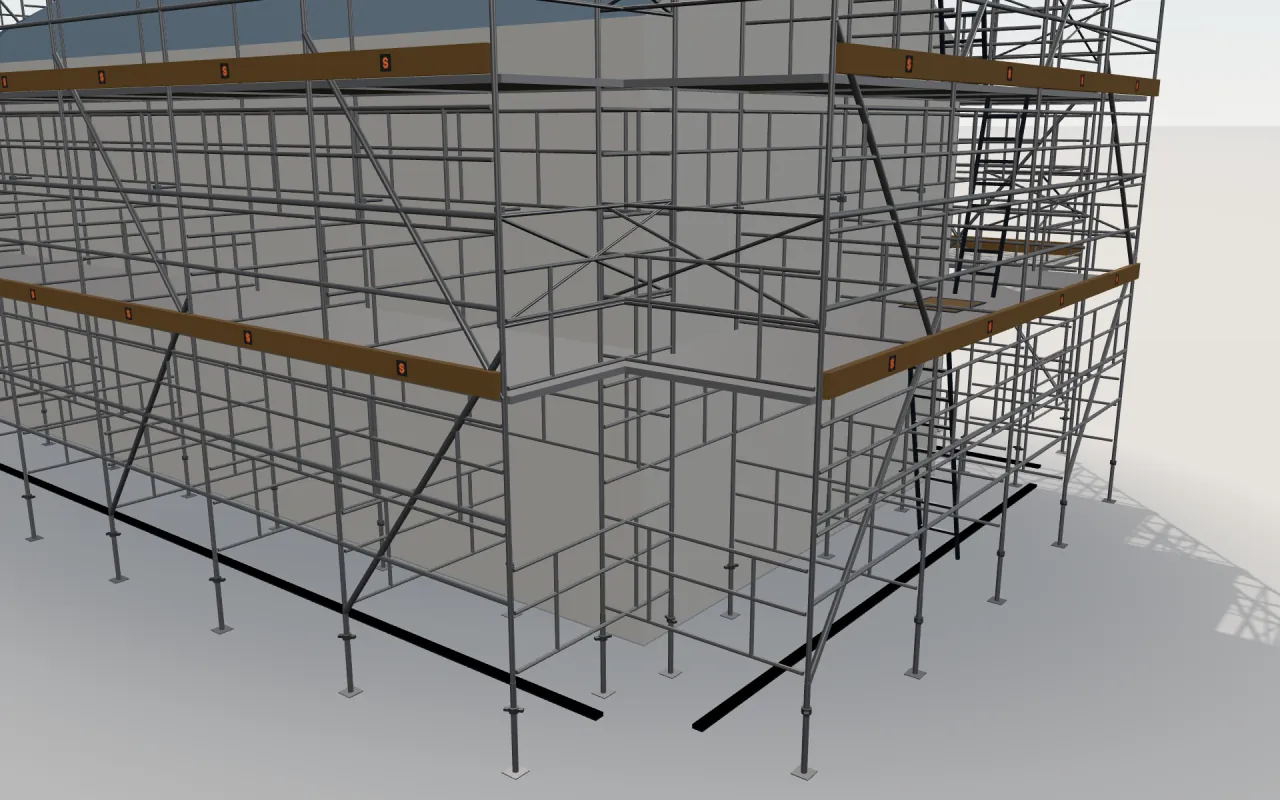

Close-ups from the 3D model

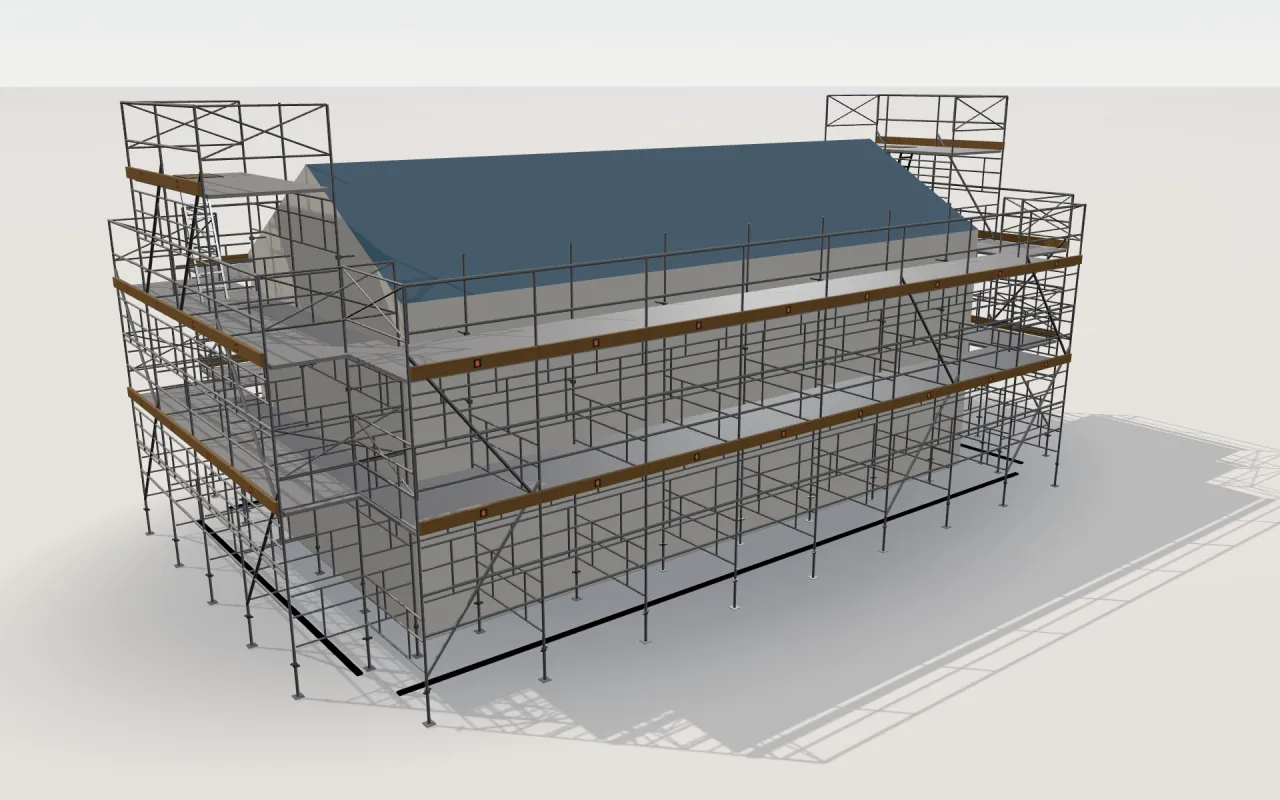

The example house with Rusztowanie warszawskie (HIGHER)
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 + 3 | 11.4 m | 4.5 m | 8 × 1.58 m |
| Wall 2 + 4 (gable) | 5.3 m | 6 m | 4 × 1.58 m |
The parts list for the example house with Rusztowanie warszawskie (HIGHER)
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Frames | 1 m | 12 |
| Frames | 0.82 m | 166 |
| Top-lift guardrail posts | 16 | |
| Decks | ||
| Decks without ladder | 1.58 m | 48 |
| Decks with ladder | 1.58 m | 4 |
| Guardrails | ||
| Front guardrails | 1.58 m | 76 |
| Toeboards | ||
| Toeboards | 1.58 m | 52 |
| Diagonals | ||
| Diagonals | 1.58 m | 24 |
| Ends | ||
| End guardrails | 20 | |
| Wall ties and fittings | ||
| Wall ties | 30 | |
| Wall-anchor fittings | 30 | |
| Base jacks and legs | ||
| Base jacks / legs | 56 | |
Rusztowanie warszawskie · Scaffold depth: 1.58 m · Decks at: 2.33 m, 4.07 m, 5.8 m · Decks with ladders · Parts in all: 534
Rusztowanie warszawskie (HIGHER) compared with similar systems on the same house
| System | Bays on the long wall | Depth | Parts in all | Against Rusztowanie warszawskie (HIGHER) |
|---|---|---|---|---|
| Rusztowanie warszawskie (HIGHER) | 8 × 1.58 m | 1.58 m | 534 | this page |
| Jamax | 4 × 3 m | 0.68 m | 268 | -266 (-50%) |
| Layher Blitz | 4 × 3.07 m | 0.73 m | 308 | -226 (-42%) |
| Plettac SL 70/100 | 1 × 1.5 m + 3 × 3 m + 1 × 2.5 m | 0.73 m | 316 | -218 (-41%) |
Rusztowanie warszawskie (HIGHER): parts by wall size
Scaffold depth 1.58 m, access: decks with ladders. Each wall is a whole number of 1.58 m bays, so the scaffold covers it exactly.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 3.16 × 4 m | 2 × 1.58 m | 2 | 17 | 4 | 6 | 10 | 55 |
| 6.32 × 6 m | 4 × 1.58 m | 3 | 44 | 12 | 10 | 20 | 126 |
| 9.48 × 8 m | 6 × 1.58 m | 4 | 83 | 24 | 14 | 36 | 227 |
| 12.64 × 10 m | 8 × 1.58 m | 5 | 134 | 40 | 18 | 54 | 359 |
| 15.8 × 12 m | 10 × 1.58 m | 6 | 197 | 60 | 22 | 78 | 517 |
Pick Rusztowanie warszawskie (HIGHER) if…
- you need a wide working deck: ScaFix plans Rusztowanie warszawskie (HIGHER) up to 1.58 m deep, wider than all 60 other systems of its type.
- you build in lifts of 1.73 m: that is this system’s lift height in ScaFix, against 2 m for most systems.
Questions about Rusztowanie warszawskie (HIGHER)
How many parts does Rusztowanie warszawskie (HIGHER) need for a 6.32 m × 6 m wall?
A 6.32 m long, 6 m high wall with Rusztowanie warszawskie (HIGHER) (4 × 1.58 m) needs 126 parts according to ScaFix: 44 frames and standards, 12 decks, 10 base jacks and legs and 20 wall ties and fittings, with decks on 3 lifts. A 15.8 m wall 12 m high needs 517.
