Scaffold system

Scafom-Rux SUPER in ScaFix

ScaFix plans Scafom-Rux SUPER scaffolding with the system's own bay lengths (3 m, 2.5 m and 2 m) and depth (0.73 m), draws the scaffold in 3D and works out the parts list. Below is our example house with Scafom-Rux SUPER.

Try free nowOpen the 3D exampleSee ScaFix

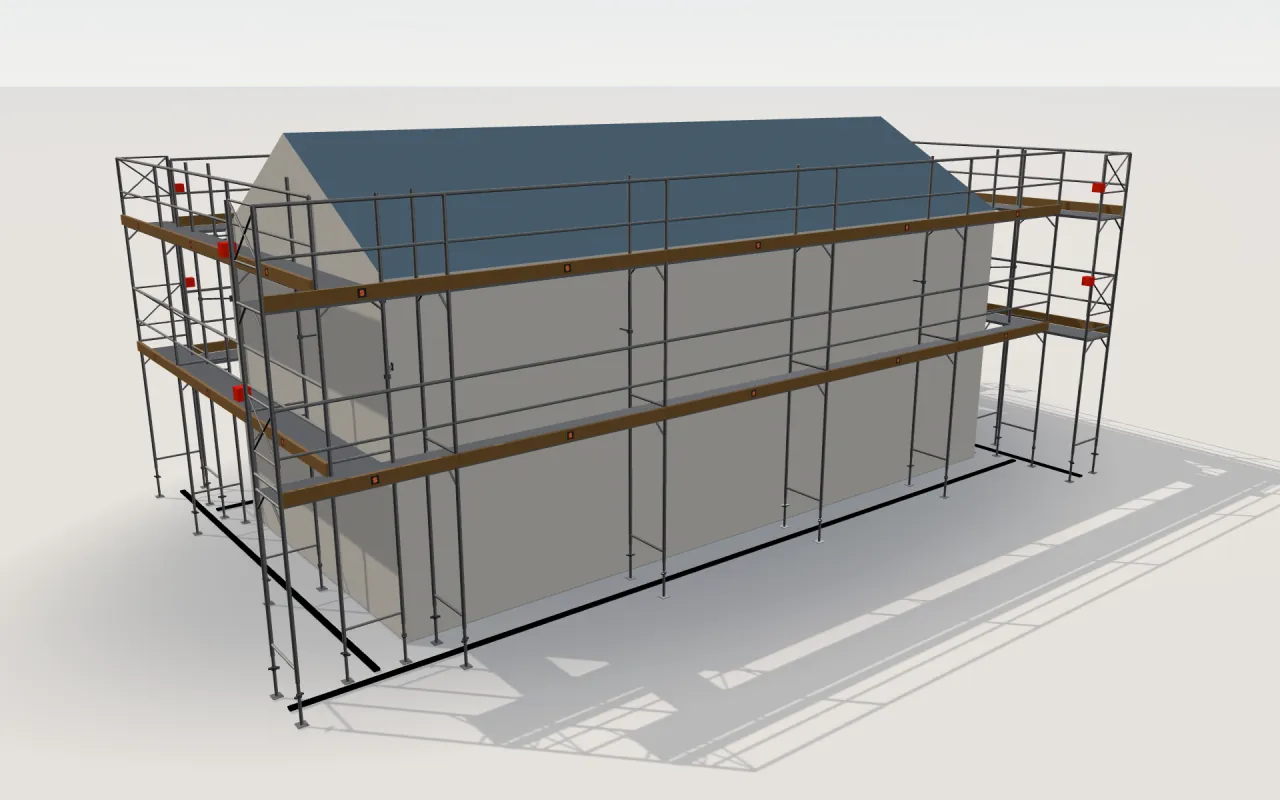

Scafom-Rux SUPER scaffolding around a house of 11.4 × 5.3 m with a gabled roof (eaves 4.5 m, ridge 6 m), drawn by the ScaFix 3D model
Scafom-Rux SUPER around the example house, as ScaFix draws it in 3D.

The system in ScaFix

Manufacturer
Scafom-Rux
System type
Frame scaffold (facade scaffold)
Variants in the system picker
Scafom-Rux SUPER
Bay lengths
3 m, 2.5 m, 2 m
Depths
0.73 m

Close-ups from the 3D model

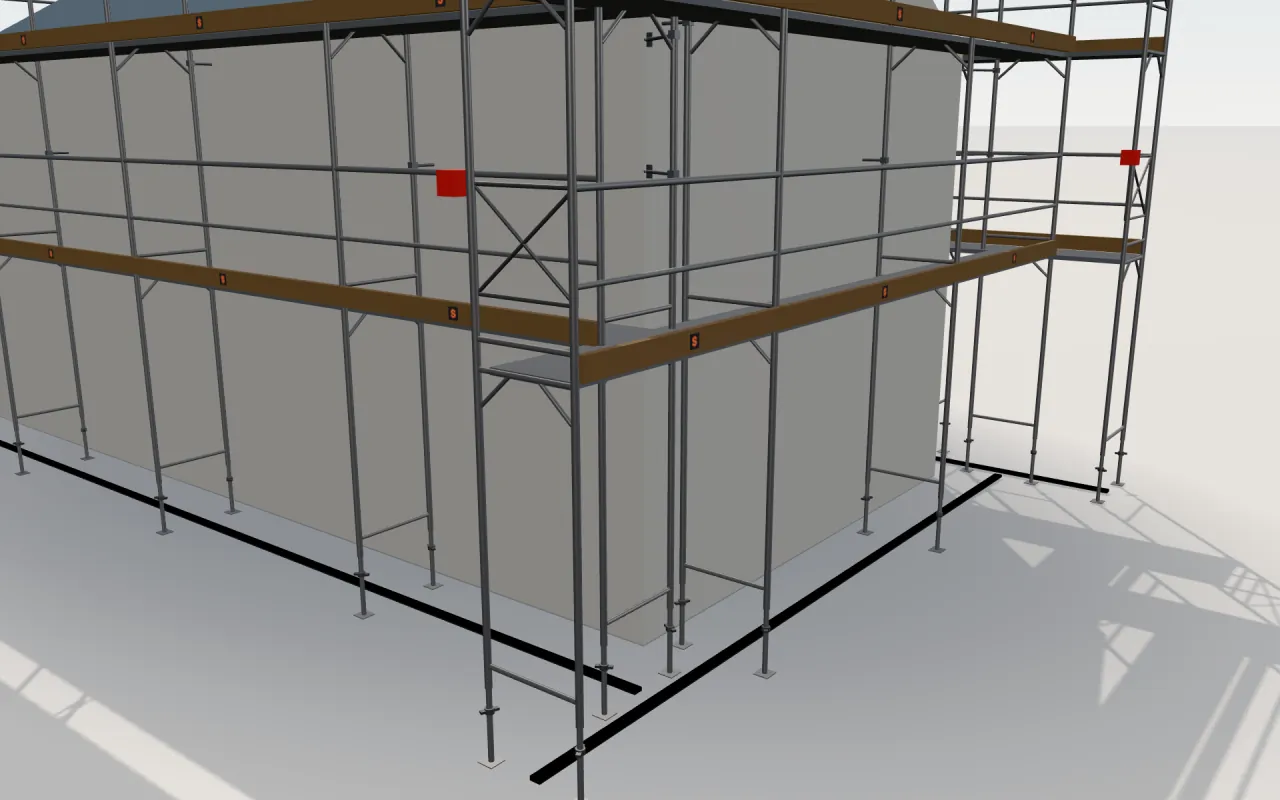

Close-up of the corner where the long wall and the gable wall meet, with Scafom-Rux SUPER standards, decks, guardrails and toe boards in the ScaFix 3D model
The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

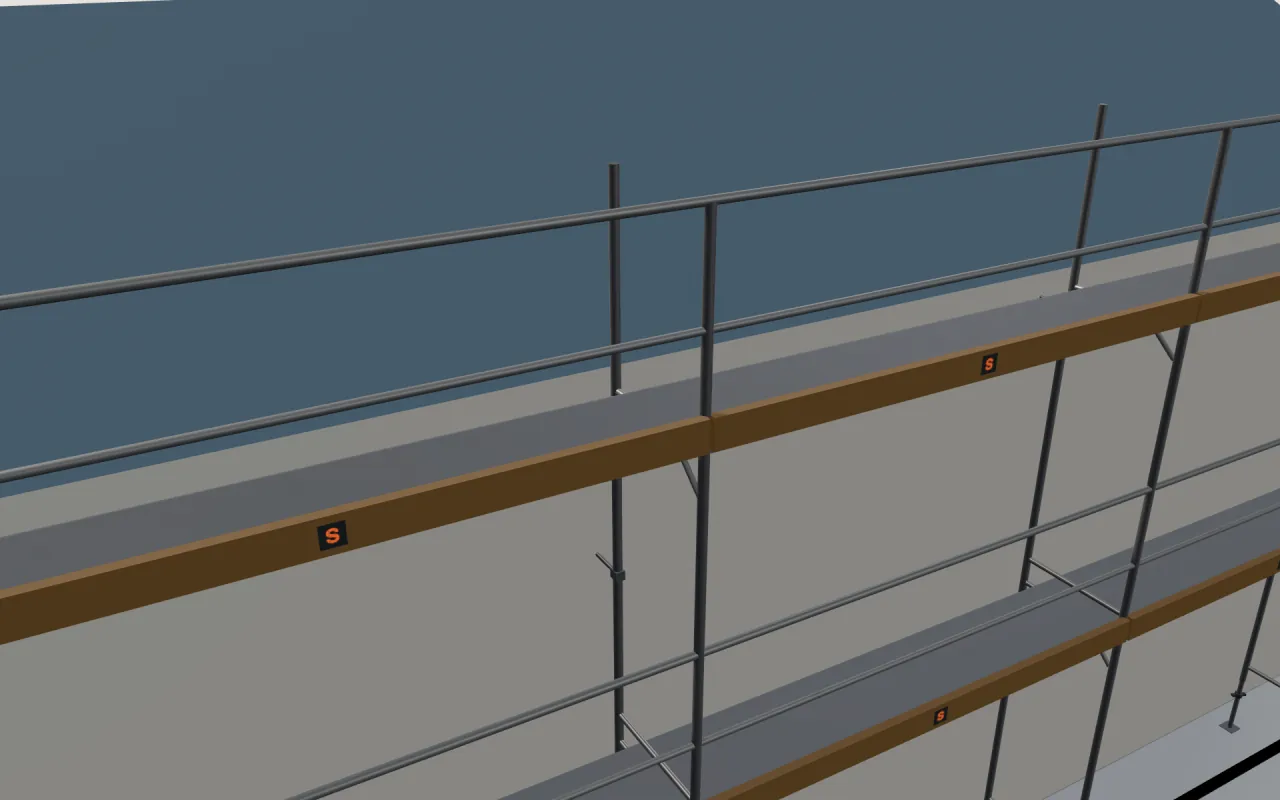

Close-up of the top Scafom-Rux SUPER lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model
The top lift below the eaves, with guardrails and toe boards.

The example house with Scafom-Rux SUPER

ScaFix's own example: a 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.

System
Scafom-Rux SUPER
Scaffold depth
0.73 m
Decks at
2.5 m, 4.5 m
Top deck
4.5 m
Access
Decks with ladders
Parts in all
260

The walls and the bays

The walls of the example house with Scafom-Rux SUPER
WallLengthHeightBays
Wall 111.4 m4.5 m1 × 2 m + 3 × 3 m + 1 × 2.5 m
Wall 2 (gable)5.3 m6 m1 × 2 m + 1 × 3 m + 1 × 2.5 m
Wall 311.4 m4.5 m1 × 2 m + 3 × 3 m + 1 × 2.5 m
Wall 4 (gable)5.3 m6 m1 × 2 m + 1 × 3 m + 1 × 2.5 m

The parts list for the example house with Scafom-Rux SUPER

The whole parts list for ScaFix's own example, grouped the way the app shows it.

The parts list for the example house with Scafom-Rux SUPER
PartLengthCount
Frames and standards
Frames2 m40
Frames1 m4
Top-lift guardrail posts16
Decks
Decks without ladder3 m14
Decks without ladder2.5 m8
Decks without ladder2 m8
Decks with ladder3 m2
Guardrails
Front guardrails3 m16
Front guardrails2.5 m8
Front guardrails2 m8
Toeboards
Toeboards3 m16
Toeboards2.5 m8
Toeboards2 m8
Ends
End guardrails8
Wall ties and fittings
Wall ties28
Wall-anchor fittings28
Base jacks and legs
Base jacks / legs40

This is our example. The parts list for your own walls follows your measurements and settings.

Limits

  • The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
  • Round corners, silo and tank scaffolding and hanging scaffolds are not supported yet.

Questions and answers

Which bay lengths does Scafom-Rux SUPER have in ScaFix?

ScaFix uses the bay lengths 3 m, 2.5 m and 2 m and the depth 0.73 m for Scafom-Rux SUPER. The variants in the system picker are Scafom-Rux SUPER.

How many parts does the example house need with Scafom-Rux SUPER?

With Scafom-Rux SUPER, the 11.4 m × 5.3 m example house needs 260 parts in all, split into the groups in the table. Your own building gets its own parts list.

Is the Scafom-Rux SUPER plan from ScaFix approved for erection?

ScaFix is a planning tool, not a structural calculation or approval. Always check the scaffold against the manufacturer's assembly instructions and the rules that apply before you erect it.
