ScaFixScaffold system
Tubesca-Comabi M368 in ScaFix
ScaFix plans Tubesca-Comabi M368 scaffolding with the system's own bay lengths (0.8–3 m) and depths (1 m and 0.8 m), draws the scaffold in 3D and works out the parts list. Below is our example house with Tubesca-Comabi M368.
Try one week – €9.90See the demo house in 3DSee ScaFix
€9.90 for 7 days. Does not renew.
How many parts does Tubesca-Comabi M368 need for a house?
ScaFix plans Tubesca-Comabi M368 with the bay lengths 0.8–3 m and the scaffold depth 0.8 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, Tubesca-Comabi M368 needs 537 parts; HAKI Universal needs 610 on the same house.
The system in ScaFix
- Manufacturer
- Tubesca-Comabi
- System type
- Modular scaffold with wedge connections
- Variants in the system picker
- Tubesca-Comabi M368 (Modular)
- Bay lengths
- 3 m, 2.5 m, 2 m, 1.5 m, 1 m, 0.8 m
- Depths
- 1 m, 0.8 m
- Wall-tie rule in ScaFix
- The rule has not been checked against the manufacturer's document yet. Check the ties against the instructions.

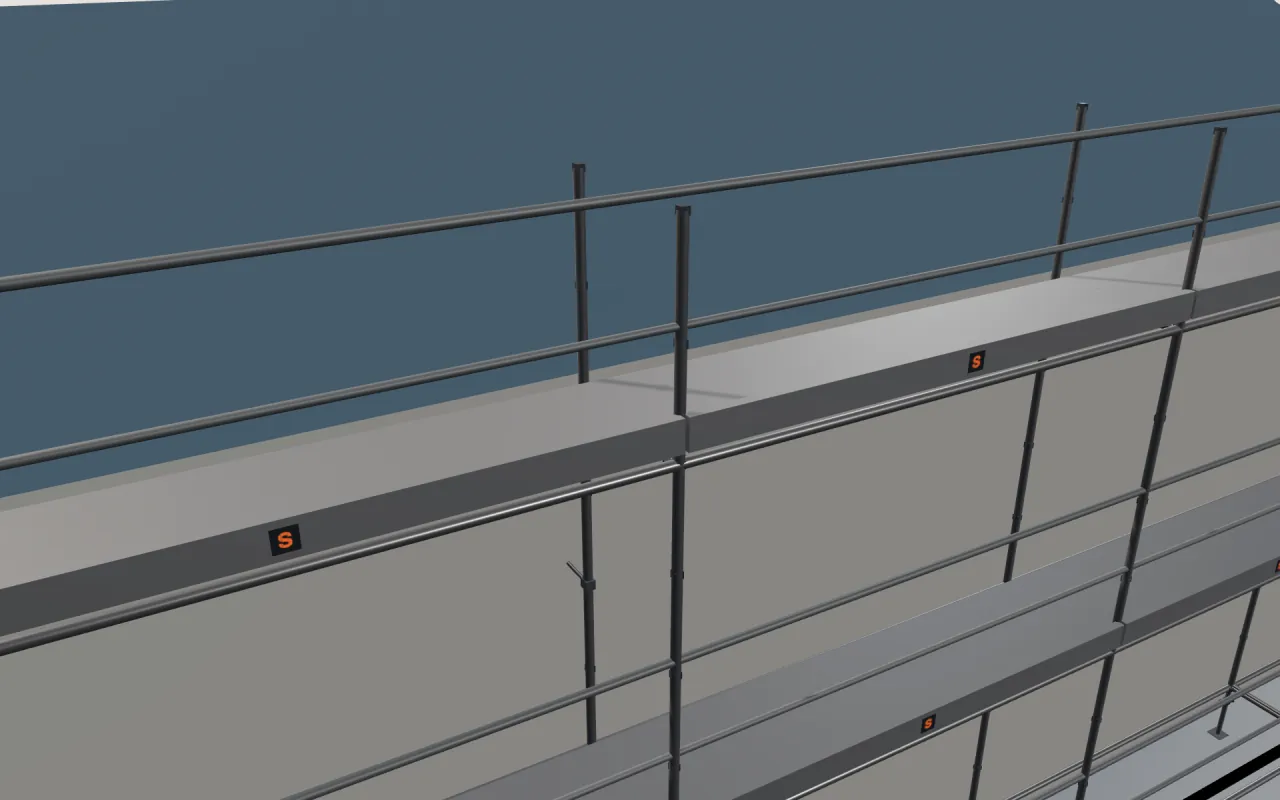

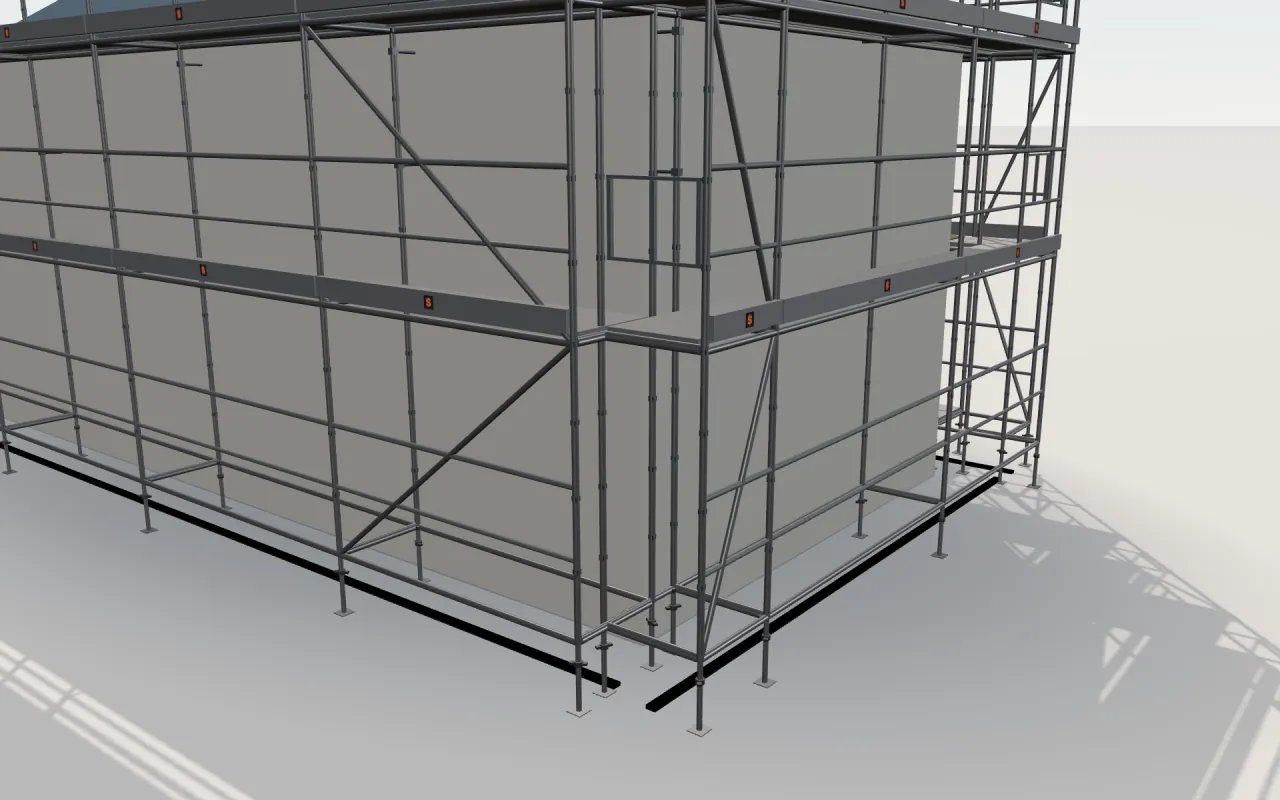

Close-ups from the 3D model

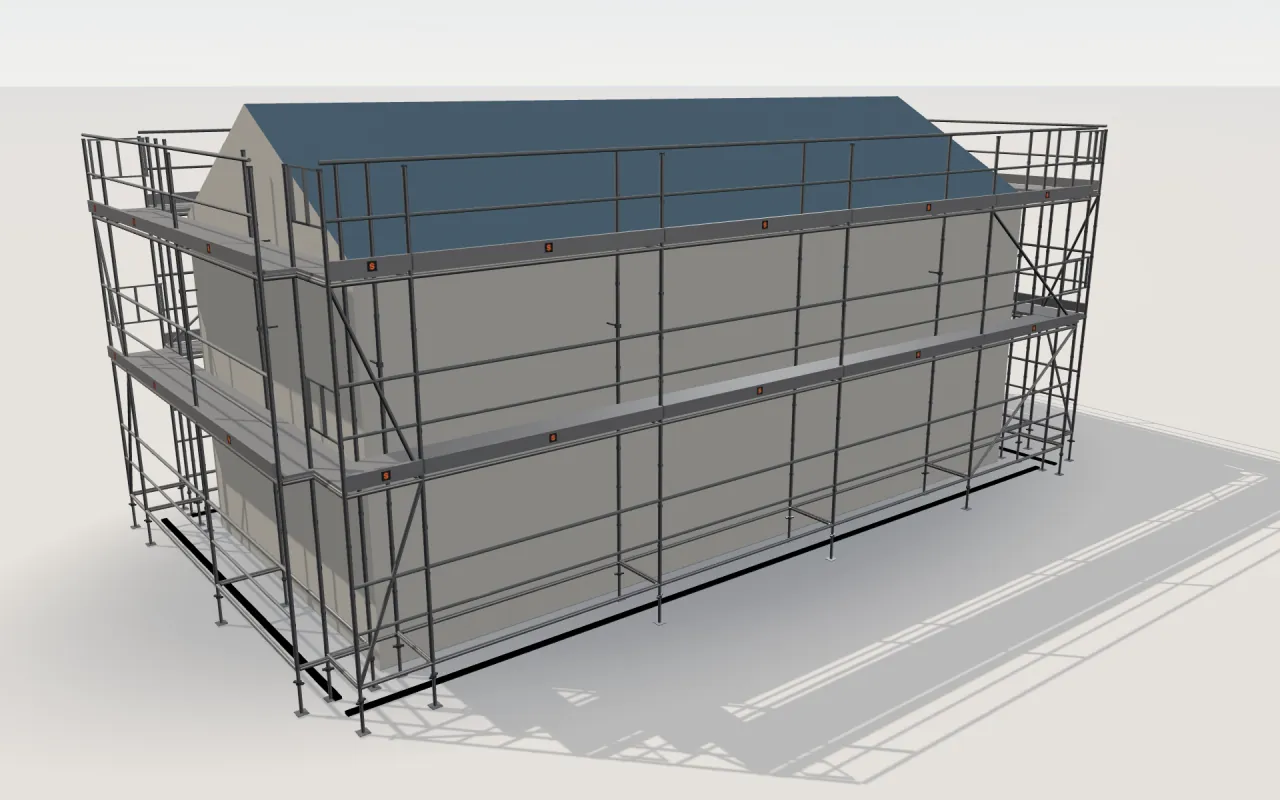

The example house with Tubesca-Comabi M368
ScaFix's own example: the 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.
- System
- Tubesca-Comabi M368 (Modular)
- Scaffold depth
- 0.8 m
- Decks at
- 2.5 m, 4.5 m
- Top deck
- 4.5 m
- Access
- Decks with ladders
- Parts in all
- 537
The walls and the bays
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 | 11.4 m | 4.5 m | 1 × 0.8 m + 3 × 3 m + 1 × 2.5 m |
| Wall 2 (gable) | 5.3 m | 6 m | 1 × 0.8 m + 1 × 3 m + 1 × 2.5 m |
| Wall 3 | 11.4 m | 4.5 m | 1 × 0.8 m + 3 × 3 m + 1 × 2.5 m |
| Wall 4 (gable) | 5.3 m | 6 m | 1 × 0.8 m + 1 × 3 m + 1 × 2.5 m |
The parts list for the example house with Tubesca-Comabi M368
The whole parts list for ScaFix's own example, grouped the way the app shows it.
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Standards | 2 m | 80 |
| Standards | 1 m | 40 |
| Ledgers and beams | ||
| Ledgers | 3 m | 48 |
| Ledgers | 2.5 m | 24 |
| Ledgers | 0.8 m | 24 |
| Transoms | 60 | |
| Decks | ||
| Decks without ladder | 3 m | 15 |
| Decks without ladder | 2.5 m | 8 |
| Decks without ladder | 0.8 m | 8 |
| Decks with ladder | 3 m | 2 |
| Guardrails | ||
| Front guardrails | 3 m | 48 |
| Front guardrails | 2.5 m | 24 |
| Front guardrails | 0.8 m | 24 |
| Toeboards | ||
| Toeboards | 3 m | 16 |
| Toeboards | 2.5 m | 8 |
| Toeboards | 0.8 m | 8 |
| Diagonals | ||
| Diagonals | 2.5 m | 4 |
| Diagonals | 0.8 m | 8 |
| Ends | ||
| End guardrails | 8 | |
| Wall ties and fittings | ||
| Wall ties | 20 | |
| Wall-anchor fittings | 20 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
This is our example. The parts list for your own walls follows your measurements and settings.
Tubesca-Comabi M368 compared with similar systems on the same house
The same example house, computed by the same engine with each system's bay length and default depth. The difference in piece count comes from the bay length, the depth and how the system is built.
| System | Bays on the long wall | Depth | Parts in all |
|---|---|---|---|
| Tubesca-Comabi M368 | 1 × 0.8 m + 3 × 3 m + 1 × 2.5 m | 0.8 m | 537 |
| HAKI Universal | 5 × 2.5 m | 1.01 m | 610 |
| Kwikstage | 1 × 0.76 m + 3 × 3.05 m + 1 × 2.44 m | 0.76 m | 533 |
| Layher Allround | 4 × 3.07 m | 0.73 m | 481 |
How to compare the setup
- These are fixed ScaFix examples, not customer jobs. Use the wall dimensions and roof shape stated with each example.
- Compare the same system variant, bay lengths, scaffold depth, deck heights and access. Matching house dimensions alone do not give matching parts lists.
- The displayed quantities are calculated by ScaFix's engine. Check the setup against the manufacturer's assembly instructions and the actual job; a parts list is not a structural calculation.
Limits
- The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
- Round corners, silos and hanging scaffolds are in Pro. A round scaffold is not a standard configuration and needs a calculation or the supplier's documentation. A hanging scaffold (Layher Allround and HAKI Universal) always needs a structural calculation from the supplier or an engineer.
Questions and answers
Which bay lengths does Tubesca-Comabi M368 have in ScaFix?
ScaFix uses the bay lengths 3 m, 2.5 m, 2 m, 1.5 m, 1 m and 0.8 m and the depths 1 m and 0.8 m for Tubesca-Comabi M368.
How many parts does the example house need with Tubesca-Comabi M368?
With Tubesca-Comabi M368, the 11.4 m × 5.3 m example house needs 537 parts in all, split into the groups in the table. Your own building gets its own parts list.
Is the Tubesca-Comabi M368 plan from ScaFix approved for erection?
ScaFix is a planning tool, not a structural calculation or approval. Always check the scaffold against the manufacturer's assembly instructions and the rules that apply before you erect it.
