Acrow QUICKSTAGE scaffold: bay lengths, depths and parts list
Acrow QUICKSTAGE has bay lengths of 0.76–3.05 m and depths of 1.27 m and 0.76 m in ScaFix. Enter your walls, and ScaFix draws the Acrow QUICKSTAGE scaffold in 3D and works out its parts list. Below is our example house with Acrow QUICKSTAGE. Any other size: Scaffold calculator.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does Acrow QUICKSTAGE need for a house?
ScaFix plans Acrow QUICKSTAGE with the bay lengths 0.76–3.05 m and scaffold depth 1.27 m and 0.76 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, Acrow QUICKSTAGE needs 549 parts; HAKI Universal needs 652 on the same house.
Acrow QUICKSTAGE in ScaFix
- Manufacturer · System type
- Acrow · Modular scaffold with wedge connections
- Variants in the system picker
- Acrow QUICKSTAGE (AU)
- Bay lengths · Depths
- 3.05 m, 2.43 m, 1.82 m, 1.27 m, 0.76 m · 1.27 m, 0.76 m
- Bay lengths in the manufacturer’s document
- 0.56–3.05 m, 6 lengths (Acrow QUICKSTAGE technical guide, issue H, p. 15 (PDF), checked 25 October 2026); in ScaFix’s catalogue: 3.05 m, 2.43 m, 1.82 m, 1.27 m, 0.76 m
- Source of bay lengths and depths
- Acrow QUICKSTAGE technical guide, issue H, §2.2–2.5 (read 23 October 2026)
- Source of the tie rule
- Waco Kwikform «Kwikstage» guide (AS/NZS 1576.3 / 4576): up to 20 m ties at each end standard and at least every 3rd standard, vertically ≤ 4.0 m, staggered (Acrow QUICKSTAGE issue H §5.16 prints no spacing)
- How ScaFix plans Acrow QUICKSTAGE
- 1.98 m lifts; ties every 4 m vertically, every 6.1 m (2 × 3.05 m) / 7.29 m (3 × 2.43 m) / 5.46 m (3 × 1.82 m) along the wall; nodes every 0.5 m; diagonals at least one per 4 bays in every lift
Wall-tie spacing along the wall for Acrow QUICKSTAGE
ScaFix ties Acrow QUICKSTAGE every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: Waco Kwikform «Kwikstage» guide (AS/NZS 1576.3 / 4576): up to 20 m ties at each end standard and at least every 3rd standard, vertically ≤ 4.0 m, staggered (Acrow QUICKSTAGE issue H §5.16 prints no spacing). ScaFix is a planning tool, not a structural approval.
| Bay length | Bays between ties | Tie spacing along the wall |
|---|---|---|
| 3.05 m | 2 | 6.1 m |
| 2.43 m | 3 | 7.29 m |
| 1.82 m | 3 | 5.46 m |
| 1.27 m | 3 | 3.81 m |
| 0.76 m | 3 | 2.28 m |
Good to know
From Acrow's QUICKSTAGE manual (issue H, October 2026), lifts of 1.981 m; the tie rule comes from Waco Kwikform's Australian guide, not from Acrow.
Sources for Acrow QUICKSTAGE
Documents for Acrow QUICKSTAGE: 1) Acrow QUICKSTAGE technical guide (issue H), p. 15, checked 25 October 2026; 2) Waco Kwikform, Guidelines for safe use of scaffold, Wedgelok / Kwikstage, checked 25 October 2026. Tie rule for Acrow QUICKSTAGE: Waco Kwikform «Kwikstage» guide (AS/NZS 1576.3 / 4576): up to 20 m ties at each end standard and at least every 3rd standard, vertically ≤ 4.0 m, staggered (Acrow QUICKSTAGE issue H §5.16 prints no spacing). ScaFix is a planning tool, not a structural approval.

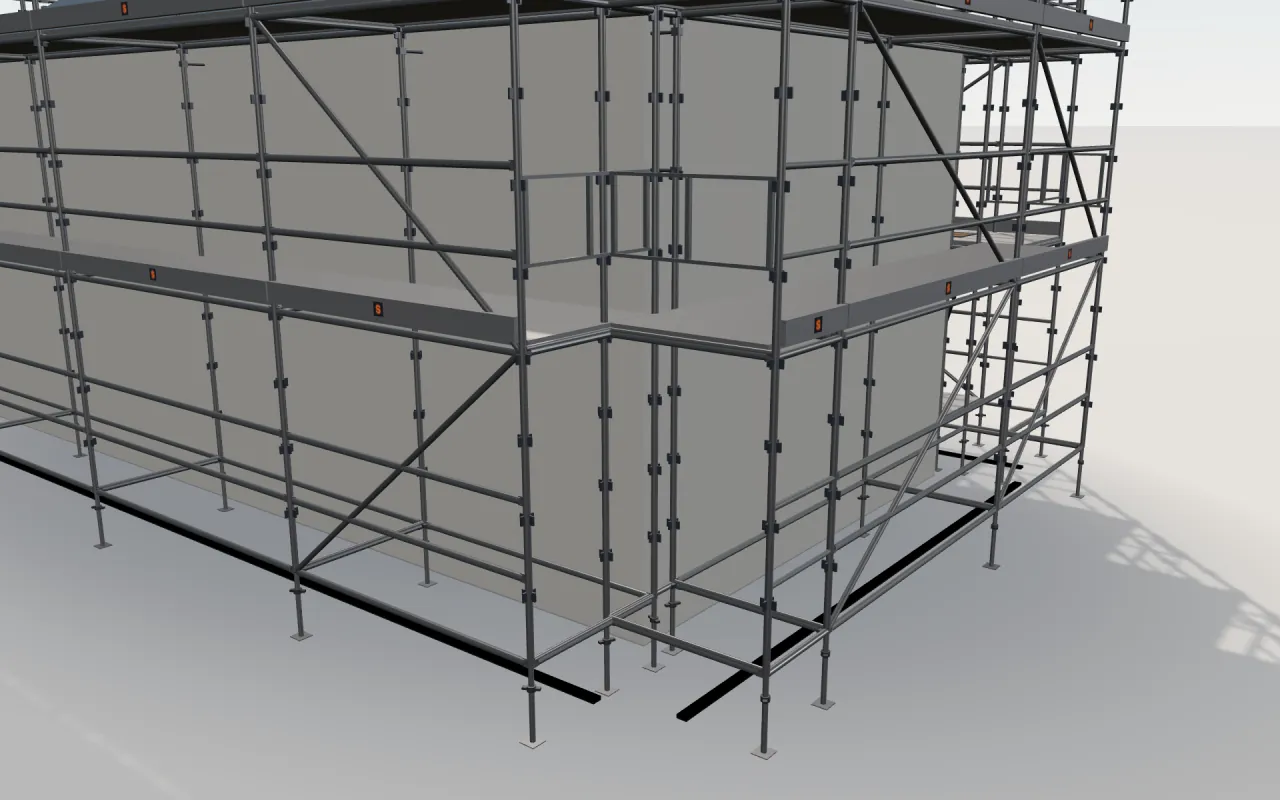

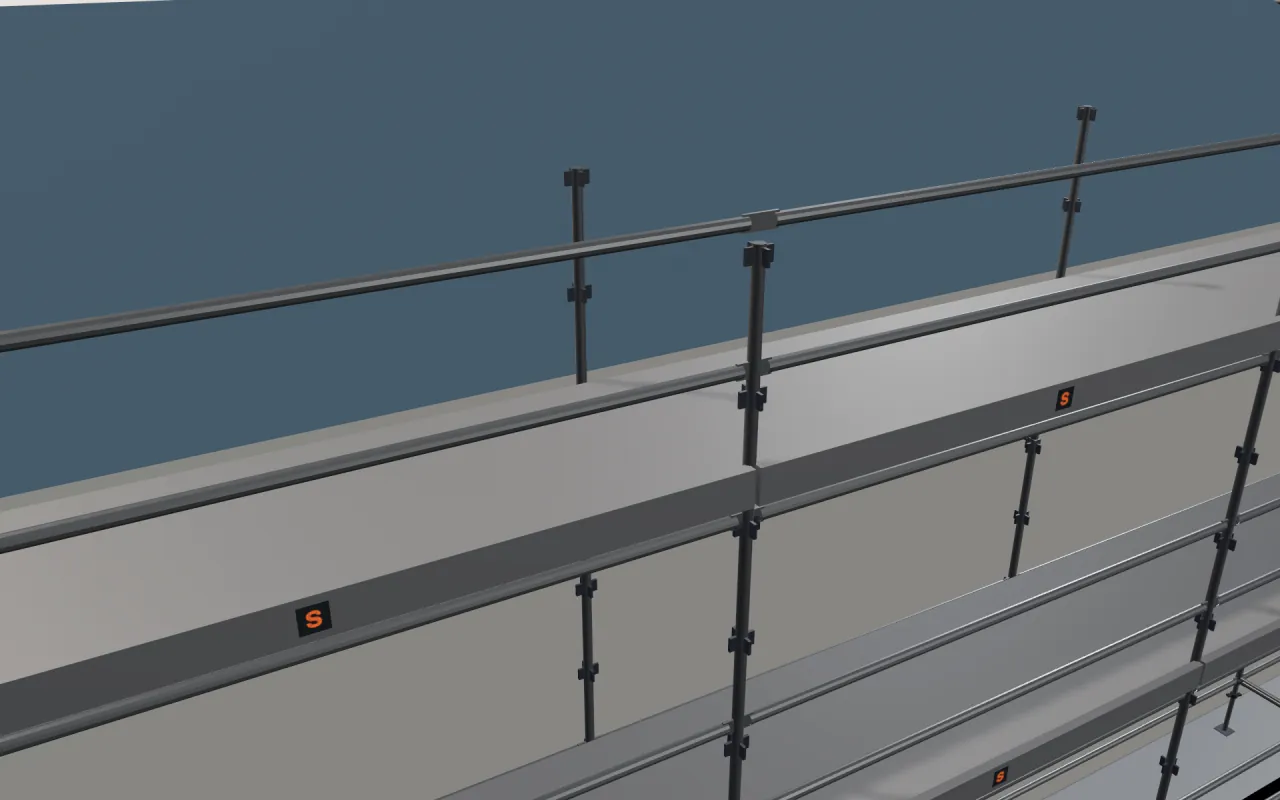

Close-ups from the 3D model

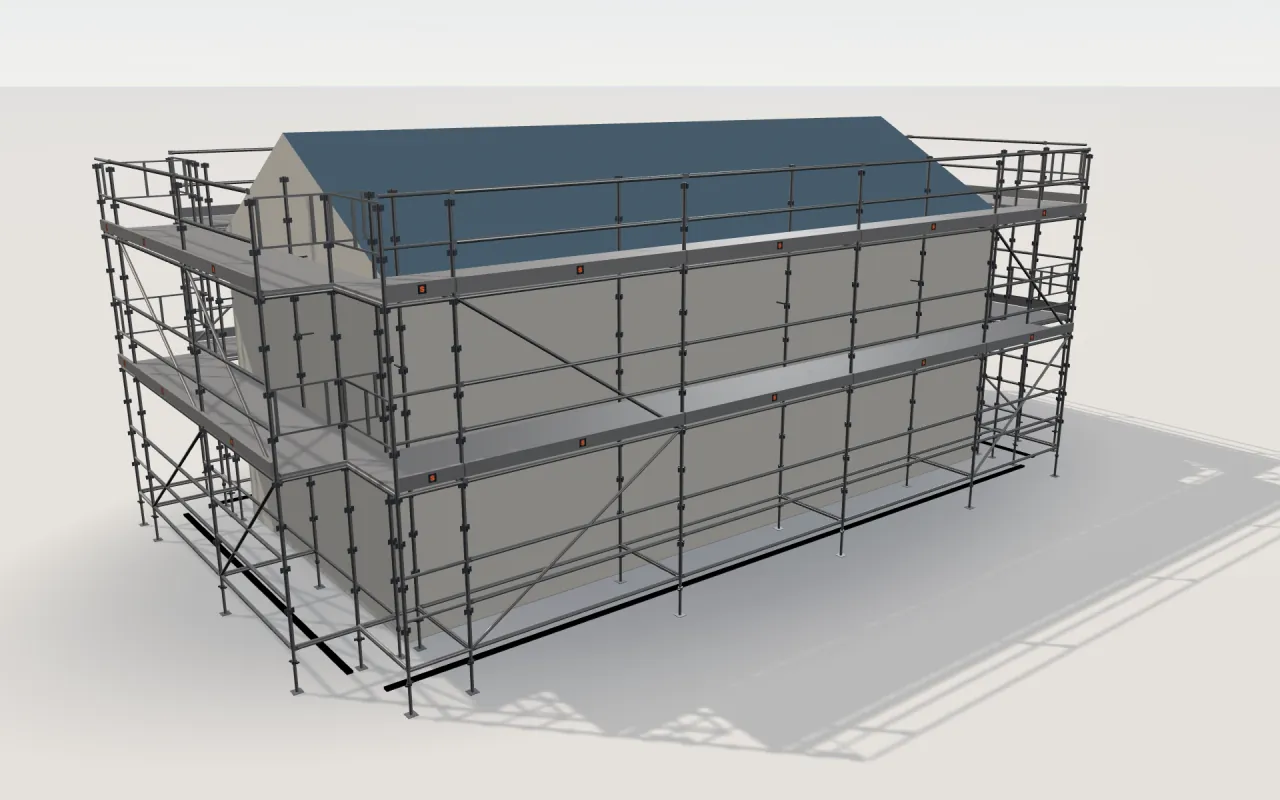

The example house with Acrow QUICKSTAGE
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 + 3 | 11.4 m | 4.5 m | 1 × 0.76 m + 3 × 3.05 m + 1 × 2.43 m |
| Wall 2 + 4 (gable) | 5.3 m | 6 m | 1 × 0.76 m + 1 × 3.05 m + 1 × 2.43 m |
The parts list for the example house with Acrow QUICKSTAGE
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Standards | 1.98 m | 80 |
| Standards | 1 m | 40 |
| Ledgers and beams | ||
| Ledgers | 3.05 m | 48 |
| Ledgers | 2.43 m | 24 |
| Ledgers | 0.76 m | 24 |
| Transoms | 60 | |
| Decks | ||
| Decks without ladder | 3.05 m | 15 |
| Decks without ladder | 2.43 m | 8 |
| Decks without ladder | 0.76 m | 8 |
| Decks with ladder | 3.05 m | 2 |
| Guardrails | ||
| Front guardrails | 3.05 m | 48 |
| Front guardrails | 2.43 m | 24 |
| Front guardrails | 0.76 m | 24 |
| Toeboards | ||
| Toeboards | 3.05 m | 16 |
| Toeboards | 2.43 m | 8 |
| Toeboards | 0.76 m | 8 |
| Diagonals | ||
| Diagonals | 3.05 m | 8 |
| Diagonals | 2.43 m | 8 |
| Ends | ||
| End guardrails | 16 | |
| Wall ties and fittings | ||
| Wall ties | 20 | |
| Wall-anchor fittings | 20 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
Acrow QUICKSTAGE (AU) · Scaffold depth: 1.27 m · Decks at: 2.52 m, 4.5 m · Decks with ladders · Parts in all: 549
Acrow QUICKSTAGE compared with similar systems on the same house
| System | Bays on the long wall | Depth | Parts in all | Against Acrow QUICKSTAGE |
|---|---|---|---|---|
| Acrow QUICKSTAGE | 1 × 0.76 m + 3 × 3.05 m + 1 × 2.43 m | 1.27 m | 549 | this page |
| HAKI Universal | 5 × 2.5 m | 1.01 m | 652 | +103 (+19%) |
| Tubesca-Comabi M368 | 1 × 0.8 m + 3 × 3 m + 1 × 2.5 m | 0.8 m | 541 | -8 (-1%) |
| Kwikstage | 1 × 0.76 m + 3 × 3.05 m + 1 × 2.44 m | 0.76 m | 533 | -16 (-3%) |
Acrow QUICKSTAGE: parts by wall size
Scaffold depth 1.27 m, access: decks with ladders. Each wall is a whole number of 3.05 m bays, so the scaffold covers it exactly.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 6.1 × 4 m | 2 × 3.05 m | 1 | 12 | 3 | 6 | 4 | 53 |
| 12.2 × 6 m | 4 × 3.05 m | 2 | 30 | 9 | 10 | 14 | 142 |
| 18.3 × 8 m | 6 × 3.05 m | 3 | 56 | 19 | 14 | 18 | 264 |
| 24.4 × 10 m | 8 × 3.05 m | 4 | 90 | 33 | 18 | 32 | 430 |
| 30.5 × 12 m | 10 × 3.05 m | 5 | 132 | 51 | 22 | 38 | 629 |
Pick Acrow QUICKSTAGE if…
- you build in lifts of 1.98 m: that is this system’s lift height in ScaFix, against 2 m for most systems.
Questions about Acrow QUICKSTAGE
How many parts does Acrow QUICKSTAGE need for a 12.2 m × 6 m wall?
A 12.2 m long, 6 m high wall with Acrow QUICKSTAGE (4 × 3.05 m) needs 142 parts according to ScaFix: 30 frames and standards, 9 decks, 10 base jacks and legs and 14 wall ties and fittings, with decks on 2 lifts. A 30.5 m wall 12 m high needs 629.
