RUBO RK scaffold: bay lengths, depths and parts list

RUBO RK has bay lengths of 2.53 m and 2.09 m and depths of 0.95 m and 0.65 m in ScaFix. Enter your walls, and ScaFix draws the RUBO RK scaffold in 3D and works out its parts list. Below is our example house with RUBO RK. Any other size: Scaffold calculator.

By Ole Emil Frikstad Urstad · How the numbers are computed · Last updated 25 October 2026

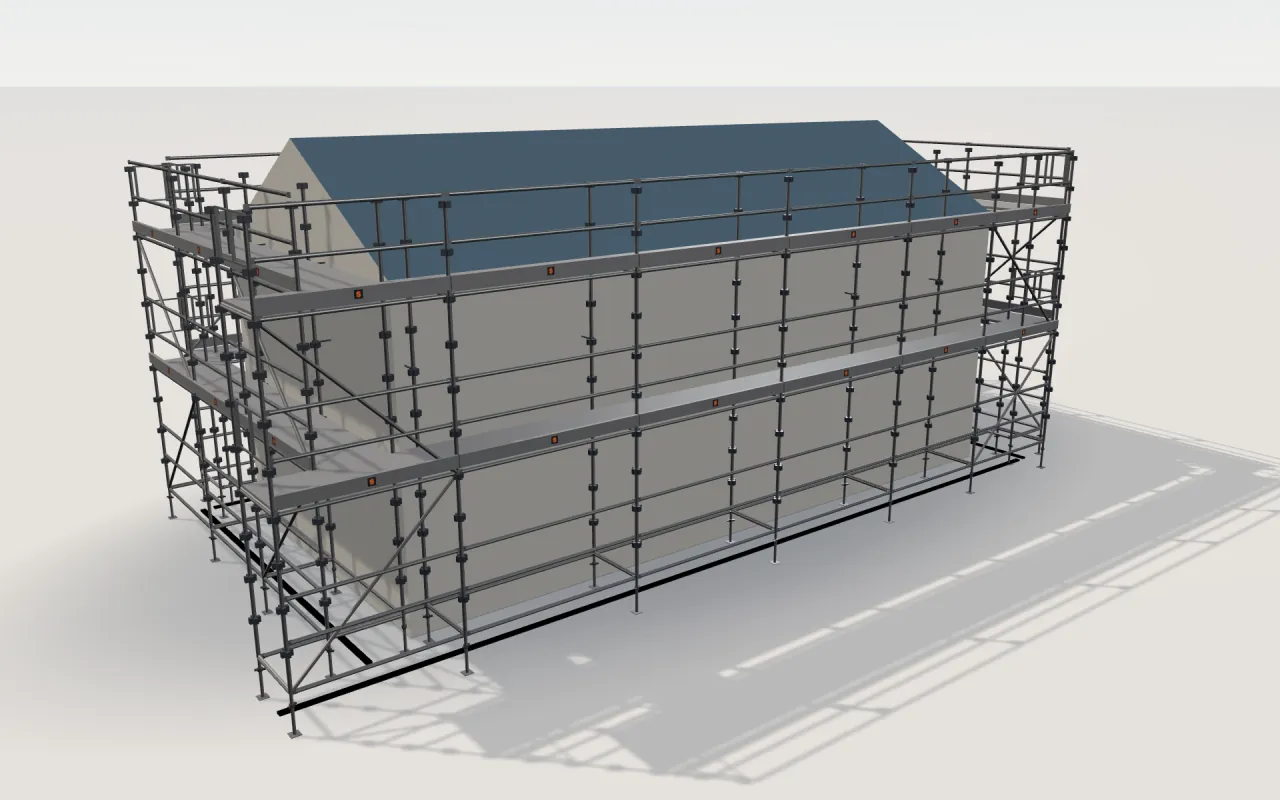

RUBO RK around the example house, as ScaFix draws it in 3D.

How many parts does RUBO RK need for a house?

ScaFix plans RUBO RK with the bay lengths 2.53 m and 2.09 m and scaffold depth 0.95 m and 0.65 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, RUBO RK needs 611 parts; HAKI Universal needs 652 on the same house.

Bracing (diagonals)

Not yet sourced: ScaFix does not have the manufacturer's bracing rule for this system. Check the bracing against the manufacturer's instructions before you order or build.

RUBO RK in ScaFix

Manufacturer · System type: RUBO · Modular scaffold with wedge connections
Variants in the system picker: RUBO RK (klinowe)
Bay lengths · Depths: 2.53 m, 2.09 m · 0.95 m, 0.65 m
Source of bay lengths and depths: RUBO RK catalogue (read 23 October 2026)
Source of the tie rule: Rozp. MI 6.02.2003 §115 (Dz.U. 47/401), via Warbud BHP standard 2.2 p. 4: kotwy co drugie pole i co drugą kondygnację, przesunięte o jedno pole
How ScaFix plans RUBO RK: 2 m lifts; ties every 4 m vertically, every 5.06 m (2 × 2.53 m) / 4.18 m (2 × 2.09 m) along the wall; diagonals at least one per 5 bays in every lift

Wall-tie spacing along the wall for RUBO RK

ScaFix ties RUBO RK every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: Rozp. MI 6.02.2003 §115 (Dz.U. 47/401), via Warbud BHP standard 2.2 p. 4: kotwy co drugie pole i co drugą kondygnację, przesunięte o jedno pole. ScaFix is a planning tool, not a structural approval.

Wall-tie spacing along the wall for each bay length of RUBO RK in ScaFix
Bay length	Bays between ties	Tie spacing along the wall
2.53 m	2	5.06 m
2.09 m	2	4.18 m

Good to know

The maker publishes no bracing interval for this system: ScaFix uses its general rule — check the manufacturer's instructions.

Sources for RUBO RK

Tie rule for RUBO RK: Rozp. MI 6.02.2003 §115 (Dz.U. 47/401), via Warbud BHP standard 2.2 p. 4: kotwy co drugie pole i co drugą kondygnację, przesunięte o jedno pole. ScaFix is a planning tool, not a structural approval.

Close-ups from the 3D model

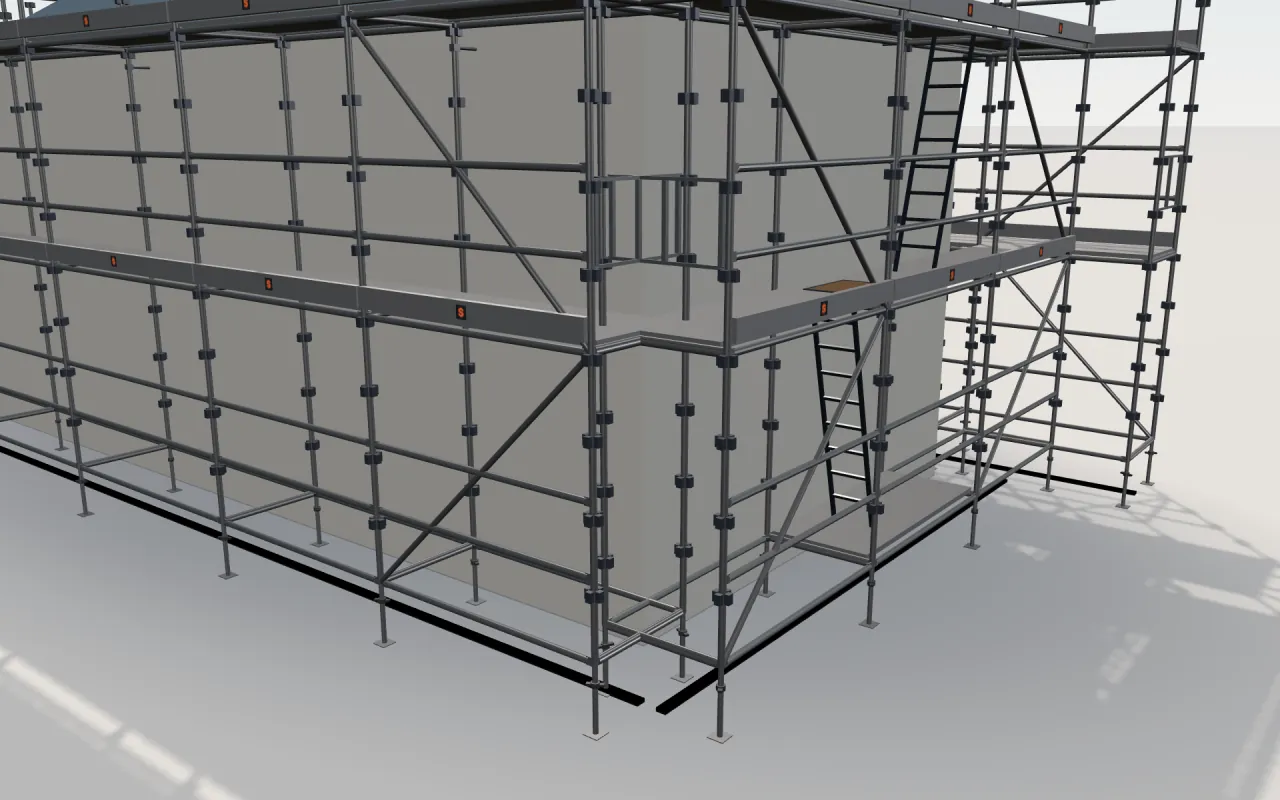

Close-up of the corner where the long wall and the gable wall meet, with RUBO RK standards, decks, guardrails and toe boards in the ScaFix 3D model — The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

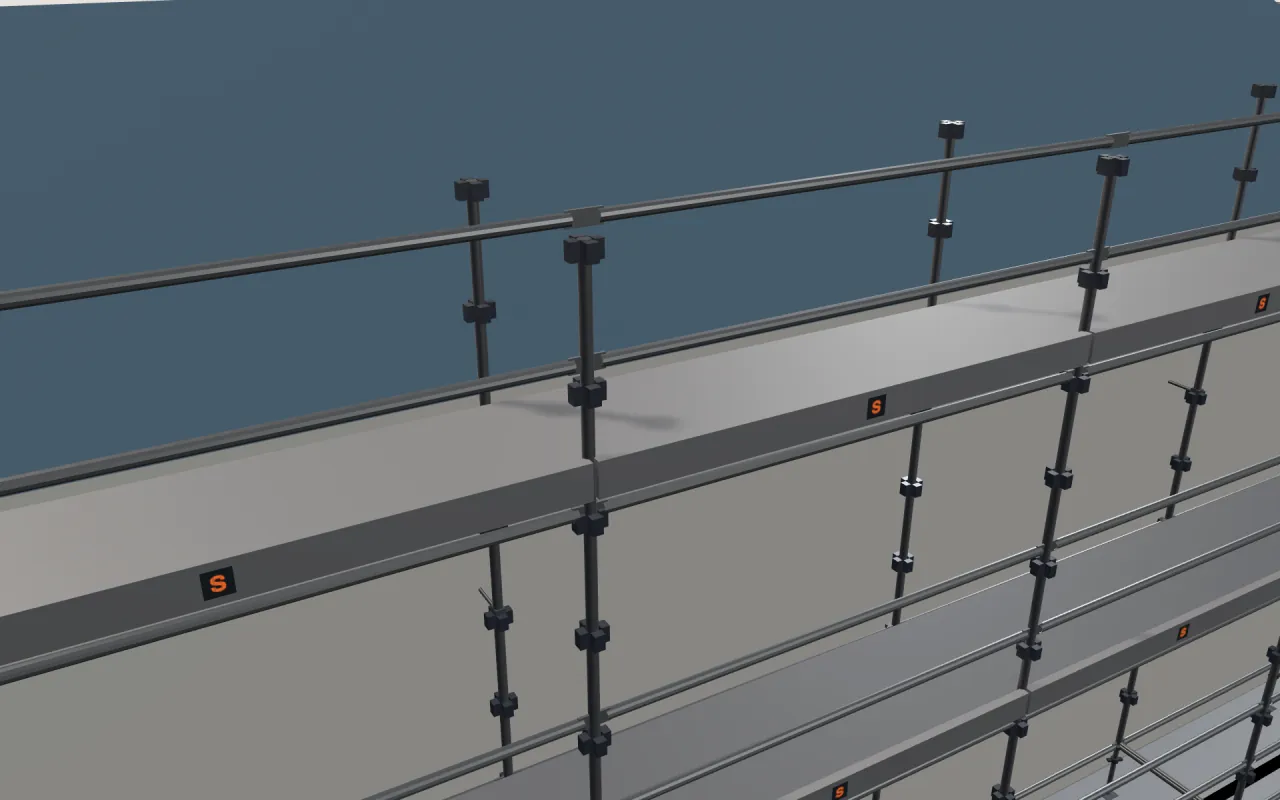

Close-up of the top RUBO RK lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model — The top lift below the eaves, with guardrails and toe boards.

The example house with RUBO RK

The walls of the example house with RUBO RK
Wall	Length	Height	Bays
Wall 1 + 3	11.4 m	4.5 m	3 × 2.09 m + 3 × 2.53 m
Wall 2 + 4 (gable)	5.3 m	6 m	3 × 2.09 m

The parts list for the example house with RUBO RK

The parts list for the example house with RUBO RK
Part	Length	Count
Frames and standards
Standards	2 m	88
Standards	1 m	44
Ledgers and beams
Ledgers	2.53 m	36
Ledgers	2.09 m	72
Transoms		66
Decks
Decks without ladder	2.53 m	12
Decks without ladder	2.09 m	23
Decks with ladder	2.09 m	2
Guardrails
Front guardrails	2.53 m	36
Front guardrails	2.09 m	72
Toeboards
Toeboards	2.53 m	12
Toeboards	2.09 m	24
Diagonals
Diagonals	2.09 m	16
Ends
End guardrails		12
Wall ties and fittings
Wall ties		26
Wall-anchor fittings		26
Base jacks and legs
Base jacks / legs		44

RUBO RK (klinowe) · Scaffold depth: 0.95 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 611

RUBO RK compared with similar systems on the same house

The example house with RUBO RK and similar systems
System	Bays on the long wall	Depth	Parts in all	Against RUBO RK
RUBO RK	3 × 2.09 m + 3 × 2.53 m	0.95 m	611	this page
HAKI Universal	5 × 2.5 m	1.01 m	652	+41 (+7%)
Tubesca-Comabi M368	1 × 0.8 m + 3 × 3 m + 1 × 2.5 m	0.8 m	541	-70 (-11%)
Kwikstage	1 × 0.76 m + 3 × 3.05 m + 1 × 2.44 m	0.76 m	533	-78 (-13%)

RUBO RK: parts by wall size

Scaffold depth 0.95 m, access: decks with ladders. Each wall is a whole number of 2.53 m bays, so the scaffold covers it exactly.

Parts by wall size with RUBO RK
Wall (length × height)	Bays	Decked lifts	Frames and standards	Decks	Base jacks and legs	Wall ties and fittings	Parts in all
5.06 × 4 m	2 × 2.53 m	1	12	3	6	4	53
10.12 × 6 m	4 × 2.53 m	2	30	9	10	14	142
15.18 × 8 m	6 × 2.53 m	3	56	19	14	18	261
20.24 × 10 m	8 × 2.53 m	4	90	33	18	32	430
25.3 × 12 m	10 × 2.53 m	5	132	51	22	38	624

Pick RUBO RK if…

space along the wall is tight: RUBO RK comes as narrow as 0.65 m.

Questions about RUBO RK

How many parts does RUBO RK need for a 10.12 m × 6 m wall?

A 10.12 m long, 6 m high wall with RUBO RK (4 × 2.53 m) needs 142 parts according to ScaFix: 30 frames and standards, 9 decks, 10 base jacks and legs and 14 wall ties and fittings, with decks on 2 lifts. A 25.3 m wall 12 m high needs 624.
