ScaFix plans Layher Allround scaffolding with the system's own bay lengths (3.07 m and 2.57 m) and depth (1.4 m, 1.09 m, 0.73 m), draws the scaffold in 3D and works out the parts list. Below is our example house with Layher Allround.
The system in ScaFix
- Manufacturer
- Layher
- System type
- Modular scaffold with rosettes
- Variants in the system picker
- Layher Allround (3.07m), Layher Allround (2.57m), Layher Allround (2.57m + 3.07m)
- Bay lengths
- 3.07 m, 2.57 m
- Depths
- 1.4 m, 1.09 m, 0.73 m
- Source of the tie rule
- DIBt Z-8.22-64 (23.04.2018, forlenget 02.05.2027) Anl. C s.2 §C.5 Ausf. B + Anl. D s.3

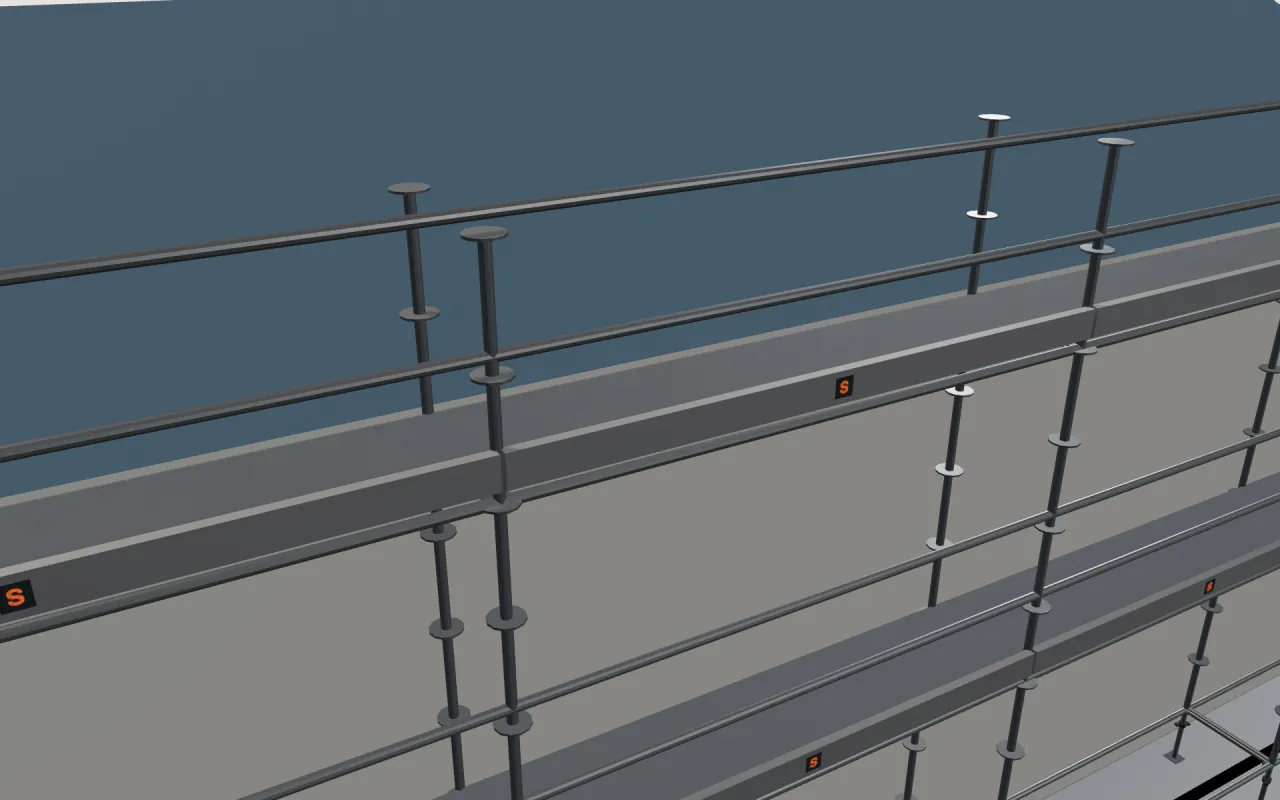

Close-ups from the 3D model
The example house with Layher Allround
ScaFix's own example: a 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.
- System
- Layher Allround
- Scaffold depth
- 0.73 m
- Decks at
- 2.5 m, 4.5 m
- Top deck
- 4.5 m
- Access
- Decks with ladders
- Parts in all
- 384
The walls and the bays
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 | 11.4 m | 4.5 m | 4 × 3.07 m |
| Wall 2 (gable) | 5.3 m | 6 m | 2 × 3.07 m |
| Wall 3 | 11.4 m | 4.5 m | 4 × 3.07 m |
| Wall 4 (gable) | 5.3 m | 6 m | 2 × 3.07 m |
The parts list for the example house with Layher Allround
The whole parts list for ScaFix's own example, grouped the way the app shows it.
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Standards | 2 m | 64 |
| Standards | 1 m | 32 |
| Ledgers and beams | ||
| Ledgers | 3.07 m | 72 |
| Transoms | 48 | |
| Decks | ||
| Decks without ladder | 3.07 m | 16 |
| Decks with ladder | 3.07 m | 8 |
| Guardrails | ||
| Front guardrails | 3.07 m | 24 |
| Toeboards | ||
| Toeboards | 3.07 m | 24 |
| Diagonals | ||
| Diagonals | 3.07 m | 8 |
| Ends | ||
| End guardrails | 12 | |
| Wall ties and fittings | ||
| Wall ties | 20 | |
| Wall-anchor fittings | 20 | |
| Right-angle couplers for wall ties | 4 | |
| Base jacks and legs | ||
| Base jacks / legs | 32 | |
This is our example. The parts list for your own walls follows your measurements and settings.
Limits
- The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
- Round corners, silo and tank scaffolding and hanging scaffolds are not supported yet.
Questions and answers
Which bay lengths does Layher Allround have in ScaFix?
ScaFix uses the bay lengths 3.07 m and 2.57 m and the depth 1.4 m, 1.09 m, 0.73 m for Layher Allround. The variants in the system picker are Layher Allround (3.07m), Layher Allround (2.57m), Layher Allround (2.57m + 3.07m).
How many parts does the example house need with Layher Allround?
With Layher Allround, the 11.4 m × 5.3 m example house needs 384 parts in all, split into the groups in the table. Your own building gets its own parts list.
Is the Layher Allround plan from ScaFix approved for erection?
ScaFix is a planning tool, not a structural calculation or approval. Always check the scaffold against the manufacturer's assembly instructions and the rules that apply before you erect it.
