ALFIX 70 in ScaFix
ScaFix plans ALFIX 70 scaffolding with the system's own bay lengths (3 m, 2.5 m and 2 m) and depth (0.73 m), draws the scaffold in 3D and works out the parts list. Below is our example house with ALFIX 70.
Try one week – €9.90See the demo house in 3DSee ScaFix
€9.90 for 7 days. Does not renew.
How many parts does ALFIX 70 need for a house?
ScaFix plans ALFIX 70 with the bay lengths 3 m, 2.5 m and 2 m and the scaffold depth 0.73 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, ALFIX 70 needs 318 parts; Jamax needs 268 on the same house.
The system in ScaFix
- Manufacturer
- ALFIX
- System type
- Frame scaffold (facade scaffold)
- Variants in the system picker
- ALFIX Facade
- Bay lengths
- 3 m, 2.5 m, 2 m
- Depths
- 0.73 m
- Source of the tie rule
- DIBt Z-8.1-862 ALFIX 70 (16.12.2020) Anl. B p. 7–8 §B.5, Tab. B.4 p. 8–9, Anl. C p. 1–2

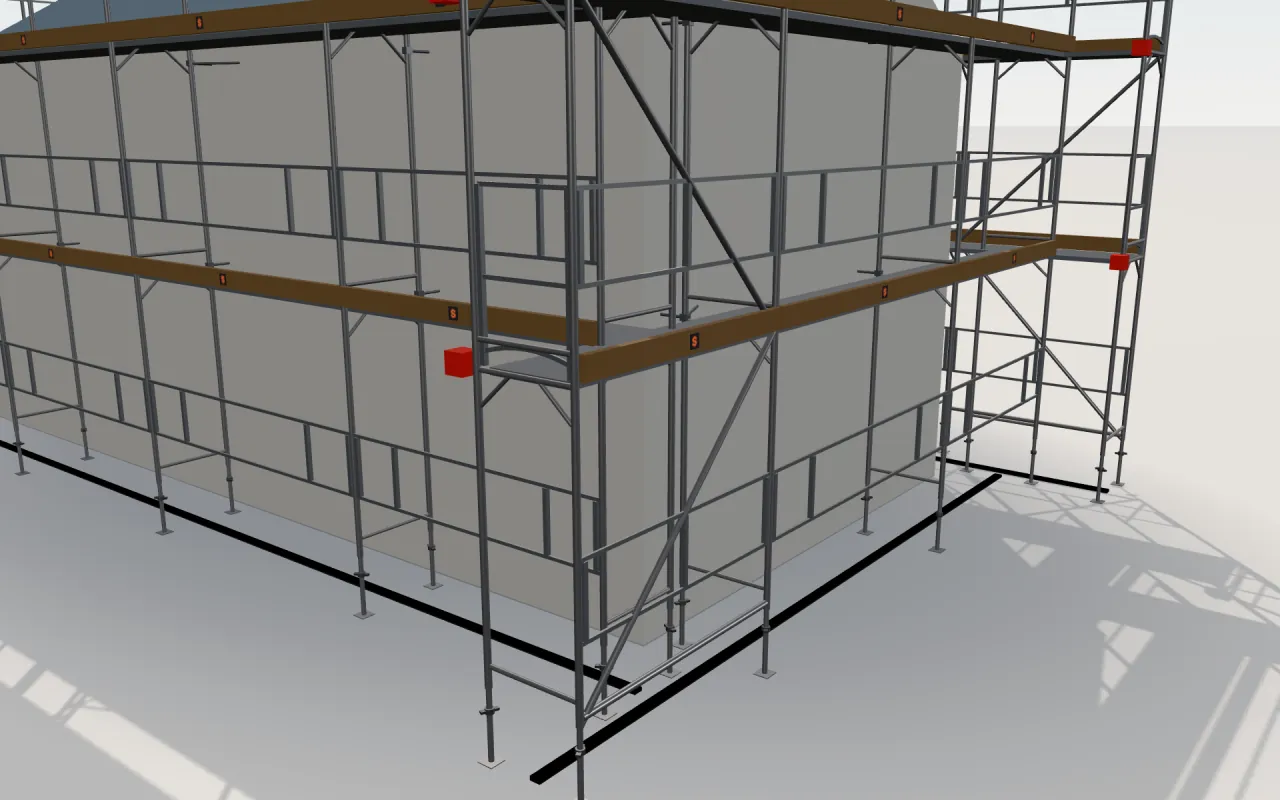

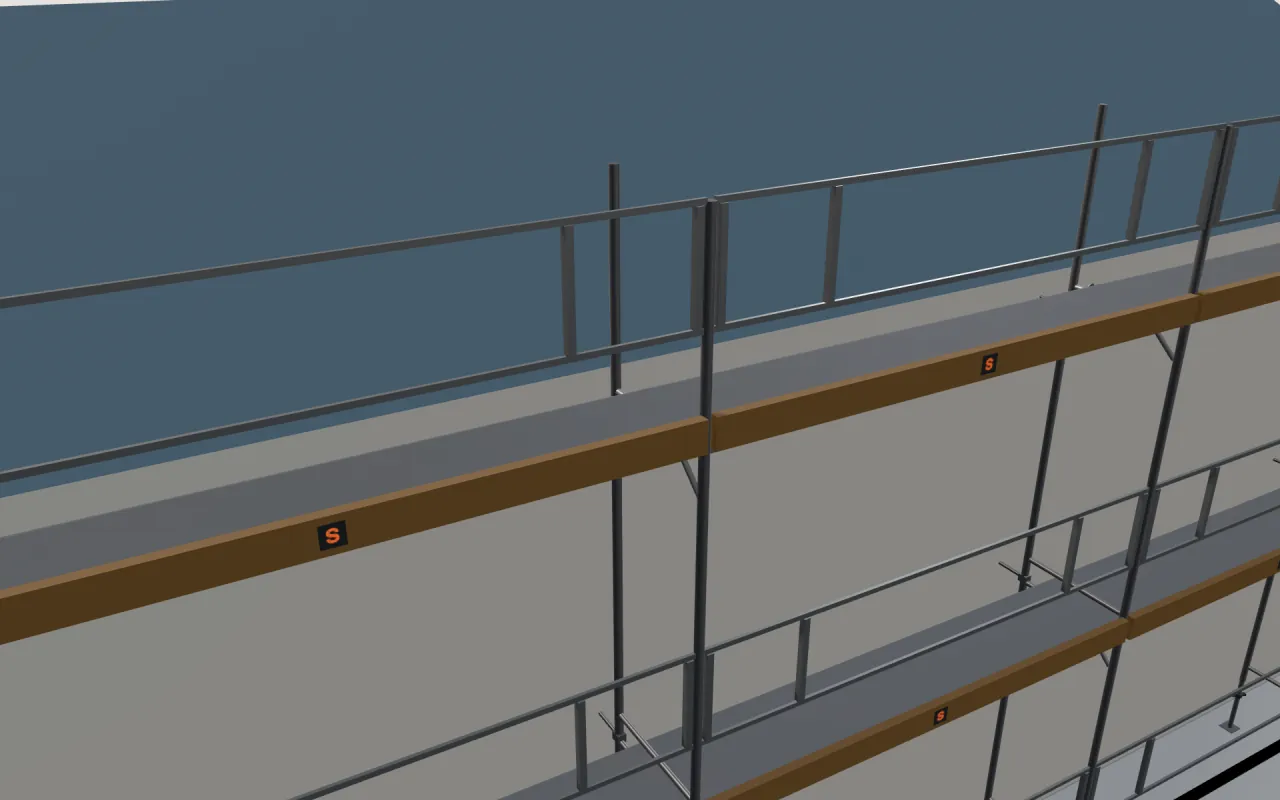

Close-ups from the 3D model

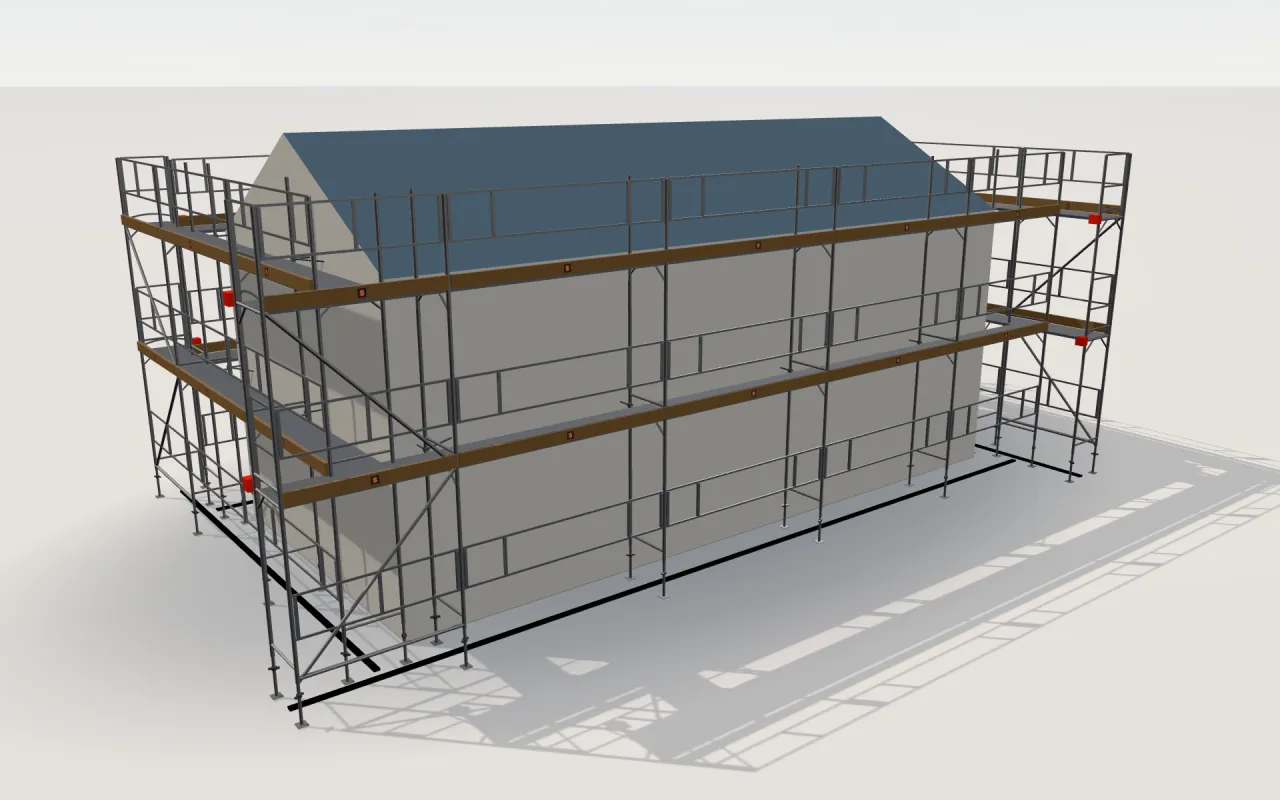

The example house with ALFIX 70
ScaFix's own example: the 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.
- System
- ALFIX Facade
- Scaffold depth
- 0.73 m
- Decks at
- 2.5 m, 4.5 m
- Top deck
- 4.5 m
- Access
- Decks with ladders
- Parts in all
- 318
The walls and the bays
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 | 11.4 m | 4.5 m | 1 × 2 m + 3 × 3 m + 1 × 2.5 m |
| Wall 2 (gable) | 5.3 m | 6 m | 1 × 2 m + 1 × 3 m + 1 × 2.5 m |
| Wall 3 | 11.4 m | 4.5 m | 1 × 2 m + 3 × 3 m + 1 × 2.5 m |
| Wall 4 (gable) | 5.3 m | 6 m | 1 × 2 m + 1 × 3 m + 1 × 2.5 m |
The parts list for the example house with ALFIX 70
The whole parts list for ScaFix's own example, grouped the way the app shows it.
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Frames | 2 m | 40 |
| Frames | 1 m | 4 |
| Top-lift guardrail posts | 16 | |
| Decks | ||
| Decks without ladder | 3 m | 14 |
| Decks without ladder | 2.5 m | 8 |
| Decks without ladder | 2 m | 8 |
| Decks with ladder | 3 m | 2 |
| Guardrails | ||
| Front guardrails | 3 m | 24 |
| Front guardrails | 2.5 m | 12 |
| Front guardrails | 2 m | 12 |
| Toeboards | ||
| Toeboards | 3 m | 16 |
| Toeboards | 2.5 m | 8 |
| Toeboards | 2 m | 8 |
| Diagonals | ||
| Diagonals | 2 m | 8 |
| Diagonals | 2 m | 4 |
| Ends | ||
| End guardrails | 8 | |
| Wall ties and fittings | ||
| Wall ties | 39 | |
| Wall-anchor fittings | 39 | |
| Right-angle couplers for wall ties | 8 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
This is our example. The parts list for your own walls follows your measurements and settings.
ALFIX 70 compared with similar systems on the same house
The same example house, computed by the same engine with each system's bay length and default depth. The difference in piece count comes from the bay length, the depth and how the system is built.
| System | Bays on the long wall | Depth | Parts in all |
|---|---|---|---|
| ALFIX 70 | 1 × 2 m + 3 × 3 m + 1 × 2.5 m | 0.73 m | 318 |
| Jamax | 4 × 3 m | 0.68 m | 268 |
| Layher Blitz | 4 × 3.07 m | 0.73 m | 271 |
| Plettac SL 70/100 | 1 × 2 m + 3 × 3 m + 1 × 2.5 m | 0.73 m | 316 |
How to compare the setup
- These are fixed ScaFix examples, not customer jobs. Use the wall dimensions and roof shape stated with each example.
- Compare the same system variant, bay lengths, scaffold depth, deck heights and access. Matching house dimensions alone do not give matching parts lists.
- The displayed quantities are calculated by ScaFix's engine. Check the setup against the manufacturer's assembly instructions and the actual job; a parts list is not a structural calculation.
Limits
- The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
- Round corners, silos and hanging scaffolds are in Pro. A round scaffold is not a standard configuration and needs a calculation or the supplier's documentation. A hanging scaffold (Layher Allround and HAKI Universal) always needs a structural calculation from the supplier or an engineer.
Questions and answers
Which bay lengths does ALFIX 70 have in ScaFix?
ScaFix uses the bay lengths 3 m, 2.5 m and 2 m and the depth 0.73 m for ALFIX 70.
How many parts does the example house need with ALFIX 70?
With ALFIX 70, the 11.4 m × 5.3 m example house needs 318 parts in all, split into the groups in the table. Your own building gets its own parts list.
Is the ALFIX 70 plan from ScaFix approved for erection?
ScaFix is a planning tool, not a structural calculation or approval. Always check the scaffold against the manufacturer's assembly instructions and the rules that apply before you erect it.
