ALFIX ALBLITZ 70 S scaffold: bay lengths, depths and parts list

ALFIX ALBLITZ 70 S has bay lengths of 0.73–3.07 m and a depth of 0.73 m in ScaFix. Enter your walls, and ScaFix draws the ALFIX ALBLITZ 70 S scaffold in 3D and works out its parts list. Below is our example house with ALFIX ALBLITZ 70 S. Any other size: Scaffold calculator.

· How the numbers are computed ·

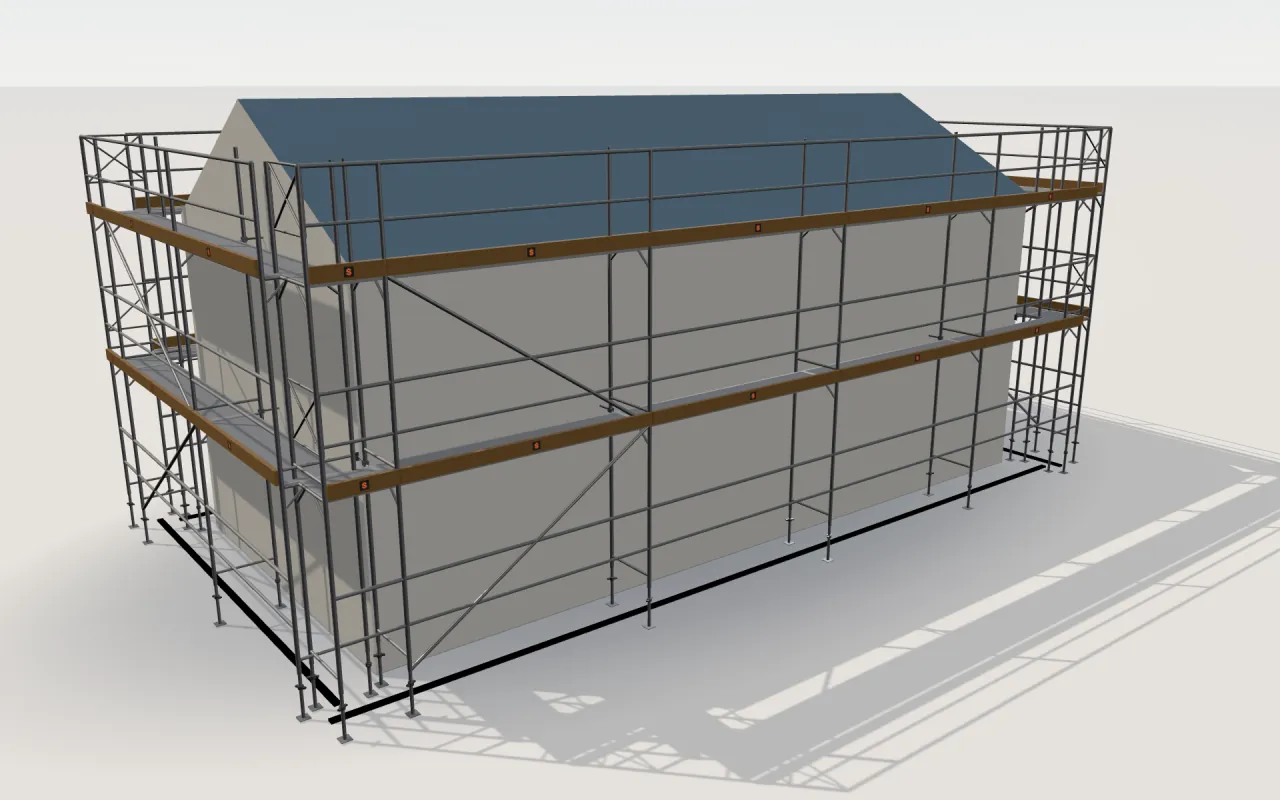

ALFIX ALBLITZ 70 S scaffolding around a house of 11.4 × 5.3 m with a gabled roof (eaves 4.5 m, ridge 6 m), drawn by the ScaFix 3D model
ALFIX ALBLITZ 70 S around the example house, as ScaFix draws it in 3D.

How many parts does ALFIX ALBLITZ 70 S need for a house?

ScaFix plans ALFIX ALBLITZ 70 S with the bay lengths 0.73–3.07 m and scaffold depth 0.73 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, ALFIX ALBLITZ 70 S needs 272 parts; Jamax needs 268 on the same house.

ALFIX ALBLITZ 70 S in ScaFix

Manufacturer · System type
ALFIX · Frame scaffold (facade scaffold)
Variants in the system picker
ALFIX ALBLITZ 70 S
Bay lengths · Depths
3.07 m, 2.57 m, 2.07 m, 1.57 m, 1.09 m, 0.73 m · 0.73 m
Source of bay lengths and depths
Depth: DIBt Z-8.1-864 (read 23 October 2026); ScaFix has no page reference for the bay lengths yet.
Source of the tie rule
DIBt Z-8.1-864 ALBLITZ 70 S (bis 11.01.2028) Anlage B §B.5 a–c (p. 383)
How ScaFix plans ALFIX ALBLITZ 70 S
2 m lifts; ties every 4 m vertically, every 6.14 m (2 × 3.07 m) / 5.14 m (2 × 2.57 m) / 4.14 m (2 × 2.07 m) along the wall; diagonals at least one per 5 bays in every lift

Wall-tie spacing along the wall for ALFIX ALBLITZ 70 S

ScaFix ties ALFIX ALBLITZ 70 S every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: DIBt Z-8.1-864 ALBLITZ 70 S (bis 11.01.2028) Anlage B §B.5 a–c (p. 383). ScaFix is a planning tool, not a structural approval.

Wall-tie spacing along the wall for each bay length of ALFIX ALBLITZ 70 S in ScaFix
Bay lengthBays between tiesTie spacing along the wall
3.07 m26.14 m
2.57 m25.14 m
2.07 m24.14 m
1.57 m23.14 m
1.09 m22.18 m
0.73 m21.46 m

Good to know

A separate approved product of ALFIX, built from parts compatible with Layher Blitz; it is not a Layher system.

Sources for ALFIX ALBLITZ 70 S

Tie rule for ALFIX ALBLITZ 70 S: DIBt Z-8.1-864 ALBLITZ 70 S (bis 11.01.2028) Anlage B §B.5 a–c (p. 383). DIBt Z-8.1-864 can be looked up by its number in the DIBt approval database. ScaFix is a planning tool, not a structural approval.

  1. dibt.de/en/service/approval-download/search

Close-ups from the 3D model

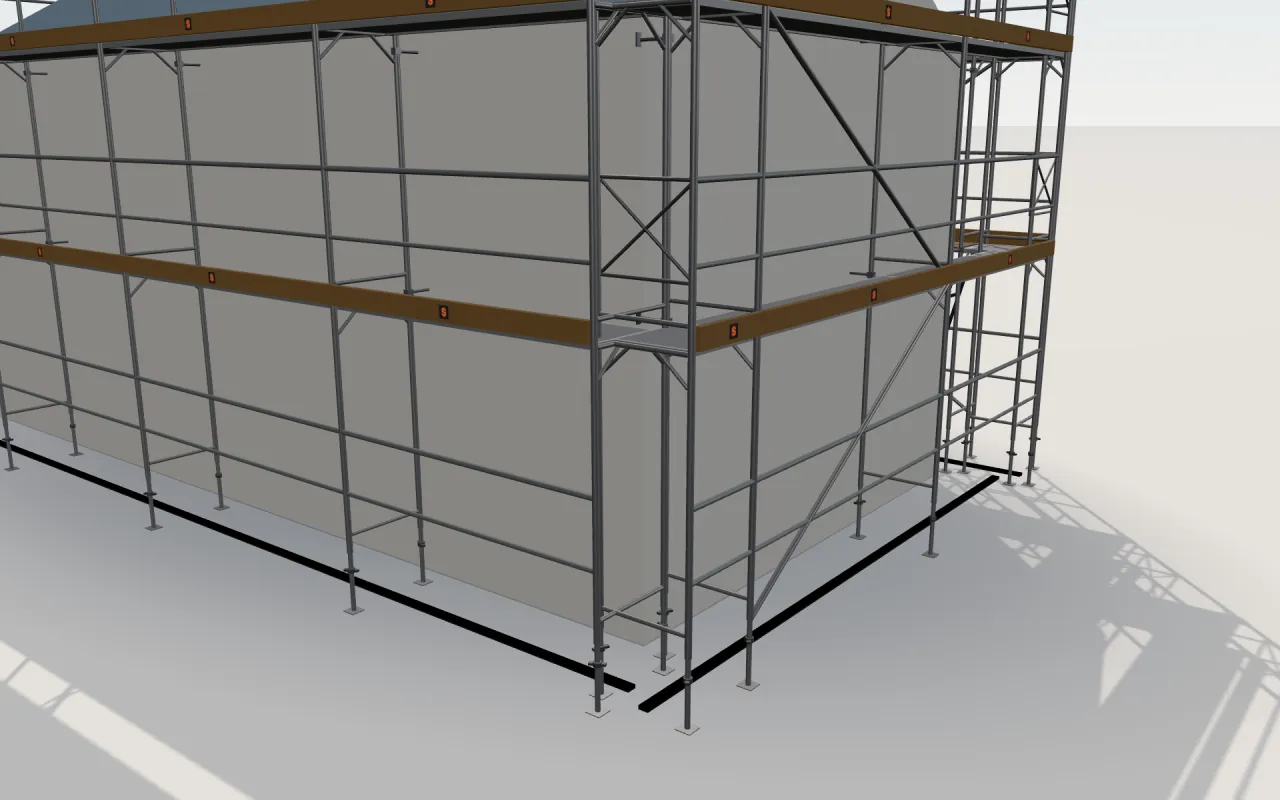

Close-up of the corner where the long wall and the gable wall meet, with ALFIX ALBLITZ 70 S standards, decks, guardrails and toe boards in the ScaFix 3D model
The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

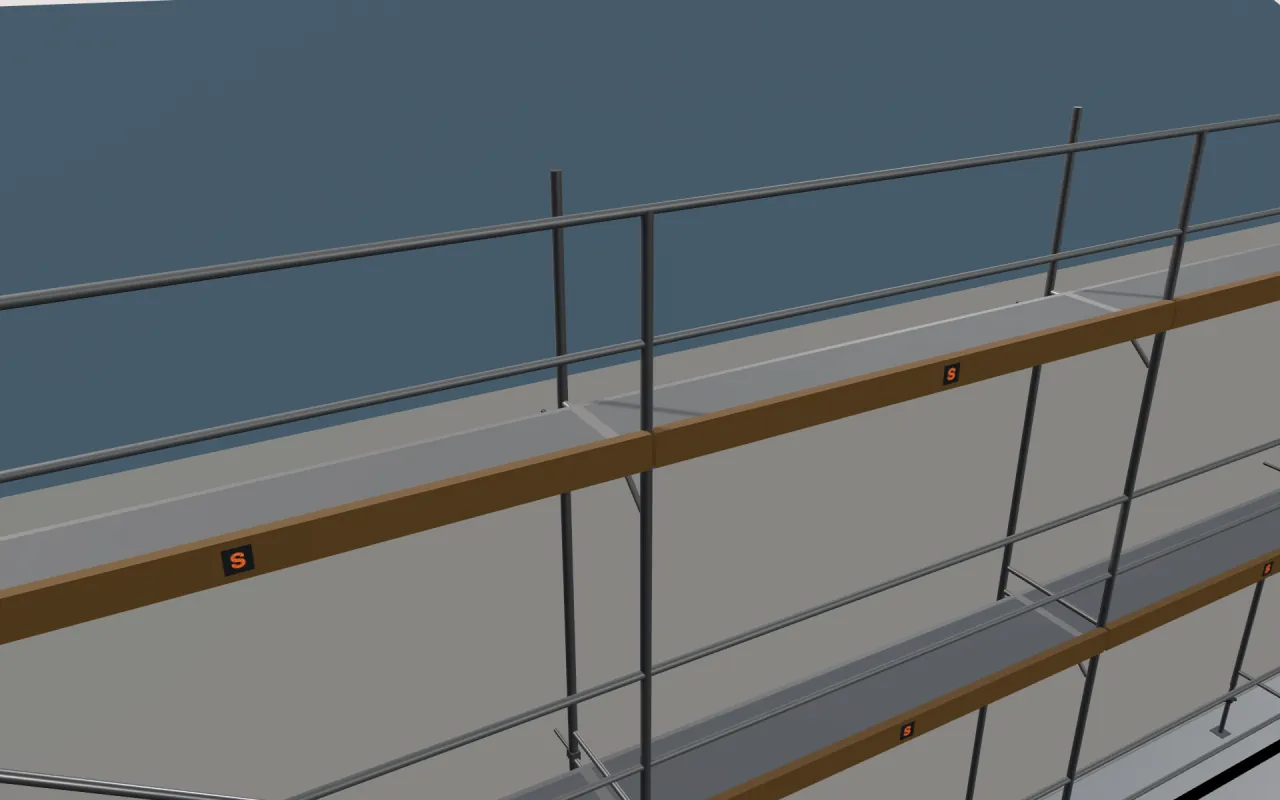

Close-up of the top ALFIX ALBLITZ 70 S lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model
The top lift below the eaves, with guardrails and toe boards.

The example house with ALFIX ALBLITZ 70 S

The walls of the example house with ALFIX ALBLITZ 70 S
WallLengthHeightBays
Wall 1 + 311.4 m4.5 m1 × 0.73 m + 3 × 3.07 m + 1 × 2.57 m
Wall 2 + 4 (gable)5.3 m6 m1 × 0.73 m + 1 × 3.07 m + 1 × 2.57 m

The parts list for the example house with ALFIX ALBLITZ 70 S

The parts list for the example house with ALFIX ALBLITZ 70 S
PartLengthCount
Frames and standards
Frames2 m40
Frames1 m4
Top-lift guardrail posts16
Decks
Decks without ladder3.07 m14
Decks without ladder2.57 m8
Decks without ladder0.73 m8
Decks with ladder3.07 m2
Guardrails
Front guardrails3.07 m24
Front guardrails2.57 m12
Front guardrails0.73 m12
Toeboards
Toeboards3.07 m16
Toeboards2.57 m8
Toeboards0.73 m8
Diagonals
Diagonals3.07 m8
Ends
End guardrails8
Wall ties and fittings
Wall ties22
Wall-anchor fittings22
Base jacks and legs
Base jacks / legs40

ALFIX ALBLITZ 70 S · Scaffold depth: 0.73 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 272

ALFIX ALBLITZ 70 S compared with similar systems on the same house

The example house with ALFIX ALBLITZ 70 S and similar systems
SystemBays on the long wallDepthParts in allAgainst ALFIX ALBLITZ 70 S
ALFIX ALBLITZ 70 S1 × 0.73 m + 3 × 3.07 m + 1 × 2.57 m0.73 m272this page
Jamax4 × 3 m0.68 m268-4 (-1%)
Layher Blitz4 × 3.07 m0.73 m308+36 (+13%)
Plettac SL 70/1001 × 1.5 m + 3 × 3 m + 1 × 2.5 m0.73 m316+44 (+16%)

ALFIX ALBLITZ 70 S: parts by wall size

Scaffold depth 0.73 m, access: decks with ladders. Each wall is a whole number of 3.07 m bays, so the scaffold covers it exactly.

Parts by wall size with ALFIX ALBLITZ 70 S
Wall (length × height)BaysDecked liftsFrames and standardsDecksBase jacks and legsWall ties and fittingsParts in all
6.14 × 4 m2 × 3.07 m1626629
12.28 × 6 m4 × 3.07 m2158101675
18.42 × 8 m6 × 3.07 m328181422136
24.56 × 10 m8 × 3.07 m445321840223
30.7 × 12 m10 × 3.07 m566502248316

Pick ALFIX ALBLITZ 70 S if…

  • you want long bays: ALFIX ALBLITZ 70 S reaches 3.07 m, longer than the longest bay of 41 of the 60 other systems of its type in ScaFix.
  • you need to fit many wall lengths: ALFIX ALBLITZ 70 S has 6 bay lengths (0.73 m–3.07 m), more than 43 of the 60 other systems of its type.
  • you want fewer pieces to handle: ALFIX ALBLITZ 70 S needs 272 parts on ScaFix’s example house, fewer than 52 of the 60 other systems of its type.

Questions about ALFIX ALBLITZ 70 S

How many parts does ALFIX ALBLITZ 70 S need for a 12.28 m × 6 m wall?

A 12.28 m long, 6 m high wall with ALFIX ALBLITZ 70 S (4 × 3.07 m) needs 75 parts according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 16 wall ties and fittings, with decks on 2 lifts. A 30.7 m wall 12 m high needs 316.
