ROLLE BLIZZARD S-70 scaffold: bay lengths, depths and parts list

ROLLE BLIZZARD S-70 has bay lengths of 0.73–3.07 m and a depth of 0.73 m in ScaFix. Enter your walls, and ScaFix draws the ROLLE BLIZZARD S-70 scaffold in 3D and works out its parts list. Below is our example house with ROLLE BLIZZARD S-70. Any other size: Scaffold calculator.

· How the numbers are computed ·

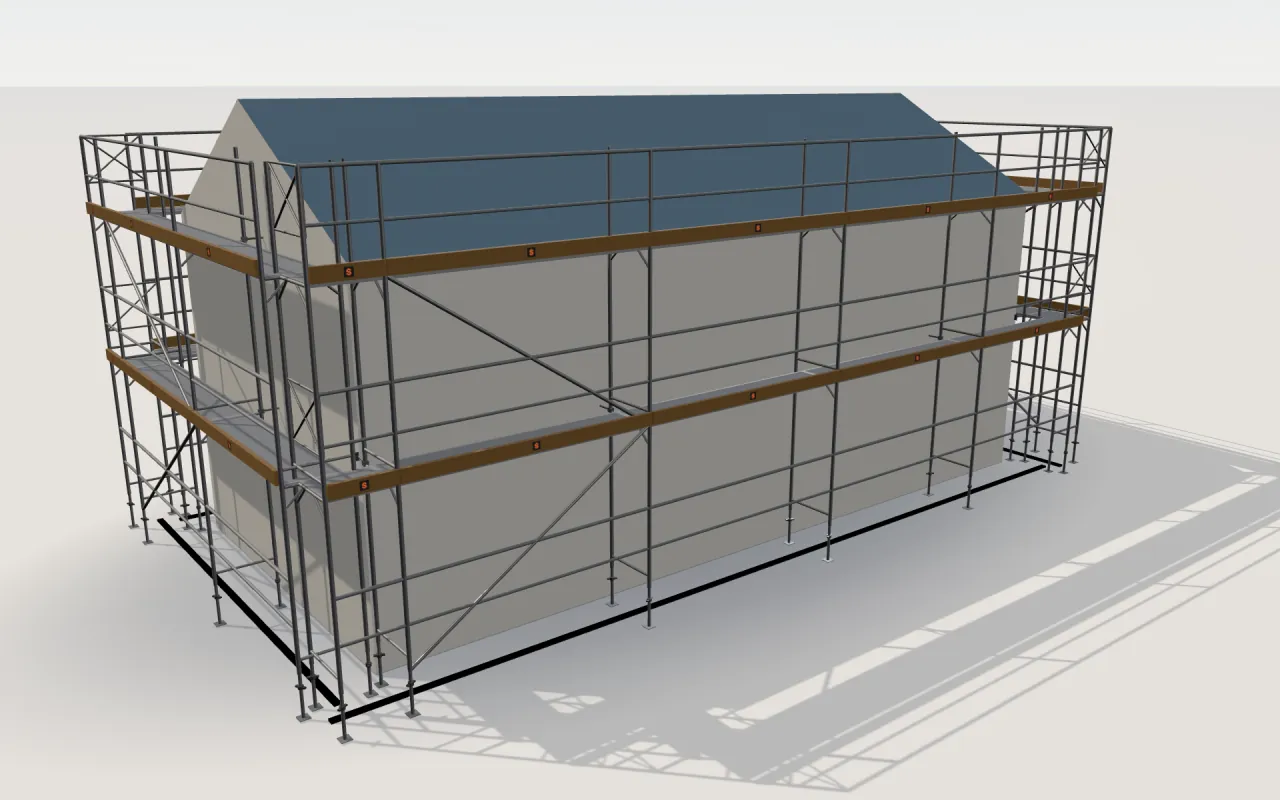

ROLLE BLIZZARD S-70 scaffolding around a house of 11.4 × 5.3 m with a gabled roof (eaves 4.5 m, ridge 6 m), drawn by the ScaFix 3D model
ROLLE BLIZZARD S-70 around the example house, as ScaFix draws it in 3D.

How many parts does ROLLE BLIZZARD S-70 need for a house?

ScaFix plans ROLLE BLIZZARD S-70 with the bay lengths 0.73–3.07 m and scaffold depth 0.73 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, ROLLE BLIZZARD S-70 needs 280 parts; Jamax needs 268 on the same house.

ROLLE BLIZZARD S-70 in ScaFix

Manufacturer · System type
ROLLE · Frame scaffold (facade scaffold)
Variants in the system picker
ROLLE BLIZZARD S-70
Bay lengths · Depths
3.07 m, 2.57 m, 2.07 m, 1.57 m, 1.09 m, 0.73 m · 0.73 m
Source of bay lengths and depths
Depth: DIBt Z-8.1-974 (read 23 October 2026); ScaFix has no page reference for the bay lengths yet.
Source of the tie rule
DIBt Z-8.1-974 ROLLE BLIZZARD S-70 (bis 28.03.2031) Anlage B §B.5 a–c
How ScaFix plans ROLLE BLIZZARD S-70
2 m lifts; ties every 4 m vertically, every 6.14 m (2 × 3.07 m) / 5.14 m (2 × 2.57 m) / 4.14 m (2 × 2.07 m) along the wall; diagonals at least one per 5 bays in every lift

Wall-tie spacing along the wall for ROLLE BLIZZARD S-70

ScaFix ties ROLLE BLIZZARD S-70 every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: DIBt Z-8.1-974 ROLLE BLIZZARD S-70 (bis 28.03.2031) Anlage B §B.5 a–c. ScaFix is a planning tool, not a structural approval.

Wall-tie spacing along the wall for each bay length of ROLLE BLIZZARD S-70 in ScaFix
Bay lengthBays between tiesTie spacing along the wall
3.07 m26.14 m
2.57 m25.14 m
2.07 m24.14 m
1.57 m23.14 m
1.09 m22.18 m
0.73 m21.46 m

Good to know

A separate approved product of ROLLE, built from parts compatible with Layher Blitz; it is not a Layher system.

Sources for ROLLE BLIZZARD S-70

Tie rule for ROLLE BLIZZARD S-70: DIBt Z-8.1-974 ROLLE BLIZZARD S-70 (bis 28.03.2031) Anlage B §B.5 a–c. DIBt Z-8.1-974 can be looked up by its number in the DIBt approval database. ScaFix is a planning tool, not a structural approval.

  1. dibt.de/en/service/approval-download/search

Close-ups from the 3D model

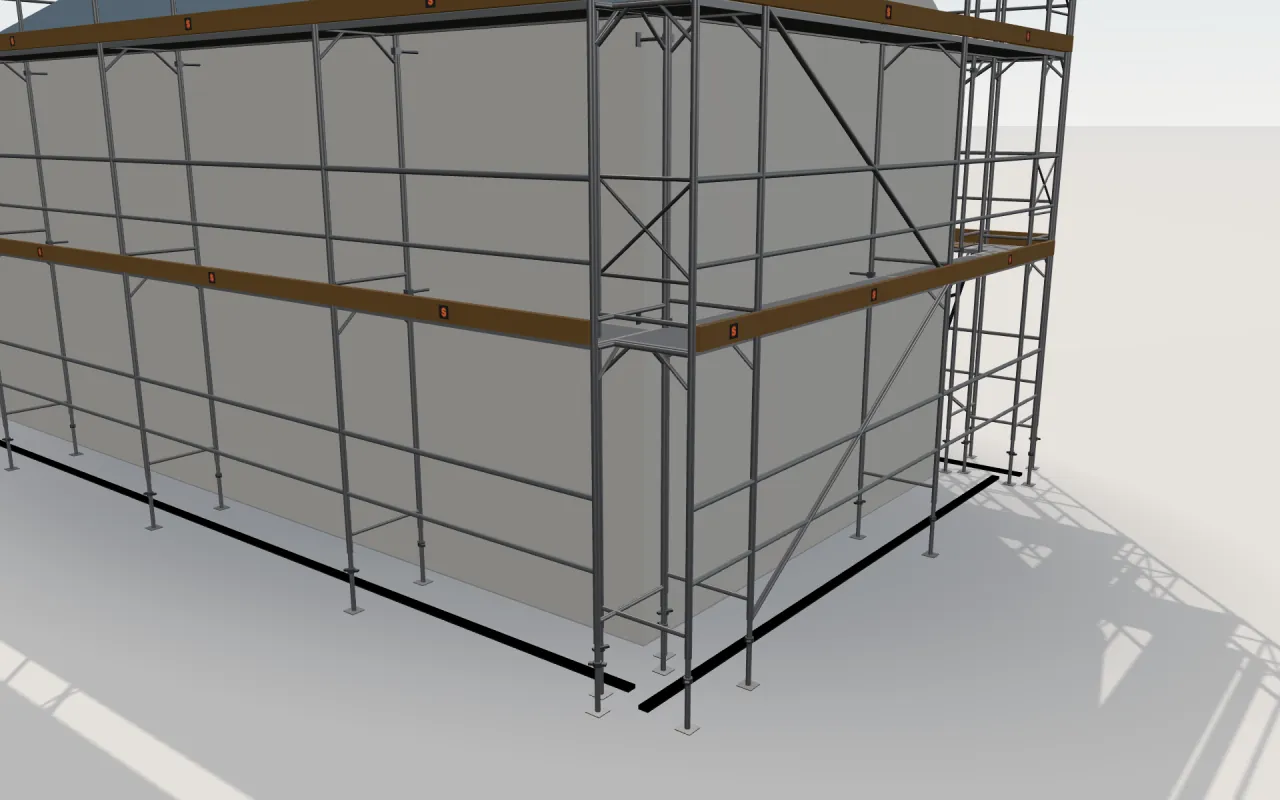

Close-up of the corner where the long wall and the gable wall meet, with ROLLE BLIZZARD S-70 standards, decks, guardrails and toe boards in the ScaFix 3D model
The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

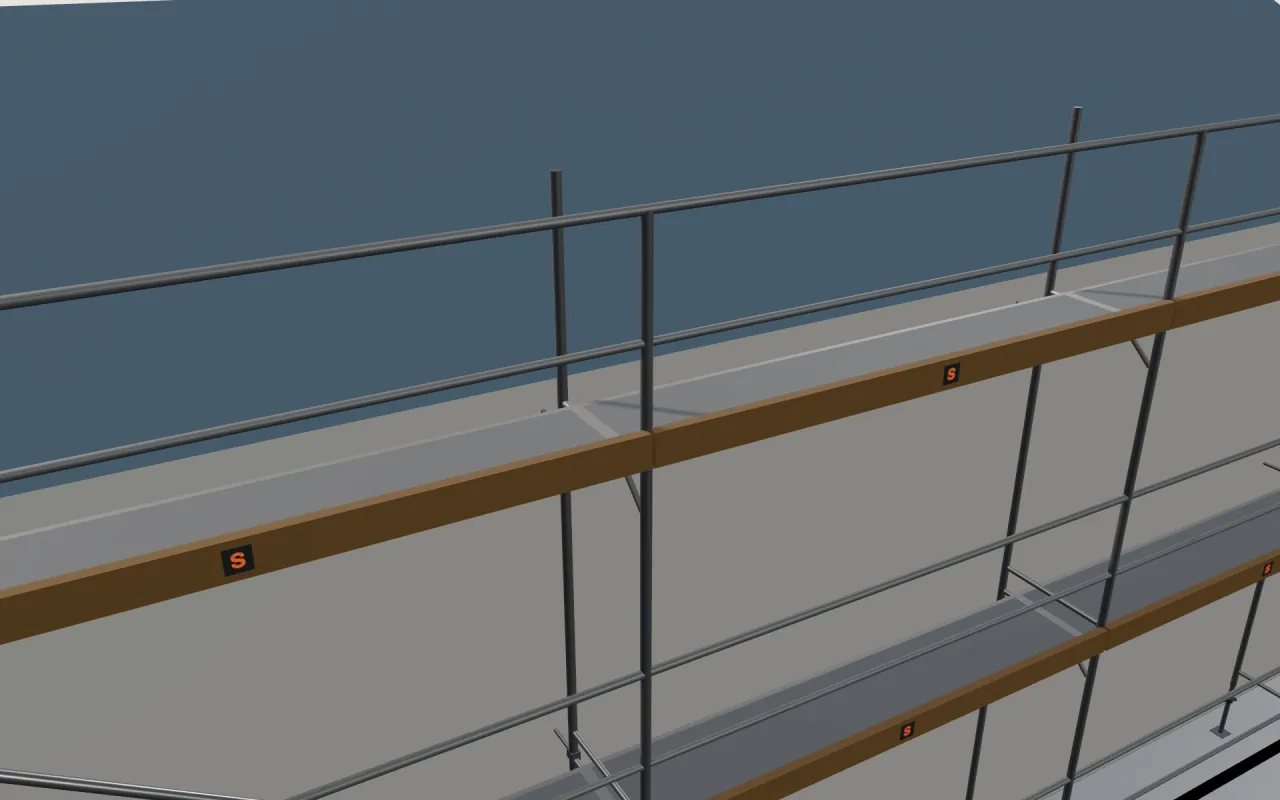

Close-up of the top ROLLE BLIZZARD S-70 lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model
The top lift below the eaves, with guardrails and toe boards.

The example house with ROLLE BLIZZARD S-70

The walls of the example house with ROLLE BLIZZARD S-70
WallLengthHeightBays
Wall 1 + 311.4 m4.5 m1 × 0.73 m + 3 × 3.07 m + 1 × 2.57 m
Wall 2 + 4 (gable)5.3 m6 m1 × 0.73 m + 1 × 3.07 m + 1 × 2.57 m

The parts list for the example house with ROLLE BLIZZARD S-70

The parts list for the example house with ROLLE BLIZZARD S-70
PartLengthCount
Frames and standards
Frames2 m40
Frames1 m4
Top-lift guardrail posts16
Decks
Decks without ladder3.07 m14
Decks without ladder2.57 m8
Decks without ladder0.73 m8
Decks with ladder3.07 m2
Guardrails
Front guardrails3.07 m24
Front guardrails2.57 m12
Front guardrails0.73 m12
Toeboards
Toeboards3.07 m16
Toeboards2.57 m8
Toeboards0.73 m8
Diagonals
Diagonals3.07 m8
Ends
End guardrails8
End toeboards8
Wall ties and fittings
Wall ties22
Wall-anchor fittings22
Base jacks and legs
Base jacks / legs40

ROLLE BLIZZARD S-70 · Scaffold depth: 0.73 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 280

ROLLE BLIZZARD S-70 compared with similar systems on the same house

The example house with ROLLE BLIZZARD S-70 and similar systems
SystemBays on the long wallDepthParts in allAgainst ROLLE BLIZZARD S-70
ROLLE BLIZZARD S-701 × 0.73 m + 3 × 3.07 m + 1 × 2.57 m0.73 m280this page
Jamax4 × 3 m0.68 m268-12 (-4%)
Layher Blitz4 × 3.07 m0.73 m308+28 (+10%)
Plettac SL 70/1001 × 1.5 m + 3 × 3 m + 1 × 2.5 m0.73 m316+36 (+13%)

ROLLE BLIZZARD S-70: parts by wall size

Scaffold depth 0.73 m, access: decks with ladders. Each wall is a whole number of 3.07 m bays, so the scaffold covers it exactly.

Parts by wall size with ROLLE BLIZZARD S-70
Wall (length × height)BaysDecked liftsFrames and standardsDecksBase jacks and legsWall ties and fittingsParts in all
6.14 × 4 m2 × 3.07 m1626631
12.28 × 6 m4 × 3.07 m2158101881
18.42 × 8 m6 × 3.07 m328181424144
24.56 × 10 m8 × 3.07 m445321844235
30.7 × 12 m10 × 3.07 m566502252330

Pick ROLLE BLIZZARD S-70 if…

  • you want long bays: ROLLE BLIZZARD S-70 reaches 3.07 m, longer than the longest bay of 41 of the 60 other systems of its type in ScaFix.
  • you need to fit many wall lengths: ROLLE BLIZZARD S-70 has 6 bay lengths (0.73 m–3.07 m), more than 43 of the 60 other systems of its type.
  • you want fewer pieces to handle: ROLLE BLIZZARD S-70 needs 280 parts on ScaFix’s example house, fewer than 47 of the 60 other systems of its type.

Questions about ROLLE BLIZZARD S-70

How many parts does ROLLE BLIZZARD S-70 need for a 12.28 m × 6 m wall?

A 12.28 m long, 6 m high wall with ROLLE BLIZZARD S-70 (4 × 3.07 m) needs 81 parts according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 18 wall ties and fittings, with decks on 2 lifts. A 30.7 m wall 12 m high needs 330.
