Scaffolding Center SC 73 scaffold: bay lengths, depths and parts list
Scaffolding Center SC 73 has bay lengths of 0.73–3.07 m and a depth of 0.73 m in ScaFix. Enter your walls, and ScaFix draws the Scaffolding Center SC 73 scaffold in 3D and works out its parts list. Below is our example house with Scaffolding Center SC 73. Any other size: Scaffold calculator.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does Scaffolding Center SC 73 need for a house?
ScaFix plans Scaffolding Center SC 73 with the bay lengths 0.73–3.07 m and scaffold depth 0.73 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, Scaffolding Center SC 73 needs 272 parts; Jamax needs 268 on the same house.
Scaffolding Center SC 73 in ScaFix
- Manufacturer · System type
- Scaffolding Center · Frame scaffold (facade scaffold)
- Variants in the system picker
- Scaffolding Center SC 73
- Bay lengths · Depths
- 3.07 m, 2.57 m, 2.07 m, 1.57 m, 1.09 m, 0.73 m · 0.73 m
- Source of bay lengths and depths
- Depth: DIBt Z-8.1-991 (read 23 October 2026); ScaFix has no page reference for the bay lengths yet.
- Source of the tie rule
- DIBt Z-8.1-991 SC 73 (bis 20.01.2027) Anlage B §B.5 a–c
- How ScaFix plans Scaffolding Center SC 73
- 2 m lifts; ties every 4 m vertically, every 6.14 m (2 × 3.07 m) / 5.14 m (2 × 2.57 m) / 4.14 m (2 × 2.07 m) along the wall; diagonals at least one per 5 bays in every lift
Wall-tie spacing along the wall for Scaffolding Center SC 73
ScaFix ties Scaffolding Center SC 73 every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: DIBt Z-8.1-991 SC 73 (bis 20.01.2027) Anlage B §B.5 a–c. ScaFix is a planning tool, not a structural approval.
| Bay length | Bays between ties | Tie spacing along the wall |
|---|---|---|
| 3.07 m | 2 | 6.14 m |
| 2.57 m | 2 | 5.14 m |
| 2.07 m | 2 | 4.14 m |
| 1.57 m | 2 | 3.14 m |
| 1.09 m | 2 | 2.18 m |
| 0.73 m | 2 | 1.46 m |
Good to know
A separate approved product of Scaffolding Center, built from parts compatible with Layher Blitz; it is not a Layher system. The approval Z-8.1-991 runs to 20 January 2027.
Sources for Scaffolding Center SC 73
Tie rule for Scaffolding Center SC 73: DIBt Z-8.1-991 SC 73 (bis 20.01.2027) Anlage B §B.5 a–c. DIBt Z-8.1-991 can be looked up by its number in the DIBt approval database. ScaFix is a planning tool, not a structural approval.

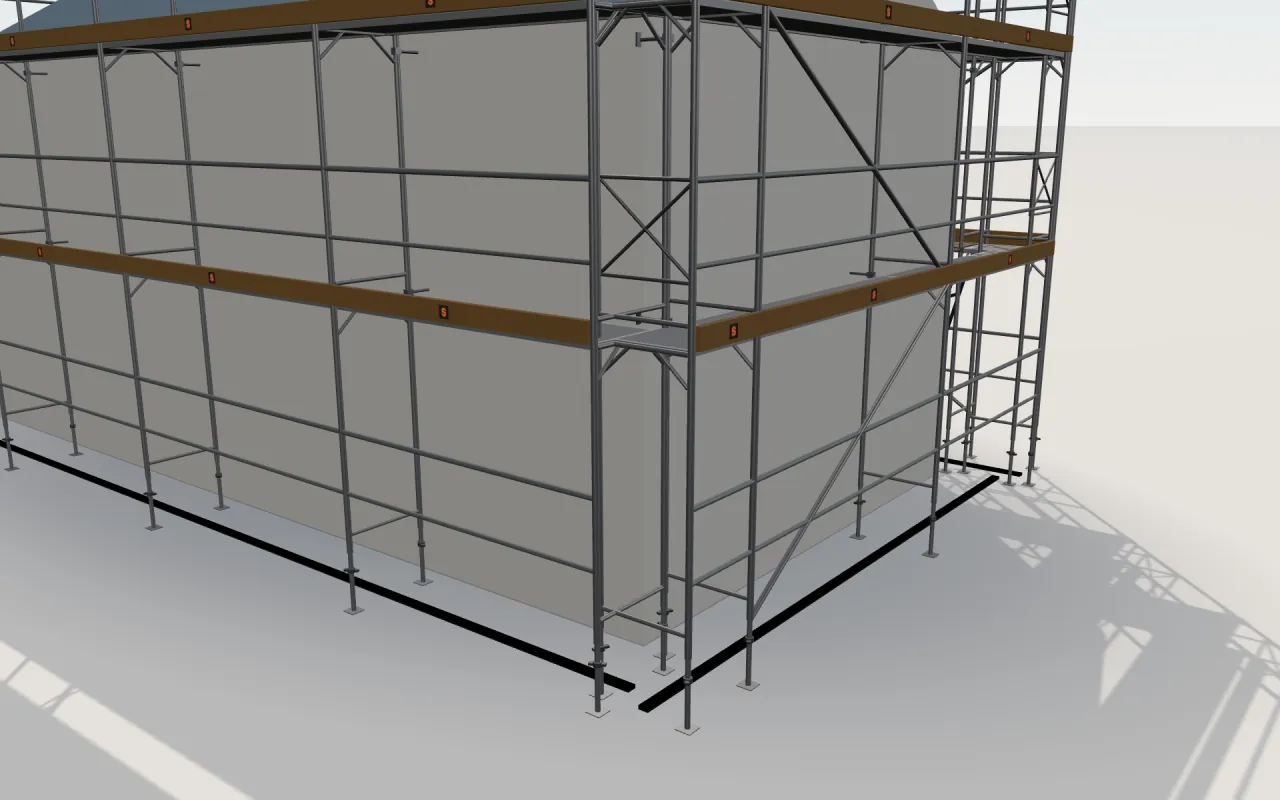

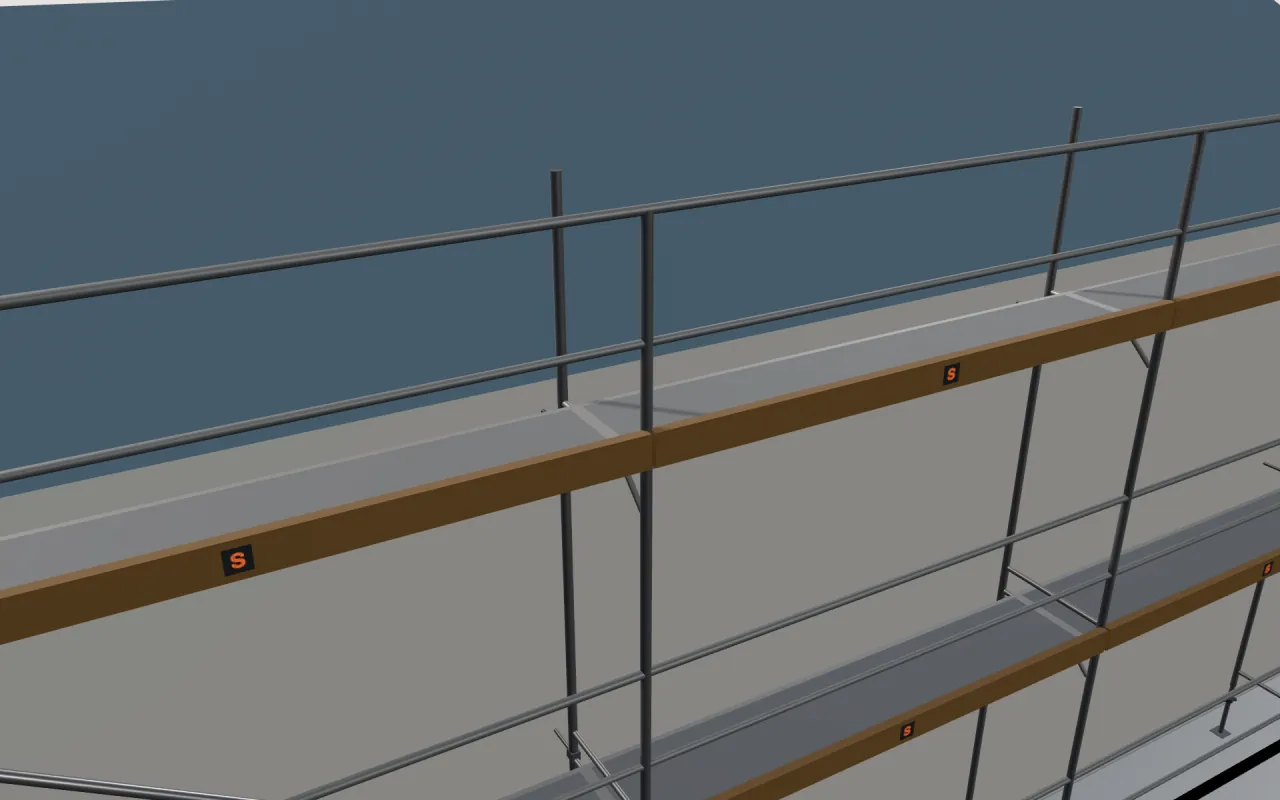

Close-ups from the 3D model

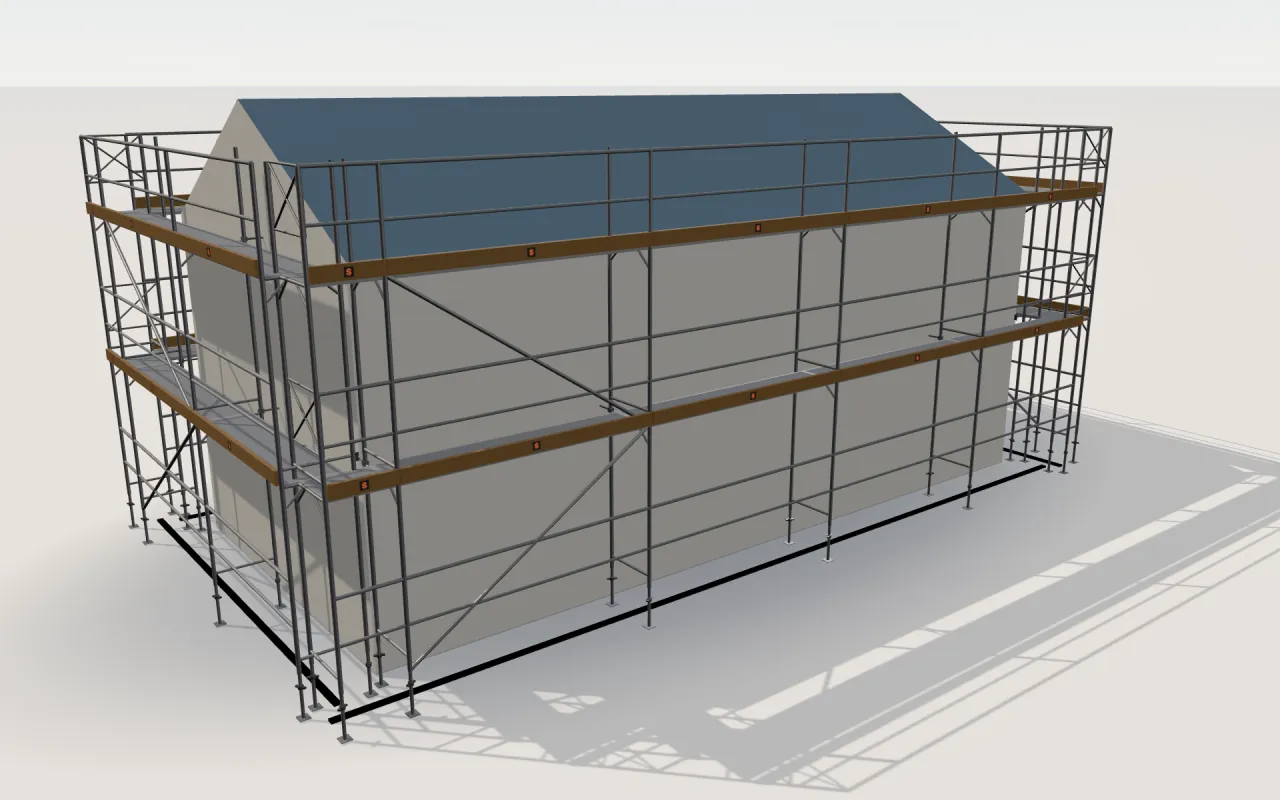

The example house with Scaffolding Center SC 73
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 + 3 | 11.4 m | 4.5 m | 1 × 0.73 m + 3 × 3.07 m + 1 × 2.57 m |
| Wall 2 + 4 (gable) | 5.3 m | 6 m | 1 × 0.73 m + 1 × 3.07 m + 1 × 2.57 m |
The parts list for the example house with Scaffolding Center SC 73
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Frames | 2 m | 40 |
| Frames | 1 m | 4 |
| Top-lift guardrail posts | 16 | |
| Decks | ||
| Decks without ladder | 3.07 m | 14 |
| Decks without ladder | 2.57 m | 8 |
| Decks without ladder | 0.73 m | 8 |
| Decks with ladder | 3.07 m | 2 |
| Guardrails | ||
| Front guardrails | 3.07 m | 24 |
| Front guardrails | 2.57 m | 12 |
| Front guardrails | 0.73 m | 12 |
| Toeboards | ||
| Toeboards | 3.07 m | 16 |
| Toeboards | 2.57 m | 8 |
| Toeboards | 0.73 m | 8 |
| Diagonals | ||
| Diagonals | 3.07 m | 8 |
| Ends | ||
| End guardrails | 8 | |
| Wall ties and fittings | ||
| Wall ties | 22 | |
| Wall-anchor fittings | 22 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
Scaffolding Center SC 73 · Scaffold depth: 0.73 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 272
Scaffolding Center SC 73 compared with similar systems on the same house
| System | Bays on the long wall | Depth | Parts in all | Against Scaffolding Center SC 73 |
|---|---|---|---|---|
| Scaffolding Center SC 73 | 1 × 0.73 m + 3 × 3.07 m + 1 × 2.57 m | 0.73 m | 272 | this page |
| Jamax | 4 × 3 m | 0.68 m | 268 | -4 (-1%) |
| Layher Blitz | 4 × 3.07 m | 0.73 m | 308 | +36 (+13%) |
| Plettac SL 70/100 | 1 × 1.5 m + 3 × 3 m + 1 × 2.5 m | 0.73 m | 316 | +44 (+16%) |
Scaffolding Center SC 73: parts by wall size
Scaffold depth 0.73 m, access: decks with ladders. Each wall is a whole number of 3.07 m bays, so the scaffold covers it exactly.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 6.14 × 4 m | 2 × 3.07 m | 1 | 6 | 2 | 6 | 6 | 29 |
| 12.28 × 6 m | 4 × 3.07 m | 2 | 15 | 8 | 10 | 16 | 75 |
| 18.42 × 8 m | 6 × 3.07 m | 3 | 28 | 18 | 14 | 22 | 136 |
| 24.56 × 10 m | 8 × 3.07 m | 4 | 45 | 32 | 18 | 40 | 223 |
| 30.7 × 12 m | 10 × 3.07 m | 5 | 66 | 50 | 22 | 48 | 316 |
Pick Scaffolding Center SC 73 if…
- you want long bays: Scaffolding Center SC 73 reaches 3.07 m, longer than the longest bay of 41 of the 60 other systems of its type in ScaFix.
- you need to fit many wall lengths: Scaffolding Center SC 73 has 6 bay lengths (0.73 m–3.07 m), more than 43 of the 60 other systems of its type.
- you want fewer pieces to handle: Scaffolding Center SC 73 needs 272 parts on ScaFix’s example house, fewer than 52 of the 60 other systems of its type.
Questions about Scaffolding Center SC 73
How many parts does Scaffolding Center SC 73 need for a 12.28 m × 6 m wall?
A 12.28 m long, 6 m high wall with Scaffolding Center SC 73 (4 × 3.07 m) needs 75 parts according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 16 wall ties and fittings, with decks on 2 lifts. A 30.7 m wall 12 m high needs 316.
