KERO RPL 070 scaffold: bay lengths, depths and parts list
KERO RPL 070 has bay lengths of 1.5–3 m and a depth of 0.74 m in ScaFix. Enter your walls, and ScaFix draws the KERO RPL 070 scaffold in 3D and works out its parts list. Below is our example house with KERO RPL 070. Any other size: Scaffold calculator.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does KERO RPL 070 need for a house?
ScaFix plans KERO RPL 070 with the bay lengths 3 m, 2.5 m, 2 m and 1.5 m and scaffold depth 0.74 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, KERO RPL 070 needs 288 parts; Jamax needs 268 on the same house.
KERO RPL 070 in brief
KERO RPL 070 is a frame scaffold from KERO with DIBt approval Z-8.1-975 (valid until 3 April 2029), 0.74 m wide on the plettac SL grid. ScaFix plans it with bays of 3 m, 2.5 m, 2 m and 1.5 m and the approval's tie pattern (Anlage B §B.5). KERO RHU 070 has the same width and bays in ScaFix but its own approval, Z-8.1-940, whose tie rule also ties both standards of every ladder bay in every tie row; KERO RK 073 (Z-8.1-895) is 0.73 m wide on the Blitz grid.
KERO RPL 070 in ScaFix
- Manufacturer · System type
- KERO · Frame scaffold (facade scaffold)
- Variants in the system picker
- KERO RPL 070
- Bay lengths · Depths
- 3 m, 2.5 m, 2 m, 1.5 m · 0.74 m
- Source of bay lengths and depths
- Depth: DIBt Z-8.1-975 (read 23 October 2026); ScaFix has no page reference for the bay lengths yet.
- Source of the tie rule
- DIBt Z-8.1-975 KERO RPL 070 (bis 03.04.2029) Anlage B §B.5 a–c
- How ScaFix plans KERO RPL 070
- 2 m lifts; ties every 4 m vertically, every 6 m (2 × 3 m) / 5 m (2 × 2.5 m) / 4 m (2 × 2 m) along the wall; diagonals at least one per 5 bays in every lift
Wall-tie spacing along the wall for KERO RPL 070
ScaFix ties KERO RPL 070 every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: DIBt Z-8.1-975 KERO RPL 070 (bis 03.04.2029) Anlage B §B.5 a–c. ScaFix is a planning tool, not a structural approval.
| Bay length | Bays between ties | Tie spacing along the wall |
|---|---|---|
| 3 m | 2 | 6 m |
| 2.5 m | 2 | 5 m |
| 2 m | 2 | 4 m |
| 1.5 m | 2 | 3 m |
Good to know
A separate approved product of KERO, built from parts compatible with plettac SL; it is not a plettac system.
Sources for KERO RPL 070
Tie rule for KERO RPL 070: DIBt Z-8.1-975 KERO RPL 070 (bis 03.04.2029) Anlage B §B.5 a–c. DIBt Z-8.1-975 can be looked up by its number in the DIBt approval database. ScaFix is a planning tool, not a structural approval.

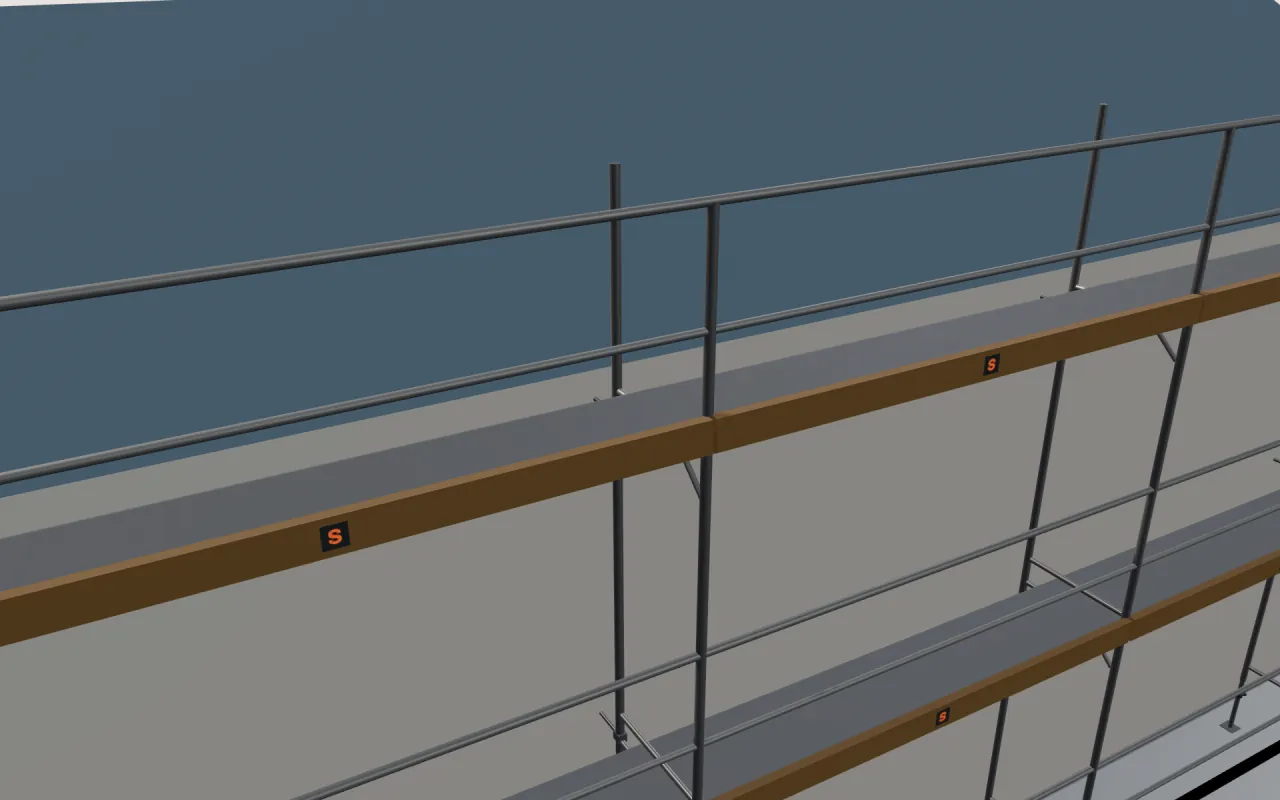

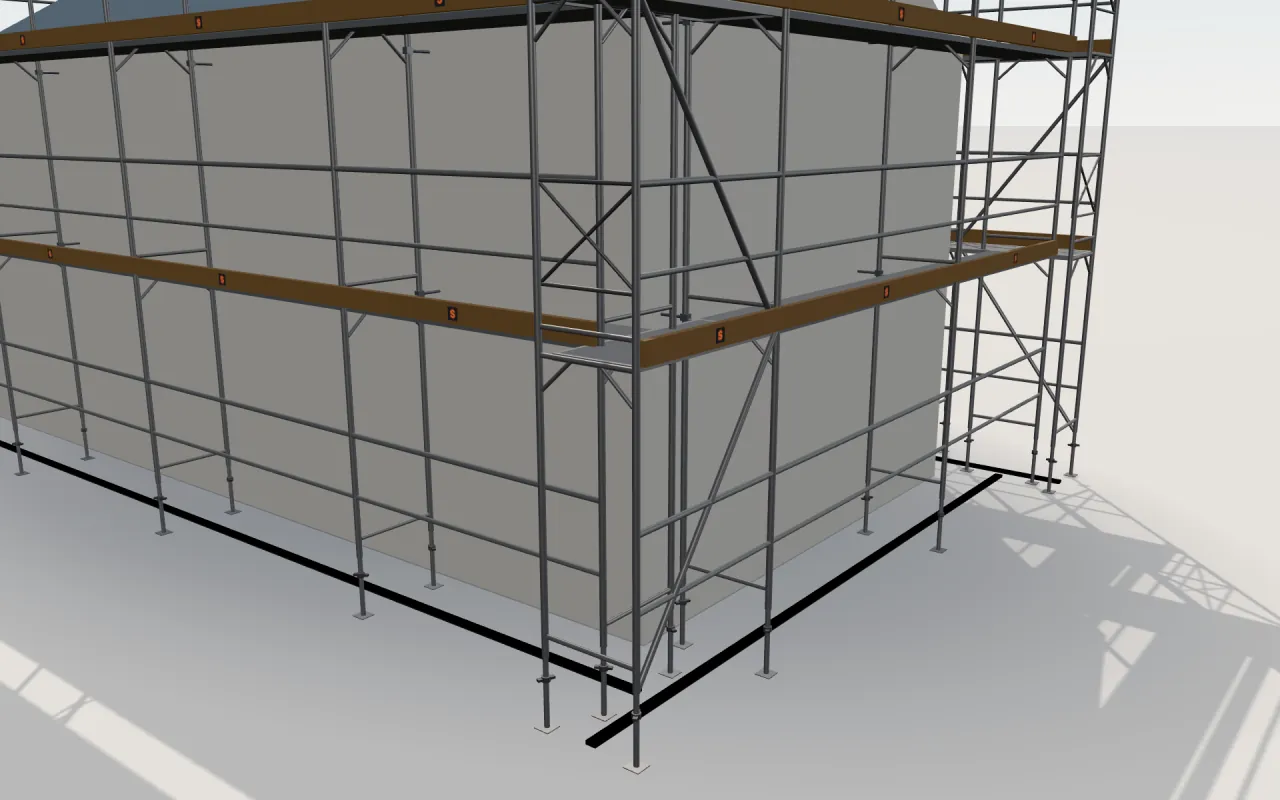

Close-ups from the 3D model

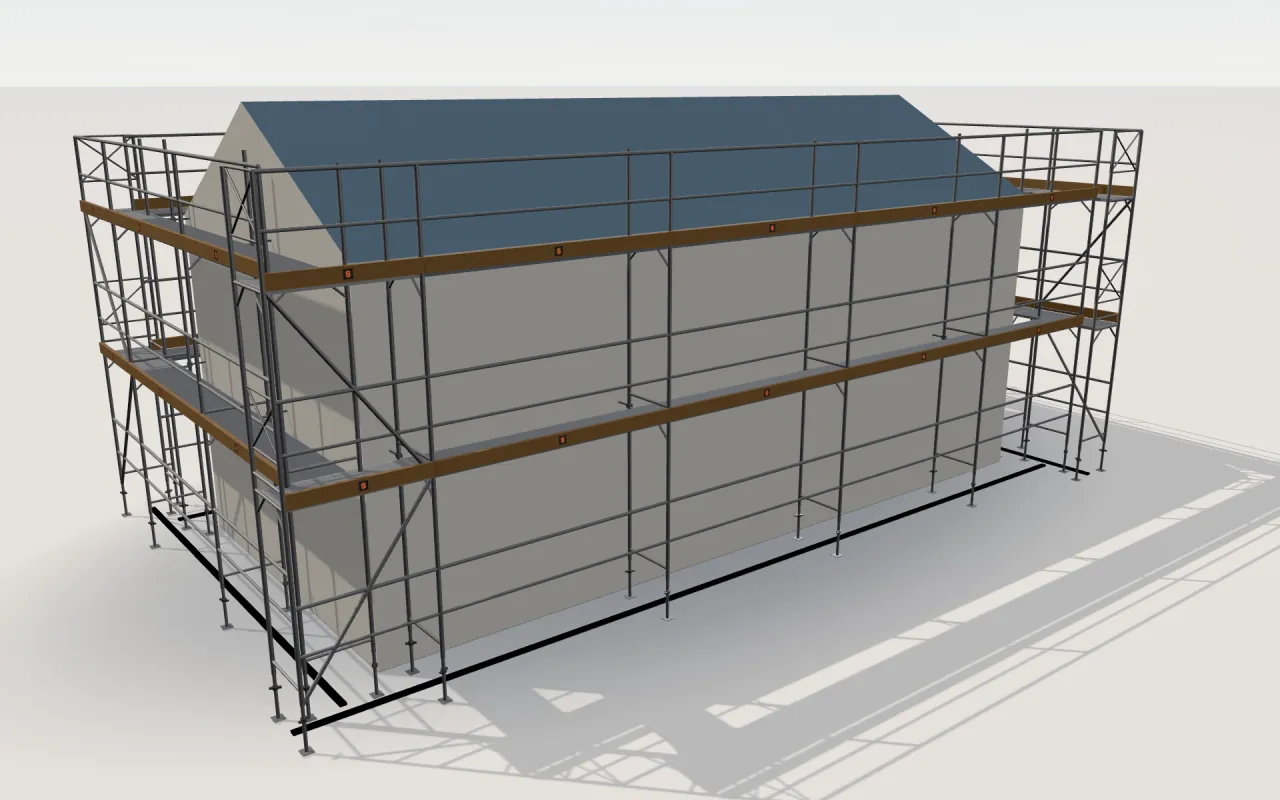

The example house with KERO RPL 070
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 + 3 | 11.4 m | 4.5 m | 1 × 1.5 m + 3 × 3 m + 1 × 2.5 m |
| Wall 2 + 4 (gable) | 5.3 m | 6 m | 1 × 1.5 m + 1 × 3 m + 1 × 2.5 m |
The parts list for the example house with KERO RPL 070
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Frames | 2 m | 40 |
| Frames | 1 m | 4 |
| Top-lift guardrail posts | 16 | |
| Decks | ||
| Decks without ladder | 3 m | 14 |
| Decks without ladder | 2.5 m | 8 |
| Decks without ladder | 1.5 m | 8 |
| Decks with ladder | 3 m | 2 |
| Guardrails | ||
| Front guardrails | 3 m | 24 |
| Front guardrails | 2.5 m | 12 |
| Front guardrails | 1.5 m | 12 |
| Toeboards | ||
| Toeboards | 3 m | 16 |
| Toeboards | 2.5 m | 8 |
| Toeboards | 1.5 m | 8 |
| Diagonals | ||
| Diagonals | 1.5 m | 8 |
| Ends | ||
| End guardrails | 8 | |
| Wall ties and fittings | ||
| Wall ties | 30 | |
| Wall-anchor fittings | 30 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
KERO RPL 070 · Scaffold depth: 0.74 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 288
KERO RPL 070 compared with similar systems on the same house
| System | Bays on the long wall | Depth | Parts in all | Against KERO RPL 070 |
|---|---|---|---|---|
| KERO RPL 070 | 1 × 1.5 m + 3 × 3 m + 1 × 2.5 m | 0.74 m | 288 | this page |
| Jamax | 4 × 3 m | 0.68 m | 268 | -20 (-7%) |
| Layher Blitz | 4 × 3.07 m | 0.73 m | 308 | +20 (+7%) |
| Plettac SL 70/100 | 1 × 1.5 m + 3 × 3 m + 1 × 2.5 m | 0.73 m | 316 | +28 (+10%) |
KERO RPL 070: parts by wall size
Scaffold depth 0.74 m, access: decks with ladders. Each wall is a whole number of 3 m bays, so the scaffold covers it exactly.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 6 × 4 m | 2 × 3 m | 1 | 6 | 2 | 6 | 6 | 29 |
| 12 × 6 m | 4 × 3 m | 2 | 15 | 8 | 10 | 16 | 75 |
| 18 × 8 m | 6 × 3 m | 3 | 28 | 18 | 14 | 22 | 136 |
| 24 × 10 m | 8 × 3 m | 4 | 45 | 32 | 18 | 40 | 223 |
| 30 × 12 m | 10 × 3 m | 5 | 66 | 50 | 22 | 48 | 316 |
Questions about KERO RPL 070
How many parts does KERO RPL 070 need for a 12 m × 6 m wall?
A 12 m long, 6 m high wall with KERO RPL 070 (4 × 3 m) needs 75 parts according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 16 wall ties and fittings, with decks on 2 lifts. A 30 m wall 12 m high needs 316.
