Metaltech Saferstack Mason scaffold: bay lengths, depths and parts list
Metaltech Saferstack Mason has bay lengths of 10', 8' and 7' and depths of 5' (1.52 m), 4' (1.22 m), 2'-6" (0.76 m) and 2' (0.61 m) in ScaFix. Enter your walls, and ScaFix draws the Metaltech Saferstack Mason scaffold in 3D and works out its parts list. Below is our example house with Metaltech Saferstack Mason. Any other size: Scaffold calculator.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does Metaltech Saferstack Mason need for a house?
ScaFix plans Metaltech Saferstack Mason with the bay lengths 10', 8' and 7' and scaffold depth 5' (1.52 m), 4' (1.22 m), 2'-6" (0.76 m) and 2' (0.61 m). On ScaFix’s 37'-5" (11.4 m) × 17'-4 1/2" (5.3 m) example house, scaffolded all round, Metaltech Saferstack Mason needs 330 parts; Waco Frame needs 352 on the same house.
Metaltech Saferstack Mason in ScaFix
- Manufacturer · System type
- Metaltech-Omega · Frame and brace scaffold
- Variants in the system picker
- Metaltech Saferstack Mason (USA)
- Bay lengths · Depths
- 3.05 m, 2.44 m, 2.13 m · 1.52 m, 1.22 m, 0.76 m, 0.61 m
- Source of bay lengths and depths
- Metaltech M-MF6060PS product data (read 23 October 2026)
- Source of the tie rule
- Metaltech «Exterior Scaffolding Guidelines» (2021) p. 1–2: tie when the height exceeds 3 × the base (24" narrowest frame: 1.83 m), then every 20 ft high and 30 ft along
- Bay lengths in feet and inches
- 10', 8', 7'
- How ScaFix plans Metaltech Saferstack Mason
- 1.52 m lifts; ties every 4 m vertically, every 3.05 m (1 × 3.05 m) / 4.88 m (2 × 2.44 m) / 4.27 m (2 × 2.13 m) along the wall; diagonals at least one per 1 bays in every lift
Wall-tie spacing along the wall for Metaltech Saferstack Mason
ScaFix ties Metaltech Saferstack Mason every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: Metaltech «Exterior Scaffolding Guidelines» (2021) p. 1–2: tie when the height exceeds 3 × the base (24" narrowest frame: 1.83 m), then every 20 ft high and 30 ft along. ScaFix is a planning tool, not a structural approval.
| Bay length | Bays between ties | Tie spacing along the wall |
|---|---|---|
| 3.05 m | 1 | 3.05 m |
| 2.44 m | 2 | 4.88 m |
| 2.13 m | 2 | 4.27 m |
Good to know
ScaFix plans each lift at this frame's own height, 5' (mason frame), from the engine change of 23 Oct 2026.
Sources for Metaltech Saferstack Mason
Tie rule for Metaltech Saferstack Mason: Metaltech «Exterior Scaffolding Guidelines» (2021) p. 1–2: tie when the height exceeds 3 × the base (24" narrowest frame: 1.83 m), then every 20 ft high and 30 ft along. ScaFix is a planning tool, not a structural approval.

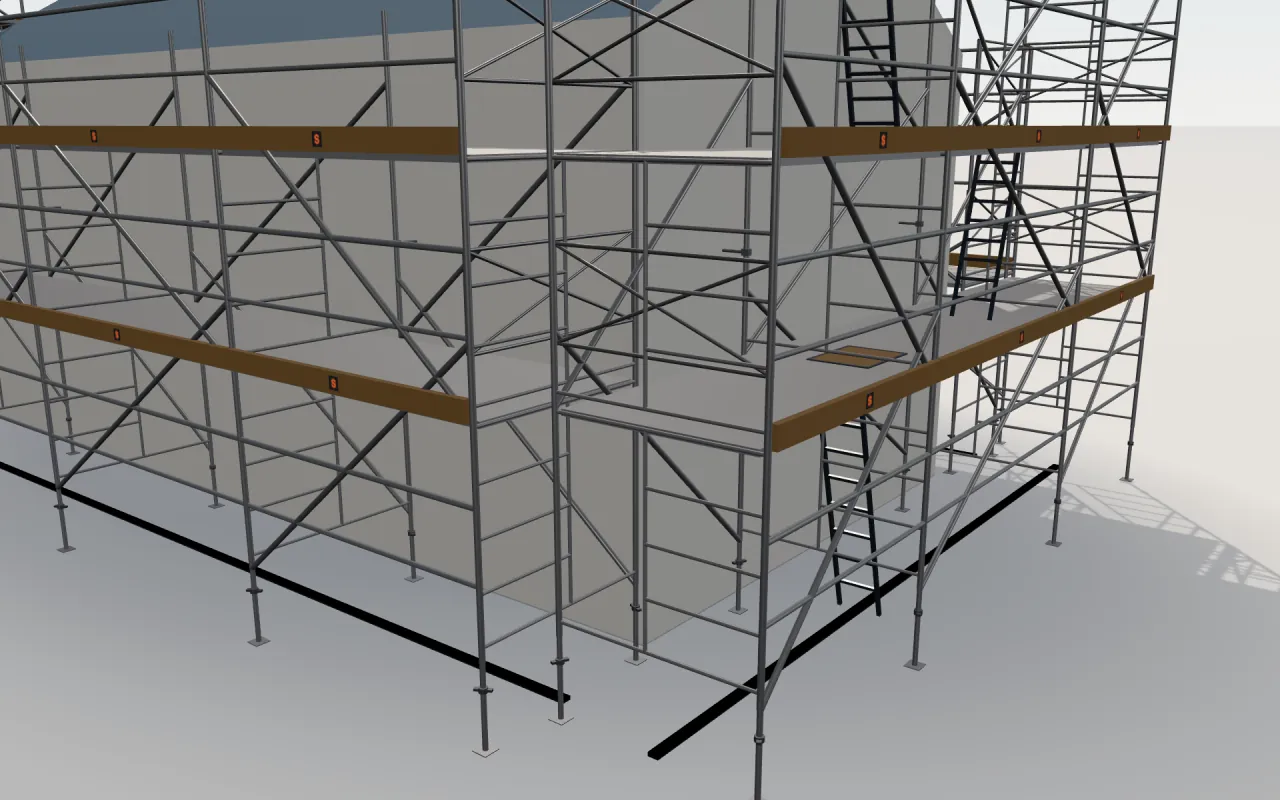

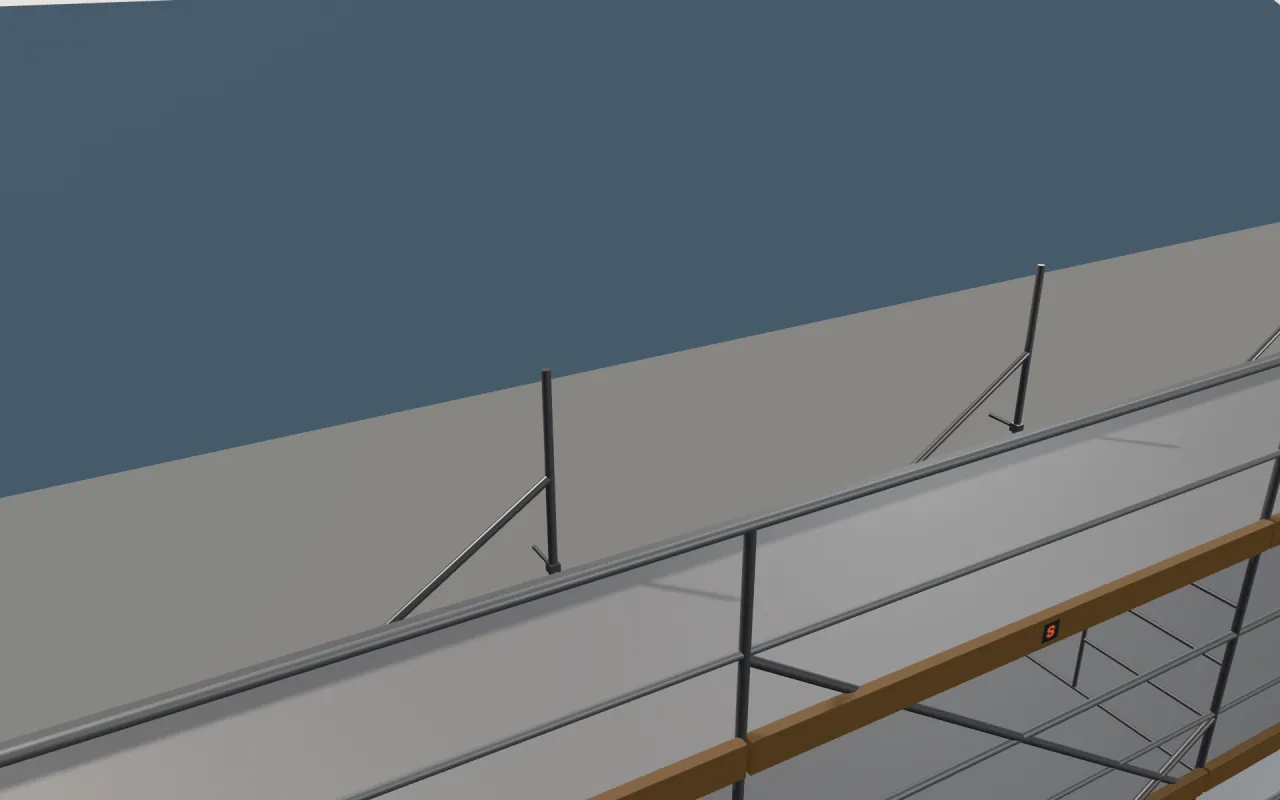

Close-ups from the 3D model

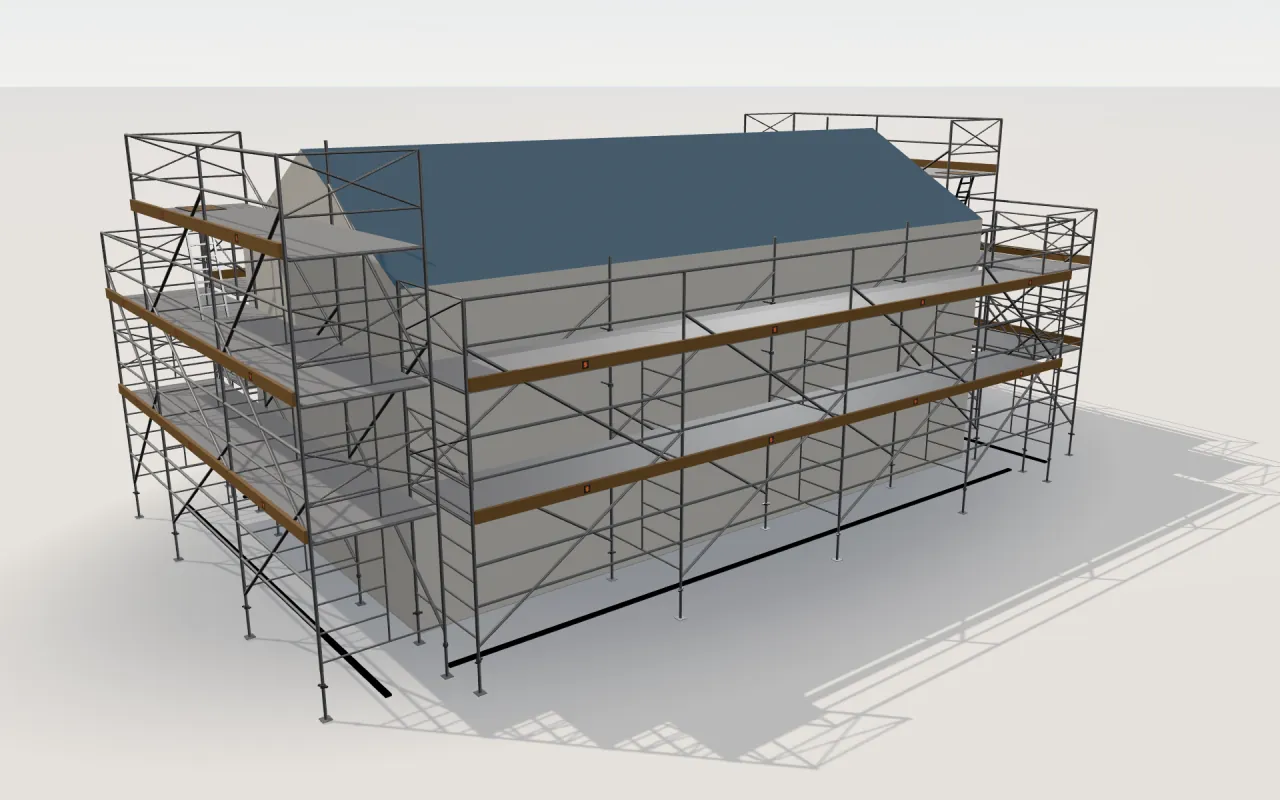

The example house with Metaltech Saferstack Mason
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 + 3 | 37'-5" (11.4 m) | 14'-9" (4.5 m) | 3 × 10' (3.05 m) + 1 × 8' (2.44 m) |
| Wall 2 + 4 (gable) | 17'-4 1/2" (5.3 m) | 19'-8" (6 m) | 1 × 7' (2.13 m) + 1 × 10' (3.05 m) + 1 × 8' (2.44 m) |
The parts list for the example house with Metaltech Saferstack Mason
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Frames | 5' (1.52 m) | 42 |
| Frames | 3'-3 1/2" (1 m) | 10 |
| Top-lift guardrail posts | 8 | |
| Decks | ||
| Decks without ladder | 10' (3.05 m) | 14 |
| Decks without ladder | 8' (2.44 m) | 10 |
| Decks without ladder | 7' (2.13 m) | 4 |
| Decks with ladder | 10' (3.05 m) | 4 |
| Guardrails | ||
| Front guardrails | 10' (3.05 m) | 26 |
| Front guardrails | 8' (2.44 m) | 14 |
| Front guardrails | 7' (2.13 m) | 6 |
| Toeboards | ||
| Toeboards | 10' (3.05 m) | 18 |
| Toeboards | 8' (2.44 m) | 10 |
| Toeboards | 7' (2.13 m) | 4 |
| Diagonals | ||
| Diagonals | 10' (3.05 m) | 36 |
| Diagonals | 8' (2.44 m) | 20 |
| Diagonals | 7' (2.13 m) | 8 |
| Ends | ||
| End guardrails | 20 | |
| Wall ties and fittings | ||
| Wall ties | 20 | |
| Wall-anchor fittings | 20 | |
| Base jacks and legs | ||
| Base jacks / legs | 36 | |
Metaltech Saferstack Mason (USA) · Scaffold depth: 5' (1.52 m) · Decks at: 2.12 m, 3.65 m, 5.17 m · Decks with ladders · Parts in all: 330
Metaltech Saferstack Mason compared with similar systems on the same house
| System | Bays on the long wall | Depth | Parts in all | Against Metaltech Saferstack Mason |
|---|---|---|---|---|
| Metaltech Saferstack Mason | 3 × 10' (3.05 m) + 1 × 8' (2.44 m) | 5' (1.52 m) | 330 | this page |
| Waco Frame | 1 × 10' (3.05 m) + 4 × 7' (2.13 m) + 1 × 5' (1.52 m) | 5' (1.52 m) | 352 | +22 (+7%) |
| StepUp Frame & Brace | 1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m) | 3' (0.91 m) | 350 | +20 (+6%) |
| WACO RED Box Frame | 1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m) | 5' (1.52 m) | 370 | +40 (+12%) |
Metaltech Saferstack Mason: parts by wall size
Scaffold depth 1.52 m, access: decks with ladders. Each wall is a whole number of 3.05 m bays, so the scaffold covers it exactly.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 20' (6.1 m) × 13'-1 1/2" (4 m) | 2 × 10' (3.05 m) | 2 | 9 | 4 | 6 | 12 | 53 |
| 40' (12.19 m) × 19'-8" (6 m) | 4 × 10' (3.05 m) | 3 | 20 | 12 | 10 | 20 | 120 |
| 60' (18.29 m) × 26'-3" (8 m) | 6 × 10' (3.05 m) | 4 | 35 | 24 | 14 | 42 | 225 |
| 80' (24.38 m) × 32'-9 1/2" (10 m) | 8 × 10' (3.05 m) | 6 | 63 | 48 | 18 | 72 | 413 |
| 100' (30.48 m) × 39'-4 1/2" (12 m) | 10 × 10' (3.05 m) | 7 | 88 | 70 | 22 | 88 | 572 |
US rules for Metaltech Saferstack Mason (OSHA 29 CFR 1926.451)
- Height-to-base for Metaltech Saferstack Mason: planned 5' (1.52 m) wide, it must be restrained by guying, tying, bracing or an equivalent means above 4 × that width, 20' (6.10 m) — §1926.451(c)(1).
- Ties for Metaltech Saferstack Mason: at horizontal members that support both inner and outer legs, placed as the manufacturer recommends or starting at the horizontal member closest to that height, then repeated vertically every 26 ft (7.9 m) or less, because the scaffold is wider than 3 ft (0.91 m), and at each end and horizontally every 30 ft (9.1 m) or less from one end — §1926.451(c)(1)(i)–(ii).
- Guardrails on Metaltech Saferstack Mason: the top rail 38 to 45 in (0.97–1.14 m) above the platform on scaffolds made or placed in service after 1 January 2000, with a midrail about halfway — §1926.451(g)(4).
- Toeboards on Metaltech Saferstack Mason, where they are needed against falling objects: at least 3½ in (89 mm) high — §1926.451(h)(4).
- ANSI/ASSP A10.8 is the US consensus standard for scaffolding safety; the manufacturer's instructions apply on top of both.
- ScaFix is a planning tool, not a structural calculation or approval. A competent person must check the scaffold before use.
Source of the US rules for Metaltech Saferstack Mason
The rules for Metaltech Saferstack Mason above: OSHA, Safety and Health Regulations for Construction, 29 CFR 1926.451 (General requirements for scaffolds).
Metaltech Saferstack Mason: a 40 × 20 ft wall
ScaFix plans a straight 40 ft × 20 ft wall (12.19 m × 6.1 m) with Metaltech Saferstack Mason as 4 bays (4 × 3.05 m), decks at 2.12 m, 3.65 m and 5.17 m: 120 parts in all, computed by the same engine as the app. Corners, returns and stairs change the count.
Pick Metaltech Saferstack Mason if…
- you need a wide working deck: ScaFix plans Metaltech Saferstack Mason up to 1.52 m deep, a width only 7 of the 60 other systems of its type also reach.
- space along the wall is tight: Metaltech Saferstack Mason comes as narrow as 0.61 m.
- you build in lifts of 1.52 m: that is this system’s lift height in ScaFix, against 2 m for most systems.
Questions about Metaltech Saferstack Mason
How many parts does Metaltech Saferstack Mason need for a 12.19 m × 6 m wall?
A 12.19 m long, 6 m high wall with Metaltech Saferstack Mason (4 × 3.05 m) needs 120 parts according to ScaFix: 20 frames and standards, 12 decks, 10 base jacks and legs and 20 wall ties and fittings, with decks on 3 lifts. A 30.48 m wall 12 m high needs 572.
Can ScaFix plan Metaltech Saferstack Mason in feet and inches?
Yes. In the catalog, Metaltech Saferstack Mason has bays of 10', 8' and 7', and its parts list shows every length in feet and inches (Imperial) or in meters.
