Excel Modular Scaffold scaffold: bay lengths, depths and parts list

Excel Modular Scaffold has bay lengths of 4'–10' and depths of 4' (1.22 m), 3'-6" (1.07 m), 2'-8" (0.81 m) and 2' (0.61 m) in ScaFix. Enter your walls, and ScaFix draws the Excel Modular Scaffold scaffold in 3D and works out its parts list. Below is our example house with Excel Modular Scaffold. Any other size: Scaffold calculator.

· How the numbers are computed ·

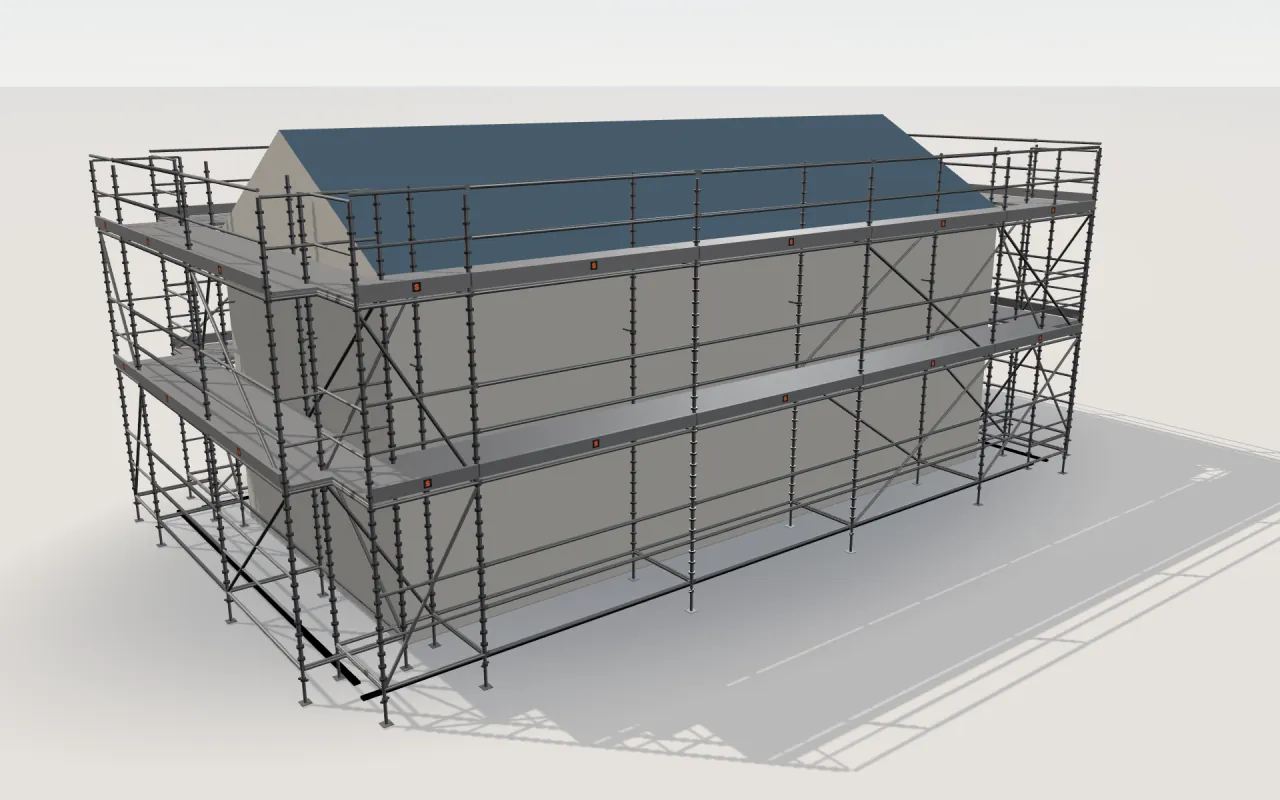

Excel Modular Scaffold scaffolding around a house of 11.4 × 5.3 m with a gabled roof (eaves 4.5 m, ridge 6 m), drawn by the ScaFix 3D model
Excel Modular Scaffold around the example house, as ScaFix draws it in 3D.

How many parts does Excel Modular Scaffold need for a house?

ScaFix plans Excel Modular Scaffold with the bay lengths 4'–10' and scaffold depth 4' (1.22 m), 3'-6" (1.07 m), 2'-8" (0.81 m) and 2' (0.61 m). On ScaFix’s 37'-5" (11.4 m) × 17'-4 1/2" (5.3 m) example house, scaffolded all round, Excel Modular Scaffold needs 581 parts; StepUp Cuplock needs 573 on the same house.

Excel Modular Scaffold in ScaFix

Manufacturer · System type
Excel Modular Scaffold · Modular scaffold with cup joints (cuplock)
Variants in the system picker
Excel Modular Scaffold (USA)
Bay lengths · Depths
3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m · 1.22 m, 1.07 m, 0.81 m, 0.61 m
Source of bay lengths and depths
Excel Modular Scaffold Standard Component Technical Manual Rev. AL (read 23 October 2026)
Source of the tie rule
Excel Modular Scaffold «Standard Component Technical Manual» Rev. AL § ties, p.109: ties at the ends and ≤ 30 ft along, ≤ 26 ft vertical (≤ 20 ft for ≤ 3 ft wide), first ≤ 4 × base (24" bearer: 2.44 m)
Bay lengths in feet and inches
10', 8', 7', 6', 5', 4'
How ScaFix plans Excel Modular Scaffold
2.04 m lifts; ties every 6.1 m vertically, every 3.05 m (1 × 3.05 m) / 4.88 m (2 × 2.44 m) / 4.27 m (2 × 2.13 m) along the wall; nodes every 0.15 m; diagonals at least one per 3 bays in every lift

Wall-tie spacing along the wall for Excel Modular Scaffold

ScaFix ties Excel Modular Scaffold every 6.1 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: Excel Modular Scaffold «Standard Component Technical Manual» Rev. AL § ties, p.109: ties at the ends and ≤ 30 ft along, ≤ 26 ft vertical (≤ 20 ft for ≤ 3 ft wide), first ≤ 4 × base (24" bearer: 2.44 m). ScaFix is a planning tool, not a structural approval.

Wall-tie spacing along the wall for each bay length of Excel Modular Scaffold in ScaFix
Bay lengthBays between tiesTie spacing along the wall
3.05 m13.05 m
2.44 m24.88 m
2.13 m24.27 m
1.83 m35.49 m
1.52 m34.57 m
1.22 m44.88 m

Good to know

ScaFix plans each lift at this frame's own height, 80.5" (14 cups), from the engine change of 23 Oct 2026.

Sources for Excel Modular Scaffold

Tie rule for Excel Modular Scaffold: Excel Modular Scaffold «Standard Component Technical Manual» Rev. AL § ties, p.109: ties at the ends and ≤ 30 ft along, ≤ 26 ft vertical (≤ 20 ft for ≤ 3 ft wide), first ≤ 4 × base (24" bearer: 2.44 m). ScaFix is a planning tool, not a structural approval.

Close-ups from the 3D model

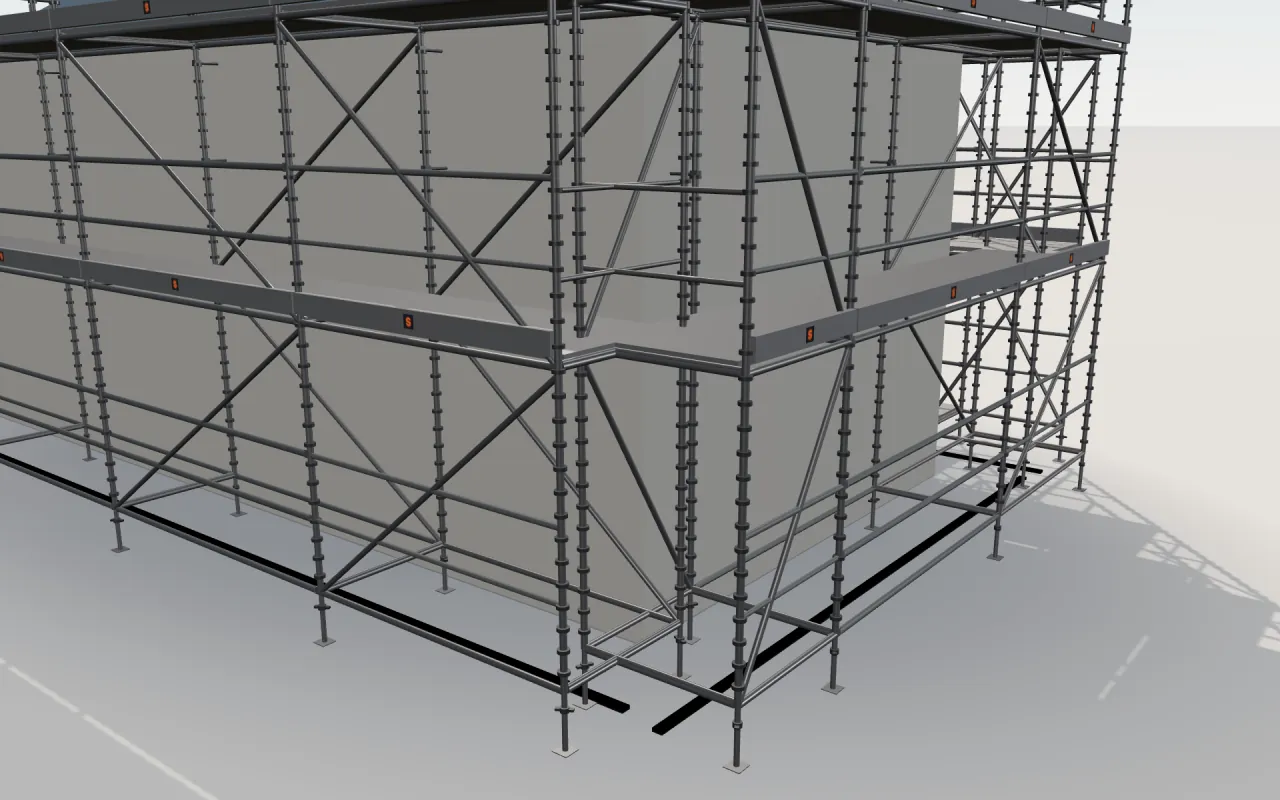

Close-up of the corner where the long wall and the gable wall meet, with Excel Modular Scaffold standards, decks, guardrails and toe boards in the ScaFix 3D model
The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

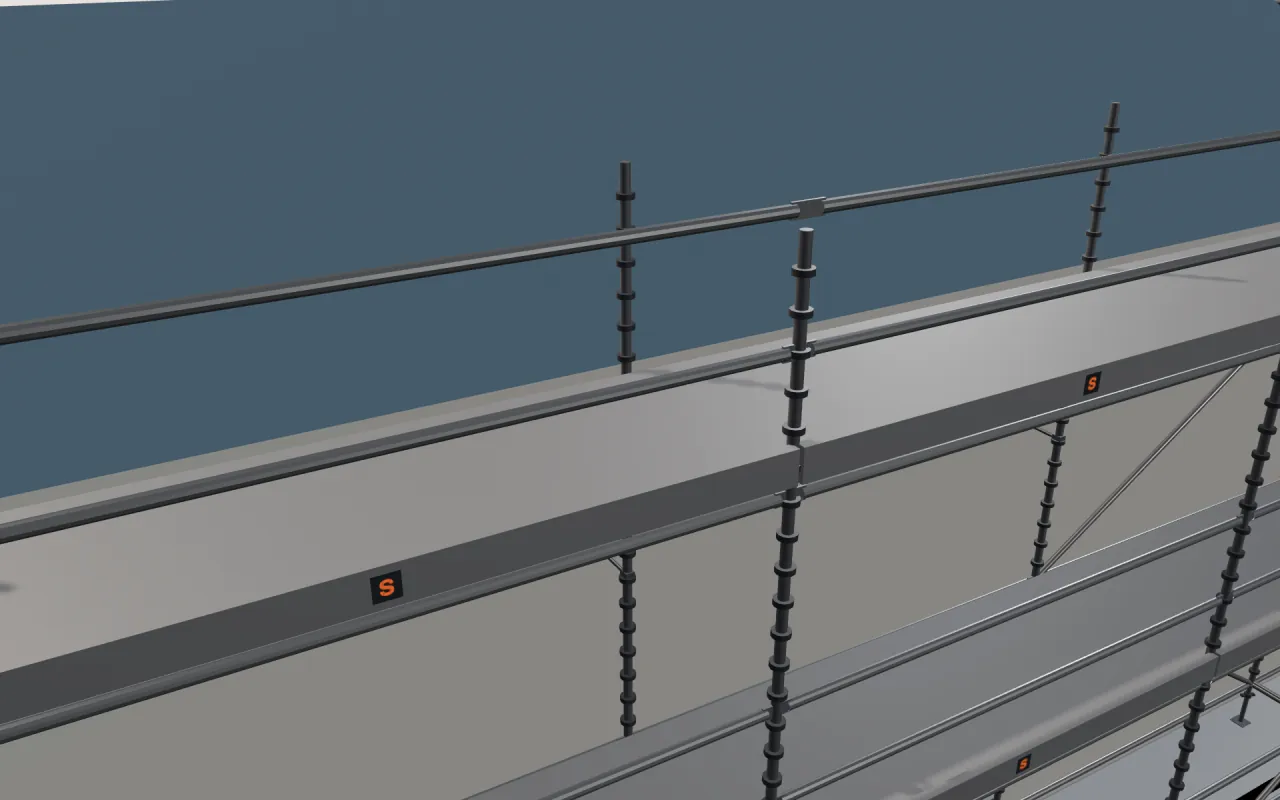

Close-up of the top Excel Modular Scaffold lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model
The top lift below the eaves, with guardrails and toe boards.

The example house with Excel Modular Scaffold

The walls of the example house with Excel Modular Scaffold
WallLengthHeightBays
Wall 1 + 337'-5" (11.4 m)14'-9" (4.5 m)1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)
Wall 2 + 4 (gable)17'-4 1/2" (5.3 m)19'-8" (6 m)1 × 4' (1.22 m) + 1 × 10' (3.05 m) + 1 × 8' (2.44 m)

The parts list for the example house with Excel Modular Scaffold

The parts list for the example house with Excel Modular Scaffold
PartLengthCount
Frames and standards
Standards6'-8 1/2" (2.05 m)80
Standards3'-3 1/2" (1 m)40
Ledgers and beams
Ledgers10' (3.05 m)48
Ledgers8' (2.44 m)24
Ledgers4' (1.22 m)24
Transoms60
Decks
Decks without ladder10' (3.05 m)15
Decks without ladder8' (2.44 m)8
Decks without ladder4' (1.22 m)8
Decks with ladder10' (3.05 m)2
Guardrails
Front guardrails10' (3.05 m)48
Front guardrails8' (2.44 m)24
Front guardrails4' (1.22 m)24
Toeboards
Toeboards10' (3.05 m)16
Toeboards8' (2.44 m)8
Toeboards4' (1.22 m)8
Diagonals
Diagonals10' (3.05 m)8
Diagonals8' (2.44 m)16
Diagonals4' (1.22 m)16
Ends
End guardrails16
Wall ties and fittings
Wall ties24
Wall-anchor fittings24
Base jacks and legs
Base jacks / legs40

Excel Modular Scaffold (USA) · Scaffold depth: 4' (1.22 m) · Decks at: 2.46 m, 4.5 m · Decks with ladders · Parts in all: 581

Excel Modular Scaffold compared with similar systems on the same house

The example house with Excel Modular Scaffold and similar systems
SystemBays on the long wallDepthParts in allAgainst Excel Modular Scaffold
Excel Modular Scaffold1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)4' (1.22 m)581this page
StepUp Cuplock1 × 3' (0.91 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)4' (1.22 m)573-8 (-1%)
Bil-Jax Ring Lock1 × 3' (0.91 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)2'-4 1/2" (0.73 m)565-16 (-3%)
BrandSafway SafLock1 × 3'-9 1/2" (1.15 m) + 2 × 10' (3.05 m) + 1 × 7' (2.13 m) + 2 × 5'-2" (1.57 m)3'-9 1/2" (1.15 m)689+108 (+19%)

Excel Modular Scaffold: parts by wall size

Scaffold depth 1.22 m, access: decks with ladders. Each wall is a whole number of 3.05 m bays, so the scaffold covers it exactly.

Parts by wall size with Excel Modular Scaffold
Wall (length × height)BaysDecked liftsFrames and standardsDecksBase jacks and legsWall ties and fittingsParts in all
20' (6.1 m) × 13'-1 1/2" (4 m)2 × 10' (3.05 m)11236657
40' (12.19 m) × 19'-8" (6 m)4 × 10' (3.05 m)23091020152
60' (18.29 m) × 26'-3" (8 m)6 × 10' (3.05 m)356191428283
80' (24.38 m) × 32'-9 1/2" (10 m)8 × 10' (3.05 m)490331854472
100' (30.48 m) × 39'-4 1/2" (12 m)10 × 10' (3.05 m)5132512266677

US rules for Excel Modular Scaffold (OSHA 29 CFR 1926.451)

  • Height-to-base for Excel Modular Scaffold: planned 4' (1.22 m) wide, it must be restrained by guying, tying, bracing or an equivalent means above 4 × that width, 16' (4.88 m) — §1926.451(c)(1).
  • Ties for Excel Modular Scaffold: at horizontal members that support both inner and outer legs, placed as the manufacturer recommends or starting at the horizontal member closest to that height, then repeated vertically every 26 ft (7.9 m) or less, because the scaffold is wider than 3 ft (0.91 m), and at each end and horizontally every 30 ft (9.1 m) or less from one end — §1926.451(c)(1)(i)–(ii).
  • Guardrails on Excel Modular Scaffold: the top rail 38 to 45 in (0.97–1.14 m) above the platform on scaffolds made or placed in service after 1 January 2000, with a midrail about halfway — §1926.451(g)(4).
  • Toeboards on Excel Modular Scaffold, where they are needed against falling objects: at least 3½ in (89 mm) high — §1926.451(h)(4).
  • ANSI/ASSP A10.8 is the US consensus standard for scaffolding safety; the manufacturer's instructions apply on top of both.
  • ScaFix is a planning tool, not a structural calculation or approval. A competent person must check the scaffold before use.

Source of the US rules for Excel Modular Scaffold

The rules for Excel Modular Scaffold above: OSHA, Safety and Health Regulations for Construction, 29 CFR 1926.451 (General requirements for scaffolds).

  1. osha.gov/laws-regs/regulations/standardnumber/1926/1926…

Excel Modular Scaffold: a 40 × 20 ft wall

ScaFix plans a straight 40 ft × 20 ft wall (12.19 m × 6.1 m) with Excel Modular Scaffold as 4 bays (4 × 3.05 m), decks at 2.64 m and 4.69 m: 152 parts in all, computed by the same engine as the app. Corners, returns and stairs change the count.

Pick Excel Modular Scaffold if…

  • you need to fit many wall lengths: Excel Modular Scaffold has 6 bay lengths (1.22 m–3.05 m), more than 3 of the 4 other systems of its type.
  • space along the wall is tight: Excel Modular Scaffold comes as narrow as 0.61 m.
  • you want fewer pieces to handle: Excel Modular Scaffold needs 581 parts on ScaFix’s example house, fewer than 3 of the 4 other systems of its type.
  • you build in lifts of 2.04 m: that is this system’s lift height in ScaFix, against 2 m for most systems.

Questions about Excel Modular Scaffold

How many parts does Excel Modular Scaffold need for a 12.19 m × 6 m wall?

A 12.19 m long, 6 m high wall with Excel Modular Scaffold (4 × 3.05 m) needs 152 parts according to ScaFix: 30 frames and standards, 9 decks, 10 base jacks and legs and 20 wall ties and fittings, with decks on 2 lifts. A 30.48 m wall 12 m high needs 677.

Can ScaFix plan Excel Modular Scaffold in feet and inches?

Yes. In the catalog, Excel Modular Scaffold has bays of 10', 8', 7', 6', 5' and 4', and its parts list shows every length in feet and inches (Imperial) or in meters.
