WACO RED Access Frame scaffold: bay lengths, depths and parts list

WACO RED Access Frame has bay lengths of 5'–10' and a depth of 5' (1.52 m) in ScaFix. Enter your walls, and ScaFix draws the WACO RED Access Frame scaffold in 3D and works out its parts list. Below is our example house with WACO RED Access Frame. Any other size: Scaffold calculator.

By Ole Emil Frikstad Urstad · How the numbers are computed · Last updated 25 October 2026

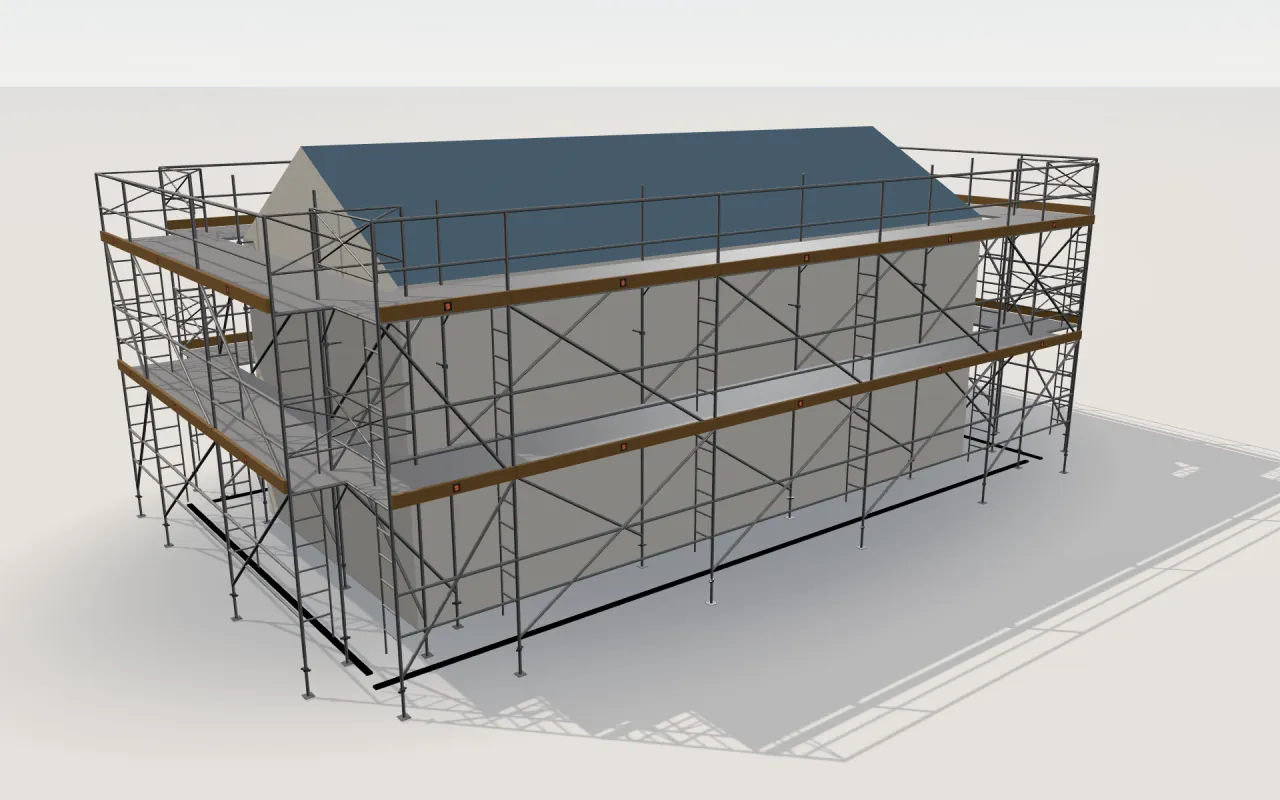

WACO RED Access Frame around the example house, as ScaFix draws it in 3D.

How many parts does WACO RED Access Frame need for a house?

ScaFix plans WACO RED Access Frame with the bay lengths 5'–10' and scaffold depth 5' (1.52 m). On ScaFix’s 37'-5" (11.4 m) × 17'-4 1/2" (5.3 m) example house, scaffolded all round, WACO RED Access Frame needs 340 parts; Waco Frame needs 352 on the same house.

WACO RED Access Frame in ScaFix

Manufacturer · System type: BrandSafway (WACO) · Frame and brace scaffold
Variants in the system picker: WACO RED Access Frame (USA)
Bay lengths · Depths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m · 1.52 m
Source of bay lengths and depths: Depth: WACO ORN1701 p. 6 (read 23 October 2026); ScaFix has no page reference for the bay lengths yet.
Source of the tie rule: Waco RED frame scaffolding brochure ORN1701 (BrandSafway 2020) p. 20 «Scaffolding Safety Guidelines» F (SSFI): first tie at 4 × the minimum base, vertical ≤ 26 ft (7.9 m), at each end and ≤ 30 ft (9.1 m) along
Bay lengths in feet and inches: 10', 8', 7', 6', 5'
How ScaFix plans WACO RED Access Frame: 2.01 m lifts; ties every 4 m vertically, every 3.05 m (1 × 3.05 m) / 4.88 m (2 × 2.44 m) / 4.27 m (2 × 2.13 m) along the wall; diagonals at least one per 1 bays in every lift

Wall-tie spacing along the wall for WACO RED Access Frame

ScaFix ties WACO RED Access Frame every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: Waco RED frame scaffolding brochure ORN1701 (BrandSafway 2020) p. 20 «Scaffolding Safety Guidelines» F (SSFI): first tie at 4 × the minimum base, vertical ≤ 26 ft (7.9 m), at each end and ≤ 30 ft (9.1 m) along. ScaFix is a planning tool, not a structural approval.

Wall-tie spacing along the wall for each bay length of WACO RED Access Frame in ScaFix
Bay length	Bays between ties	Tie spacing along the wall
3.05 m	1	3.05 m
2.44 m	2	4.88 m
2.13 m	2	4.27 m
1.83 m	3	5.49 m
1.52 m	3	4.57 m

Good to know

ScaFix plans each lift at this frame's own height, 6'-7" (built-in ladder frame), from the engine change of 23 Oct 2026.

Sources for WACO RED Access Frame

Documents for WACO RED Access Frame: 1) WACO RED frame scaffolding brochure ORN1701 (BrandSafway, 2020), p. 20, checked 25 October 2026. Tie rule for WACO RED Access Frame: Waco RED frame scaffolding brochure ORN1701 (BrandSafway 2020) p. 20 «Scaffolding Safety Guidelines» F (SSFI): first tie at 4 × the minimum base, vertical ≤ 26 ft (7.9 m), at each end and ≤ 30 ft (9.1 m) along. ScaFix is a planning tool, not a structural approval.

wacoscaffolding.com/wp-content/uploads/2020/07/WacoRedBrochure_ORN…

Close-ups from the 3D model

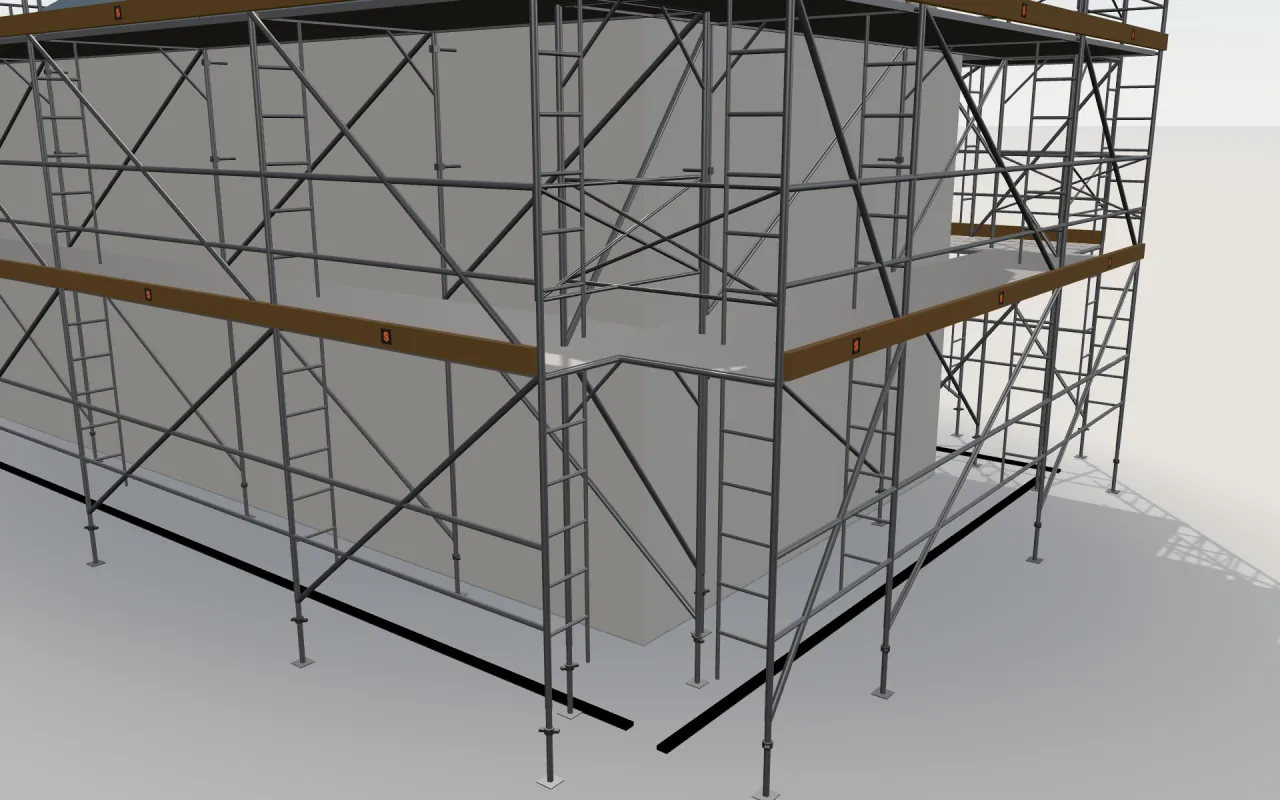

Close-up of the corner where the long wall and the gable wall meet, with WACO RED Access Frame standards, decks, guardrails and toe boards in the ScaFix 3D model — The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

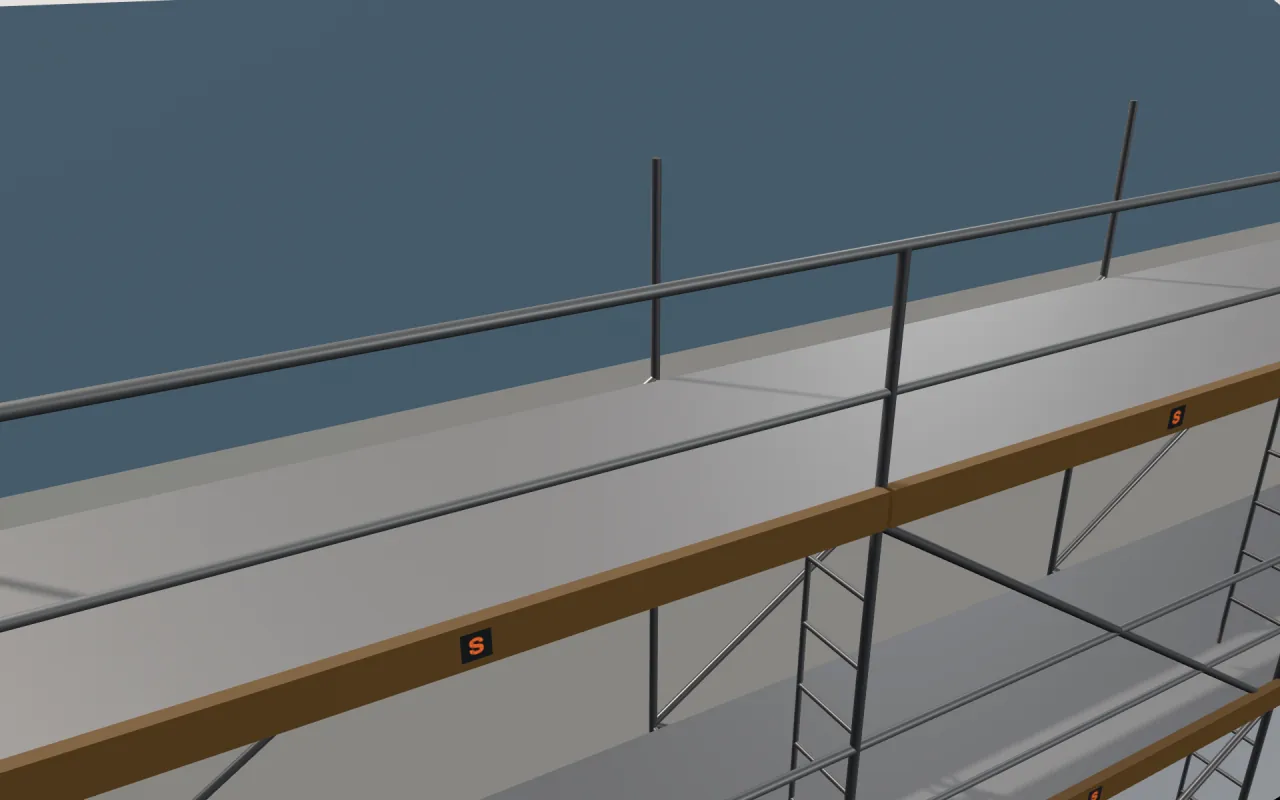

Close-up of the top WACO RED Access Frame lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model — The top lift below the eaves, with guardrails and toe boards.

The example house with WACO RED Access Frame

The walls of the example house with WACO RED Access Frame
Wall	Length	Height	Bays
Wall 1 + 3	37'-5" (11.4 m)	14'-9" (4.5 m)	1 × 5' (1.52 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)
Wall 2 + 4 (gable)	17'-4 1/2" (5.3 m)	19'-8" (6 m)	1 × 5' (1.52 m) + 1 × 10' (3.05 m) + 1 × 8' (2.44 m)

The parts list for the example house with WACO RED Access Frame

The parts list for the example house with WACO RED Access Frame
Part	Length	Count
Frames and standards
Frames	6'-7" (2.01 m)	40
Frames	3'-3 1/2" (1 m)	8
Top-lift guardrail posts		12
Decks
Decks without ladder	10' (3.05 m)	14
Decks without ladder	8' (2.44 m)	8
Decks without ladder	5' (1.52 m)	8
Decks with ladder	10' (3.05 m)	2
Guardrails
Front guardrails	10' (3.05 m)	24
Front guardrails	8' (2.44 m)	12
Front guardrails	5' (1.52 m)	12
Toeboards
Toeboards	10' (3.05 m)	16
Toeboards	8' (2.44 m)	8
Toeboards	5' (1.52 m)	8
Diagonals
Diagonals	10' (3.05 m)	32
Diagonals	8' (2.44 m)	16
Diagonals	5' (1.52 m)	16
Ends
End guardrails		16
Wall ties and fittings
Wall ties		24
Wall-anchor fittings		24
Base jacks and legs
Base jacks / legs		40

WACO RED Access Frame (USA) · Scaffold depth: 5' (1.52 m) · Decks at: 2.49 m, 4.5 m · Decks with ladders · Parts in all: 340

WACO RED Access Frame compared with similar systems on the same house

The example house with WACO RED Access Frame and similar systems
System	Bays on the long wall	Depth	Parts in all	Against WACO RED Access Frame
WACO RED Access Frame	1 × 5' (1.52 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)	5' (1.52 m)	340	this page
Waco Frame	1 × 10' (3.05 m) + 4 × 7' (2.13 m) + 1 × 5' (1.52 m)	5' (1.52 m)	352	+12 (+4%)
StepUp Frame & Brace	1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)	3' (0.91 m)	350	+10 (+3%)
Metaltech Saferstack Mason	3 × 10' (3.05 m) + 1 × 8' (2.44 m)	5' (1.52 m)	330	-10 (-3%)

WACO RED Access Frame: parts by wall size

Scaffold depth 1.52 m, access: decks with ladders. Each wall is a whole number of 3.05 m bays, so the scaffold covers it exactly.

Parts by wall size with WACO RED Access Frame
Wall (length × height)	Bays	Decked lifts	Frames and standards	Decks	Base jacks and legs	Wall ties and fittings	Parts in all
20' (6.1 m) × 13'-1 1/2" (4 m)	2 × 10' (3.05 m)	1	6	2	6	6	32
40' (12.19 m) × 19'-8" (6 m)	4 × 10' (3.05 m)	2	15	8	10	20	93
60' (18.29 m) × 26'-3" (8 m)	6 × 10' (3.05 m)	3	28	18	14	28	172
80' (24.38 m) × 32'-9 1/2" (10 m)	8 × 10' (3.05 m)	4	45	32	18	54	293
100' (30.48 m) × 39'-4 1/2" (12 m)	10 × 10' (3.05 m)	5	66	50	22	66	424

US rules for WACO RED Access Frame (OSHA 29 CFR 1926.451)

Height-to-base for WACO RED Access Frame: planned 5' (1.52 m) wide, it must be restrained by guying, tying, bracing or an equivalent means above 4 × that width, 20' (6.10 m) — §1926.451(c)(1).
Ties for WACO RED Access Frame: at horizontal members that support both inner and outer legs, placed as the manufacturer recommends or starting at the horizontal member closest to that height, then repeated vertically every 26 ft (7.9 m) or less, because the scaffold is wider than 3 ft (0.91 m), and at each end and horizontally every 30 ft (9.1 m) or less from one end — §1926.451(c)(1)(i)–(ii).
Guardrails on WACO RED Access Frame: the top rail 38 to 45 in (0.97–1.14 m) above the platform on scaffolds made or placed in service after 1 January 2000, with a midrail about halfway — §1926.451(g)(4).
Toeboards on WACO RED Access Frame, where they are needed against falling objects: at least 3½ in (89 mm) high — §1926.451(h)(4).
ANSI/ASSP A10.8 is the US consensus standard for scaffolding safety; the manufacturer's instructions apply on top of both.
ScaFix is a planning tool, not a structural calculation or approval. A competent person must check the scaffold before use.

Source of the US rules for WACO RED Access Frame

The rules for WACO RED Access Frame above: OSHA, Safety and Health Regulations for Construction, 29 CFR 1926.451 (General requirements for scaffolds).

osha.gov/laws-regs/regulations/standardnumber/1926/1926…

Similar systems

BrandSafway SafLockSame manufacturer (BrandSafway) · Bay lengths: 3.05 m, 2.13 m, 1.57 m, 1.15 m
WACO RED Box FrameSame manufacturer (BrandSafway (WACO)) · Bay lengths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m
Waco FrameSame system type: Frame scaffold (facade scaffold) · Bay lengths: 3.05 m, 2.13 m, 1.52 m
StepUp Frame & BraceSame system type: Frame scaffold (facade scaffold) · Bay lengths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m
Bil-Jax Ring LockUS system, planned in feet and inches · Bay lengths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m, 0.91 m
StepUp CuplockUS system, planned in feet and inches · Bay lengths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m, 0.91 m

WACO RED Access Frame: a 40 × 20 ft wall

ScaFix plans a straight 40 ft × 20 ft wall (12.19 m × 6.1 m) with WACO RED Access Frame as 4 bays (4 × 3.05 m), decks at 2.61 m and 4.61 m: 93 parts in all, computed by the same engine as the app. Corners, returns and stairs change the count.

Pick WACO RED Access Frame if…

you need to fit many wall lengths: WACO RED Access Frame has 5 bay lengths (1.52 m–3.05 m), more than 40 of the 60 other systems of its type.
you need a wide working deck: ScaFix plans WACO RED Access Frame up to 1.52 m deep, a width only 7 of the 60 other systems of its type also reach.
you build in lifts of 2.01 m: that is this system’s lift height in ScaFix, against 2 m for most systems.

Questions about WACO RED Access Frame

How many parts does WACO RED Access Frame need for a 12.19 m × 6 m wall?

A 12.19 m long, 6 m high wall with WACO RED Access Frame (4 × 3.05 m) needs 93 parts according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 20 wall ties and fittings, with decks on 2 lifts. A 30.48 m wall 12 m high needs 424.

Can ScaFix plan WACO RED Access Frame in feet and inches?

Yes. In the catalog, WACO RED Access Frame has bays of 10', 8', 7', 6' and 5', and its parts list shows every length in feet and inches (Imperial) or in meters.
