WACO RED Box Frame scaffold: bay lengths, depths and parts list

WACO RED Box Frame has bay lengths of 4'–10' and depths of 5' (1.52 m) and 3' (0.91 m) in ScaFix. Enter your walls, and ScaFix draws the WACO RED Box Frame scaffold in 3D and works out its parts list. Below is our example house with WACO RED Box Frame. Any other size: Scaffold calculator.

By Ole Emil Frikstad Urstad · How the numbers are computed · Last updated 25 October 2026

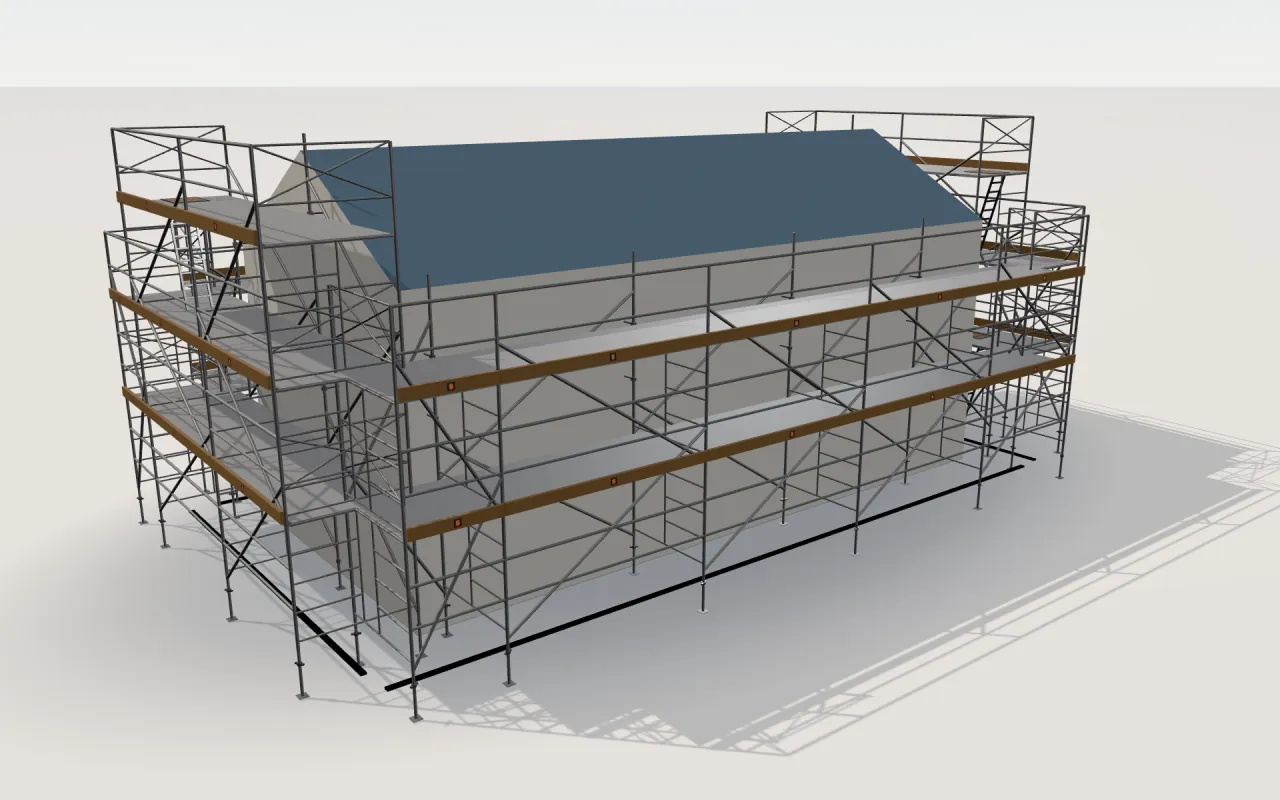

WACO RED Box Frame around the example house, as ScaFix draws it in 3D.

How many parts does WACO RED Box Frame need for a house?

ScaFix plans WACO RED Box Frame with the bay lengths 4'–10' and scaffold depth 5' (1.52 m) and 3' (0.91 m). On ScaFix’s 37'-5" (11.4 m) × 17'-4 1/2" (5.3 m) example house, scaffolded all round, WACO RED Box Frame needs 370 parts; Waco Frame needs 352 on the same house.

WACO RED Box Frame in ScaFix

Manufacturer · System type: BrandSafway (WACO) · Frame and brace scaffold
Variants in the system picker: WACO RED Box Frame (USA)
Bay lengths · Depths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m · 1.52 m, 0.91 m
Source of bay lengths and depths: WACO ORN1701 pp. 4, 7 (read 23 October 2026)
Source of the tie rule: Waco RED frame scaffolding brochure ORN1701 (BrandSafway 2020) p. 20 «Scaffolding Safety Guidelines» F (SSFI): first tie at 4 × the minimum base, vertical ≤ 26 ft (7.9 m), at each end and ≤ 30 ft (9.1 m) along
Bay lengths in feet and inches: 10', 8', 7', 6', 5', 4'
How ScaFix plans WACO RED Box Frame: 1.55 m lifts; ties every 4 m vertically, every 3.05 m (1 × 3.05 m) / 4.88 m (2 × 2.44 m) / 4.27 m (2 × 2.13 m) along the wall; diagonals at least one per 1 bays in every lift

Wall-tie spacing along the wall for WACO RED Box Frame

ScaFix ties WACO RED Box Frame every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: Waco RED frame scaffolding brochure ORN1701 (BrandSafway 2020) p. 20 «Scaffolding Safety Guidelines» F (SSFI): first tie at 4 × the minimum base, vertical ≤ 26 ft (7.9 m), at each end and ≤ 30 ft (9.1 m) along. ScaFix is a planning tool, not a structural approval.

Wall-tie spacing along the wall for each bay length of WACO RED Box Frame in ScaFix
Bay length	Bays between ties	Tie spacing along the wall
3.05 m	1	3.05 m
2.44 m	2	4.88 m
2.13 m	2	4.27 m
1.83 m	3	5.49 m
1.52 m	3	4.57 m
1.22 m	4	4.88 m

Sources for WACO RED Box Frame

Documents for WACO RED Box Frame: 1) WACO RED frame scaffolding brochure ORN1701 (BrandSafway, 2020), p. 20, checked 25 October 2026. Tie rule for WACO RED Box Frame: Waco RED frame scaffolding brochure ORN1701 (BrandSafway 2020) p. 20 «Scaffolding Safety Guidelines» F (SSFI): first tie at 4 × the minimum base, vertical ≤ 26 ft (7.9 m), at each end and ≤ 30 ft (9.1 m) along. ScaFix is a planning tool, not a structural approval.

wacoscaffolding.com/wp-content/uploads/2020/07/WacoRedBrochure_ORN…

Close-ups from the 3D model

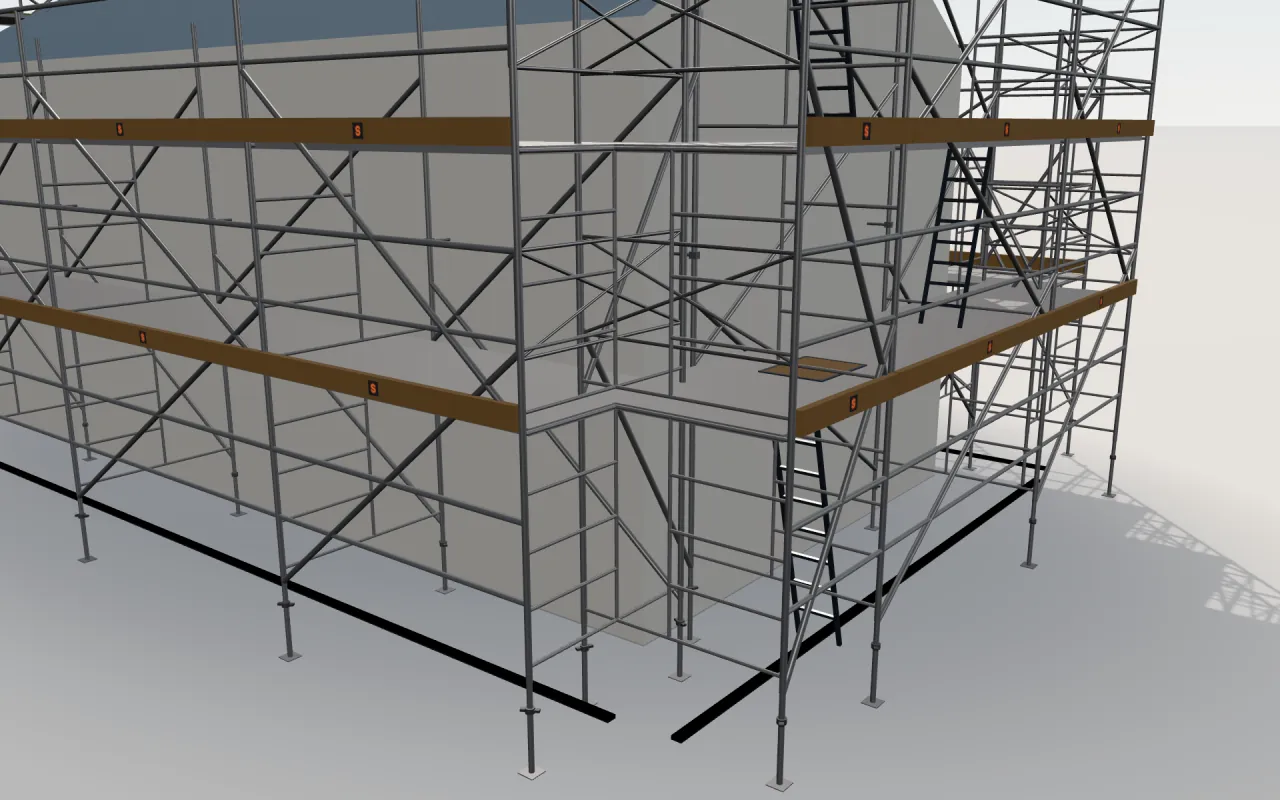

Close-up of the corner where the long wall and the gable wall meet, with WACO RED Box Frame standards, decks, guardrails and toe boards in the ScaFix 3D model — The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

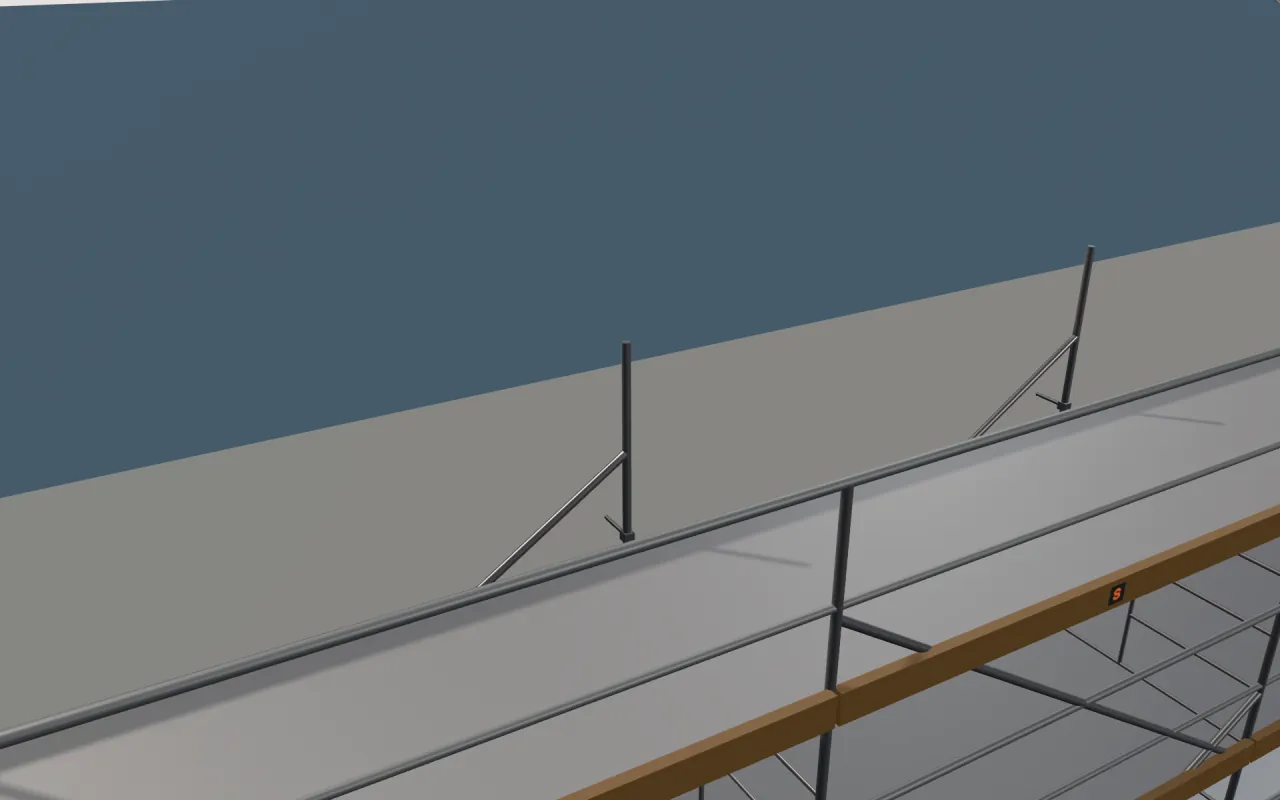

Close-up of the top WACO RED Box Frame lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model — The top lift below the eaves, with guardrails and toe boards.

The example house with WACO RED Box Frame

The walls of the example house with WACO RED Box Frame
Wall	Length	Height	Bays
Wall 1 + 3	37'-5" (11.4 m)	14'-9" (4.5 m)	1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)
Wall 2 + 4 (gable)	17'-4 1/2" (5.3 m)	19'-8" (6 m)	1 × 4' (1.22 m) + 1 × 10' (3.05 m) + 1 × 8' (2.44 m)

The parts list for the example house with WACO RED Box Frame

The parts list for the example house with WACO RED Box Frame
Part	Length	Count
Frames and standards
Frames	5'-1" (1.55 m)	46
Frames	3'-3 1/2" (1 m)	10
Top-lift guardrail posts		10
Decks
Decks without ladder	10' (3.05 m)	14
Decks without ladder	8' (2.44 m)	10
Decks without ladder	4' (1.22 m)	8
Decks with ladder	10' (3.05 m)	4
Guardrails
Front guardrails	10' (3.05 m)	26
Front guardrails	8' (2.44 m)	14
Front guardrails	4' (1.22 m)	12
Toeboards
Toeboards	10' (3.05 m)	18
Toeboards	8' (2.44 m)	10
Toeboards	4' (1.22 m)	8
Diagonals
Diagonals	10' (3.05 m)	36
Diagonals	8' (2.44 m)	20
Diagonals	4' (1.22 m)	16
Ends
End guardrails		20
Wall ties and fittings
Wall ties		24
Wall-anchor fittings		24
Base jacks and legs
Base jacks / legs		40

WACO RED Box Frame (USA) · Scaffold depth: 5' (1.52 m) · Decks at: 2.15 m, 3.7 m, 5.25 m · Decks with ladders · Parts in all: 370

WACO RED Box Frame compared with similar systems on the same house

The example house with WACO RED Box Frame and similar systems
System	Bays on the long wall	Depth	Parts in all	Against WACO RED Box Frame
WACO RED Box Frame	1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)	5' (1.52 m)	370	this page
Waco Frame	1 × 10' (3.05 m) + 4 × 7' (2.13 m) + 1 × 5' (1.52 m)	5' (1.52 m)	352	-18 (-5%)
StepUp Frame & Brace	1 × 4' (1.22 m) + 3 × 10' (3.05 m) + 1 × 8' (2.44 m)	3' (0.91 m)	350	-20 (-5%)
Metaltech Saferstack Mason	3 × 10' (3.05 m) + 1 × 8' (2.44 m)	5' (1.52 m)	330	-40 (-11%)

WACO RED Box Frame: parts by wall size

Scaffold depth 1.52 m, access: decks with ladders. Each wall is a whole number of 3.05 m bays, so the scaffold covers it exactly.

Parts by wall size with WACO RED Box Frame
Wall (length × height)	Bays	Decked lifts	Frames and standards	Decks	Base jacks and legs	Wall ties and fittings	Parts in all
20' (6.1 m) × 13'-1 1/2" (4 m)	2 × 10' (3.05 m)	2	9	4	6	12	53
40' (12.19 m) × 19'-8" (6 m)	4 × 10' (3.05 m)	3	20	12	10	20	120
60' (18.29 m) × 26'-3" (8 m)	6 × 10' (3.05 m)	4	35	24	14	42	225
80' (24.38 m) × 32'-9 1/2" (10 m)	8 × 10' (3.05 m)	6	63	48	18	72	413
100' (30.48 m) × 39'-4 1/2" (12 m)	10 × 10' (3.05 m)	7	88	70	22	88	572

US rules for WACO RED Box Frame (OSHA 29 CFR 1926.451)

Height-to-base for WACO RED Box Frame: planned 5' (1.52 m) wide, it must be restrained by guying, tying, bracing or an equivalent means above 4 × that width, 20' (6.10 m) — §1926.451(c)(1).
Ties for WACO RED Box Frame: at horizontal members that support both inner and outer legs, placed as the manufacturer recommends or starting at the horizontal member closest to that height, then repeated vertically every 26 ft (7.9 m) or less, because the scaffold is wider than 3 ft (0.91 m), and at each end and horizontally every 30 ft (9.1 m) or less from one end — §1926.451(c)(1)(i)–(ii).
Guardrails on WACO RED Box Frame: the top rail 38 to 45 in (0.97–1.14 m) above the platform on scaffolds made or placed in service after 1 January 2000, with a midrail about halfway — §1926.451(g)(4).
Toeboards on WACO RED Box Frame, where they are needed against falling objects: at least 3½ in (89 mm) high — §1926.451(h)(4).
ANSI/ASSP A10.8 is the US consensus standard for scaffolding safety; the manufacturer's instructions apply on top of both.
ScaFix is a planning tool, not a structural calculation or approval. A competent person must check the scaffold before use.

Source of the US rules for WACO RED Box Frame

The rules for WACO RED Box Frame above: OSHA, Safety and Health Regulations for Construction, 29 CFR 1926.451 (General requirements for scaffolds).

osha.gov/laws-regs/regulations/standardnumber/1926/1926…

Similar systems

BrandSafway SafLockSame manufacturer (BrandSafway) · Bay lengths: 3.05 m, 2.13 m, 1.57 m, 1.15 m
WACO RED Access FrameSame manufacturer (BrandSafway (WACO)) · Bay lengths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m
Waco FrameSame system type: Frame scaffold (facade scaffold) · Bay lengths: 3.05 m, 2.13 m, 1.52 m
StepUp Frame & BraceSame system type: Frame scaffold (facade scaffold) · Bay lengths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m
Bil-Jax Ring LockUS system, planned in feet and inches · Bay lengths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m, 0.91 m
StepUp CuplockUS system, planned in feet and inches · Bay lengths: 3.05 m, 2.44 m, 2.13 m, 1.83 m, 1.52 m, 1.22 m, 0.91 m

WACO RED Box Frame: a 40 × 20 ft wall

ScaFix plans a straight 40 ft × 20 ft wall (12.19 m × 6.1 m) with WACO RED Box Frame as 4 bays (4 × 3.05 m), decks at 2.15 m, 3.7 m and 5.25 m: 120 parts in all, computed by the same engine as the app. Corners, returns and stairs change the count.

Pick WACO RED Box Frame if…

you need to fit many wall lengths: WACO RED Box Frame has 6 bay lengths (1.22 m–3.05 m), more than 43 of the 60 other systems of its type.
you need a wide working deck: ScaFix plans WACO RED Box Frame up to 1.52 m deep, a width only 7 of the 60 other systems of its type also reach.
you build in lifts of 1.55 m: that is this system’s lift height in ScaFix, against 2 m for most systems.

Questions about WACO RED Box Frame

How many parts does WACO RED Box Frame need for a 12.19 m × 6 m wall?

A 12.19 m long, 6 m high wall with WACO RED Box Frame (4 × 3.05 m) needs 120 parts according to ScaFix: 20 frames and standards, 12 decks, 10 base jacks and legs and 20 wall ties and fittings, with decks on 3 lifts. A 30.48 m wall 12 m high needs 572.

Can ScaFix plan WACO RED Box Frame in feet and inches?

Yes. In the catalog, WACO RED Box Frame has bays of 10', 8', 7', 6', 5' and 4', and its parts list shows every length in feet and inches (Imperial) or in meters.
