KERO RK 073 scaffold: bay lengths, depths and parts list

KERO RK 073 has bay lengths of 1.57–3.07 m and a depth of 0.73 m in ScaFix. Enter your walls, and ScaFix draws the KERO RK 073 scaffold in 3D and works out its parts list. Below is our example house with KERO RK 073. Any other size: Scaffold calculator.

· How the numbers are computed ·

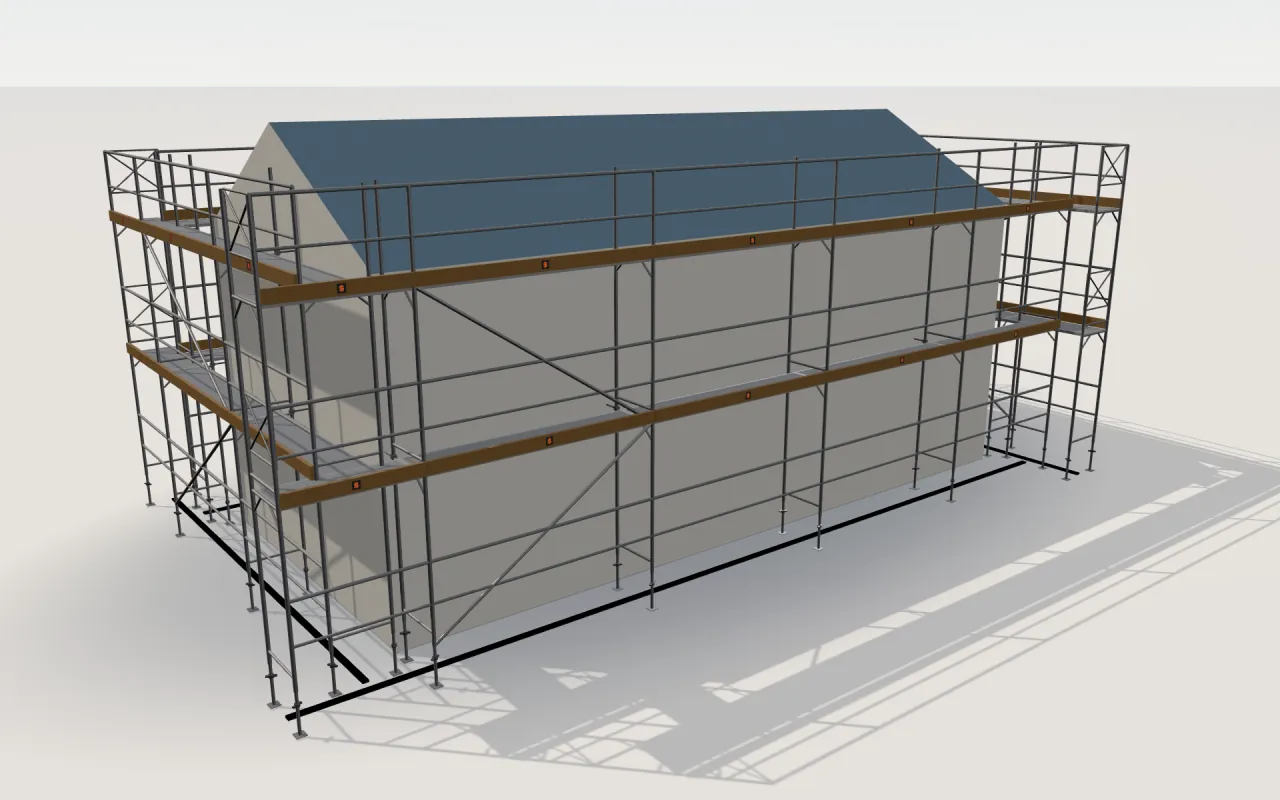

KERO RK 073 scaffolding around a house of 11.4 × 5.3 m with a gabled roof (eaves 4.5 m, ridge 6 m), drawn by the ScaFix 3D model
KERO RK 073 around the example house, as ScaFix draws it in 3D.

How many parts does KERO RK 073 need for a house?

ScaFix plans KERO RK 073 with the bay lengths 3.07 m, 2.57 m, 2.07 m and 1.57 m and scaffold depth 0.73 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, KERO RK 073 needs 288 parts; Jamax needs 268 on the same house.

KERO RK 073 in ScaFix

Manufacturer · System type
KERO · Frame scaffold (facade scaffold)
Variants in the system picker
KERO RK 073
Bay lengths · Depths
3.07 m, 2.57 m, 2.07 m, 1.57 m · 0.73 m
Source of bay lengths and depths
Depth: DIBt Z-8.1-895 (read 23 October 2026); ScaFix has no page reference for the bay lengths yet.
Source of the tie rule
DIBt Z-8.1-895 KERO RK 073 (bis 07.02.2030) Anlage B §B.5 a–c
How ScaFix plans KERO RK 073
2 m lifts; ties every 4 m vertically, every 6.14 m (2 × 3.07 m) / 5.14 m (2 × 2.57 m) / 4.14 m (2 × 2.07 m) along the wall; diagonals at least one per 5 bays in every lift

Wall-tie spacing along the wall for KERO RK 073

ScaFix ties KERO RK 073 every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: DIBt Z-8.1-895 KERO RK 073 (bis 07.02.2030) Anlage B §B.5 a–c. ScaFix is a planning tool, not a structural approval.

Wall-tie spacing along the wall for each bay length of KERO RK 073 in ScaFix
Bay lengthBays between tiesTie spacing along the wall
3.07 m26.14 m
2.57 m25.14 m
2.07 m24.14 m
1.57 m23.14 m

Good to know

A separate approved product of KERO, built from parts compatible with Layher Blitz; it is not a Layher system.

Sources for KERO RK 073

Tie rule for KERO RK 073: DIBt Z-8.1-895 KERO RK 073 (bis 07.02.2030) Anlage B §B.5 a–c. DIBt Z-8.1-895 can be looked up by its number in the DIBt approval database. ScaFix is a planning tool, not a structural approval.

  1. dibt.de/en/service/approval-download/search

Close-ups from the 3D model

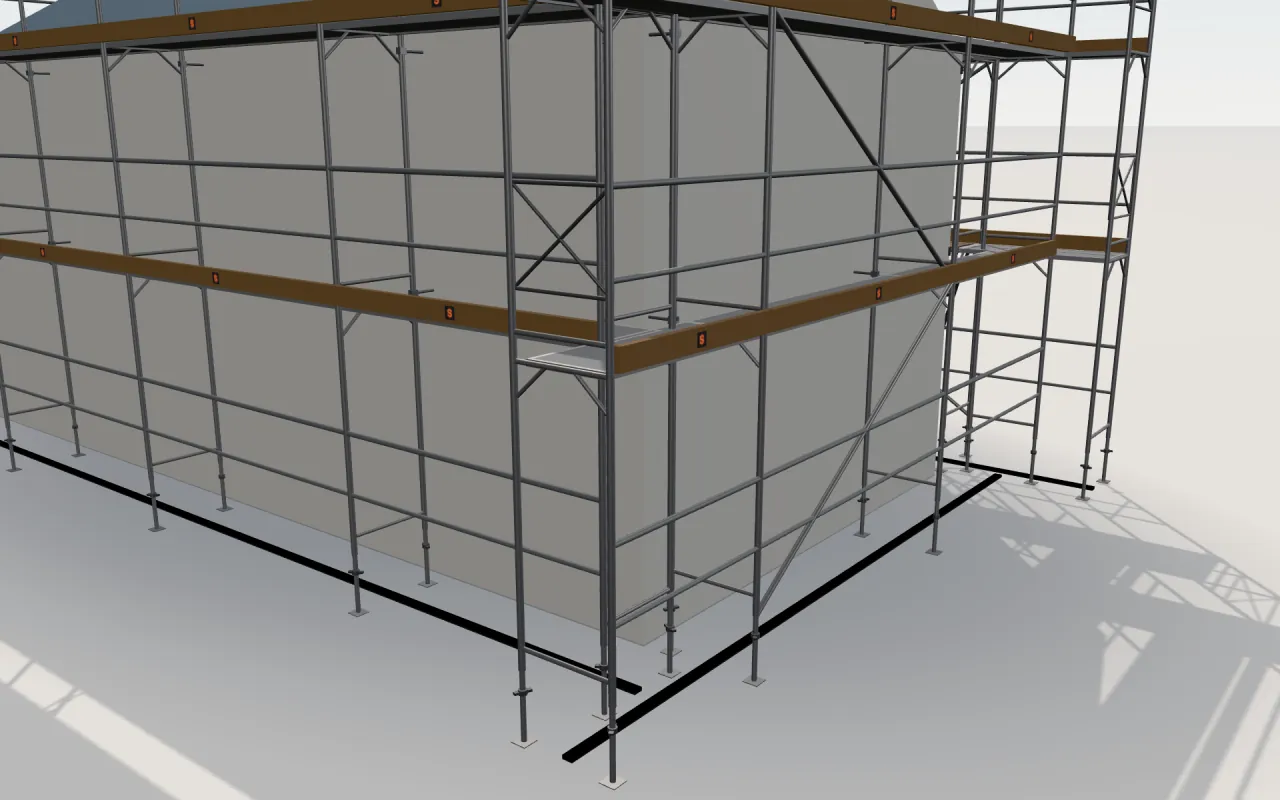

Close-up of the corner where the long wall and the gable wall meet, with KERO RK 073 standards, decks, guardrails and toe boards in the ScaFix 3D model
The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

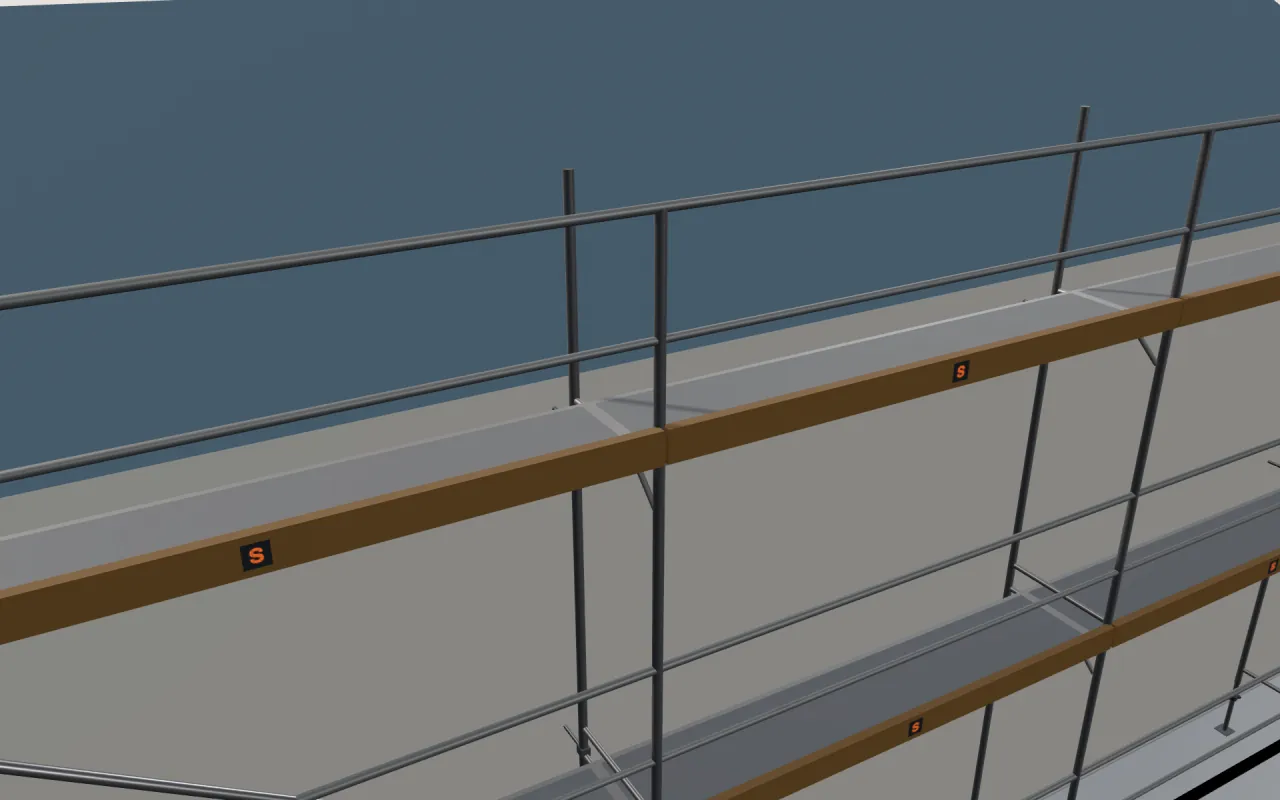

Close-up of the top KERO RK 073 lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model
The top lift below the eaves, with guardrails and toe boards.

The example house with KERO RK 073

The walls of the example house with KERO RK 073
WallLengthHeightBays
Wall 1 + 311.4 m4.5 m1 × 1.57 m + 3 × 3.07 m + 1 × 2.57 m
Wall 2 + 4 (gable)5.3 m6 m1 × 1.57 m + 1 × 3.07 m + 1 × 2.57 m

The parts list for the example house with KERO RK 073

The parts list for the example house with KERO RK 073
PartLengthCount
Frames and standards
Frames2 m40
Frames1 m4
Top-lift guardrail posts16
Decks
Decks without ladder3.07 m14
Decks without ladder2.57 m8
Decks without ladder1.57 m8
Decks with ladder3.07 m2
Guardrails
Front guardrails3.07 m24
Front guardrails2.57 m12
Front guardrails1.57 m12
Toeboards
Toeboards3.07 m16
Toeboards2.57 m8
Toeboards1.57 m8
Diagonals
Diagonals3.07 m8
Ends
End guardrails8
Wall ties and fittings
Wall ties30
Wall-anchor fittings30
Base jacks and legs
Base jacks / legs40

KERO RK 073 · Scaffold depth: 0.73 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 288

KERO RK 073 compared with similar systems on the same house

The example house with KERO RK 073 and similar systems
SystemBays on the long wallDepthParts in allAgainst KERO RK 073
KERO RK 0731 × 1.57 m + 3 × 3.07 m + 1 × 2.57 m0.73 m288this page
Jamax4 × 3 m0.68 m268-20 (-7%)
Layher Blitz4 × 3.07 m0.73 m308+20 (+7%)
Plettac SL 70/1001 × 1.5 m + 3 × 3 m + 1 × 2.5 m0.73 m316+28 (+10%)

KERO RK 073: parts by wall size

Scaffold depth 0.73 m, access: decks with ladders. Each wall is a whole number of 3.07 m bays, so the scaffold covers it exactly.

Parts by wall size with KERO RK 073
Wall (length × height)BaysDecked liftsFrames and standardsDecksBase jacks and legsWall ties and fittingsParts in all
6.14 × 4 m2 × 3.07 m1626629
12.28 × 6 m4 × 3.07 m2158101675
18.42 × 8 m6 × 3.07 m328181422136
24.56 × 10 m8 × 3.07 m445321840223
30.7 × 12 m10 × 3.07 m566502248316

Pick KERO RK 073 if…

  • you want long bays: KERO RK 073 reaches 3.07 m, longer than the longest bay of 41 of the 60 other systems of its type in ScaFix.

Questions about KERO RK 073

How many parts does KERO RK 073 need for a 12.28 m × 6 m wall?

A 12.28 m long, 6 m high wall with KERO RK 073 (4 × 3.07 m) needs 75 parts according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 16 wall ties and fittings, with decks on 2 lifts. A 30.7 m wall 12 m high needs 316.
