ЛСК-60 (LSK-60) scaffold: bay lengths, depths and parts list
ЛСК-60 (LSK-60) has bay lengths of 1–3 m and depths of 1.2 m and 1 m in ScaFix. Enter your walls, and ScaFix draws the ЛСК-60 (LSK-60) scaffold in 3D and works out its parts list. Below is our example house with ЛСК-60 (LSK-60). Any other size: Scaffold calculator.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does ЛСК-60 (LSK-60) need for a house?
ScaFix plans ЛСК-60 (LSK-60) with the bay lengths 1–3 m and scaffold depth 1.2 m and 1 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, ЛСК-60 (LSK-60) needs 541 parts; Layher Allround needs 515 on the same house.
ЛСК-60 (LSK-60) in ScaFix
- Manufacturer · System type
- ДИРС СТРОЙ · Modular scaffold with rosettes
- Variants in the system picker
- ЛСК-60
- Bay lengths · Depths
- 3 m, 2.5 m, 2 m, 1.5 m, 1.2 m, 1 m · 1.2 m, 1 m
- How ScaFix plans ЛСК-60 (LSK-60)
- 2 m lifts; ties every 4 m vertically, every 6 m (2 × 3 m) / 5 m (2 × 2.5 m) / 4 m (2 × 2 m) along the wall (general default); diagonals at least one per 4 bays in every lift
Wall-tie spacing along the wall for ЛСК-60 (LSK-60)
ScaFix ties ЛСК-60 (LSK-60) every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: ScaFix’s general default, not taken from the manufacturer’s manual; check the tie pattern in the manufacturer’s instructions. ScaFix is a planning tool, not a structural approval.
| Bay length | Bays between ties | Tie spacing along the wall |
|---|---|---|
| 3 m | 2 | 6 m |
| 2.5 m | 2 | 5 m |
| 2 m | 2 | 4 m |
| 1.5 m | 2 | 3 m |
| 1.2 m | 2 | 2.4 m |
| 1 m | 2 | 2 m |
Good to know
Modelled from the ДИРС СТРОЙ passport; ties follow the site plan, so ScaFix uses its general rule — check the manufacturer's instructions. ScaFix has no Russian pages yet.
Sources for ЛСК-60 (LSK-60)
Documents for ЛСК-60 (LSK-60): 1) ДИРС СТРОЙ, Леса клиновые ЛСК-60, паспорт, checked 25 October 2026. No manufacturer document for the tie rule of ЛСК-60 (LSK-60) is on file in ScaFix; check the manufacturer’s assembly instructions. ScaFix is a planning tool, not a structural approval.

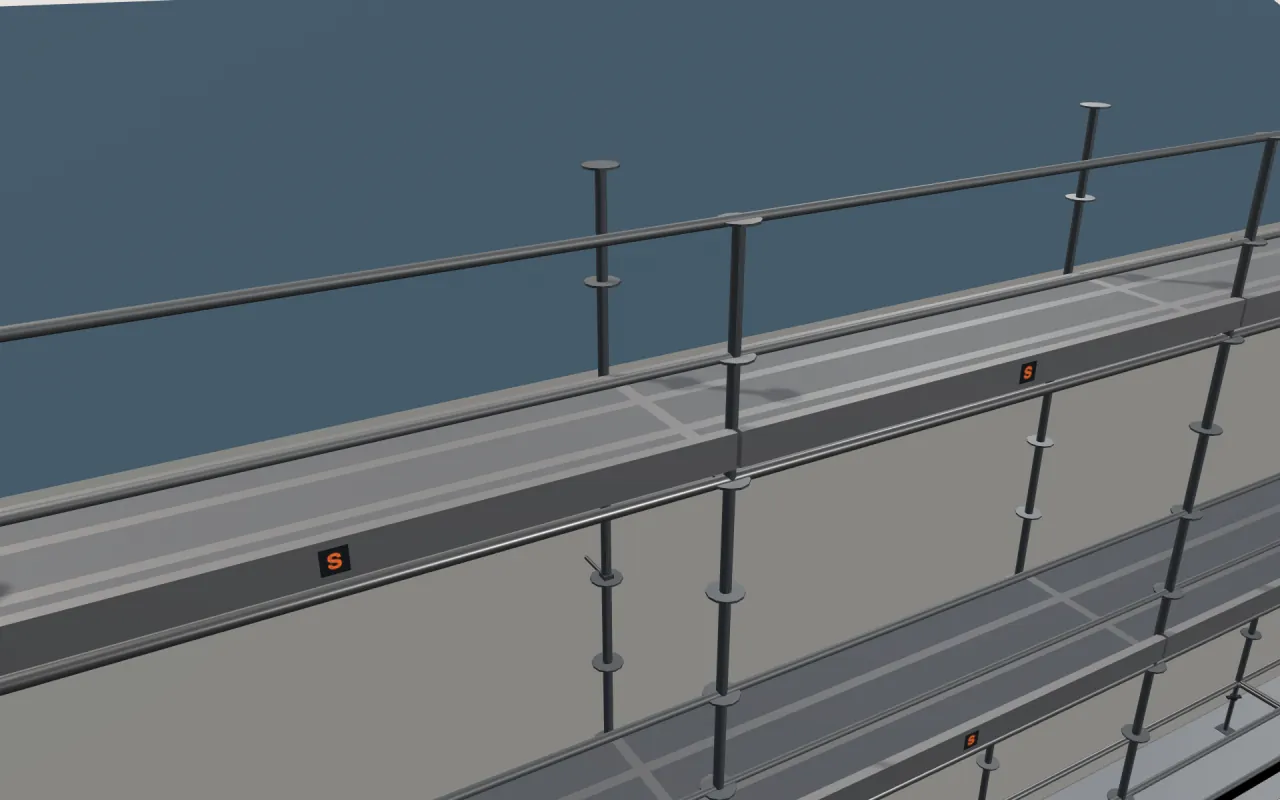

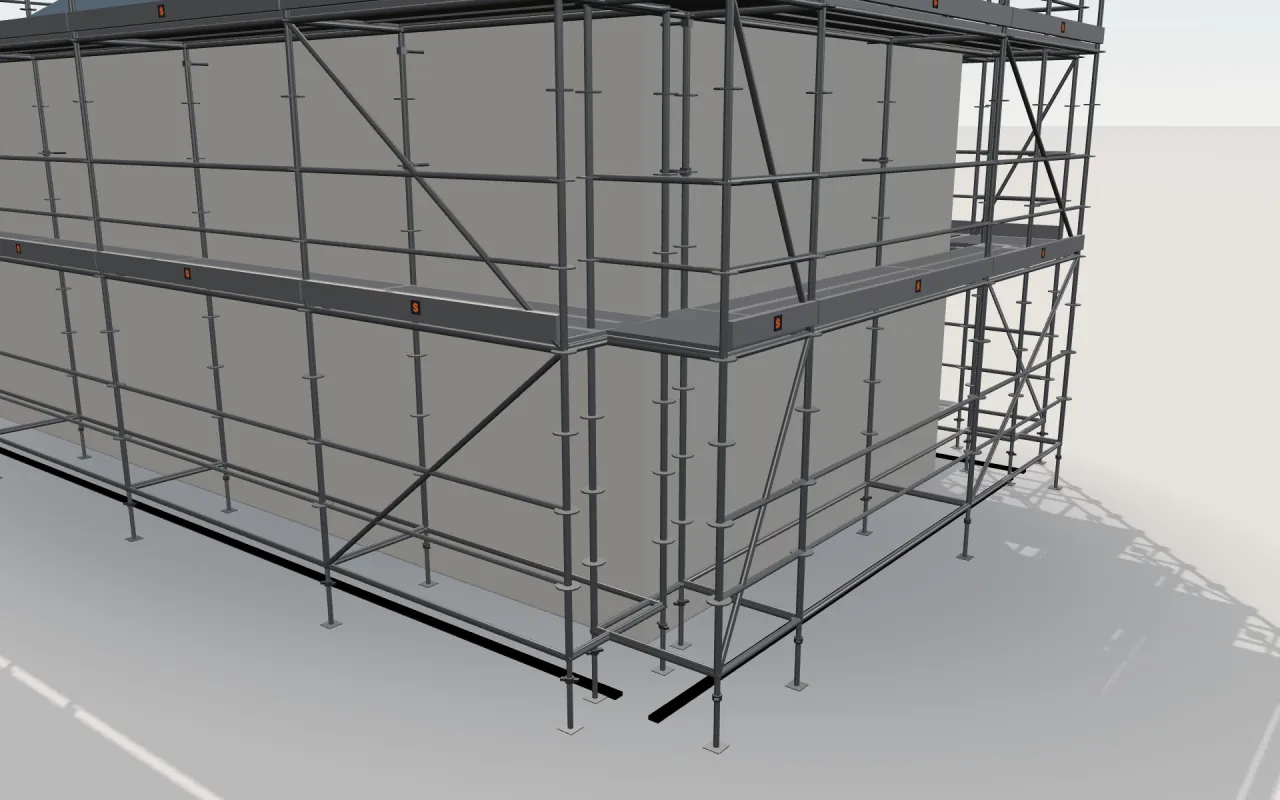

Close-ups from the 3D model

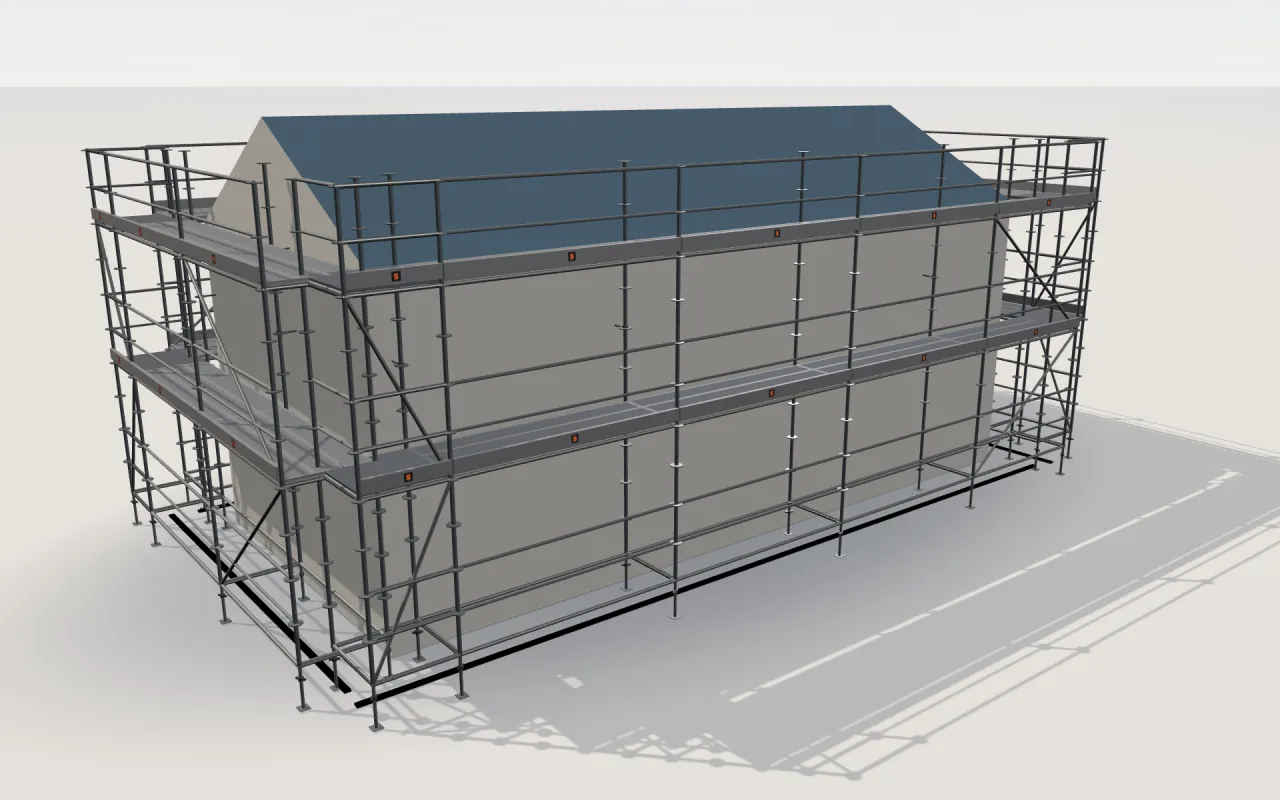

The example house with ЛСК-60 (LSK-60)
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 + 3 | 11.4 m | 4.5 m | 1 × 1 m + 3 × 3 m + 1 × 2.5 m |
| Wall 2 + 4 (gable) | 5.3 m | 6 m | 1 × 1 m + 1 × 3 m + 1 × 2.5 m |
The parts list for the example house with ЛСК-60 (LSK-60)
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Standards | 2 m | 80 |
| Standards | 1 m | 40 |
| Ledgers and beams | ||
| Ledgers | 3 m | 48 |
| Ledgers | 2.5 m | 24 |
| Ledgers | 1 m | 24 |
| Transoms | 60 | |
| Decks | ||
| Decks without ladder | 3 m | 15 |
| Decks without ladder | 2.5 m | 8 |
| Decks without ladder | 1 m | 8 |
| Decks with ladder | 3 m | 2 |
| Guardrails | ||
| Front guardrails | 3 m | 48 |
| Front guardrails | 2.5 m | 24 |
| Front guardrails | 1 m | 24 |
| Toeboards | ||
| Toeboards | 3 m | 16 |
| Toeboards | 2.5 m | 8 |
| Toeboards | 1 m | 8 |
| Diagonals | ||
| Diagonals | 2.5 m | 8 |
| Diagonals | 1 m | 8 |
| Ends | ||
| End guardrails | 8 | |
| Wall ties and fittings | ||
| Wall ties | ≈20 (estimate) | |
| Wall-anchor fittings | ≈20 (estimate) | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
ЛСК-60 · Scaffold depth: 1 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 541
ЛСК-60 (LSK-60) compared with similar systems on the same house
| System | Bays on the long wall | Depth | Parts in all | Against ЛСК-60 (LSK-60) |
|---|---|---|---|---|
| ЛСК-60 (LSK-60) | 1 × 1 m + 3 × 3 m + 1 × 2.5 m | 1 m | 541 | this page |
| Layher Allround | 4 × 3.07 m | 0.73 m | 515 | -26 (-5%) |
| PERI UP | 1 × 0.75 m + 3 × 3 m + 1 × 2.5 m | 0.75 m | 605 | +64 (+12%) |
| Plettac Contur | 1 × 0.75 m + 3 × 3 m + 1 × 2.5 m | 0.74 m | 561 | +20 (+4%) |
ЛСК-60 (LSK-60): parts by wall size
Scaffold depth 1 m, access: decks with ladders. Each wall is a whole number of 3 m bays, so the scaffold covers it exactly.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 6 × 4 m | 2 × 3 m | 1 | 12 | 3 | 6 | 4 | 53 |
| 12 × 6 m | 4 × 3 m | 2 | 30 | 9 | 10 | 14 | 142 |
| 18 × 8 m | 6 × 3 m | 3 | 56 | 19 | 14 | 18 | 264 |
| 24 × 10 m | 8 × 3 m | 4 | 90 | 33 | 18 | 32 | 430 |
| 30 × 12 m | 10 × 3 m | 5 | 132 | 51 | 22 | 38 | 629 |
Pick ЛСК-60 (LSK-60) if…
- you want fewer pieces to handle: ЛСК-60 (LSK-60) needs 541 parts on ScaFix’s example house, fewer than 24 of the 29 other systems of its type.
Questions about ЛСК-60 (LSK-60)
How many parts does ЛСК-60 (LSK-60) need for a 12 m × 6 m wall?
A 12 m long, 6 m high wall with ЛСК-60 (LSK-60) (4 × 3 m) needs 142 parts according to ScaFix: 30 frames and standards, 9 decks, 10 base jacks and legs and 14 wall ties and fittings, with decks on 2 lifts. A 30 m wall 12 m high needs 629.
