Scaffold system

RARIS Alu scaffold: bay lengths, depths and parts list

RARIS Alu has bay lengths of 2.5 m and a depth of 0.7 m in ScaFix. Enter your walls, and ScaFix draws the RARIS Alu scaffold in 3D and works out its parts list. Below is our example house with RARIS Alu. Any other size: Scaffold calculator.

By Ole Emil Frikstad Urstad · How the numbers are computed · Last updated 26 October 2026

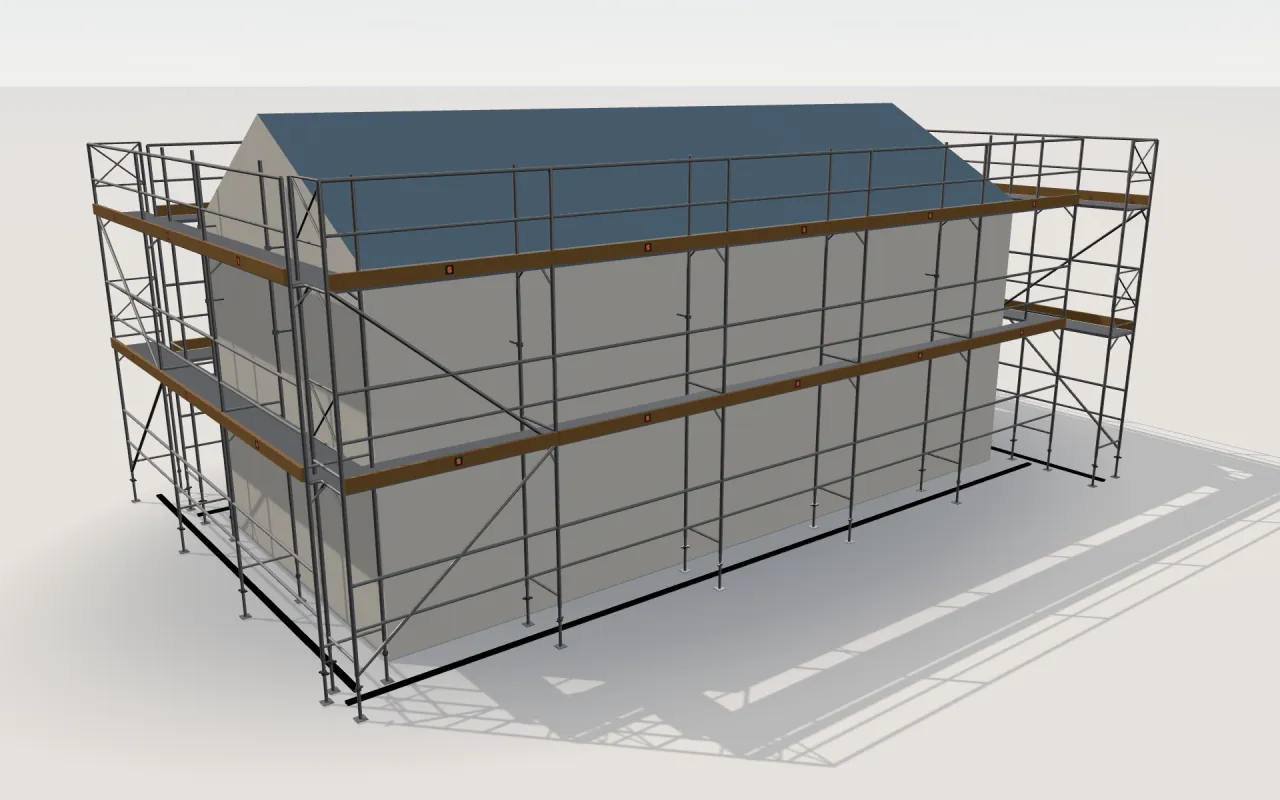

RARIS Alu around the example house, as ScaFix draws it in 3D.

How many parts does RARIS Alu need for a house?

ScaFix plans RARIS Alu with the bay lengths 2.5 m and scaffold depth 0.7 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, RARIS Alu needs 276 parts; Jamax needs 268 on the same house.

RARIS Alu in ScaFix

Manufacturer · System type: RARIS · Frame scaffold (facade scaffold)
Variants in the system picker: RARIS Alu (Facade)
Bay lengths · Depths: 2.5 m · 0.7 m
Source of bay lengths and depths: RARIS Schele de faţadă – Manual de utilizare pp. 3–5 (read 23 October 2026)
Source of the tie rule: RARIS «Schele de faţadă — Manual de utilizare» p. 13 (ancorare < 20 m: cadre laterale din 4 în 4 m, celelalte din 8 în 8 m în zig-zag)
How ScaFix plans RARIS Alu: 2 m lifts; ties every 4 m vertically, every 5 m (2 × 2.5 m) along the wall; diagonals at least one per 5 bays in every lift

Wall-tie spacing along the wall for RARIS Alu

ScaFix ties RARIS Alu every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: RARIS «Schele de faţadă — Manual de utilizare» p. 13 (ancorare < 20 m: cadre laterale din 4 în 4 m, celelalte din 8 în 8 m în zig-zag). ScaFix is a planning tool, not a structural approval.

Wall-tie spacing along the wall for each bay length of RARIS Alu in ScaFix
Bay length	Bays between ties	Tie spacing along the wall
2.5 m	2	5 m

Good to know

From RARIS's facade scaffold manual (DIN 4420 group 3, below 20 m). ScaFix has no Romanian pages yet.

Sources for RARIS Alu

Tie rule for RARIS Alu: RARIS «Schele de faţadă — Manual de utilizare» p. 13 (ancorare < 20 m: cadre laterale din 4 în 4 m, celelalte din 8 în 8 m în zig-zag). ScaFix is a planning tool, not a structural approval.

Close-ups from the 3D model

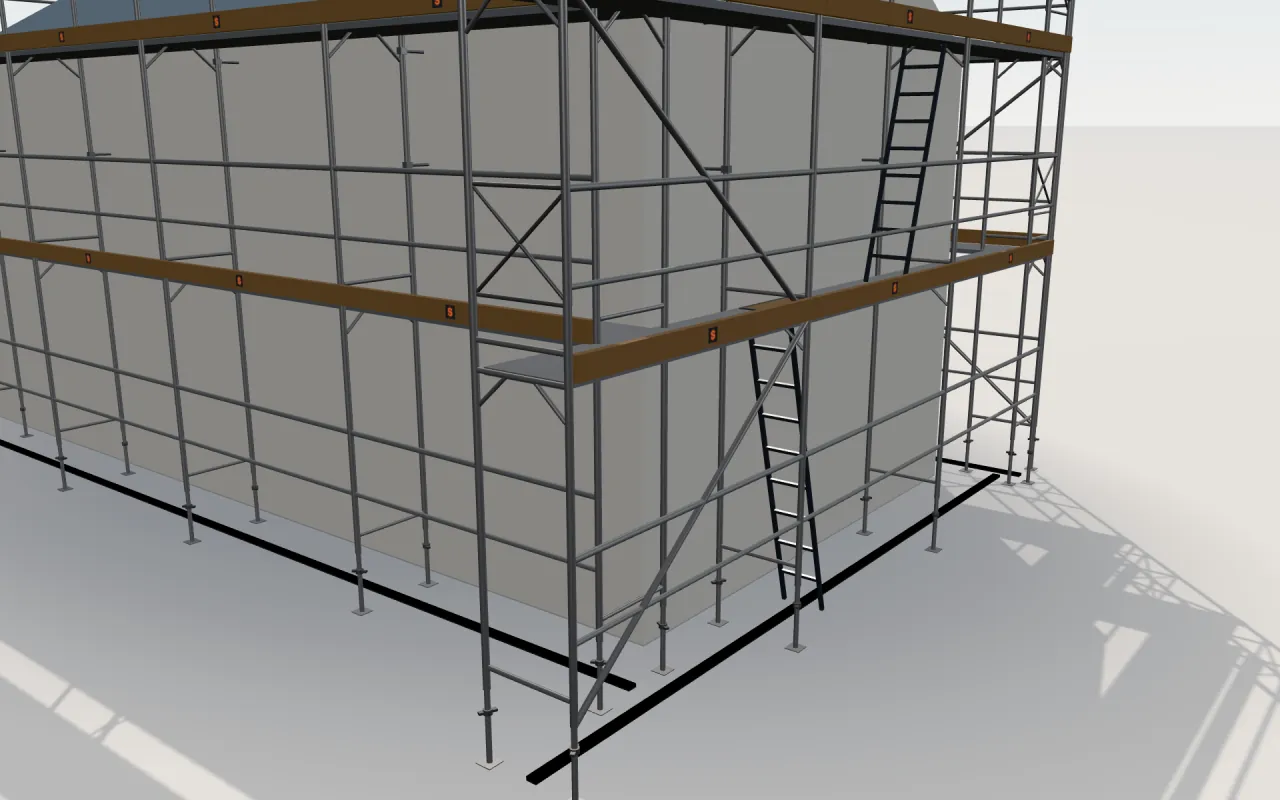

Close-up of the corner where the long wall and the gable wall meet, with RARIS Alu standards, decks, guardrails and toe boards in the ScaFix 3D model — The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

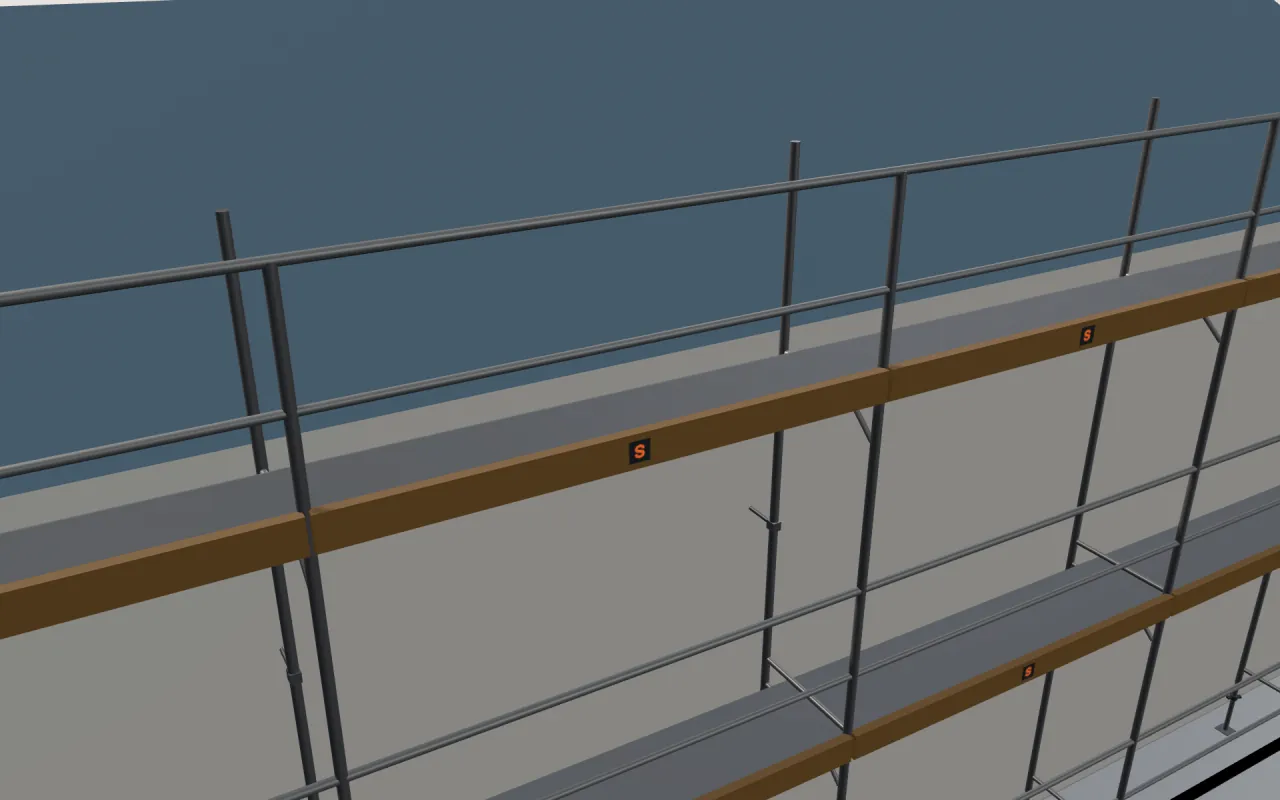

Close-up of the top RARIS Alu lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model — The top lift below the eaves, with guardrails and toe boards.

The example house with RARIS Alu

The walls of the example house with RARIS Alu
Wall	Length	Height	Bays
Wall 1 + 3	11.4 m	4.5 m	5 × 2.5 m
Wall 2 + 4 (gable)	5.3 m	6 m	3 × 2.5 m

The parts list for the example house with RARIS Alu

The parts list for the example house with RARIS Alu
Part	Length	Count
Frames and standards
Frames	2 m	40
Frames	1 m	4
Top-lift guardrail posts		16
Decks
Decks without ladder	2.5 m	30
Decks with ladder	2.5 m	2
Guardrails
Front guardrails	2.5 m	48
Toeboards
Toeboards	2.5 m	32
Diagonals
Diagonals	2.5 m	8
Ends
End guardrails		8
Wall ties and fittings
Wall ties		24
Wall-anchor fittings		24
Base jacks and legs
Base jacks / legs		40

RARIS Alu (Facade) · Scaffold depth: 0.7 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 276

RARIS Alu compared with similar systems on the same house

The example house with RARIS Alu and similar systems
System	Bays on the long wall	Depth	Parts in all	Against RARIS Alu
RARIS Alu	5 × 2.5 m	0.7 m	276	this page
Jamax	4 × 3 m	0.68 m	268	-8 (-3%)
Layher Blitz	4 × 3.07 m	0.73 m	308	+32 (+12%)
Plettac SL 70/100	1 × 1.5 m + 3 × 3 m + 1 × 2.5 m	0.73 m	316	+40 (+14%)

RARIS Alu: parts by wall size

Scaffold depth 0.7 m, access: decks with ladders. Each wall is a whole number of 2.5 m bays, so the scaffold covers it exactly.

Parts by wall size with RARIS Alu
Wall (length × height)	Bays	Decked lifts	Frames and standards	Decks	Base jacks and legs	Wall ties and fittings	Parts in all
5 × 4 m	2 × 2.5 m	1	6	2	6	4	27
10 × 6 m	4 × 2.5 m	2	15	8	10	14	73
15 × 8 m	6 × 2.5 m	3	28	18	14	18	132
20 × 10 m	8 × 2.5 m	4	45	32	18	32	215
25 × 12 m	10 × 2.5 m	5	66	50	22	38	306

Pick RARIS Alu if…

you want fewer pieces to handle: RARIS Alu needs 276 parts on ScaFix’s example house, fewer than 49 of the 60 other systems of its type.

Questions about RARIS Alu

How many parts does RARIS Alu need for a 10 m × 6 m wall?

A 10 m long, 6 m high wall with RARIS Alu (4 × 2.5 m) needs 73 parts according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 14 wall ties and fittings, with decks on 2 lifts. A 25 m wall 12 m high needs 306.
