ASSCO QUADRO 70 scaffold: bay lengths, depths and parts list

ASSCO QUADRO 70 has bay lengths of 1.57–3.07 m and a depth of 0.73 m in ScaFix. Enter your walls, and ScaFix draws the ASSCO QUADRO 70 scaffold in 3D and works out its parts list. Below is our example house with ASSCO QUADRO 70. Any other size: Scaffold calculator.

By Ole Emil Frikstad Urstad · How the numbers are computed · Last updated 26 October 2026

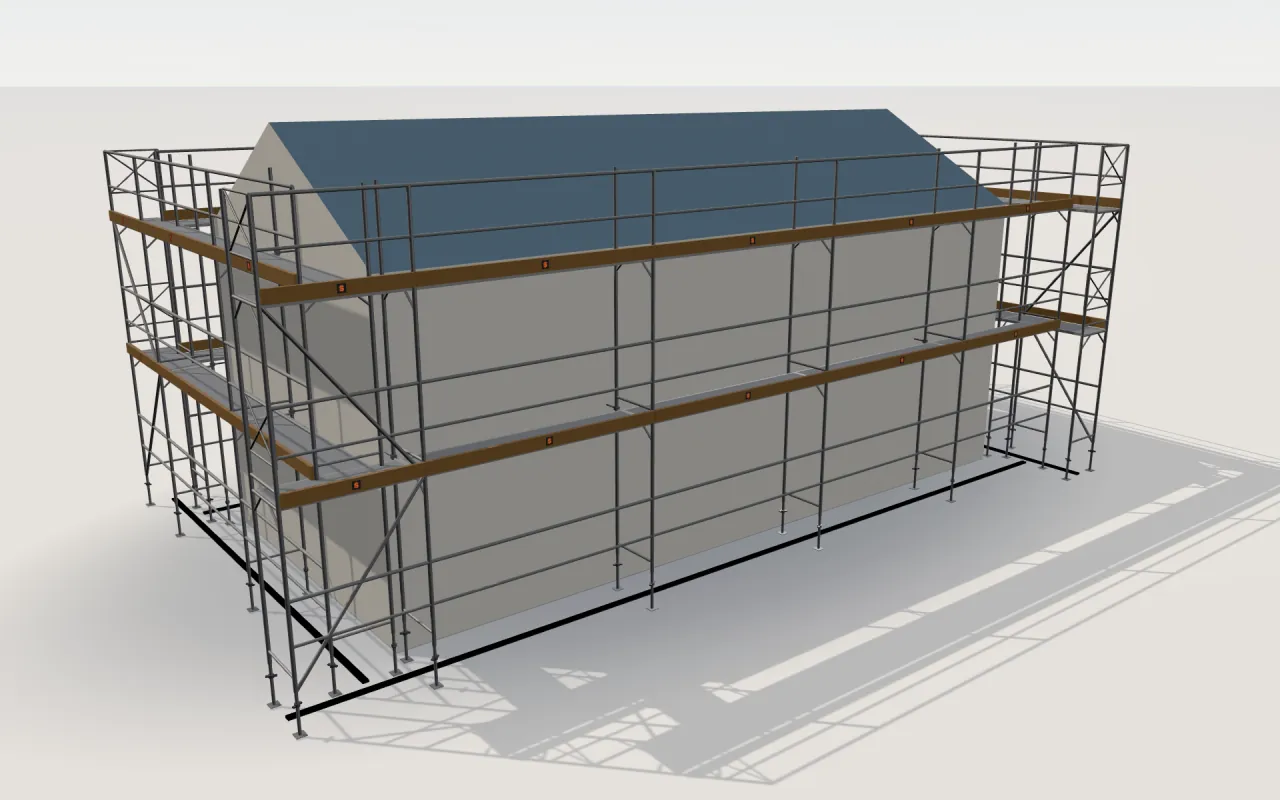

ASSCO QUADRO 70 around the example house, as ScaFix draws it in 3D.

How many parts does ASSCO QUADRO 70 need for a house?

ScaFix plans ASSCO QUADRO 70 with the bay lengths 3.07 m, 2.57 m, 2.07 m and 1.57 m and scaffold depth 0.73 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, ASSCO QUADRO 70 needs 288 parts; Jamax needs 268 on the same house.

ASSCO QUADRO 70 in ScaFix

Manufacturer · System type: assco · Frame scaffold (facade scaffold)
Variants in the system picker: ASSCO QUADRO 70
Bay lengths · Depths: 3.07 m, 2.57 m, 2.07 m, 1.57 m · 0.73 m
Source of bay lengths and depths: DIBt Z-8.1-190 (read 23 October 2026)
Source of the tie rule: DIBt Z-8.1-190 ASSCO QUADRO 70 (extended bis 02.05.2028) Anlage B §B.5 a–c (p. 183)
How ScaFix plans ASSCO QUADRO 70: 2 m lifts; ties every 4 m vertically, every 6.14 m (2 × 3.07 m) / 5.14 m (2 × 2.57 m) / 4.14 m (2 × 2.07 m) along the wall; diagonals at least one per 5 bays in every lift

Wall-tie spacing along the wall for ASSCO QUADRO 70

ScaFix ties ASSCO QUADRO 70 every 4 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: DIBt Z-8.1-190 ASSCO QUADRO 70 (extended bis 02.05.2028) Anlage B §B.5 a–c (p. 183). ScaFix is a planning tool, not a structural approval.

Wall-tie spacing along the wall for each bay length of ASSCO QUADRO 70 in ScaFix
Bay length	Bays between ties	Tie spacing along the wall
3.07 m	2	6.14 m
2.57 m	2	5.14 m
2.07 m	2	4.14 m
1.57 m	2	3.14 m

Sources for ASSCO QUADRO 70

Tie rule for ASSCO QUADRO 70: DIBt Z-8.1-190 ASSCO QUADRO 70 (extended bis 02.05.2028) Anlage B §B.5 a–c (p. 183). DIBt Z-8.1-190 can be looked up by its number in the DIBt approval database. ScaFix is a planning tool, not a structural approval.

dibt.de/en/service/approval-download/search

Close-ups from the 3D model

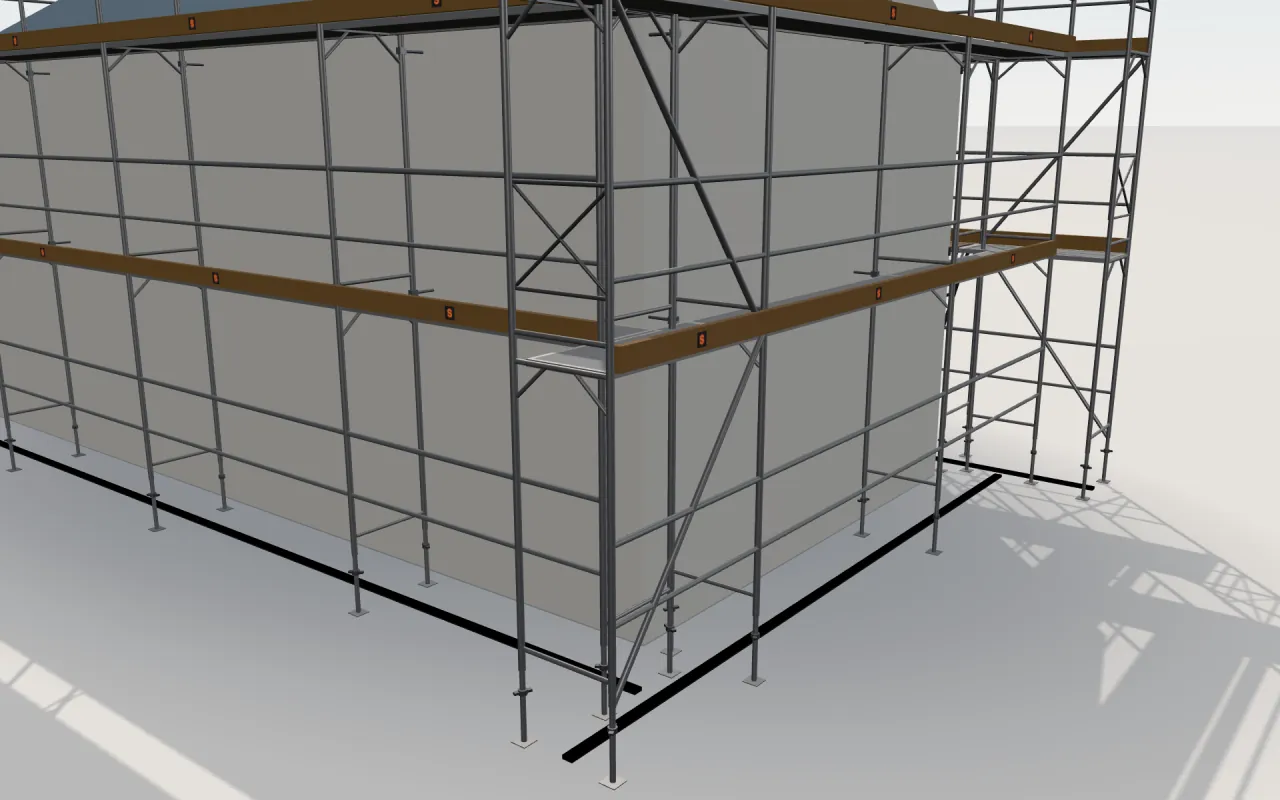

Close-up of the corner where the long wall and the gable wall meet, with ASSCO QUADRO 70 standards, decks, guardrails and toe boards in the ScaFix 3D model — The corner: the bays of the two walls meet, with deck, guardrail and toe board on each lift.

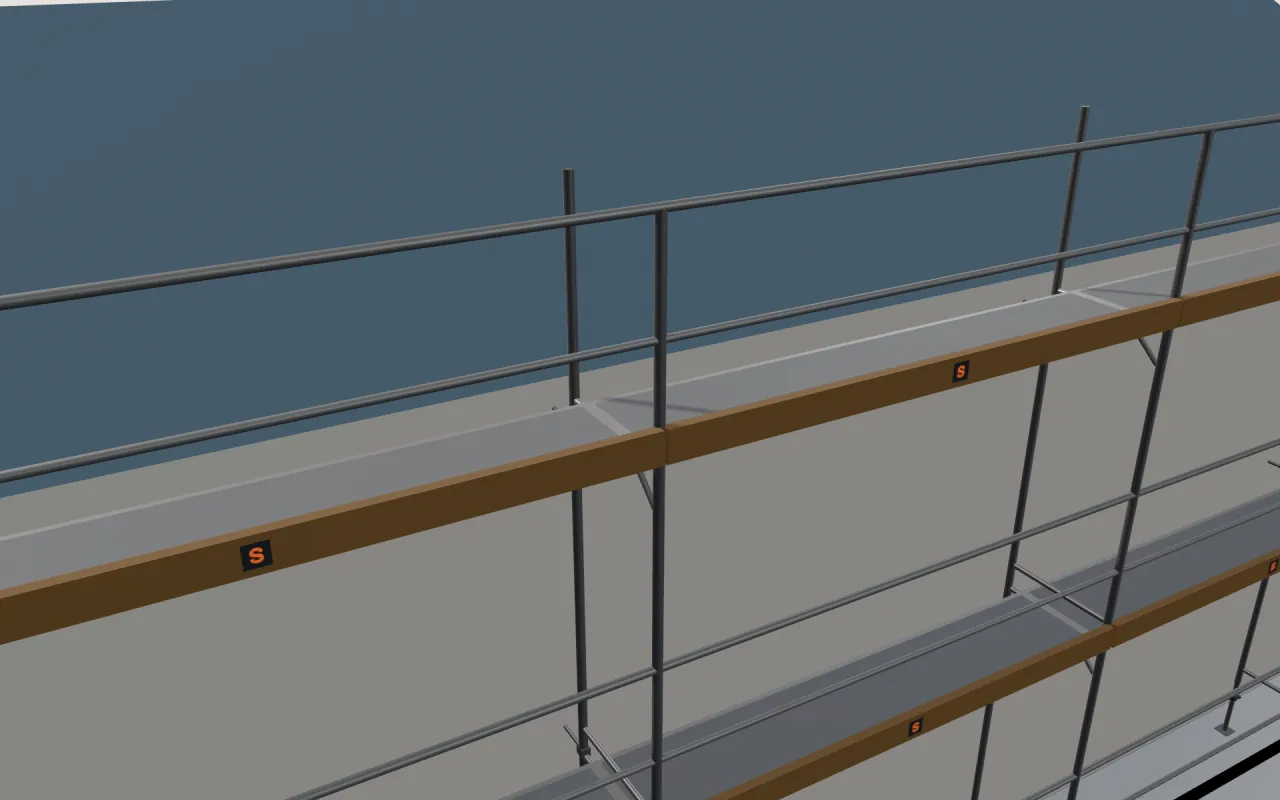

Close-up of the top ASSCO QUADRO 70 lift below the eaves, with guardrails and toe boards, in the ScaFix 3D model — The top lift below the eaves, with guardrails and toe boards.

The example house with ASSCO QUADRO 70

The walls of the example house with ASSCO QUADRO 70
Wall	Length	Height	Bays
Wall 1 + 3	11.4 m	4.5 m	1 × 1.57 m + 3 × 3.07 m + 1 × 2.57 m
Wall 2 + 4 (gable)	5.3 m	6 m	1 × 1.57 m + 1 × 3.07 m + 1 × 2.57 m

The parts list for the example house with ASSCO QUADRO 70

The parts list for the example house with ASSCO QUADRO 70
Part	Length	Count
Frames and standards
Frames	2 m	40
Frames	1 m	4
Top-lift guardrail posts		16
Decks
Decks without ladder	3.07 m	14
Decks without ladder	2.57 m	8
Decks without ladder	1.57 m	8
Decks with ladder	3.07 m	2
Guardrails
Front guardrails	3.07 m	24
Front guardrails	2.57 m	12
Front guardrails	1.57 m	12
Toeboards
Toeboards	3.07 m	16
Toeboards	2.57 m	8
Toeboards	1.57 m	8
Diagonals
Diagonals	1.57 m	8
Ends
End guardrails		8
Wall ties and fittings
Wall ties		30
Wall-anchor fittings		30
Base jacks and legs
Base jacks / legs		40

ASSCO QUADRO 70 · Scaffold depth: 0.73 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 288

ASSCO QUADRO 70 compared with similar systems on the same house

The example house with ASSCO QUADRO 70 and similar systems
System	Bays on the long wall	Depth	Parts in all	Against ASSCO QUADRO 70
ASSCO QUADRO 70	1 × 1.57 m + 3 × 3.07 m + 1 × 2.57 m	0.73 m	288	this page
Jamax	4 × 3 m	0.68 m	268	-20 (-7%)
Layher Blitz	4 × 3.07 m	0.73 m	308	+20 (+7%)
Plettac SL 70/100	1 × 1.5 m + 3 × 3 m + 1 × 2.5 m	0.73 m	316	+28 (+10%)

ASSCO QUADRO 70: parts by wall size

Scaffold depth 0.73 m, access: decks with ladders. Each wall is a whole number of 3.07 m bays, so the scaffold covers it exactly.

Parts by wall size with ASSCO QUADRO 70
Wall (length × height)	Bays	Decked lifts	Frames and standards	Decks	Base jacks and legs	Wall ties and fittings	Parts in all
6.14 × 4 m	2 × 3.07 m	1	6	2	6	6	29
12.28 × 6 m	4 × 3.07 m	2	15	8	10	16	75
18.42 × 8 m	6 × 3.07 m	3	28	18	14	22	136
24.56 × 10 m	8 × 3.07 m	4	45	32	18	40	223
30.7 × 12 m	10 × 3.07 m	5	66	50	22	48	316

Pick ASSCO QUADRO 70 if…

you want long bays: ASSCO QUADRO 70 reaches 3.07 m, longer than the longest bay of 41 of the 60 other systems of its type in ScaFix.

Questions about ASSCO QUADRO 70

How many parts does ASSCO QUADRO 70 need for a 12.28 m × 6 m wall?

A 12.28 m long, 6 m high wall with ASSCO QUADRO 70 (4 × 3.07 m) needs 75 parts according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 16 wall ties and fittings, with decks on 2 lifts. A 30.7 m wall 12 m high needs 316.
