Marcegaglia Realpont (Ponteggi Dalmine) scaffold: bay lengths, depths and parts list

The system in ScaFix

Manufacturer

Marcegaglia Buildtech

System type

Frame scaffold (facade scaffold)

Variants in the system picker

Ponteggi Dalmine (Facade)

Bay lengths

2.5 m, 1.8 m

Depths

1.05 m, 0.75 m

Source of the tie rule

Marcegaglia Buildtech «Manuale di utilizzo – sistemi di ponteggio a telai prefabbricati» (07/2017) p. 32 «ogni 22 mq di ponteggio di facciata», p. 33 (> 20 m: progetto)

Good to know

Realpont 75/105 frames from Marcegaglia Buildtech's user manual (07/2017) and Italian ministerial authorisations 15/0009997 and 15/0006649 (2005); bracing follows the general rule in the manual.

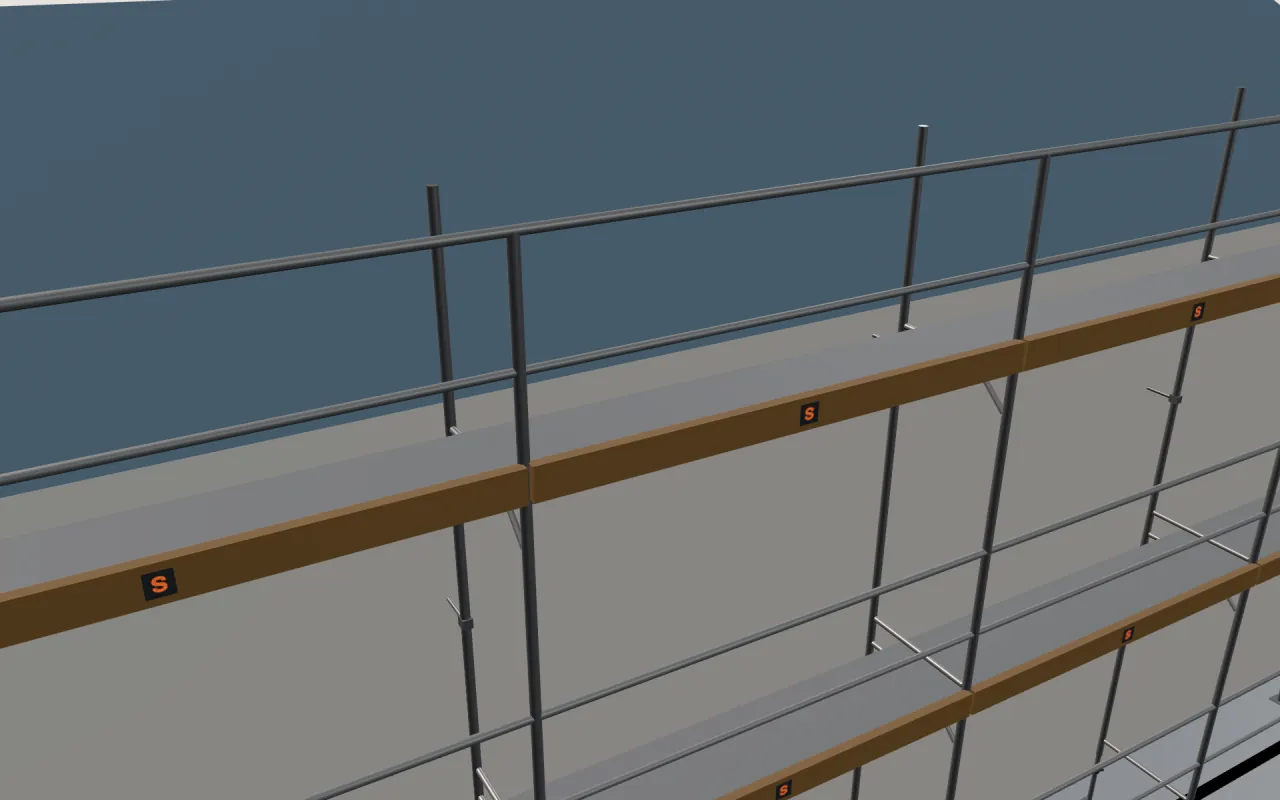

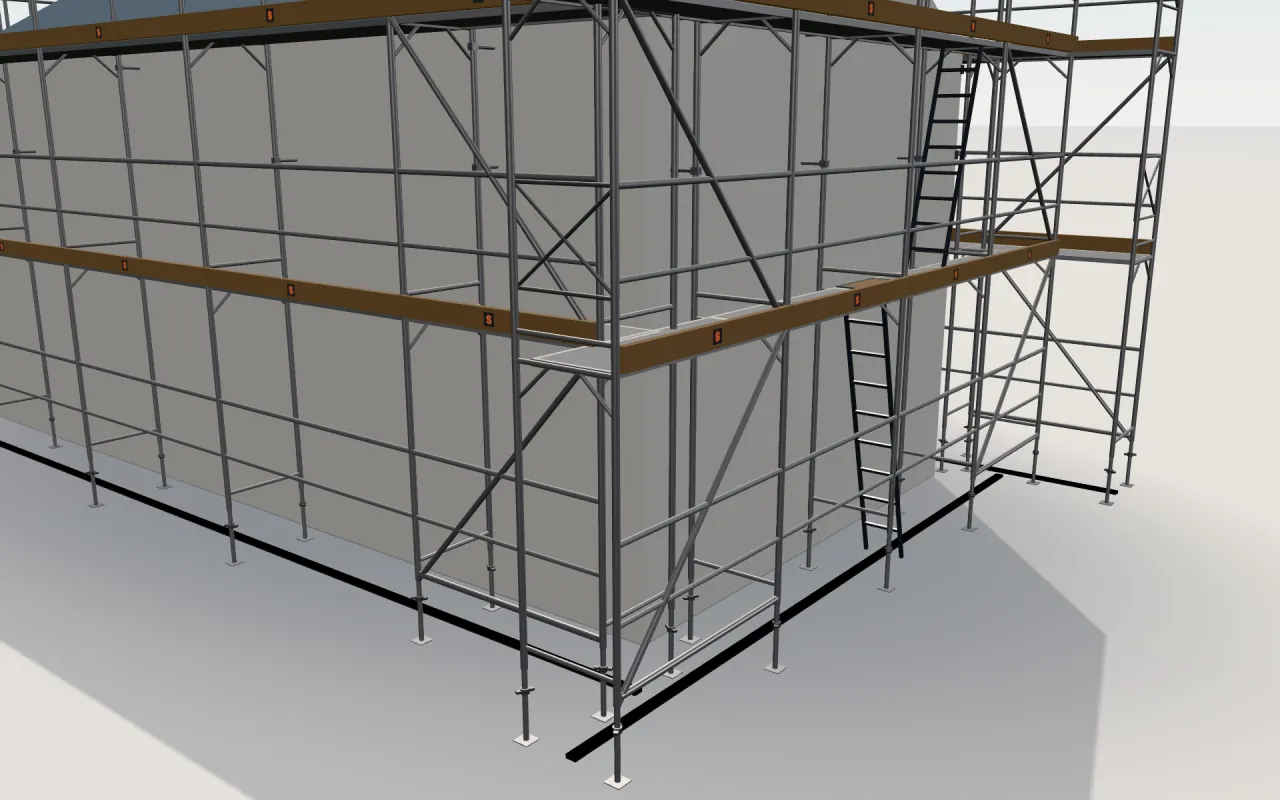

Close-ups from the 3D model

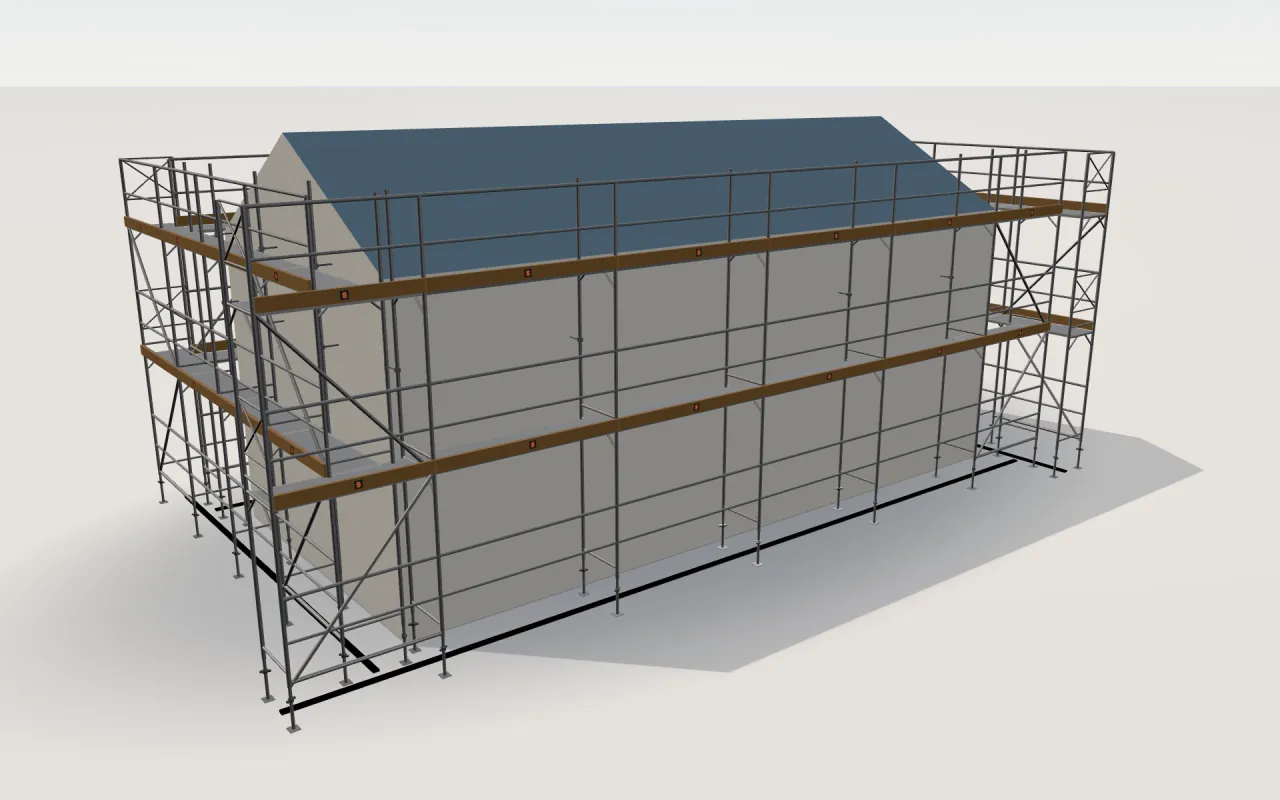

The example house with Marcegaglia Realpont (Ponteggi Dalmine)

ScaFix's own example: the 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.

System

Ponteggi Dalmine (Facade)

Scaffold depth

0.75 m

Decks at

2.5 m, 4.5 m

Top deck

4.5 m

Access

Decks with ladders

Parts in all

360

The walls and the bays

The parts list for the example house with Marcegaglia Realpont (Ponteggi Dalmine)

The whole parts list for ScaFix's own example, grouped the way the app shows it.

This is our example. The parts list for your own walls follows your measurements and settings.

Marcegaglia Realpont (Ponteggi Dalmine) compared with similar systems on the same house

The same example house, computed by the same engine with each system's bay length and default depth. The difference in piece count comes from the bay length, the depth and how the system is built.

Marcegaglia Realpont (Ponteggi Dalmine): parts by wall size

Scaffold depth 0.75 m, access: decks with ladders. Each wall is a whole number of 2.5 m bays, so the scaffold covers it exactly. One straight wall, no corners.

How to compare the setup

• These are fixed ScaFix examples, not customer jobs. Use the wall dimensions and roof shape stated with each example.
• Compare the same system variant, bay lengths, scaffold depth, deck heights and access. Matching house dimensions alone do not give matching parts lists.
• The displayed quantities are calculated by ScaFix's engine. Check the setup against the manufacturer's assembly instructions and the actual job; a parts list is not a structural calculation.

Limits

• The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
• Round corners, silos and hanging scaffolds are in Pro. A round scaffold is not a standard configuration and needs a calculation or the supplier's documentation. A hanging scaffold (Layher Allround and HAKI Universal) always needs a structural calculation from the supplier or an engineer.
