Pilosio MP scaffold: bay lengths, depths and parts list
ScaFix plans Pilosio MP scaffolding with the system's own bay lengths (2.5 m, 1.15 m and 0.83 m) and depths (1.15 m and 0.83 m), draws the scaffold in 3D and works out the parts list. Below is our example house with Pilosio MP.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does Pilosio MP need for a house?
ScaFix plans Pilosio MP with the bay lengths 2.5 m, 1.15 m and 0.83 m and the scaffold depth 0.83 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, Pilosio MP needs 537 parts; Layher Allround needs 481 on the same house.
Try one week – €9.90See the demo house in 3DSee ScaFix
€9.90 for 7 days. Does not renew.
The system in ScaFix
- Manufacturer
- Pilosio
- System type
- Modular scaffold with rosettes
- Variants in the system picker
- Pilosio MP
- Bay lengths
- 2.5 m, 1.15 m, 0.83 m
- Depths
- 1.15 m, 0.83 m
- Wall-tie rule in ScaFix
- General rule: ScaFix does not have the manufacturer's document for this system yet. Check the ties against the manufacturer's instructions. The wall-tie count in the parts list is an estimate from this rule.
Good to know
From Pilosio's MP catalogue (2022) and Italian ministerial authorisations MP83-250, MP83-300 and MP115-250 (renewed 2019); ties and bracing follow ScaFix's general rule.

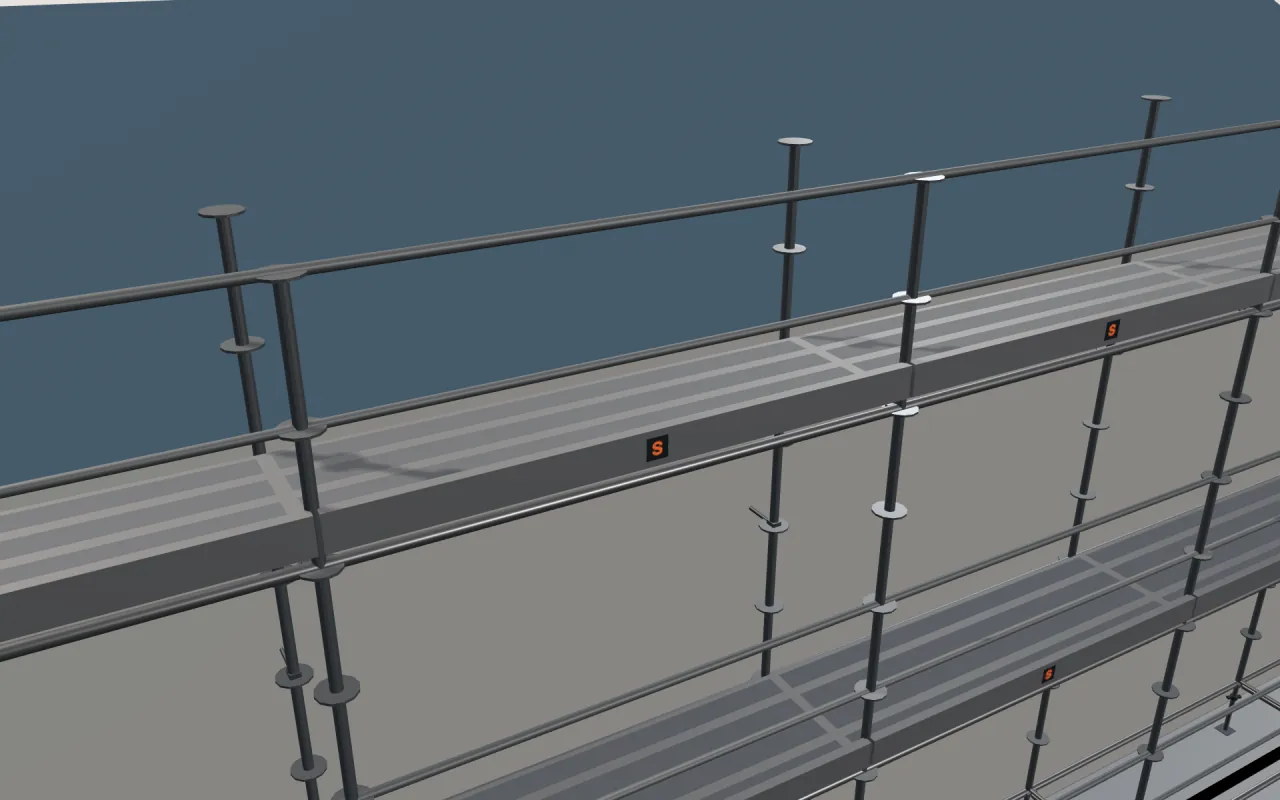

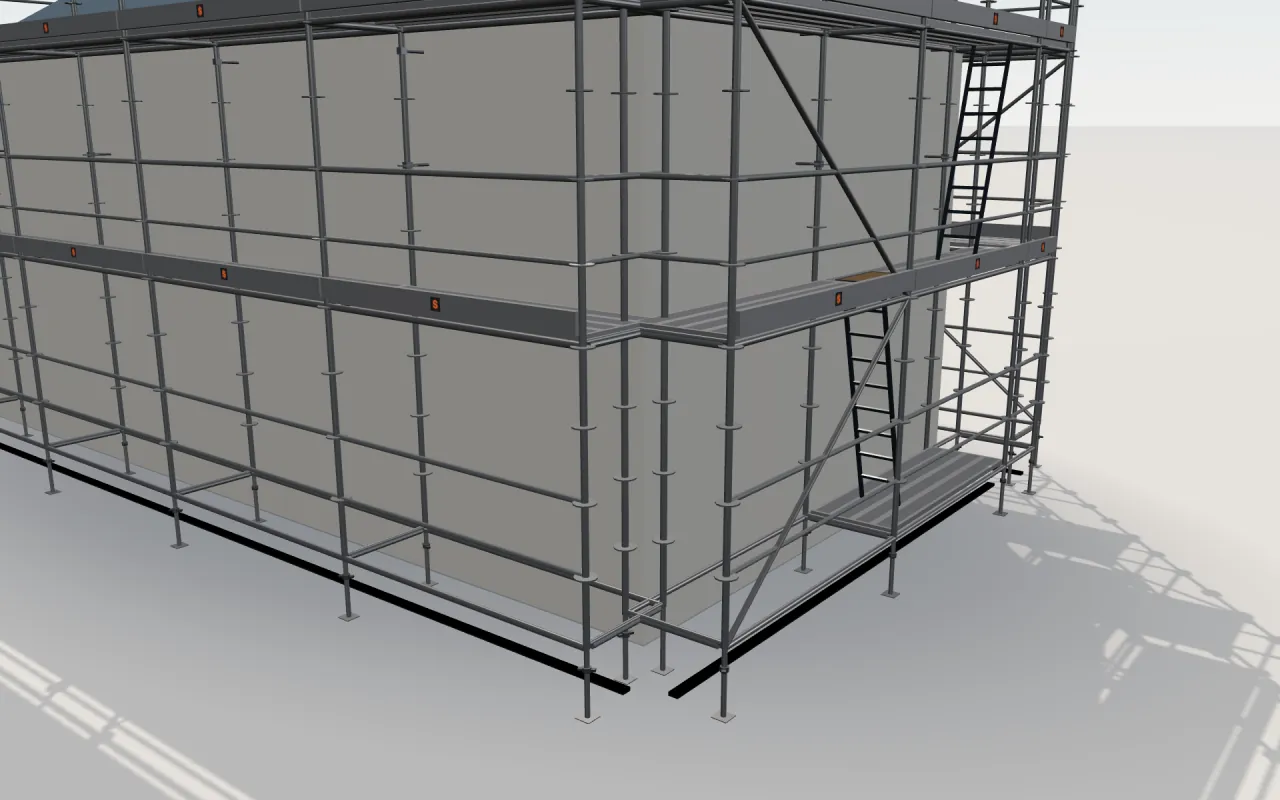

Close-ups from the 3D model

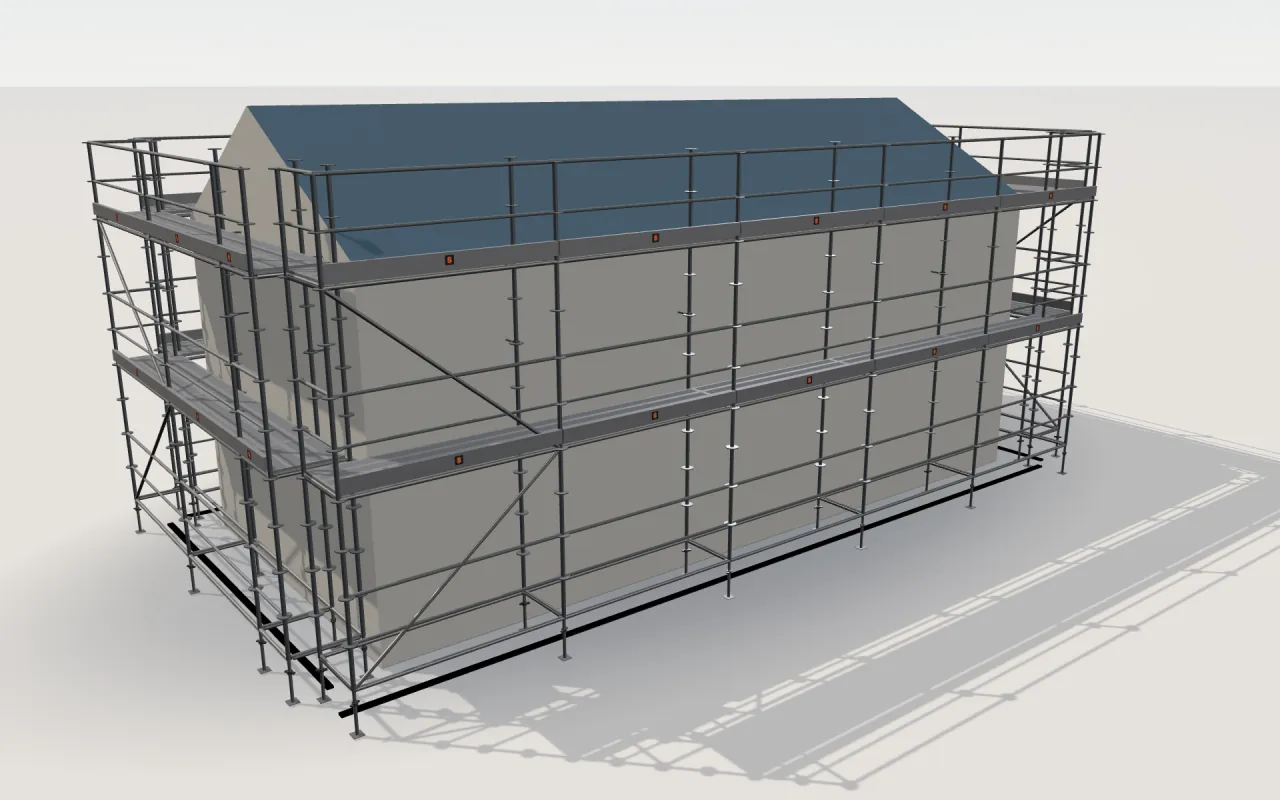

The example house with Pilosio MP
ScaFix's own example: the 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.
- System
- Pilosio MP
- Scaffold depth
- 0.83 m
- Decks at
- 2.5 m, 4.5 m
- Top deck
- 4.5 m
- Access
- Decks with ladders
- Parts in all
- 537
The walls and the bays
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 | 11.4 m | 4.5 m | 5 × 2.5 m |
| Wall 2 (gable) | 5.3 m | 6 m | 2 × 2.5 m + 1 × 0.83 m |
| Wall 3 | 11.4 m | 4.5 m | 5 × 2.5 m |
| Wall 4 (gable) | 5.3 m | 6 m | 2 × 2.5 m + 1 × 0.83 m |
The parts list for the example house with Pilosio MP
The whole parts list for ScaFix's own example, grouped the way the app shows it.
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Standards | 2 m | 80 |
| Standards | 1 m | 40 |
| Ledgers and beams | ||
| Ledgers | 2.5 m | 84 |
| Ledgers | 0.83 m | 12 |
| Transoms | 60 | |
| Decks | ||
| Decks without ladder | 2.5 m | 27 |
| Decks without ladder | 0.83 m | 4 |
| Decks with ladder | 2.5 m | 2 |
| Guardrails | ||
| Front guardrails | 2.5 m | 84 |
| Front guardrails | 0.83 m | 12 |
| Toeboards | ||
| Toeboards | 2.5 m | 28 |
| Toeboards | 0.83 m | 4 |
| Diagonals | ||
| Diagonals | 2.5 m | 8 |
| Ends | ||
| End guardrails | 12 | |
| Wall ties and fittings | ||
| Wall ties | 20 | |
| Wall-anchor fittings | 20 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
This is our example. The parts list for your own walls follows your measurements and settings.
Pilosio MP compared with similar systems on the same house
The same example house, computed by the same engine with each system's bay length and default depth. The difference in piece count comes from the bay length, the depth and how the system is built.
| System | Bays on the long wall | Depth | Parts in all |
|---|---|---|---|
| Pilosio MP | 5 × 2.5 m | 0.83 m | 537 |
| Layher Allround | 4 × 3.07 m | 0.73 m | 481 |
| PERI UP | 1 × 0.75 m + 3 × 3 m + 1 × 2.5 m | 0.75 m | 567 |
| Plettac Contur | 1 × 0.75 m + 3 × 3 m + 1 × 2.5 m | 0.74 m | 561 |
Pilosio MP: parts by wall size
Scaffold depth 0.83 m, access: decks with ladders. Each wall is a whole number of 2.5 m bays, so the scaffold covers it exactly. One straight wall, no corners.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 5 × 4 m | 2 × 2.5 m | 1 | 12 | 3 | 6 | 4 | 52 |
| 10 × 6 m | 4 × 2.5 m | 2 | 30 | 9 | 10 | 14 | 140 |
| 15 × 8 m | 6 × 2.5 m | 3 | 56 | 19 | 14 | 18 | 261 |
| 20 × 10 m | 8 × 2.5 m | 4 | 90 | 33 | 18 | 32 | 426 |
| 25 × 12 m | 10 × 2.5 m | 5 | 132 | 51 | 22 | 38 | 619 |
How to compare the setup
- These are fixed ScaFix examples, not customer jobs. Use the wall dimensions and roof shape stated with each example.
- Compare the same system variant, bay lengths, scaffold depth, deck heights and access. Matching house dimensions alone do not give matching parts lists.
- The displayed quantities are calculated by ScaFix's engine. Check the setup against the manufacturer's assembly instructions and the actual job; a parts list is not a structural calculation.
Limits
- The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
- Round corners, silos and hanging scaffolds are in Pro. A round scaffold is not a standard configuration and needs a calculation or the supplier's documentation. A hanging scaffold (Layher Allround and HAKI Universal) always needs a structural calculation from the supplier or an engineer.
Questions and answers
Which bay lengths does Pilosio MP have in ScaFix?
ScaFix uses the bay lengths 2.5 m, 1.15 m and 0.83 m and the depths 1.15 m and 0.83 m for Pilosio MP.
How many parts does the example house need with Pilosio MP?
With Pilosio MP, the 11.4 m × 5.3 m example house needs 537 parts in all, split into the groups in the table. Your own building gets its own parts list.
How many parts does Pilosio MP need for a 10 m × 6 m wall?
A 10 m long, 6 m high wall with Pilosio MP (4 × 2.5 m) needs 140 parts in all according to ScaFix: 30 frames and standards, 9 decks, 10 base jacks and legs and 14 wall ties and fittings, with decks on 2 lifts. A 25 m wall 12 m high needs 619.
Is the Pilosio MP plan from ScaFix approved for erection?
ScaFix is a planning tool, not a structural calculation or approval. Always check the scaffold against the manufacturer's assembly instructions and the rules that apply before you erect it.
