ANKA H-Tipi Cephe scaffold: bay lengths, depths and parts list
ANKA H-Tipi Cephe has bay lengths of 2.5 m and a depth of 0.73 m in ScaFix. Enter your walls, and ScaFix draws the ANKA H-Tipi Cephe scaffold in 3D and works out its parts list. Below is our example house with ANKA H-Tipi Cephe. Any other size: Scaffold calculator.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does ANKA H-Tipi Cephe need for a house?
ScaFix plans ANKA H-Tipi Cephe with the bay lengths 2.5 m and scaffold depth 0.73 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, ANKA H-Tipi Cephe needs 340 parts; Jamax needs 268 on the same house.
ANKA H-Tipi Cephe in ScaFix
- Manufacturer · System type
- ANKA · Frame scaffold (facade scaffold)
- Variants in the system picker
- ANKA H-Tipi Cephe
- Bay lengths · Depths
- 2.5 m · 0.73 m
- Source of bay lengths and depths
- ANKA Cephe İskelesi Mamul ve Talimat El Kitabı (30.12.2016) (read 23 October 2026)
- Source of the tie rule
- ANKA «Cephe İskelesi Mamul ve Talimat El Kitabı» (30.12.2016) p. 29, 37, 44
- How ScaFix plans ANKA H-Tipi Cephe
- 2 m lifts; ties every 6 m vertically, every 2.5 m (1 × 2.5 m) along the wall; diagonals at least one per 1 bays in every lift
Wall-tie spacing along the wall for ANKA H-Tipi Cephe
ScaFix ties ANKA H-Tipi Cephe every 6 m in height. Along the wall a tie sits on a standard, so the spacing is always a whole number of bays: for a wall built from one bay length, the table shows how many bays lie between two tied standards and the spacing that gives. Rule: ANKA «Cephe İskelesi Mamul ve Talimat El Kitabı» (30.12.2016) p. 29, 37, 44. ScaFix is a planning tool, not a structural approval.
| Bay length | Bays between ties | Tie spacing along the wall |
|---|---|---|
| 2.5 m | 1 | 2.5 m |
Good to know
From ANKA's facade scaffold manual (2016): 2.50 × 0.73 m H frames, ties every 6 m on every frame, diagonals in every bay, up to 24.5 m. ScaFix has no Turkish pages yet.
Sources for ANKA H-Tipi Cephe
Tie rule for ANKA H-Tipi Cephe: ANKA «Cephe İskelesi Mamul ve Talimat El Kitabı» (30.12.2016) p. 29, 37, 44. ScaFix is a planning tool, not a structural approval.

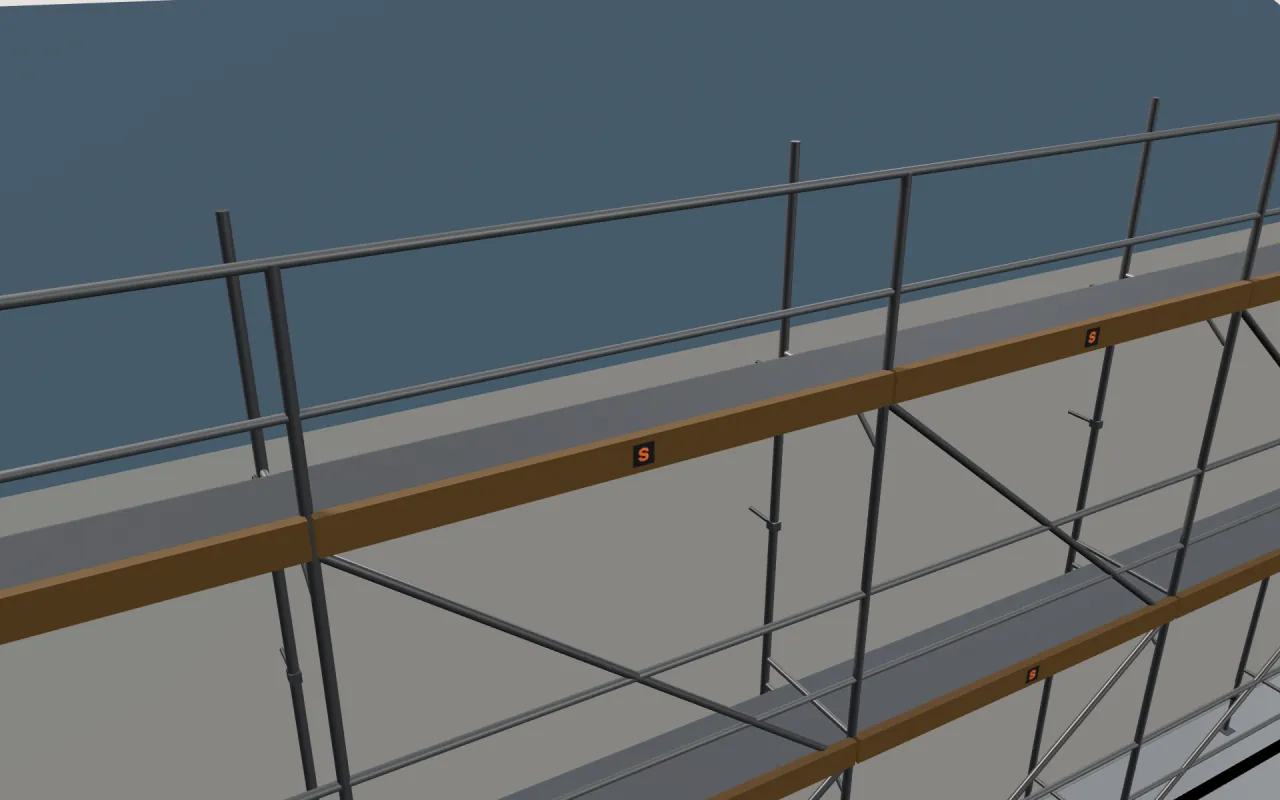

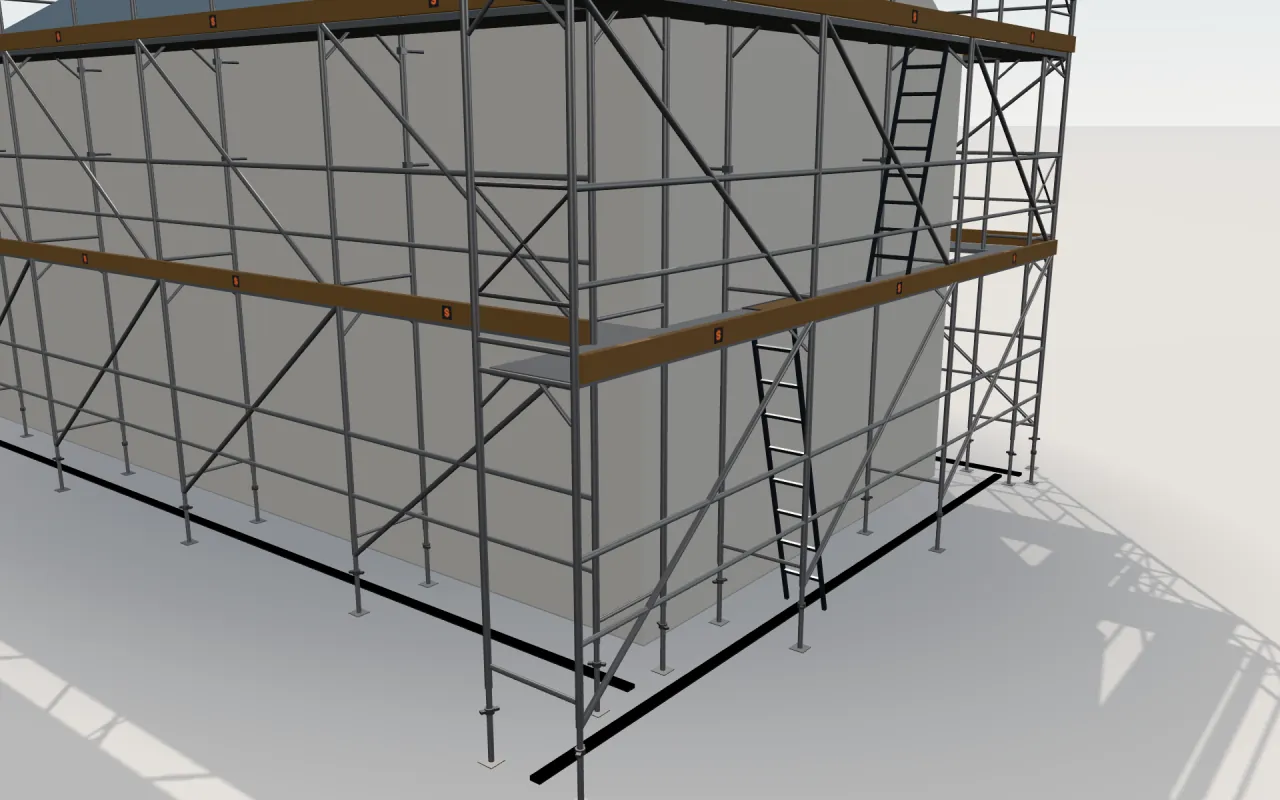

Close-ups from the 3D model

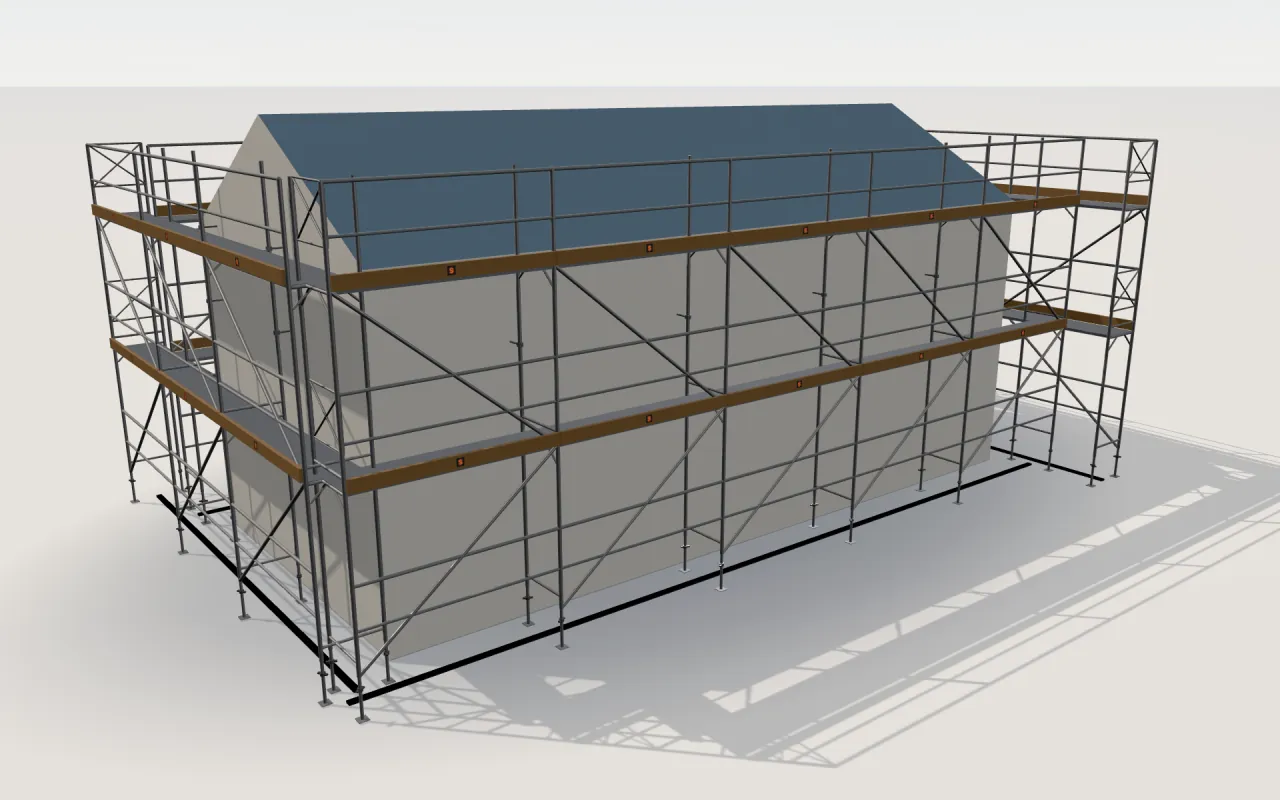

The example house with ANKA H-Tipi Cephe
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 + 3 | 11.4 m | 4.5 m | 5 × 2.5 m |
| Wall 2 + 4 (gable) | 5.3 m | 6 m | 3 × 2.5 m |
The parts list for the example house with ANKA H-Tipi Cephe
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Frames | 2 m | 40 |
| Frames | 1 m | 4 |
| Top-lift guardrail posts | 16 | |
| Decks | ||
| Decks without ladder | 2.5 m | 30 |
| Decks with ladder | 2.5 m | 2 |
| Guardrails | ||
| Front guardrails | 2.5 m | 80 |
| Toeboards | ||
| Toeboards | 2.5 m | 32 |
| Diagonals | ||
| Diagonals | 2.5 m | 32 |
| Ends | ||
| End guardrails | 8 | |
| Wall ties and fittings | ||
| Wall ties | 28 | |
| Wall-anchor fittings | 28 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
ANKA H-Tipi Cephe · Scaffold depth: 0.73 m · Decks at: 2.5 m, 4.5 m · Decks with ladders · Parts in all: 340
ANKA H-Tipi Cephe compared with similar systems on the same house
| System | Bays on the long wall | Depth | Parts in all | Against ANKA H-Tipi Cephe |
|---|---|---|---|---|
| ANKA H-Tipi Cephe | 5 × 2.5 m | 0.73 m | 340 | this page |
| Jamax | 4 × 3 m | 0.68 m | 268 | -72 (-21%) |
| Layher Blitz | 4 × 3.07 m | 0.73 m | 308 | -32 (-9%) |
| Plettac SL 70/100 | 1 × 1.5 m + 3 × 3 m + 1 × 2.5 m | 0.73 m | 316 | -24 (-7%) |
ANKA H-Tipi Cephe: parts by wall size
Scaffold depth 0.73 m, access: decks with ladders. Each wall is a whole number of 2.5 m bays, so the scaffold covers it exactly.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 5 × 4 m | 2 × 2.5 m | 1 | 6 | 2 | 6 | 6 | 32 |
| 10 × 6 m | 4 × 2.5 m | 2 | 15 | 8 | 10 | 20 | 93 |
| 15 × 8 m | 6 × 2.5 m | 3 | 28 | 18 | 14 | 28 | 172 |
| 20 × 10 m | 8 × 2.5 m | 4 | 45 | 32 | 18 | 36 | 275 |
| 25 × 12 m | 10 × 2.5 m | 5 | 66 | 50 | 22 | 66 | 424 |
Questions about ANKA H-Tipi Cephe
How many parts does ANKA H-Tipi Cephe need for a 10 m × 6 m wall?
A 10 m long, 6 m high wall with ANKA H-Tipi Cephe (4 × 2.5 m) needs 93 parts according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 20 wall ties and fittings, with decks on 2 lifts. A 25 m wall 12 m high needs 424.
