Plettac SL 70 Alu scaffold: bay lengths, depths and parts list
ScaFix plans Plettac SL 70 Alu scaffolding with the system's own bay lengths (3 m and 2.5 m) and depth (0.74 m), draws the scaffold in 3D and works out the parts list. Below is our example house with Plettac SL 70 Alu.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
How many parts does Plettac SL 70 Alu need for a house?
ScaFix plans Plettac SL 70 Alu with the bay lengths 3 m and 2.5 m and the scaffold depth 0.74 m. On ScaFix’s 11.4 m × 5.3 m example house, scaffolded all round, Plettac SL 70 Alu needs 292 parts; Jamax needs 268 on the same house.
Try one week – €9.90See the demo house in 3DSee ScaFix
€9.90 for 7 days. Does not renew.
The system in ScaFix
- Manufacturer
- Altrad plettac assco
- System type
- Frame scaffold (facade scaffold)
- Variants in the system picker
- Plettac SL 70 Alu
- Bay lengths
- 3 m, 2.5 m
- Depths
- 0.74 m
- Source of the tie rule
- DIBt Z-8.1-29.1 plettac SL 70-Alu (extended bis 03.01.2031) Anlage B §B.5, Anlage C (3,00 m, teilweise offen: 4 m durchgehend)

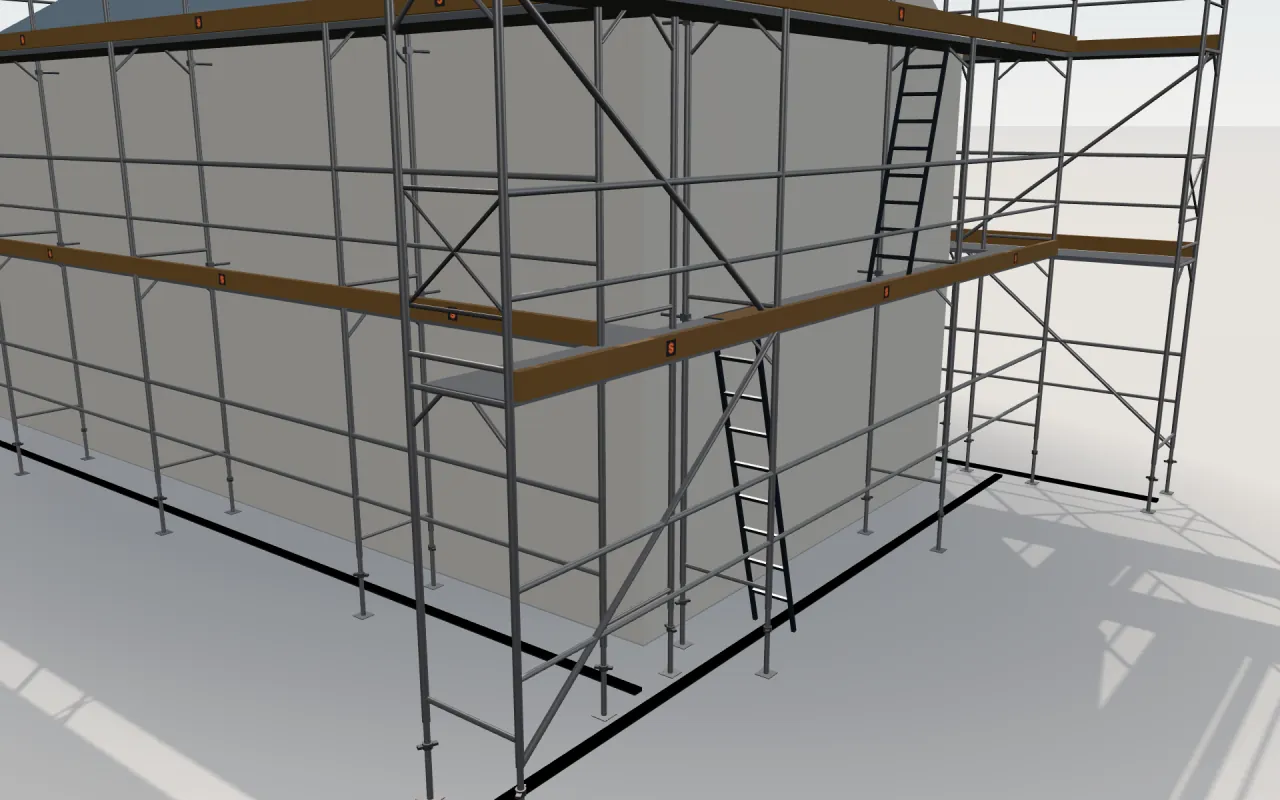

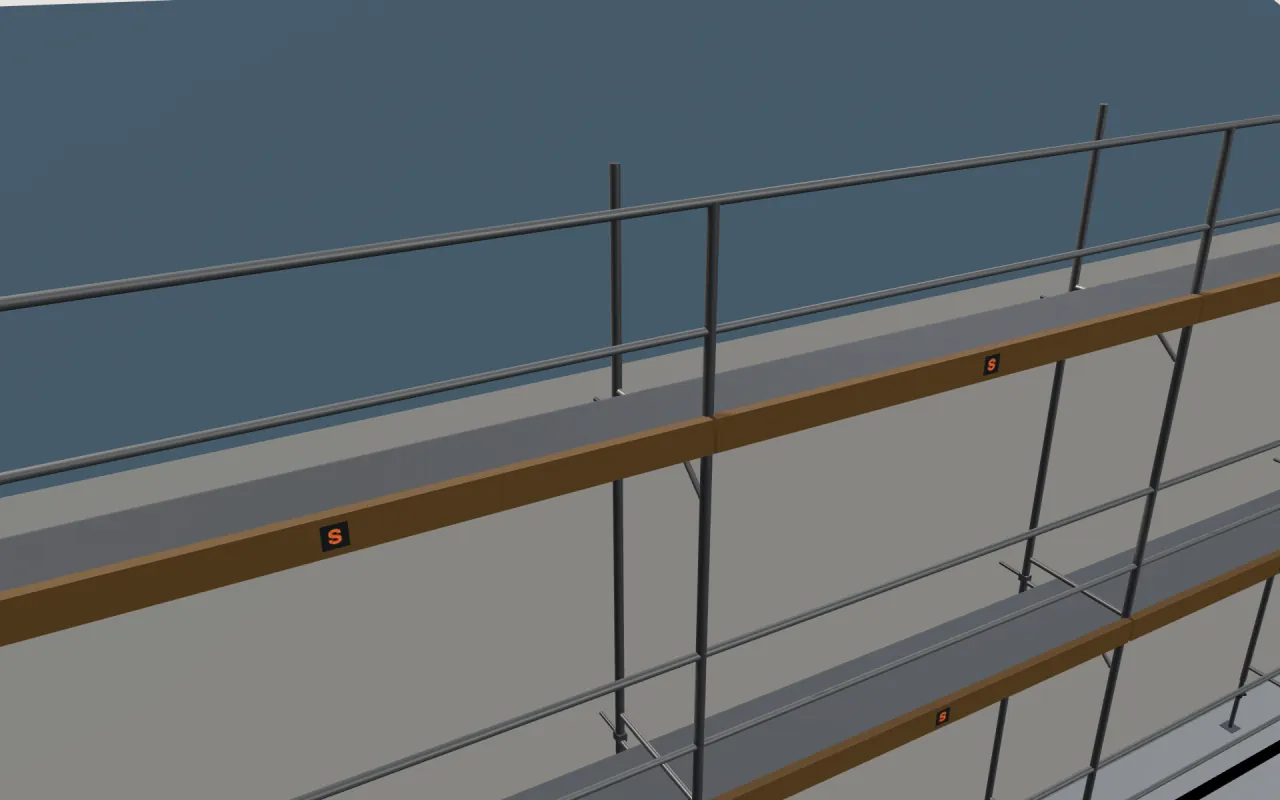

Close-ups from the 3D model

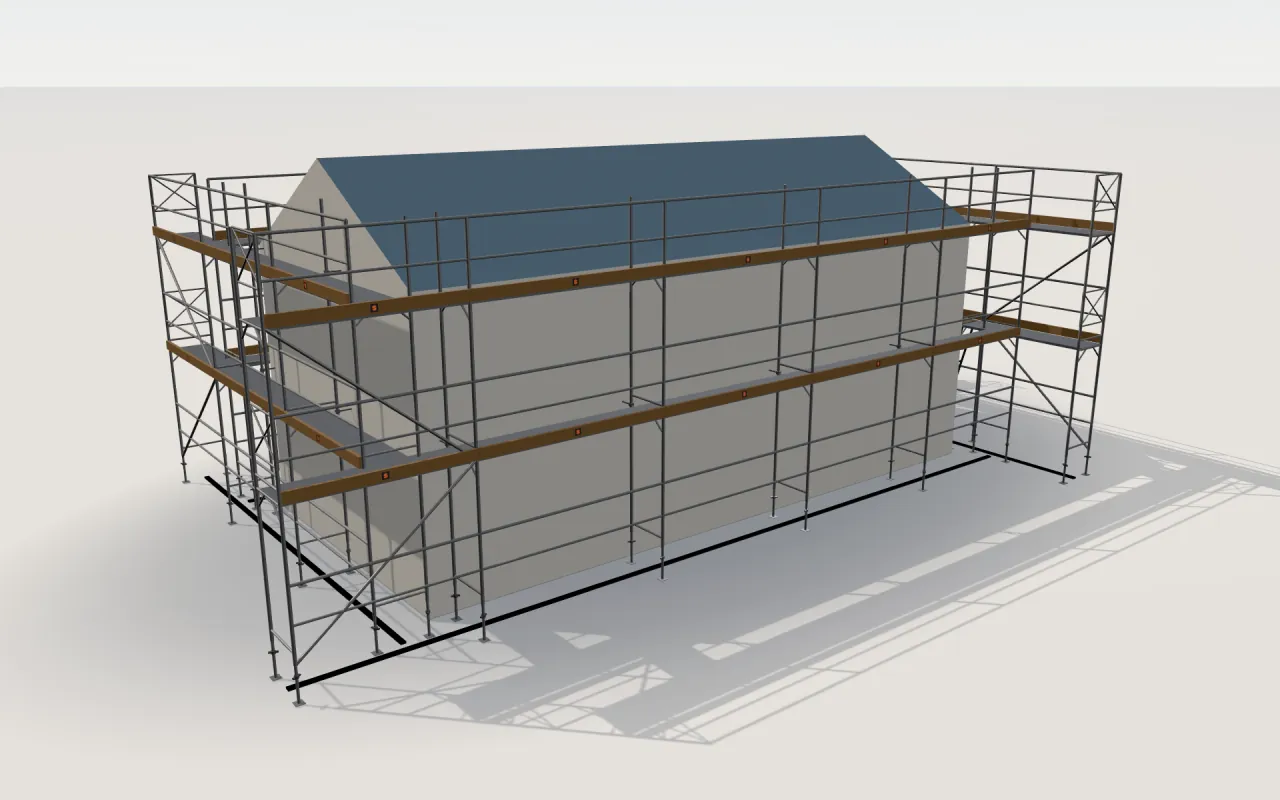

The example house with Plettac SL 70 Alu
ScaFix's own example: the 11.4 m × 5.3 m house with a gabled roof, eaves 4.5 m and ridge 6 m, scaffolded all round. The numbers below are the app's own, worked out by the same engine as in projects.
- System
- Plettac SL 70 Alu
- Scaffold depth
- 0.74 m
- Decks at
- 2.5 m, 4.5 m
- Top deck
- 4.5 m
- Access
- Decks with ladders
- Parts in all
- 292
The walls and the bays
| Wall | Length | Height | Bays |
|---|---|---|---|
| Wall 1 | 11.4 m | 4.5 m | 2 × 2.5 m + 3 × 3 m |
| Wall 2 (gable) | 5.3 m | 6 m | 2 × 2.5 m + 1 × 3 m |
| Wall 3 | 11.4 m | 4.5 m | 2 × 2.5 m + 3 × 3 m |
| Wall 4 (gable) | 5.3 m | 6 m | 2 × 2.5 m + 1 × 3 m |
The parts list for the example house with Plettac SL 70 Alu
The whole parts list for ScaFix's own example, grouped the way the app shows it.
| Part | Length | Count |
|---|---|---|
| Frames and standards | ||
| Frames | 2 m | 40 |
| Frames | 1 m | 4 |
| Top-lift guardrail posts | 16 | |
| Decks | ||
| Decks without ladder | 3 m | 14 |
| Decks without ladder | 2.5 m | 16 |
| Decks with ladder | 3 m | 2 |
| Guardrails | ||
| Front guardrails | 3 m | 24 |
| Front guardrails | 2.5 m | 24 |
| Toeboards | ||
| Toeboards | 3 m | 16 |
| Toeboards | 2.5 m | 16 |
| Diagonals | ||
| Diagonals | 2.5 m | 8 |
| Ends | ||
| End guardrails | 8 | |
| Wall ties and fittings | ||
| Wall ties | 32 | |
| Wall-anchor fittings | 32 | |
| Base jacks and legs | ||
| Base jacks / legs | 40 | |
This is our example. The parts list for your own walls follows your measurements and settings.
Plettac SL 70 Alu compared with similar systems on the same house
The same example house, computed by the same engine with each system's bay length and default depth. The difference in piece count comes from the bay length, the depth and how the system is built.
| System | Bays on the long wall | Depth | Parts in all |
|---|---|---|---|
| Plettac SL 70 Alu | 2 × 2.5 m + 3 × 3 m | 0.74 m | 292 |
| Jamax | 4 × 3 m | 0.68 m | 268 |
| Layher Blitz | 4 × 3.07 m | 0.73 m | 271 |
| Plettac SL 70/100 | 1 × 2 m + 3 × 3 m + 1 × 2.5 m | 0.73 m | 316 |
Plettac SL 70 Alu: parts by wall size
Scaffold depth 0.74 m, access: decks with ladders. Each wall is a whole number of 3 m bays, so the scaffold covers it exactly. One straight wall, no corners.
| Wall (length × height) | Bays | Decked lifts | Frames and standards | Decks | Base jacks and legs | Wall ties and fittings | Parts in all |
|---|---|---|---|---|---|---|---|
| 6 × 4 m | 2 × 3 m | 1 | 6 | 2 | 6 | 6 | 29 |
| 12 × 6 m | 4 × 3 m | 2 | 15 | 8 | 10 | 20 | 79 |
| 18 × 8 m | 6 × 3 m | 3 | 28 | 18 | 14 | 28 | 142 |
| 24 × 10 m | 8 × 3 m | 4 | 45 | 32 | 18 | 54 | 237 |
| 30 × 12 m | 10 × 3 m | 5 | 66 | 50 | 22 | 66 | 334 |
How to compare the setup
- These are fixed ScaFix examples, not customer jobs. Use the wall dimensions and roof shape stated with each example.
- Compare the same system variant, bay lengths, scaffold depth, deck heights and access. Matching house dimensions alone do not give matching parts lists.
- The displayed quantities are calculated by ScaFix's engine. Check the setup against the manufacturer's assembly instructions and the actual job; a parts list is not a structural calculation.
Limits
- The number of wall ties follows the system's tie rule. Their positions must be checked against the manufacturer's assembly instructions.
- Round corners, silos and hanging scaffolds are in Pro. A round scaffold is not a standard configuration and needs a calculation or the supplier's documentation. A hanging scaffold (Layher Allround and HAKI Universal) always needs a structural calculation from the supplier or an engineer.
Questions and answers
Which bay lengths does Plettac SL 70 Alu have in ScaFix?
ScaFix uses the bay lengths 3 m and 2.5 m and the depth 0.74 m for Plettac SL 70 Alu.
How many parts does the example house need with Plettac SL 70 Alu?
With Plettac SL 70 Alu, the 11.4 m × 5.3 m example house needs 292 parts in all, split into the groups in the table. Your own building gets its own parts list.
How many parts does Plettac SL 70 Alu need for a 12 m × 6 m wall?
A 12 m long, 6 m high wall with Plettac SL 70 Alu (4 × 3 m) needs 79 parts in all according to ScaFix: 15 frames and standards, 8 decks, 10 base jacks and legs and 20 wall ties and fittings, with decks on 2 lifts. A 30 m wall 12 m high needs 334.
Is the Plettac SL 70 Alu plan from ScaFix approved for erection?
ScaFix is a planning tool, not a structural calculation or approval. Always check the scaffold against the manufacturer's assembly instructions and the rules that apply before you erect it.
