Lyte HiLyte 500 3T mobile tower

Lyte HiLyte 500 3T: 4 platform sizes and platform heights up to 12.2 m indoors and 8.2 m outdoors (EN 1004-1 class 3). ScaFix reads every set-up from the manufacturer's assembly and use instructions — it never interpolates a height or scales a table.

By Ole Emil Frikstad Urstad · How the numbers are computed · Last updated 23 October 2026

Try one week – €9.90 See the demo house in 3D See ScaFix

€9.90 for 7 days. Does not renew.

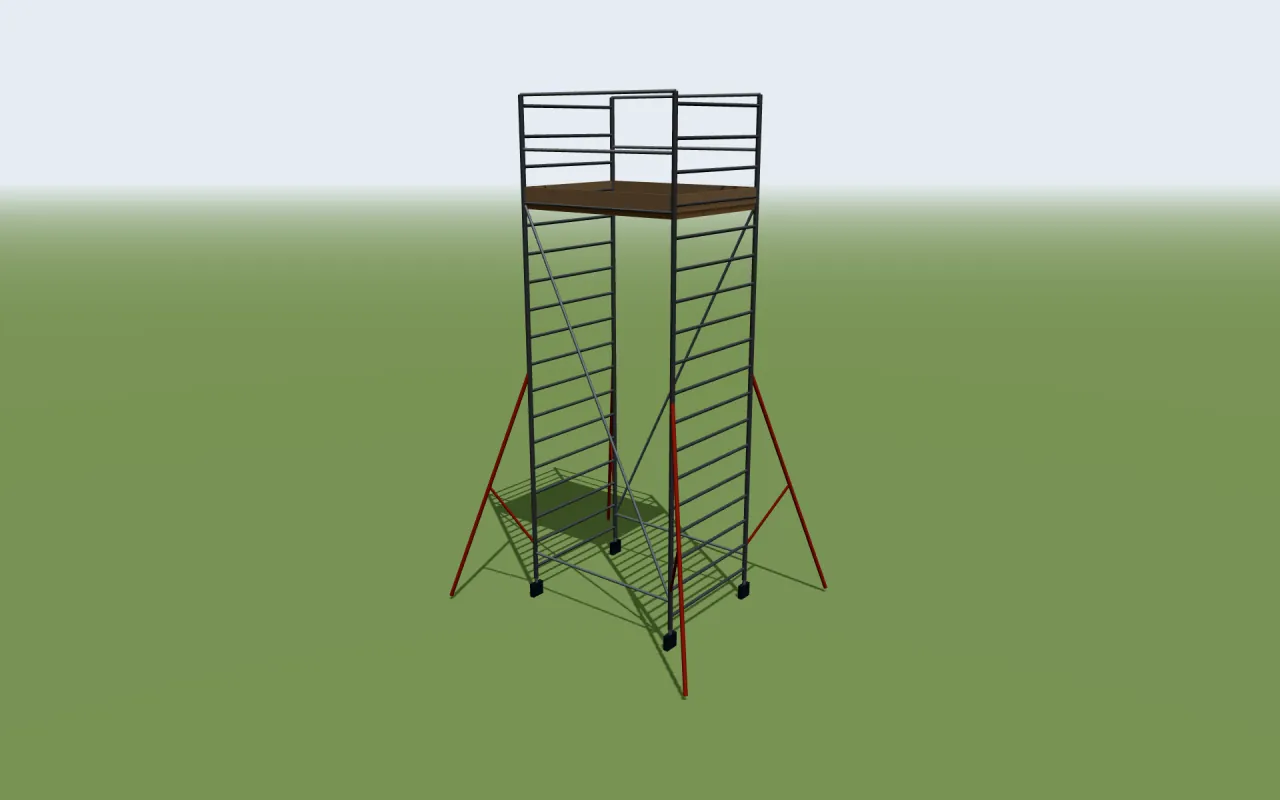

Lyte HiLyte 500 3T mobile tower, drawn from the manufacturer's table.

How many parts does a Lyte HiLyte 500 3T mobile tower at 4.2 m need?

At 4.2 m platform height (outdoors) on the 1.8 m, double width platform, the manufacturer's table lists 42 parts: Frames 6, Platforms 3, Braces 17, Toe boards 4, Castors and base 8, Stabilisers 4. The table calls for 4 stabilisers. No ballast.

Platform heights in the manufacturer's tables

Each cell is the range of platform heights the manual has a row for, with the number of rows. ScaFix offers exactly these rows and no others.

Platform heights in the manufacturer's tables
Platform	Indoors	Outdoors	Rows
1.8 m, double width	2.2–12.2 m (21)	2.2–8.2 m (13)	21 rows
2.5 m, double width	2.2–12.2 m (21)	2.2–8.2 m (13)	21 rows
1.8 m, single width	2.2–12.2 m (21)	2.2–8.2 m (13)	21 rows
2.5 m, single width	2.2–12.2 m (21)	2.2–8.2 m (13)	21 rows

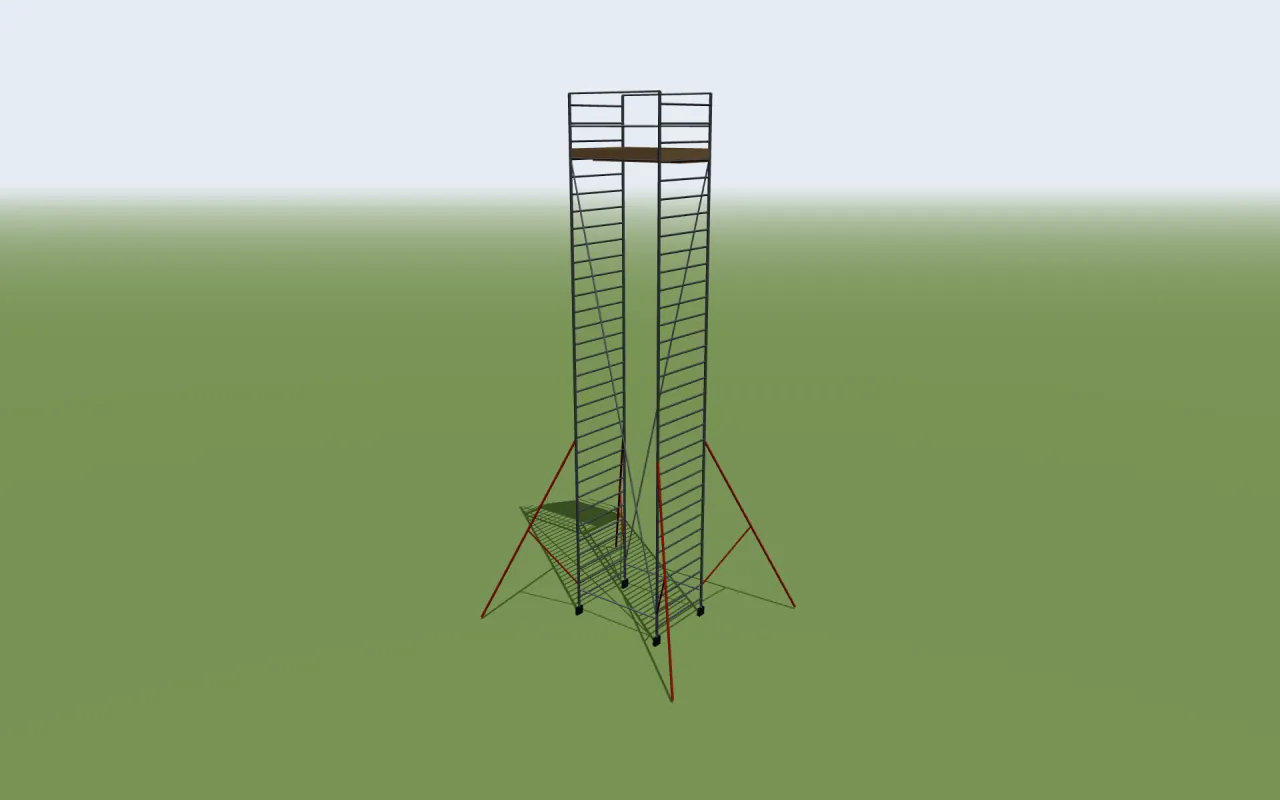

Lyte HiLyte 500 3T mobile tower at its tallest set-up in the manufacturer's table, in the ScaFix 3D model — The tallest Lyte HiLyte 500 3T set-up the table offers.

Parts list: Lyte HiLyte 500 3T at 4.2 m (outdoors)

The manufacturer's table for this row, with stabilisers and ballast weights; the part names are the manufacturer's.

Parts list: Lyte HiLyte 500 3T at 4.2 m (outdoors)
Group	Article no.	Part	Qty
Frames	–	2 rung ladder frame DW	1
Frames	–	4 rung ladder frame DW	2
Frames	–	2 rung span frame DW	1
Frames	–	4 rung span frame DW	2
Platforms	–	1.8m Hatch Deck	2
Platforms	–	1.8m Standard Deck	1
Braces	–	2.1m Diagonal Brace	7
Braces	–	1.8m Horizontal Brace	10
Toe boards	–	Double width toeboard end (1.2m End Toeboard in weight list?)	2
Toe boards	–	1.8m Side Toeboard	2
Castors and base	–	150mm dual locking castor	4
Castors and base	–	Adjustable leg	4
Stabilisers	–	Standard stabiliser	4

Limits that apply

EN 1004-1: the manufacturer's maximum platform height governs — 12.2 m indoors and 8.2 m outdoors for this tower. Never move the tower with people or materials on it, and lock the castors before use.
ScaFix lists the parts from the manufacturer's tables. It is not a structural approval: the assembly and use instructions on site govern, and a competent person inspects the tower.

Sources

The manufacturer's documents (Lyte HiLyte 500 IM) and the standard, read on 23 October 2026.

Questions and answers

How high can a Lyte HiLyte 500 3T go?

Up to 12.2 m platform height indoors and 8.2 m outdoors, as the manufacturer's tables allow. Higher set-ups are not offered.

Does a Lyte HiLyte 500 3T need stabilisers or ballast?

It depends on the height, the platform and indoor or outdoor use: the table row says. At 4.2 m outdoors: The table calls for 4 stabilisers. No ballast.

Does ScaFix approve the tower?

No. ScaFix gives the parts list from the manufacturer's tables; it is not a structural approval. Follow the assembly instructions on site.
