Mobile tower

Euro Towers Euro 250 3T mobile tower

Name: Euro Towers Euro Towers Euro 250 3T
Brand: Euro Towers

Euro Towers Euro 250 3T: 6 platform sizes and platform heights up to 12.2 m indoors and 8.2 m outdoors (EN 1004-1 class 3). ScaFix reads every set-up from the manufacturer's assembly and use instructions — it never interpolates a height or scales a table.

By Ole Emil Frikstad Urstad · How the numbers are computed · Last updated 23 October 2026

Try one week – €9.90 See the demo house in 3D See ScaFix

€9.90 for 7 days. Does not renew.

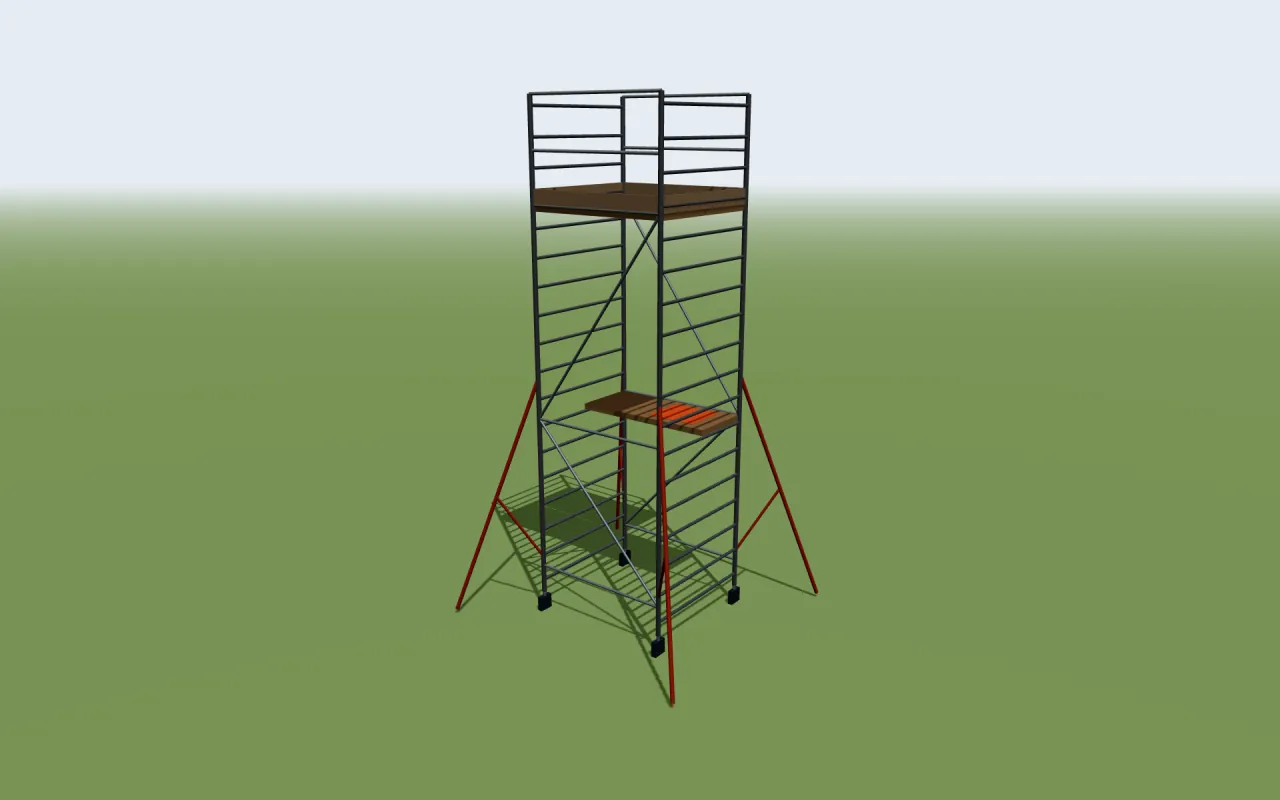

Euro Towers Euro 250 3T mobile tower, drawn from the manufacturer's table.

How many parts does a Euro Towers Euro 250 3T mobile tower at 4.2 m need?

At 4.2 m platform height (outdoors) on the 1.5 m, double width platform, the manufacturer's table lists 40 parts, about 187 kg in total: Frames 6, Platforms 3, Braces 18, Toe boards 1, Castors and base 8, Stabilisers 4. The table calls for 4 stabilisers. No ballast.

Platform heights in the manufacturer's tables

Each cell is the range of platform heights the manual has a row for, with the number of rows. ScaFix offers exactly these rows and no others.

Platform heights in the manufacturer's tables
Platform	Indoors	Outdoors	Rows
1.5 m, double width	2.2–12.2 m (11)	2.2–8.2 m (7)	11 rows
2.5 m, double width	2.2–12.2 m (11)	2.2–8.2 m (7)	11 rows
3.2 m, double width	2.2–12.2 m (11)	2.2–8.2 m (7)	11 rows
1.5 m, single width	2.2–12.2 m (11)	2.2–8.2 m (7)	11 rows
2.5 m, single width	2.2–12.2 m (11)	2.2–8.2 m (7)	11 rows
3.2 m, single width	2.2–12.2 m (11)	2.2–8.2 m (7)	11 rows

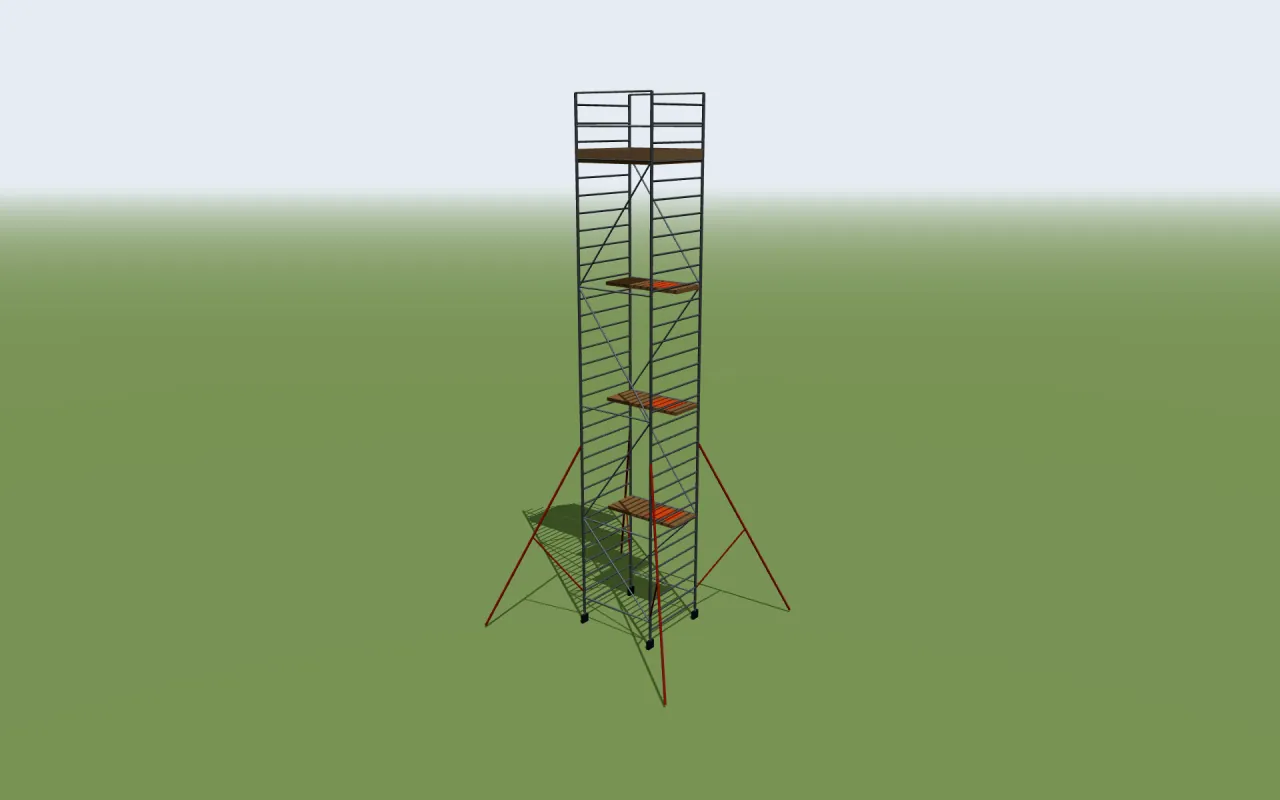

Euro Towers Euro 250 3T mobile tower at its tallest set-up in the manufacturer's table, in the ScaFix 3D model — The tallest Euro Towers Euro 250 3T set-up the table offers.

Parts list: Euro Towers Euro 250 3T at 4.2 m (outdoors)

The manufacturer's table for this row, with stabilisers and ballast weights; the part names are the manufacturer's.

Parts list: Euro Towers Euro 250 3T at 4.2 m (outdoors)
Group	Article no.	Part	Qty
Frames	FED4	4 Rung DW Frame	2
Frames	FED8	8 Rung DW Frame	4
Platforms	PEP1	1.5m Plain Platform	1
Platforms	PET1	1.5m Trap Platform	2
Braces	BED1	1.5m Diagonal Brace	8
Braces	BEH1	1.5m Horizontal Brace	10
Toe boards	TED1	1.5M DW Hinged Toe board Ass	1
Castors and base	K5CR	5" Castor	4
Castors and base	KALA	Adjustable Leg	4
Stabilisers	SKS1	Standard Stabilizer	4

Limits that apply

EN 1004-1: the manufacturer's maximum platform height governs — 12.2 m indoors and 8.2 m outdoors for this tower. Never move the tower with people or materials on it, and lock the castors before use.
Load as the manufacturer states it: Platform max 225 kg, max 2 persons
ScaFix lists the parts from the manufacturer's tables. It is not a structural approval: the assembly and use instructions on site govern, and a competent person inspects the tower.

Sources

The manufacturer's documents (Euro 250 DW guide and Euro 250 SW guide) and the standard, read on 23 October 2026.

Questions and answers

How high can a Euro Towers Euro 250 3T go?

Up to 12.2 m platform height indoors and 8.2 m outdoors, as the manufacturer's tables allow. Higher set-ups are not offered.

Does a Euro Towers Euro 250 3T need stabilisers or ballast?

It depends on the height, the platform and indoor or outdoor use: the table row says. At 4.2 m outdoors: The table calls for 4 stabilisers. No ballast.

Does ScaFix approve the tower?

No. ScaFix gives the parts list from the manufacturer's tables; it is not a structural approval. Follow the assembly instructions on site.
