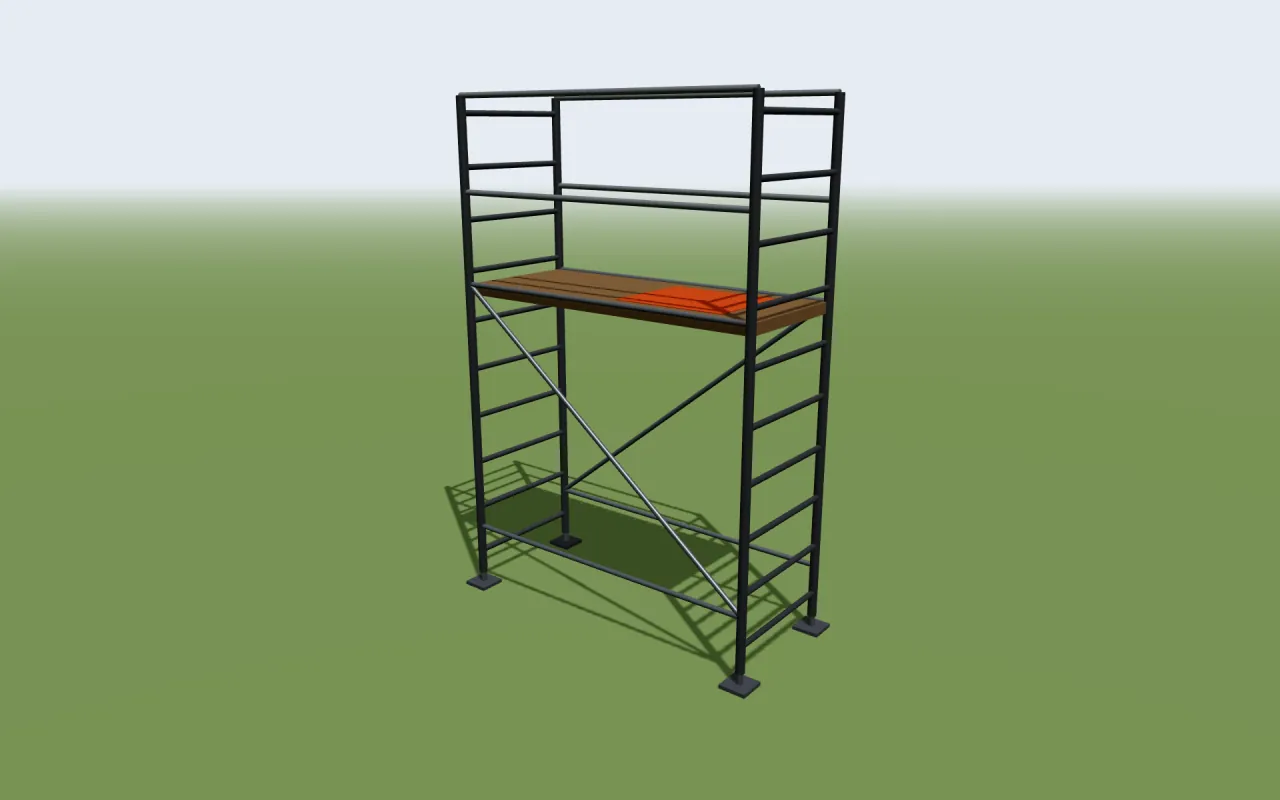

Bil-Jax Pro-Jax mobile tower
Bil-Jax Pro-Jax: 3 platform sizes and platform heights up to 17 ft (5.18 m) indoors and 17 ft (5.18 m) outdoors (OSHA 29 CFR 1926.451/452(w); Bil-Jax manual LL-204-75). ScaFix reads every set-up from the manufacturer's assembly and use instructions — it never interpolates a height or scales a table.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
Try one week – €9.90See the demo house in 3DSee ScaFix
€9.90 for 7 days. Does not renew.
How many parts does a Bil-Jax Pro-Jax mobile tower at 6 ft (1.83 m) need?
At 6 ft (1.83 m) platform height (outdoors) on the 6' × 29" platform, the manufacturer's table lists 11 parts: Frames 2, Platforms 1, Braces 2, Guardrails 2, Castors and base 4. The table calls for no stabilisers at this height. No ballast.
Platform heights in the manufacturer's tables
Each cell is the range of platform heights the manual has a row for, with the number of rows. ScaFix offers exactly these rows and no others.
| Platform | Indoors | Outdoors | Rows |
|---|---|---|---|
| 6' × 29" | 4–17 ft (1.22–5.18 m) (4) | 4–17 ft (1.22–5.18 m) (4) | 4 rows |
| 8' × 29" | 6–17 ft (1.83–5.18 m) (3) | 6–17 ft (1.83–5.18 m) (3) | 3 rows |
| 10' × 29" | 4–17 ft (1.22–5.18 m) (4) | 4–17 ft (1.22–5.18 m) (4) | 4 rows |
Parts list: Bil-Jax Pro-Jax at 6 ft (1.83 m) (outdoors)
The manufacturer's table for this row, with stabilisers and ballast weights; the part names are the manufacturer's.
| Group | Article no. | Part | Qty |
|---|---|---|---|
| Frames | – | 65 in ladder (end) frame | 2 |
| Platforms | – | 6 ft walkboard (plywood) | 1 |
| Braces | – | 6 ft arm (side) brace | 2 |
| Guardrails | – | Guard rail panel | 2 |
| Castors and base | – | 5 in caster (with 2 in snap pin) | 4 |
Limits that apply
- OSHA 29 CFR 1926.451(c)(1) and 1926.452(w): the height is at most four times the least base dimension unless the tower is restrained; nobody rides a moving tower unless 1926.452(w)(6) is met; castors are locked while in use.
- Load as the manufacturer states it: 6' length: 1,000 lb distributed; 8' and 10': 500 lb
- ScaFix lists the parts from the manufacturer's tables. It is not a structural approval: the assembly and use instructions on site govern, and a competent person inspects the tower.
Sources
The manufacturer's documents (Bil-Jax Pro-Jax manual LL-204-75 and Bil-Jax Pro-Jax packages) and the standard, read on 23 October 2026.
Questions and answers
How high can a Bil-Jax Pro-Jax go?

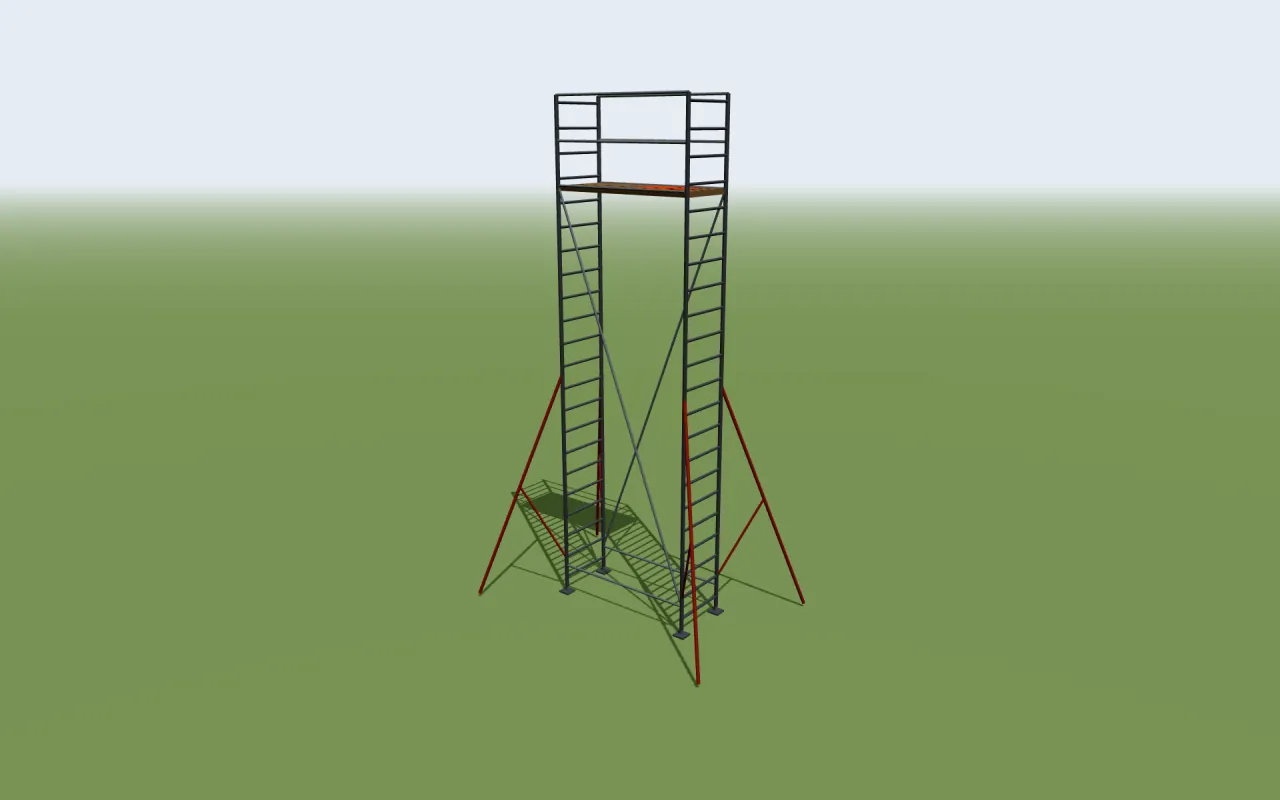

Up to 17 ft (5.18 m) platform height indoors and 17 ft (5.18 m) outdoors, as the manufacturer's tables allow. Higher set-ups are not offered.
Does a Bil-Jax Pro-Jax need stabilisers or ballast?
It depends on the height, the platform and indoor or outdoor use: the table row says. At 6 ft (1.83 m) outdoors: The table calls for no stabilisers at this height. No ballast.
Does ScaFix approve the tower?
No. ScaFix gives the parts list from the manufacturer's tables; it is not a structural approval. Follow the assembly instructions on site.
