ScaFixMobile tower
Euro Towers 232 3T mobile tower

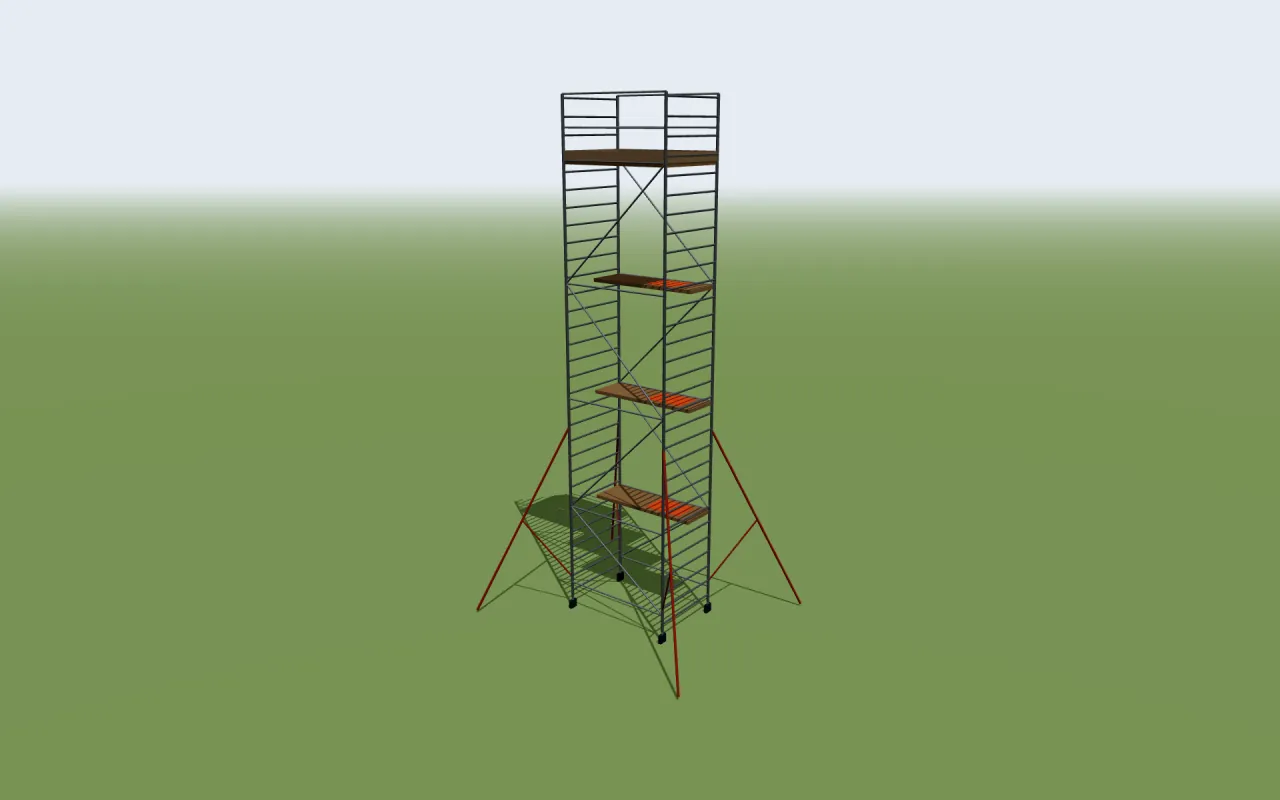

Euro Towers 232 3T: 6 platform sizes and platform heights up to 12 m indoors and 7.8 m outdoors (BS EN 1004-1 class 3 (TÜV)). ScaFix reads every set-up from the manufacturer's assembly and use instructions — it never interpolates a height or scales a table.
By Ole Emil Frikstad Urstad · How the numbers are computed ·
Try one week – €9.90See the demo house in 3DSee ScaFix
€9.90 for 7 days. Does not renew.
How many parts does a Euro Towers 232 3T mobile tower at 4.6 m need?

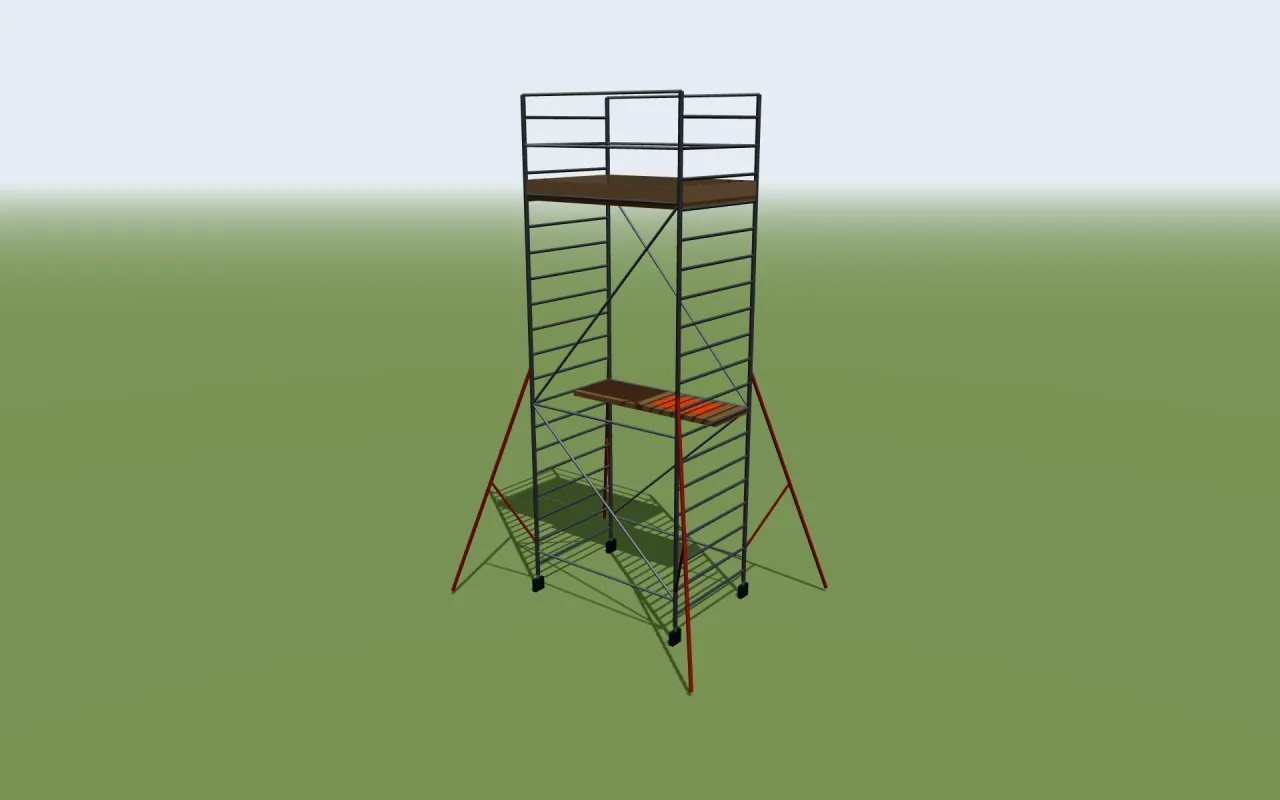

At 4.6 m platform height (outdoors) on the 2 × 1.35 m platform, the manufacturer's table lists 41 parts: Frames 6, Platforms 3, Braces 19, Toe boards 1, Castors and base 8, Stabilisers 4. The table calls for 4 stabilisers. No ballast.
Platform heights in the manufacturer's tables
Each cell is the range of platform heights the manual has a row for, with the number of rows. ScaFix offers exactly these rows and no others.
| Platform | Indoors | Outdoors | Rows |
|---|---|---|---|
| 2 × 1.35 m | 2.7–12 m (21) | 2.7–7.8 m (12) | 21 rows |
| 2.5 × 1.35 m | 2.7–12 m (21) | 2.7–7.8 m (12) | 21 rows |
| 3 × 1.35 m | 2.7–12 m (21) | 2.7–7.8 m (12) | 21 rows |
| 2 × 0.7 m | 1.8–7.8 m (14) | 1.8–7.8 m (14) | 14 rows |
| 2.5 × 0.7 m | 1.8–7.8 m (14) | 1.8–7.8 m (14) | 14 rows |
| 3 × 0.7 m | 1.8–7.8 m (14) | 1.8–7.8 m (14) | 14 rows |
Parts list: Euro Towers 232 3T at 4.6 m (outdoors)
The manufacturer's table for this row, with stabilisers and ballast weights; the part names are the manufacturer's.
| Group | Article no. | Part | Qty |
|---|---|---|---|
| Frames | FKD3/6 | 3/6 Rung Double Width Frame | 2 |
| Frames | FKD4/8 | 4/8 Rung Double Width Frame | 2 |
| Frames | FKD5/10 | 5/10 Rung Double Width Frame | 2 |
| Platforms | PKP1 | 2m Plain Platform | 1 |
| Platforms | PKT1 | 2m Trapdoor Platform | 2 |
| Braces | BKD1 | 2m Diagonal Brace | 8 |
| Braces | BKH1 | 2m Horizontal Brace | 11 |
| Toe boards | TKL1 x2 + TKDW x2 | Toeboard assembly | 1 |
| Castors and base | K5CR|K6CR|K8CR | Castor | 4 |
| Castors and base | KALA | Adjustable Leg | 4 |
| Stabilisers | SKS1 | Standard Stabilizer | 4 |
Limits that apply
- EN 1004-1: the manufacturer's maximum platform height governs — 12 m indoors and 7.8 m outdoors for this tower. Never move the tower with people or materials on it, and lock the castors before use.
- Load as the manufacturer states it: Platform max 250 kg, tower max 750 kg
- ScaFix lists the parts from the manufacturer's tables. It is not a structural approval: the assembly and use instructions on site govern, and a competent person inspects the tower.
Sources
The manufacturer's documents (Euro Towers 232 DW 3T, Euro Towers 232 SW 3T and Euro Towers Product Data 06/04/22) and the standard, read on 23 October 2026.
- https://pasma.co.uk/wp-content/uploads/2023/10/Euro-Towers-232-Double-Width-3T-instruction-manual-SEP-2022.pdf
- https://pasma.co.uk/wp-content/uploads/2023/10/Euro-Towers-232-Single-Width-3T-instruction-manual-SEP-2023.pdf
- https://www.hae.org.uk/wp-content/uploads/2024/03/Euro-Towers-Product-Data-060422.pdf
- https://pasma.co.uk/news/bs-en-1004-12020-the-new-european-standard-for-mobile-access-towers
Questions and answers
How high can a Euro Towers 232 3T go?
Up to 12 m platform height indoors and 7.8 m outdoors, as the manufacturer's tables allow. Higher set-ups are not offered.
Does a Euro Towers 232 3T need stabilisers or ballast?
It depends on the height, the platform and indoor or outdoor use: the table row says. At 4.6 m outdoors: The table calls for 4 stabilisers. No ballast.
Does ScaFix approve the tower?
No. ScaFix gives the parts list from the manufacturer's tables; it is not a structural approval. Follow the assembly instructions on site.
